Kit Includes:

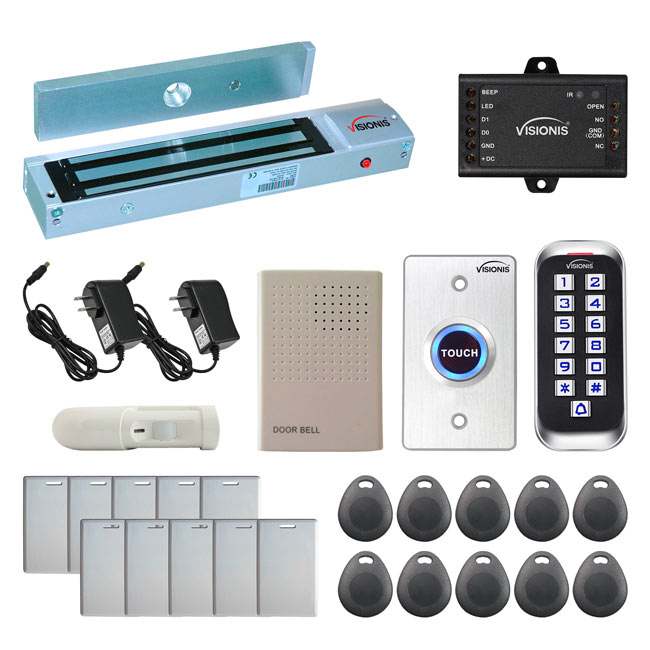

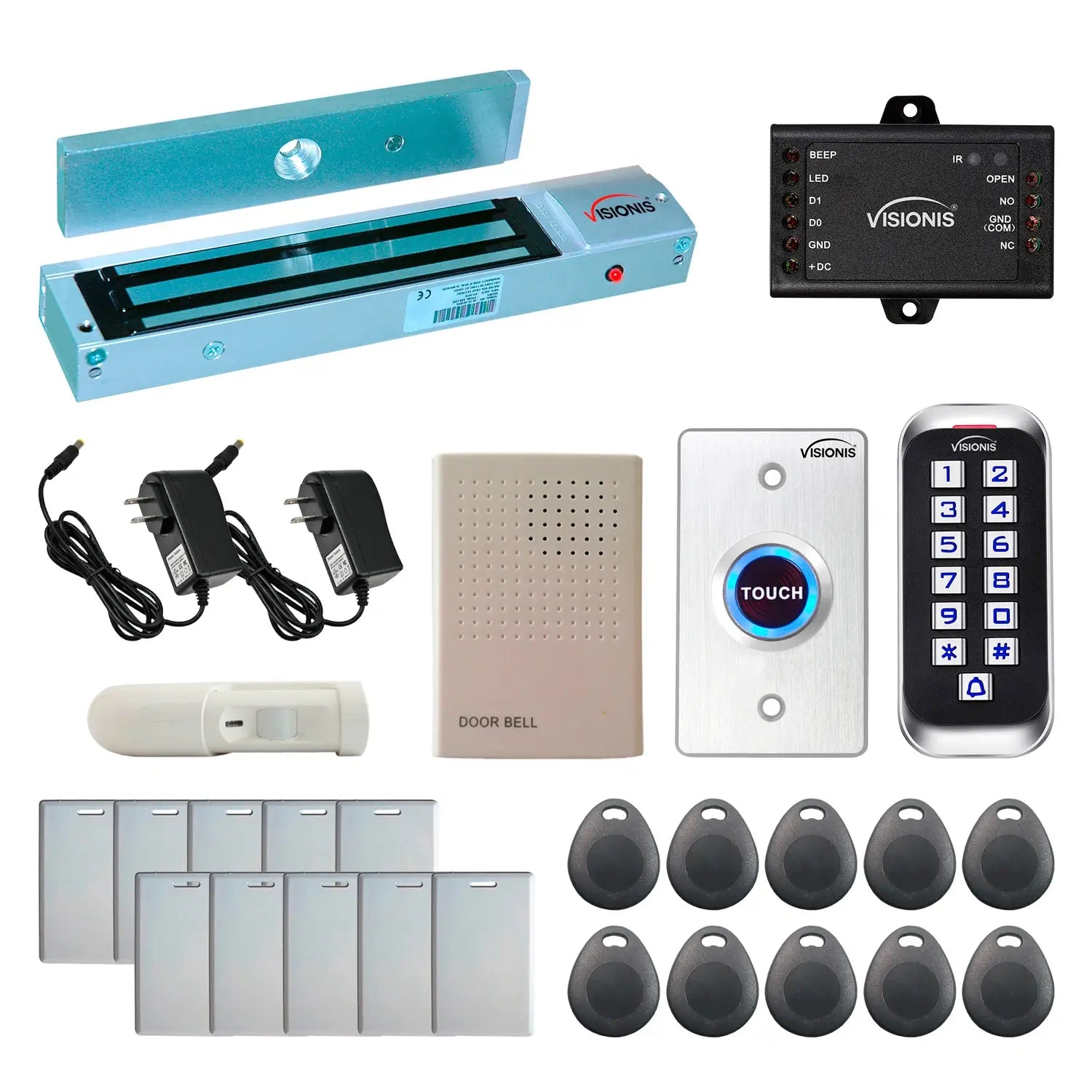

The 5642 kit is a one door 600lbs Maglock Access Control Kit for doors that open out with request to exit PIR. This system is mainly used to give access to a certain room, office or building (depending on your application) to certain people. With the outdoor slim keypad, the VIS-3005, you can gain access through three different options. You can enter a pin code onto the keypad, use a proximity card, and/or use a proximity key tag.
This keypad will allow up to 1000 users through either of the three access options. Since this is a standalone system, meaning that there is no software, it is recommended for you to keep a record of all personnel and their assigned user ID with key code, key card or key tag. On the keypad, you will notice a doorbell towards the bottom. This will allow people from the outside to ring the doorbell and notify those inside that there is someone wanting to come in. Once someone has entered a programmed code, card, or tag, the maglock will disengage and allow for entrance. The lock will then engage again and remain closed until it is unlocked by one of the three access options.
The VIS-7005 exit button will allow those from within the facility to exit when they push the button. Through the outdoor keypad, you can program your delay from 0 to 99 seconds. The meaning of having a delay is setting a time until the maglock engages again. The popular applications for this kit is for offices, commercial buildings or any room that needs restricted access. The request to exit PIR included in the kit allows for the door to unlock when it senses motion within 2.4m.
The VIS-MINI-CNTRL is a mini single door control panel that can work with any Wiegand 26~37 bits output reader. It uses Atmel microcontroller to assure stable performance, and it is equipped with an infrared remote control for easy operation. The VIS-MINI-CNTRL supports 1,000 users.
IMPORTANT:
- Professional installation is recommended.
- This kit brings a fail-safe lock which means that the lock will release when there is no power. Many states have fire codes that require this type of locking device to be used in case of an emergency. You are able to use a battery back-up UPS device only if approved by your areas fire department fire code.
- For better security the VIS-MINI-CNTRL needs to be installed inside the facility in a restricted area. This device becomes the hub of this standalone application and all the credentials are being stored on the device while no information is stored on the reader itself. Additional recommendations for added security is to add the controller within an enclosure.
- If the keypad/card reader (entry device) is tampered with, the door will remain locked. The mini controller is the one controlling and securing your locking device.
- The VIS-MINI-CNTRL offers a more secure option to provide additional security to all type of standalone access control products.
The 5642 kit is a one door 600lbs Maglock Access Control Kit for doors that open out with request to exit PIR. This system is mainly used to give access to a certain room, office or building (depending on your application) to certain people. With the outdoor slim keypad, the VIS-3005, you can gain access through three different options. You can enter a pin code onto the keypad, use a proximity card, and/or use a proximity key tag.
This keypad will allow up to 1000 users through either of the three access options. Since this is a standalone system, meaning that there is no software, it is recommended for you to keep a record of all personnel and their assigned user ID with key code, key card or key tag. On the keypad, you will notice a doorbell towards the bottom. This will allow people from the outside to ring the doorbell and notify those inside that there is someone wanting to come in. Once someone has entered a programmed code, card, or tag, the maglock will disengage and allow for entrance. The lock will then engage again and remain closed until it is unlocked by one of the three access options.
The VIS-7005 exit button will allow those from within the facility to exit when they push the button. Through the outdoor keypad, you can program your delay from 0 to 99 seconds. The meaning of having a delay is setting a time until the maglock engages again. The popular applications for this kit is for offices, commercial buildings or any room that needs restricted access. The request to exit PIR included in the kit allows for the door to unlock when it senses motion within 2.4m.
The VIS-MINI-CNTRL is a mini single door control panel that can work with any Wiegand 26~37 bits output reader. It uses Atmel microcontroller to assure stable performance, and it is equipped with an infrared remote control for easy operation. The VIS-MINI-CNTRL supports 1,000 users.
IMPORTANT:
- Professional installation is recommended.
- This kit brings a fail-safe lock which means that the lock will release when there is no power. Many states have fire codes that require this type of locking device to be used in case of an emergency. You are able to use a battery back-up UPS device only if approved by your areas fire department fire code.
- For better security the VIS-MINI-CNTRL needs to be installed inside the facility in a restricted area. This device becomes the hub of this standalone application and all the credentials are being stored on the device while no information is stored on the reader itself. Additional recommendations for added security is to add the controller within an enclosure.
- If the keypad/card reader (entry device) is tampered with, the door will remain locked. The mini controller is the one controlling and securing your locking device.
- The VIS-MINI-CNTRL offers a more secure option to provide additional security to all type of standalone access control products.
