This PRODUCT has a 3 YEAR warranty with full access to tech support in the USA!

Description

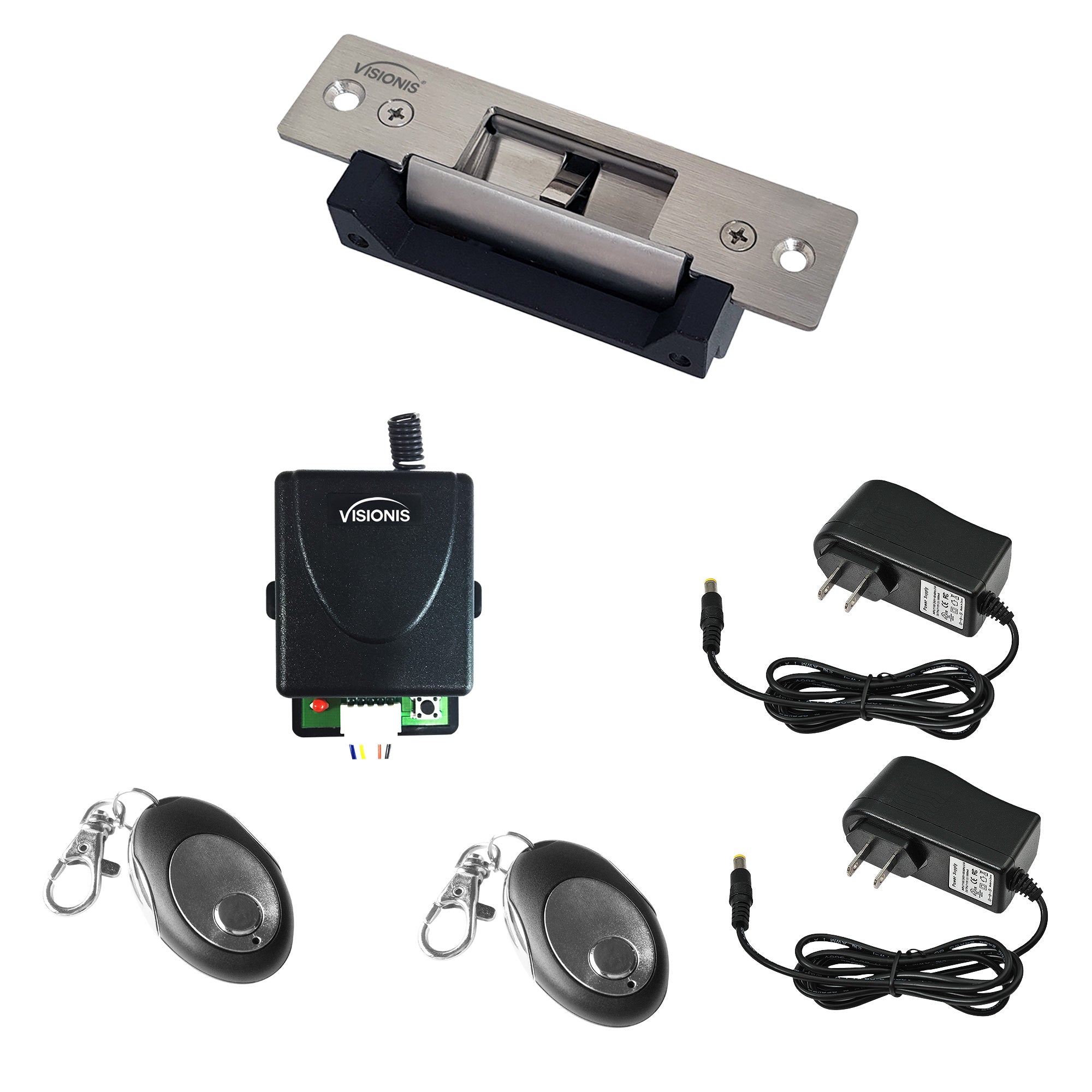

The 5446 kit is a one door electric strike buzz-in kit for door entry. The strike in this kit is adjustable between fail safe/normally closed and fail secure/normally open. It is mainly used for customers that do not want to physically get up and open the door. With this system, you will be able to let people in by clicking on the wireless RF remote, the VIS-8005. The remote communicates with the wireless receiver, which can program up to 50 remotes, and it has a range of 160 feet. There are two main features on the receiver that will allow you to program the wireless receiver in two different ways.

 The default function of the receiver is that when the power is on, the electric strike of your kit is locked and when you press the remote the strike will unlock temporarily to open the door. The other function that the receiver has is the ON/Off feature. This feature is very similar to a light switch; when you program this option you would press the remote once and the door will unlock and remain unlocked until you press the button again. When you press the remote again, the door will then lock.

Characteristics

Model No. VIS-EL104-FSESA:

  • Lock Size: 124.6Lx32.3H (mm) - 4.90Lx1.27H (in.)
  • Holding Strength: 350kg (770 pounds)
  • Voltage: 12VDC
  • Current: 12VDC - 280mA // 24VDC - 140mA
  • Feature: Fail Safe and Fail Secure Adjustable
  • Suitable For: Wooden Door, Metal Door, PVC Door
  • Cycles Tested: 300.000
  • Operating Temperature: -15°C / +40°C (5°F / 104°F)
  • Product + Packaging Weight: 0.50kg (1.10 pounds)

Model No. VIS-8004:

  • Operating Frequency: 315mhz
  • Number of Codes: 1,048,576
  • Data Format: PWM
  • Operating Voltage: +12V 24V
  • Operating Distance: Up to 160ft (50m) - The maximum range needs to be used in an open area. The distance will start to diminish based on some type of interference such as metal, concrete and others.
  • Operating Temperature: 0-70°C or 32 - 158°F
  • Current Draw: 19mA
  • Compatible Transmitter: VIS-8005
  • RF channels: One
  • No. of Remotes that are able to connect to one Receiver: Up to 50
  • Receiver Output: C dry contact (NO/NC/COM)
  • Receiver Output Functions: 4 (Default) 4 second momentary, latch, toggle (On/Off), press on function
  • Connectors: 5 screw Terminal (NO, COM, NC + -)
  • Case Construction: ABS Plastic
  • Dimensions: 62*43.5*30mm (2.44* 1.71*1.18 Inches)
  • Weight: 43g or 1.52 Ounces
  • Certifications: FCC
  • Antenna: Wire lead
  • Mounting Screws: Comes with two mounting screws
  • Warranty: 1 Year
  • Wire Harness: Included
  • Power supply: Not included (only included in the form of kits.)
Packaging of this product

Model No. VIS-8005:

  • Frequency: 315mhz
  • Chip: 1527
  • Input Voltage: 6V
  • Button Quantity: 1 button
  • Input Power: 0.06W
  • Input Current: 0.01A
  • Up to 160ft (50m) - The maximum range needs to be used in an open area. The distance will start to diminish based on some type of interference such as metal, concrete and others.
Packaging of this product

Model No. VISCP200:

  • Input Voltage Range: AC90V-264V
  • Input Frequency Range: 50Hz-60Hz
  • Output Voltage Range: DC12V+/-5%
  • Output Current: 2A
  • Output Power: 24 Watts
  • Output Ripple&Noise: ≤46MV
  • Output Efficiency: ≥79%
  • Environment Operating: -30°C~45°C 20%~90%RH
  • Environment Storage Temp.: -40°C~85°C 10%~95%RH
  • Product Dimension: 87*36.5*70mm (3.42x1.43x2.75in.)
  • Product Weight: 116g
  • Certificate: UL, CE, RoHS, FCC
Description

The 5446 kit is a one door electric strike buzz-in kit for door entry. The strike in this kit is adjustable between fail safe/normally closed and fail secure/normally open. It is mainly used for customers that do not want to physically get up and open the door. With this system, you will be able to let people in by clicking on the wireless RF remote, the VIS-8005. The remote communicates with the wireless receiver, which can program up to 50 remotes, and it has a range of 160 feet. There are two main features on the receiver that will allow you to program the wireless receiver in two different ways.

 The default function of the receiver is that when the power is on, the electric strike of your kit is locked and when you press the remote the strike will unlock temporarily to open the door. The other function that the receiver has is the ON/Off feature. This feature is very similar to a light switch; when you program this option you would press the remote once and the door will unlock and remain unlocked until you press the button again. When you press the remote again, the door will then lock.

Download Datasheets and Manuals of this product

Contact Us for Support

LET US HELP YOU WITH YOUR PURCHASE

Feel free to contact our dedicated support team if you have any questions or if you're ready to place an order.

I Need Help
Visionis by Visionis

FPC-5446 One Door Access Control 770lbs Electric Strike Fail Safe And Fail Secure Adjustable With Visionis Wireless Receiver And Remote Kit

Translation missing: en.products.product.sku:FPC-5446

UPC Code: 714131717729
Product Weight: 3.0 lb
Regular price
$113.34
Sale price
$113.34
Regular price
Shipping calculated at checkout.
Contact an Expert
Return Policy
NOTE
Order Before 3:00pm EST on a week day and your order will be shipped out the same day
Free Shipping
Free shipping with in the USA
Including Puerto Rico, Hawaii and Alaska
ATTENTION:
Before purchasing, it is recommended that the customer checks with their local fire authority to see if there is any additional product they may need in order to comply with the local fire codes. We are not responsible for the improper installation of our product(s) or any type of fees that can be incurred by not complying with your local fire authority.
