This PRODUCT has a 3 YEAR warranty with full access to tech support in the USA!

Description

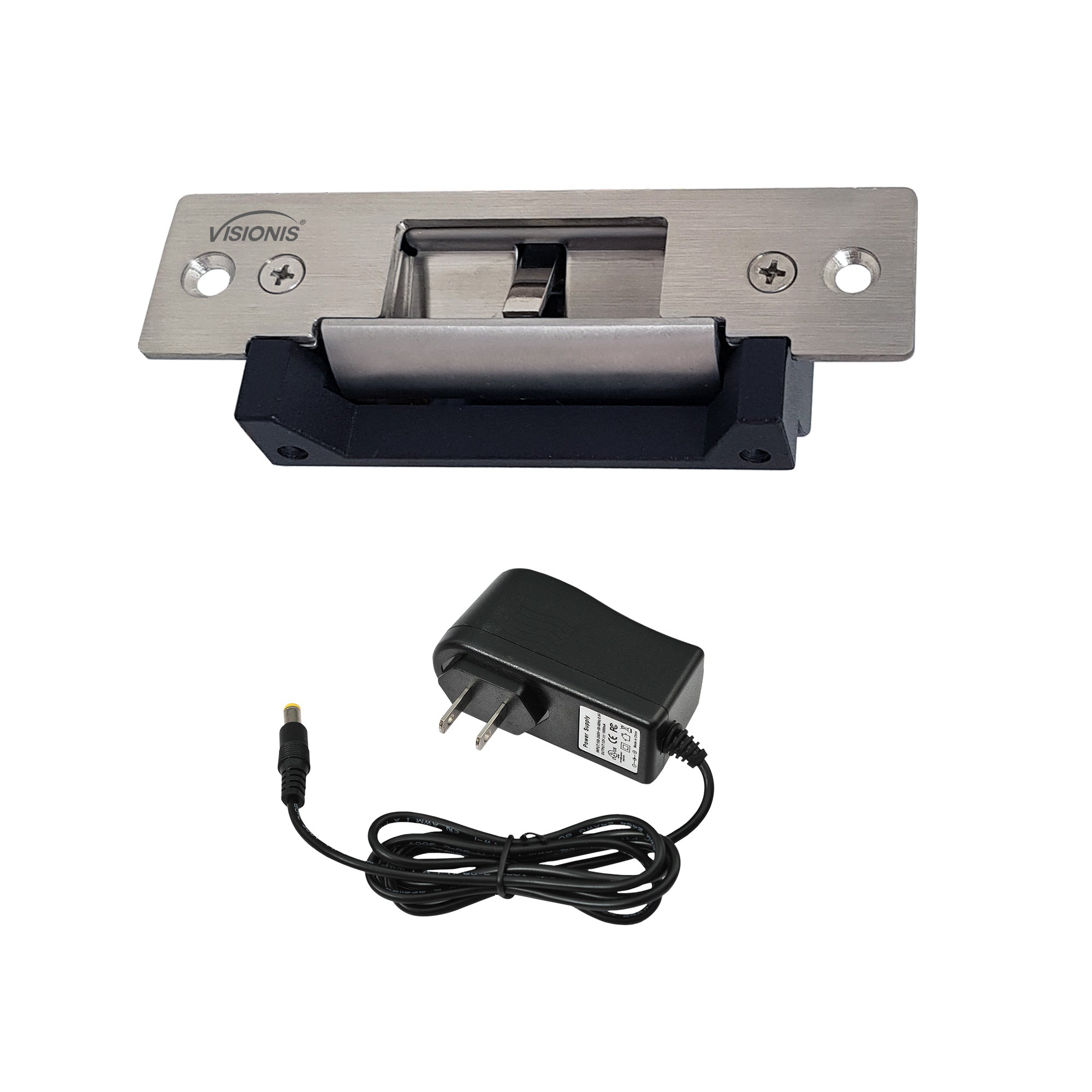

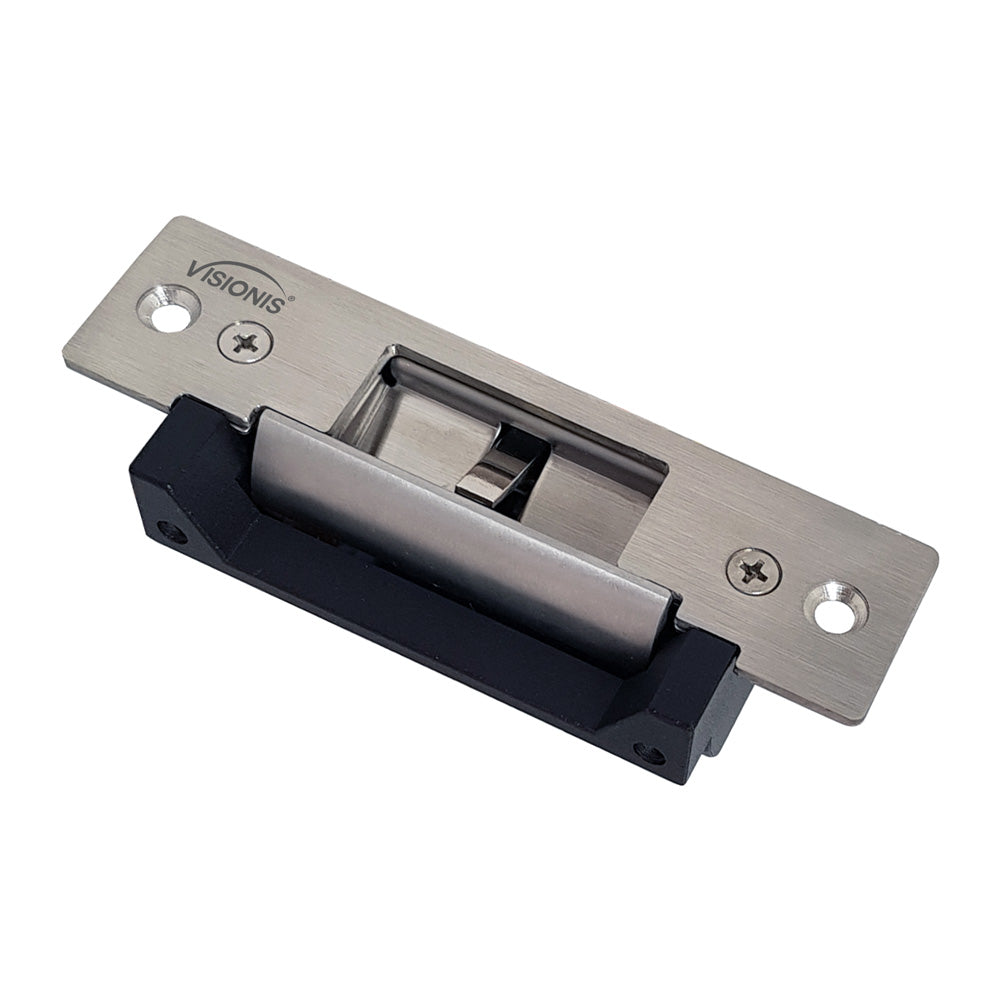

The 5394 kit has a Visionis EL104-FSESA eletric strike lock that is interchangeable between two settings and a power supply. It can be fail safe normally closed or fail secure normally open. This strike provides 770lbs of reinforcement. This model can be used on wood, metal, and PVC doors. Whether it is for a simple or advanced access control system, this strike suits multiple security needs and is reliable. The strike is installed within your door frame and used to secure your door for your access purposes.

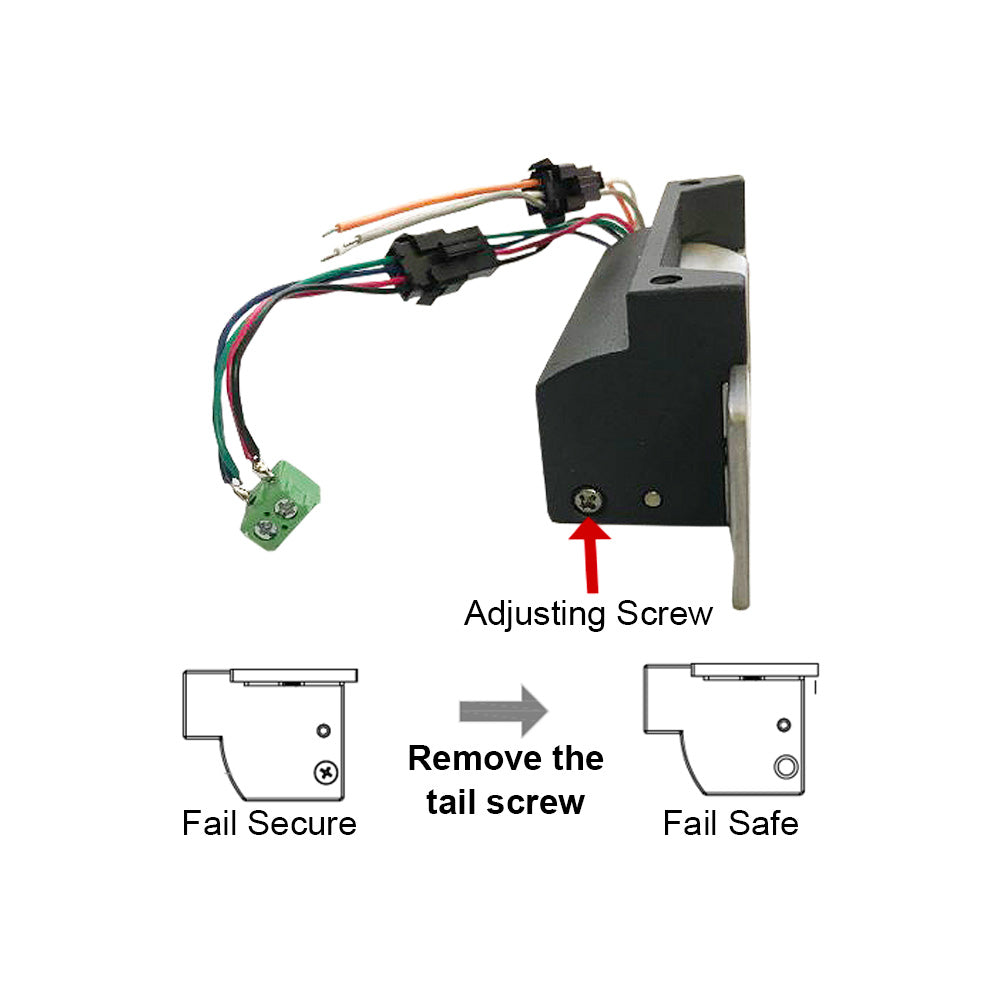

Electric strikes are great for doors, small enclosures or any area door you would like to give added security to at any time. As mentioned, this particular electric strike is interchangeable between fail safe and fail secure. Fail safe means that in the case of a power outage, the latch will disengage and the door will become unlocked. Fail secure means that in the case of a power outage, the latch will engage and the door will become locked. The power supply provided will allow you to hook it up right away.



Attention:

  • Comes with Standard USA Size for the electric strike (VIS-EL104-FSESA)
Characteristics

Model No. VIS-EL104-FSESA:

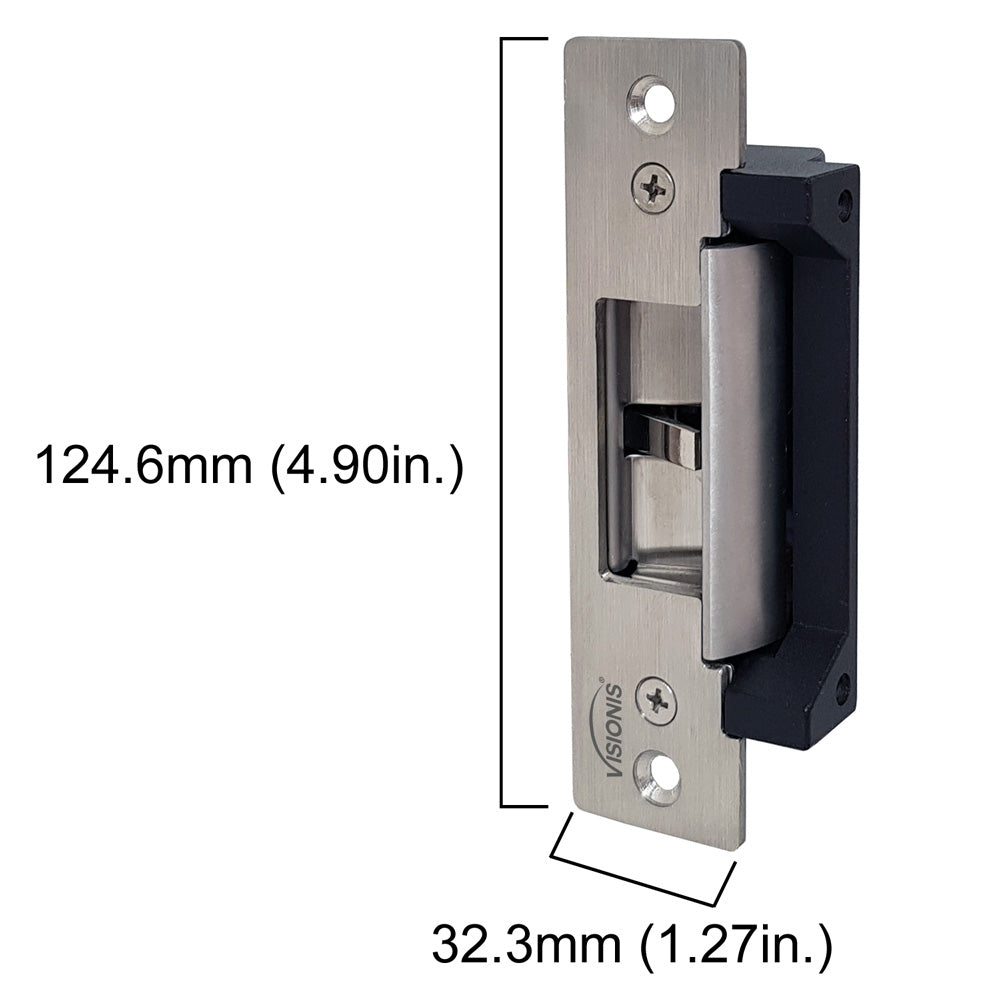

  • Lock Size: 124.6Lx32.3H (mm) - 4.90Lx1.27H (in.)
  • Holding Strength: 350kg (770 pounds)
  • Voltage: 12VDC
  • Current: 12VDC - 280mA // 24VDC - 140mA
  • Feature: Fail Safe and Fail Secure Adjustable
  • Suitable For: Wooden Door, Metal Door, PVC Door
  • Cycles Tested: 300.000
  • Operating Temperature: -15°C / +40°C (5°F / 104°F)
  • Product + Packaging Weight: 0.50kg (1.10 pounds)

Model No. VISCP200:

  • Input Voltage Range: AC90V-264V
  • Input Frequency Range: 50Hz-60Hz
  • Output Voltage Range: DC12V+/-5%
  • Output Current: 2A
  • Output Power: 24 Watts
  • Output Ripple&Noise: ≤46MV
  • Output Efficiency: ≥79%
  • Environment Operating: -30°C~45°C 20%~90%RH
  • Environment Storage Temp.: -40°C~85°C 10%~95%RH
  • Product Dimension: 87*36.5*70mm (3.42x1.43x2.75in.)
  • Product Weight: 116g
  • Certificate: UL, CE, RoHS, FCC
Description

The 5394 kit has a Visionis EL104-FSESA eletric strike lock that is interchangeable between two settings and a power supply. It can be fail safe normally closed or fail secure normally open. This strike provides 770lbs of reinforcement. This model can be used on wood, metal, and PVC doors. Whether it is for a simple or advanced access control system, this strike suits multiple security needs and is reliable. The strike is installed within your door frame and used to secure your door for your access purposes.

Electric strikes are great for doors, small enclosures or any area door you would like to give added security to at any time. As mentioned, this particular electric strike is interchangeable between fail safe and fail secure. Fail safe means that in the case of a power outage, the latch will disengage and the door will become unlocked. Fail secure means that in the case of a power outage, the latch will engage and the door will become locked. The power supply provided will allow you to hook it up right away.



Attention:

  • Comes with Standard USA Size for the electric strike (VIS-EL104-FSESA)

Download Datasheets and Manuals of this product
