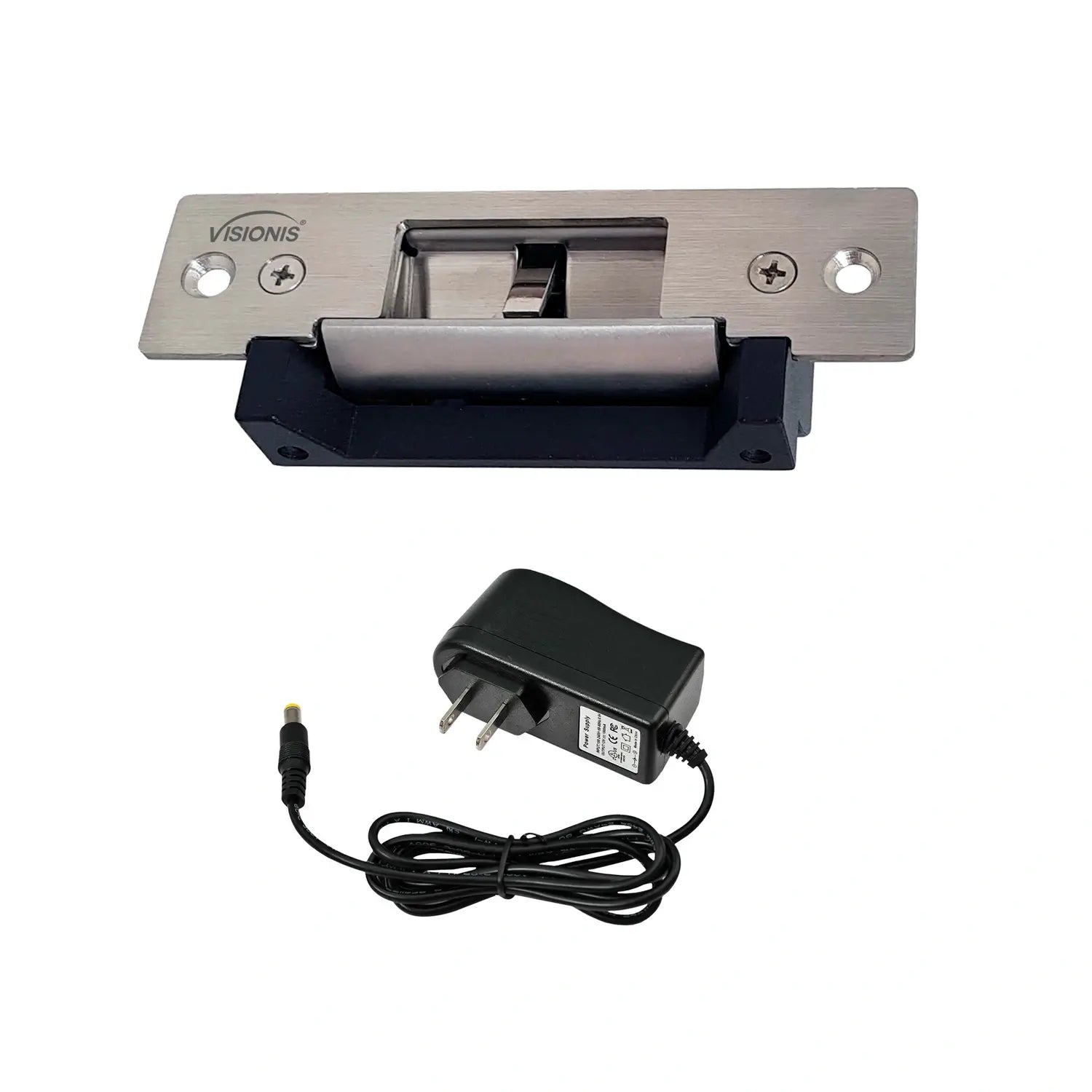

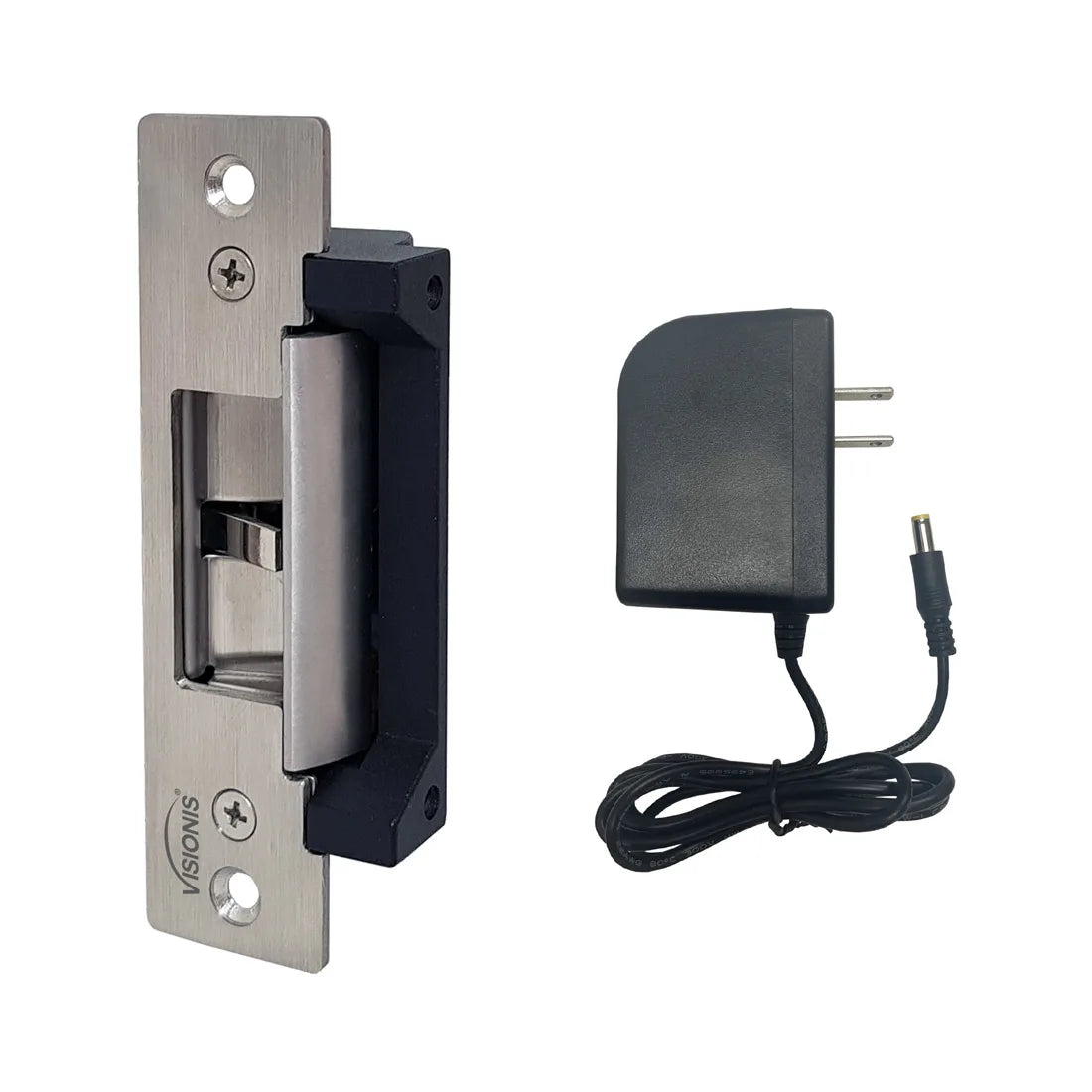

Electric door strike VIS-EL104-FSESA with power supply
Electric door strike 12V for access control - VIS-EL104-FSESA Visionis
Door strike fail safe and fail secure adjustable - VIS-EL104-FSESA Visionis
electric door strike dimensions - VIS-EL104-FSESA Visionis
Power Supply
    Electric door strike VIS-EL104-FSESA with power supply
    Electric door strike 12V for access control - VIS-EL104-FSESA Visionis
    Door strike fail safe and fail secure adjustable - VIS-EL104-FSESA Visionis
    electric door strike dimensions - VIS-EL104-FSESA Visionis
    Power Supply
Electric door strike VIS-EL104-FSESA with power supply
Electric door strike 12V for access control - VIS-EL104-FSESA Visionis
Door strike fail safe and fail secure adjustable - VIS-EL104-FSESA Visionis
electric door strike dimensions - VIS-EL104-FSESA Visionis
Power Supply
Electric door strike VIS-EL104-FSESA with power supply
Electric door strike 12V for access control - VIS-EL104-FSESA Visionis
Door strike fail safe and fail secure adjustable - VIS-EL104-FSESA Visionis
electric door strike dimensions - VIS-EL104-FSESA Visionis
Power Supply
    Electric door strike VIS-EL104-FSESA with power supply
    Electric door strike 12V for access control - VIS-EL104-FSESA Visionis
    Door strike fail safe and fail secure adjustable - VIS-EL104-FSESA Visionis
    electric door strike dimensions - VIS-EL104-FSESA Visionis
    Power Supply
Electric door strike VIS-EL104-FSESA with power supply
Electric door strike 12V for access control - VIS-EL104-FSESA Visionis
Door strike fail safe and fail secure adjustable - VIS-EL104-FSESA Visionis
electric door strike dimensions - VIS-EL104-FSESA Visionis
Power Supply

This PRODUCT has a 3 YEAR warranty with full access to tech support in the USA!

Description

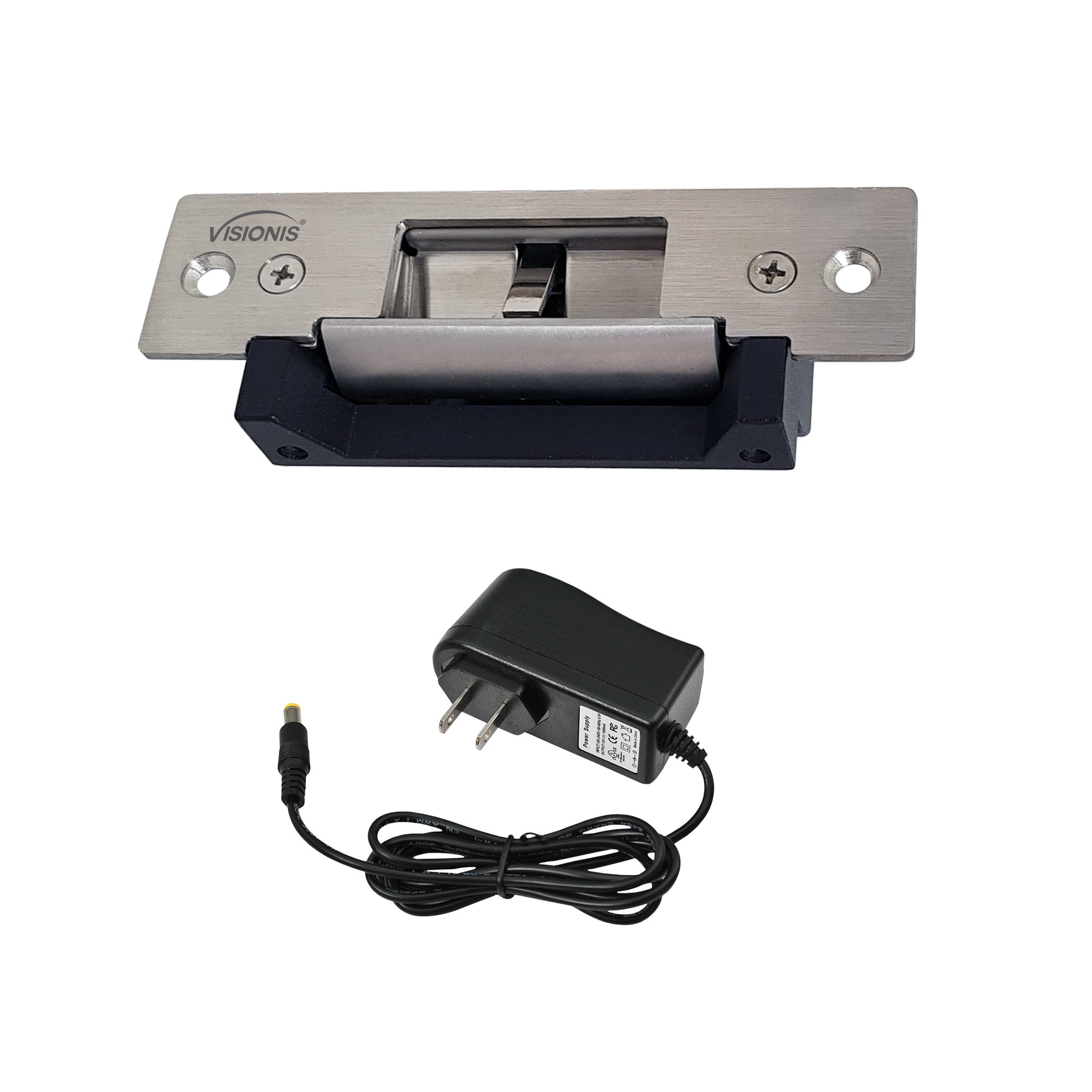

The FPC-5394 door strike kit has a Visionis VIS-EL104-FSESA eletric strike lock that is interchangeable between two settings and a power supply. It can be fail safe normally closed or fail secure normally open. This strike provides 770lbs of reinforcement.

This model can be used on wood, metal, and PVC doors. Whether it is for a simple or advanced access control system, this strike suits multiple security needs and is reliable. The strike is installed within your door frame and used to secure your door for your access purposes.

Electric strikes are great for doors, small enclosures or any area door you would like to give added security to at any time. As mentioned, this particular electric strike is interchangeable between fail safe and fail secure.

Fail safe means that in the case of a power outage, the latch will disengage and the door will become unlocked. Fail secure means that in the case of a power outage, the latch will engage and the door will become locked.

The power supply provided will allow you to hook it up right away.



Attention:

  • Comes with Standard USA Size for the electric strike (VIS-EL104-FSESA)
Characteristics

Model No. VIS-EL104-FSESA:

  • Lock Size: 124.6Lx32.3H (mm) - 4.90Lx1.27H (in.)
  • Holding Strength: 350kg (770 pounds)
  • Voltage: 12VDC
  • Current: 12VDC - 280mA // 24VDC - 140mA
  • Feature: Fail Safe and Fail Secure Adjustable
  • Suitable For: Wooden Door, Metal Door, PVC Door
  • Cycles Tested: 300.000
  • Operating Temperature: -15°C / +40°C (5°F / 104°F)
  • Product + Packaging Weight: 0.50kg (1.10 pounds)

Model No. VIS-CP200:

  • Input Voltage Range: AC90V-264V
  • Input Frequency Range: 50Hz-60Hz
  • Output Voltage Range: DC12V+/-5%
  • Output Current: 2A
  • Output Power: 24 Watts
  • Output Ripple&Noise: ≤46MV
  • Output Efficiency: ≥79%
  • Environment Operating: -30°C~45°C 20%~90%RH
  • Environment Storage Temp.: -40°C~85°C 10%~95%RH
  • Product Dimension: 87*36.5*70mm (3.42x1.43x2.75in.)
  • Product Weight: 116g
  • Certificate: UL, CE, RoHS, FCC
Description

The FPC-5394 door strike kit has a Visionis VIS-EL104-FSESA eletric strike lock that is interchangeable between two settings and a power supply. It can be fail safe normally closed or fail secure normally open. This strike provides 770lbs of reinforcement.

This model can be used on wood, metal, and PVC doors. Whether it is for a simple or advanced access control system, this strike suits multiple security needs and is reliable. The strike is installed within your door frame and used to secure your door for your access purposes.

Electric strikes are great for doors, small enclosures or any area door you would like to give added security to at any time. As mentioned, this particular electric strike is interchangeable between fail safe and fail secure.

Fail safe means that in the case of a power outage, the latch will disengage and the door will become unlocked. Fail secure means that in the case of a power outage, the latch will engage and the door will become locked.

The power supply provided will allow you to hook it up right away.



Attention:

  • Comes with Standard USA Size for the electric strike (VIS-EL104-FSESA)
  • What door types is this electric strike compatible with?

    It is designed for wood, metal, and PVC doors, making it a versatile option for both residential and commercial installations

  • Is this door strike weatherproof?

    No, this electric strike is not weatherproof. It is designed specifically for indoor use.

  • Does it have a built-in alarm?

    No, this electric door strike does not have a built-in audible alarm.

  • Can this be used for commercial purposes?

    Yes, this door strike model is ideal for commercial use, offering 770 lbs holding force, fail-secure functionality, perfect for securing interior doors in offices, retail, or restricted areas.

Download Datasheets and Manuals of this product

VIS-EL104-FSESA

Contact Us for Support

LET US HELP YOU WITH YOUR PURCHASE

Feel free to contact our dedicated support team if you have any questions or if you're ready to place an order.

I Need Help
Visionis by Visionis

Electric Door Strike for Wood and Metal Door. 770lbs (350kg) Holding Strength. Stainless Steel. 12V Fail Safe Normally Closed And Fail Secure Normally Open Adjustable + Power Supply - FPC-5394

Translation missing: en.products.product.sku:FPC-5394

UPC Code: 614961170568 Weight: 2.0 lb

  • This model can be used on wood, metal, and PVC doors.
  • Fail safe and fail secure adjustable
  • Holding Strength: 350kg (770 pounds)
  • Voltage: 12VDC
