This PRODUCT has a 3 YEAR warranty with full access to tech support in the USA!

Kit Includes:

(4)
(4)
(1)
(10)
(10)
VIS-EL104-FSESA: 770lbs Electric Door Strike for Wood and Metal Doors 12V Fail Safe Normally Closed and Fail Secure Normally Open Adjustable
VIS-3031: Indoor Access Control Biometric Fingerprint Reader Standalone + TCP/IP + Wiegand 26 + 3000 EM Cards or Fingerprints + Time and Attendance
VS-AXESS-4D-ETL: Four Doors + Network Access Control Panel + Controller Board With Cabinet + TCP IP + Wiegand With Desktop Software + 20,000 Users, 70,000 Records
VS-VIS-APROXCARD/26: Access Control Proximity Contactless Smart Entry Card 1.8mm Thick 26 Bit 125khz
VIS-AKEYTAG: Access Control Proximity Contactless Smart Entry Keyfob 26 Bit 125khz
Description

Attention:

  • These access control panels (Version 2.0) are only compatible with access control panels (Version 2.0) and with the Titan VSAxess software. They are not compatible with access control panels (Version 1.0) nor with VSAxess software.
  • Includes CD software
  • Power supply and power cord included
  • Install wires are not included
  • This software is not compatible with MAC computers, only with Microsoft.
Characteristics

Model No. VIS-EL104-FSESA:

  • Lock Size: 124.6Lx32.3H (mm) - 4.90Lx1.27H (in.)
  • Holding Strength: 350kg (770 pounds)
  • Voltage: 12VDC
  • Current: 12VDC - 280mA // 24VDC - 140mA
  • Feature: Fail Safe and Fail Secure Adjustable
  • Suitable For: Wooden Door, Metal Door, PVC Door
  • Cycles Tested: 300.000
  • Operating Temperature: -15°C / +40°C (5°F / 104°F)
  • Product + Packaging Weight: 0.50kg (1.10 pounds)

Model No. VIS-3031:

  • Standalone Application: The unit needs to be connected to the ethernet so you can use the software and add fingerprints.
  • Communication: TCP/IP
  • Working Voltage: DC12V±10%/1A
  • Users / Records: 3.000 / 70.000
  • Recognition Mode: RFID Fingerprint
  • Wiegand Input: 1
  • Wiegand: 26 - 34
  • Exit Button Input: 1
  • Door-magnet Input: 1
  • Alarm Output / Input: 1 / 1
  • Lock Control Output: 1
  • Refusal Rate: < 0.01%
  • Fales Rate: < 0.0001%
  • Working Humidity: 20% ~ 60%
  • Working Temperature: -10°C ~ 45°C (14°F ~ 113°F)
  • Size: 122Lx77Wx45H (mm) - 4.80Lx3.03Wx1.77H (in.)

Model No. VS-AXESS-4D-ETL-version2:

  • Arm 7 processor, RTOS system, new PCB circuit design
  • Advanced access control function, including multi-card, first card, interlock and anti-passback etc.
  • Multiple authentication mode, it supports card, password, card + code and fingerprint.
  • TCP/IP communication mode, there is 5 SOCKET port.
  • Optical coupling isolation protection, more stable
  • Record capacity can be extended, it can be 130,000pcs
  • Alarm linkage and relay self-defined.
  • Access Mode: It supports card, card+ password, card or password, password
  • Event Type: Legal card, illegal card, anti-passback, exit button, password, threaten code
  • Alarm Event Type: Door-magnet alarm, self-defined alarm, threaten code alarm
  • Linkage Function: All event and alarm can linkage any or multiple relay output
  • Access Group: 200 group
  • Holiday Schedule: 300
  • User Capacity: 20000
  • Record Capacity: 70000
  • Reader Port: 4
  • Exit Button Port: 4
  • Door-magnet Port: 4
  • Lock Output: 4
  • Door-magnet Alarm Output: 1
  • Self-defined Alarm Output: 1
  • Self-defined Alarm Input: 4
  • Communication Port: 10/100MTCP/IP, 1 extension RS485 communication port
  • Input Protection: Opto-isolator protection
  • Output Protection: Varistor Protection
  • Extension Function: It supports LED displayer, alarm host and so on
Description

Attention:

  • These access control panels (Version 2.0) are only compatible with access control panels (Version 2.0) and with the Titan VSAxess software. They are not compatible with access control panels (Version 1.0) nor with VSAxess software.
  • Includes CD software
  • Power supply and power cord included
  • Install wires are not included
  • This software is not compatible with MAC computers, only with Microsoft.

Compatible Software

TITAN VSAXESS is a powerful and complete Access control management software for Visionis products for a our second generation of Access Control Panels.

DOWNLOAD SOFTWARE

Screenshots Examples of the Software

Click the image to open a bigger version

Download Datasheets and Manuals of this product

Contact Us for Support

LET US HELP YOU WITH YOUR PURCHASE

Feel free to contact our dedicated support team if you have any questions or if you're ready to place an order.

I Need Help
Visionis by Visionis

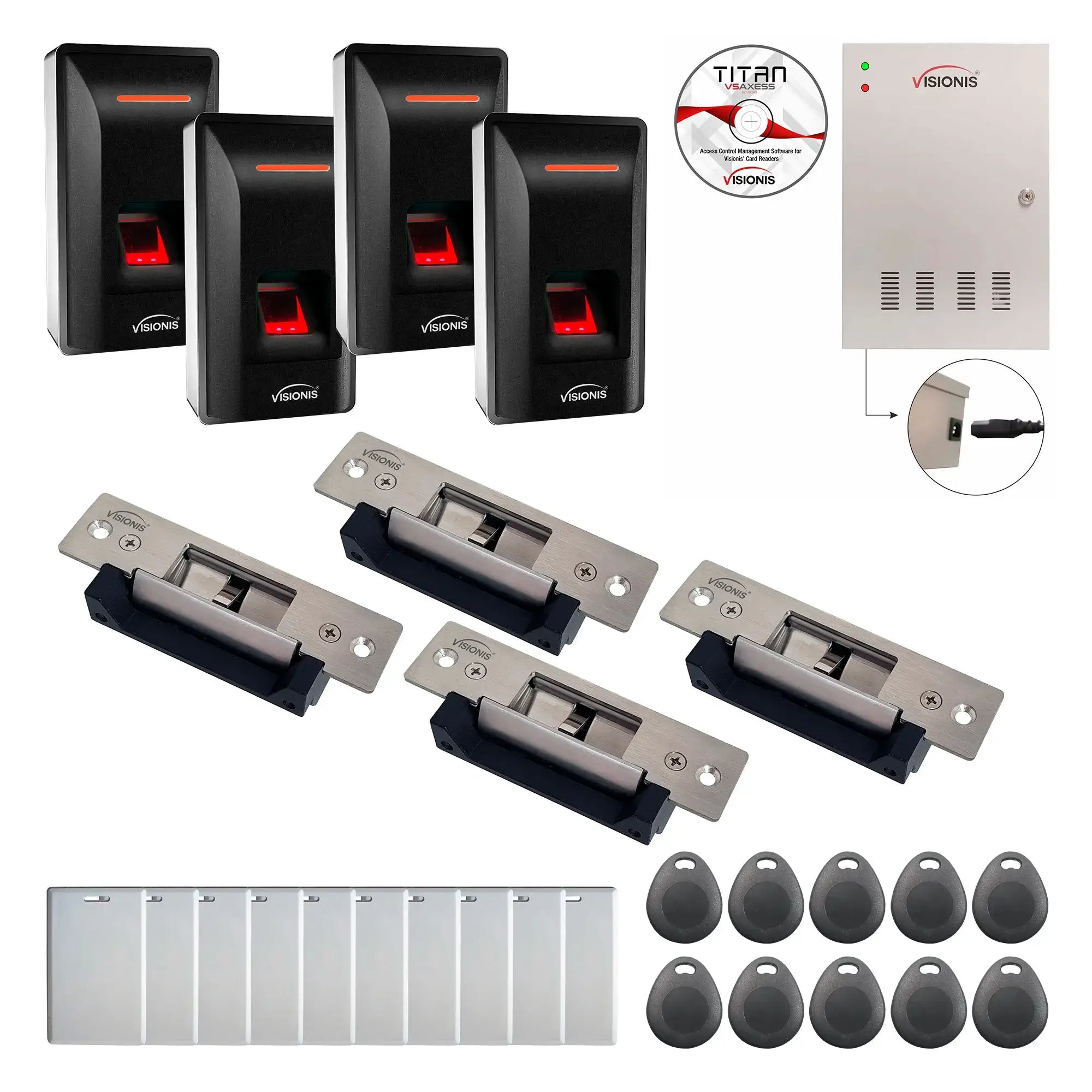

FPC-9303 4 Doors Access Control Electric Strike Fail Safe / Fail Secure Time Attendance TCP/IP Wiegand Controller Box, Indoor Biometric Fingerprint Reader, EM Compatible, Software, 20000 Users Kit

FPC-9303

UPC Code: 734598807702
Product Weight: 8.0 lb
$1,278.17
$1,278.17
Shipping calculated at checkout.

In Stock
Phone Support Icon

Phone Life-Time Technical Support

Return Policy Icon

30-Day No Questions Return Policy

Free Shipping Icon

*Free Shipping within the USA

Contact an Expert
Return Policy
NOTE
Order Before 3:00pm EST on a week day and your order will be shipped out the same day
Free Shipping
*Free shipping within the USA
Including Puerto Rico, Hawaii and Alaska

Popup Title

Popup description
ATTENTION:
Before purchasing, it is recommended that the customer checks with their local fire authority to see if there is any additional product they may need in order to comply with the local fire codes. We are not responsible for the improper installation of our product(s) or any type of fees that can be incurred by not complying with your local fire authority.
