Entry and Deluxe Access Control Panels Main Features - VISIONIS

Visionis ETL Access Control Panel Wiring - VIS-AXESS-2D-ETL, VIS-AXESS-4D-ETL

Visionis TITAN VSAXESS Access Control Desktop Software

Two Doors + Network Access Control Panel + Controller Board With Cabinet VIS-AXESS-2D-ETL

VIS-3031: Standalone biometric fingerprint and card reader with time & attendance tracking

Dimensions VIS-3031: Standalone biometric fingerprint and card reader

This PRODUCT has a 3 YEAR warranty with full access to tech support in the USA!

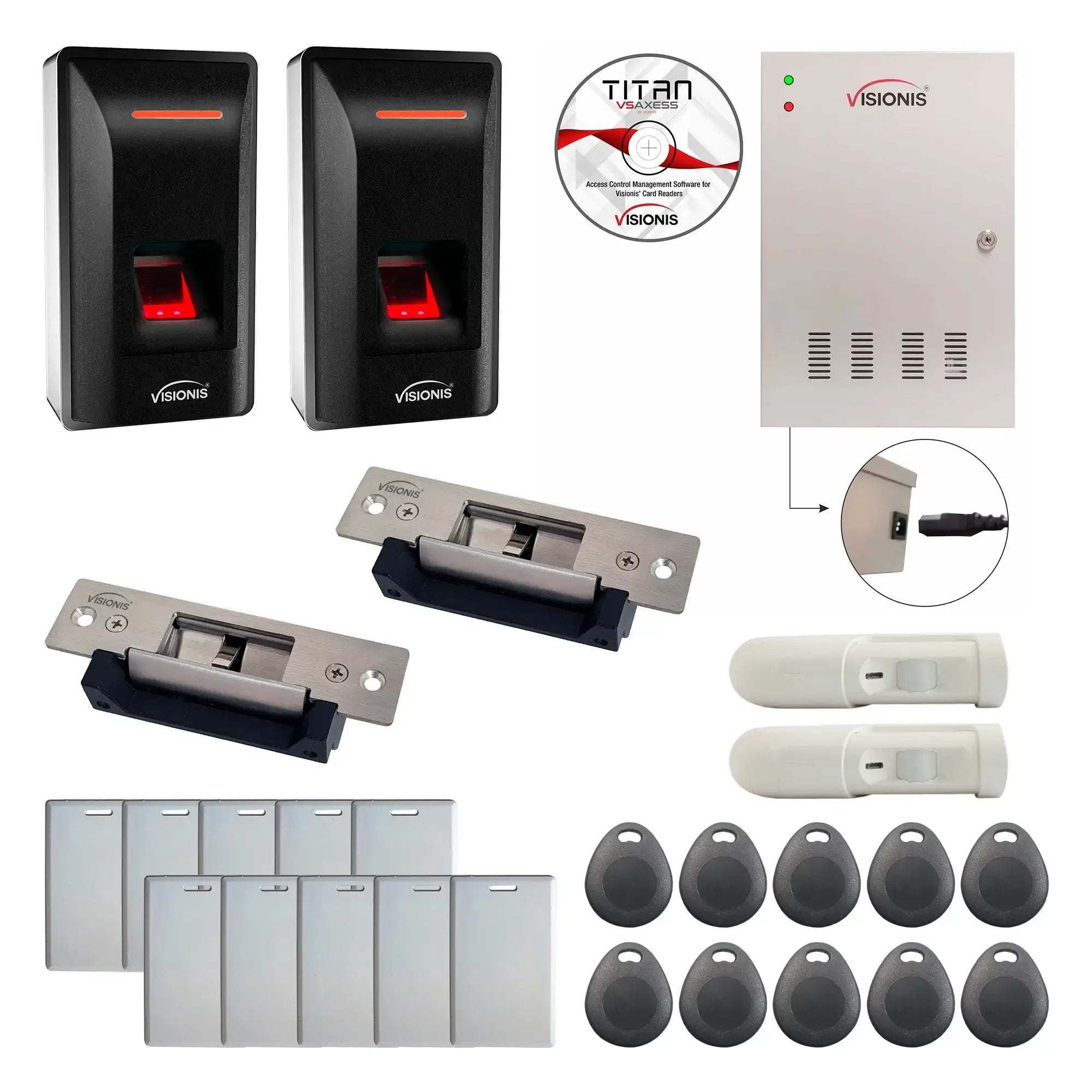

Kit Includes:

(2)

(1)

(2)

(10)

VIS-EL104-FSESA: 770lbs Electric Door Strike for Wood and Metal Doors 12V Fail Safe Normally Closed and Fail Secure Normally Open Adjustable

VIS-3031: Indoor Access Control Biometric Fingerprint Reader Standalone + TCP/IP + Wiegand 26 + 3000 EM Cards or Fingerprints + Time and Attendance

VIS-AXESS-2D-ETL: Two Doors + Network Access Control Panel + Controller Board With Cabinet + TCP IP + Wiegand With Desktop Software + 20,000 Users, 70,000 Records

AL-OD22: Request To Exit Motion Sensor PIR With Adjustable Time Relay

FPC-5267: Pack of Proximity Cards, 125kHz, 26-Bit

FPC-5274: Pack of RFID Proximity Key Fobs, 125kHz, 26-Bit

Description

Attention:

These access control panels (Version 2.0) are only compatible with access control panels (Version 2.0) and with the Titan VSAxess software. They are not compatible with access control panels (Version 1.0) nor with VSAxess software.
Includes CD software
Power supply and power cord included
Install wires are not included
This software is not compatible with MAC computers, only with Microsoft.

Characteristics

Model No. VIS-EL104-FSESA:

Lock Size: 124.6Lx32.3H (mm) - 4.90Lx1.27H (in.)
Holding Strength: 350kg (770 pounds)
Voltage: 12VDC
Current: 12VDC - 280mA // 24VDC - 140mA
Feature: Fail Safe and Fail Secure Adjustable
Suitable For: Wooden Door, Metal Door, PVC Door
Cycles Tested: 300.000
Operating Temperature: -15°C / +40°C (5°F / 104°F)
Product + Packaging Weight: 0.50kg (1.10 pounds)

Model No. VIS-3031:

Standalone Application: The unit needs to be connected to the ethernet so you can use the software and add fingerprints.
Communication: TCP/IP
Working Voltage: DC12V±10%/1A
Users / Records: 3.000 / 70.000
Recognition Mode: RFID Fingerprint
Wiegand Input: 1
Wiegand: 26 - 34
Exit Button Input: 1
Door-magnet Input: 1
Alarm Output / Input: 1 / 1
Lock Control Output: 1
Refusal Rate: < 0.01%
Fales Rate: < 0.0001%
Working Humidity: 20% ~ 60%
Working Temperature: -10°C ~ 45°C (14°F ~ 113°F)
Size: 122Lx77Wx45H (mm) - 4.80Lx3.03Wx1.77H (in.)

Model No. VIS-AXESS-2D-ETL-version2:

Arm 7 processor, RTOS system, new PCB circuit design
Advanced access control function, including multi-card, first card, interlock and anti-passback etc.
Multiple authentication mode, it supports card, password, card + code and fingerprint.
TCP/IP communication mode, there is 5 SOCKET port.
Optical coupling isolation protection, more stable
Record capacity can be extended, it can be 130,000pcs
Alarm linkage and relay self-defined.
Access Mode: It supports card, card+ password, card or password, password
Event Type: Legal card, illegal card, anti-passback, exit button, password, threaten code
Alarm Event Type: Door-magnet alarm, self-defined alarm, threaten code alarm
Linkage Function: All event and alarm can linkage any or multiple relay output
Access Group: 200 group
Holiday Schedule: 300
User Capacity: 20000
Record Capacity: 70000
Reader Port: 2
Exit Button Port: 2
Door-magnet Port: 2
Lock Output: 2
Door-magnet Alarm Output: 1
Self-defined Alarm Output: 1
Self-defined Alarm Input: 2
Communication Port: 10/100MTCP/IP, 1 extension RS485 communication port
Input Protection: Opto-isolator protection
Output Protection: Varistor Protection
Extension Function: It supports LED displayer, alarm host and so on

Model No. AL-OD22 :

Supply Voltage: 12-24VDC or VAC
Supply Current: 18-30mA@12-24VDC,45-80mA@12-24VAC
Relay Output: 2C Contact(N.C/N.O), 24VDC 1A Max.
Detection Type: Passive infrared
Relay Hold Time: 0.5-64 seconds
LED Indication: Red
Operating Temp: -14° F to 131° F(-10° Cto55°C)
Weight: 0. 4Ib (0. 18kg)
Range Coverage: 12x5 ft at 7ft high,30x12 ft at 15 ft high (Adjustment)
Humidity: 0-95% non-condensing
Dimensions: 6.53"Wx1. 57"Hx1. 53"0 ( 166x40x39mm)

Description

Attention:

These access control panels (Version 2.0) are only compatible with access control panels (Version 2.0) and with the Titan VSAxess software. They are not compatible with access control panels (Version 1.0) nor with VSAxess software.
Includes CD software
Power supply and power cord included
Install wires are not included
This software is not compatible with MAC computers, only with Microsoft.

Compatible Software

TITAN VSAXESS is a powerful and complete Access control management software for Visionis products for a our second generation of Access Control Panels.

DOWNLOAD SOFTWARE

Screenshots Examples of the Software

Click the image to open a bigger version

Download Datasheets and Manuals of this product

VIS-AXESS-2D-ETL

VIS-EL104-FSESA

VIS-3031

AL-OD22

VIS-PROXCARD

Datasheet

VIS-KEYTAG / VIS-KEYTAG-BLUE

Datasheet

LET US HELP YOU WITH YOUR PURCHASE

Feel free to contact our dedicated support team if you have any questions or if you're ready to place an order.

I Need Help

Visionis by Visionis

FPC-9287 Two Doors Access Control Electric Strike Fail Safe Fail Secure Time Attendance TCP/IP Wiegand Controller Box, Indoor Biometric Fingerprint Reader, EM Compatible, Software Included, PIR Kit

Translation missing: en.products.product.sku:FPC-9287

UPC Code: 734598807542 Weight: 10.0 lb

Regular price: $907.89
Sale price: $907.89
Regular price

Shipping calculated at checkout.

In Stock

Quantity:

Phone Life-Time Technical Support

30-Day No Questions Return Policy

*Free Shipping within the USA

Contact an Expert

Order Before 3:00pm EST on a week day and your order will be shipped out the same day

*Free shipping within the USA

Including Puerto Rico, Hawaii and Alaska

ATTENTION:

Before purchasing, it is recommended that the customer checks with their local fire authority to see if there is any additional product they may need in order to comply with the local fire codes. We are not responsible for the improper installation of our product(s) or any type of fees that can be incurred by not complying with your local fire authority.
