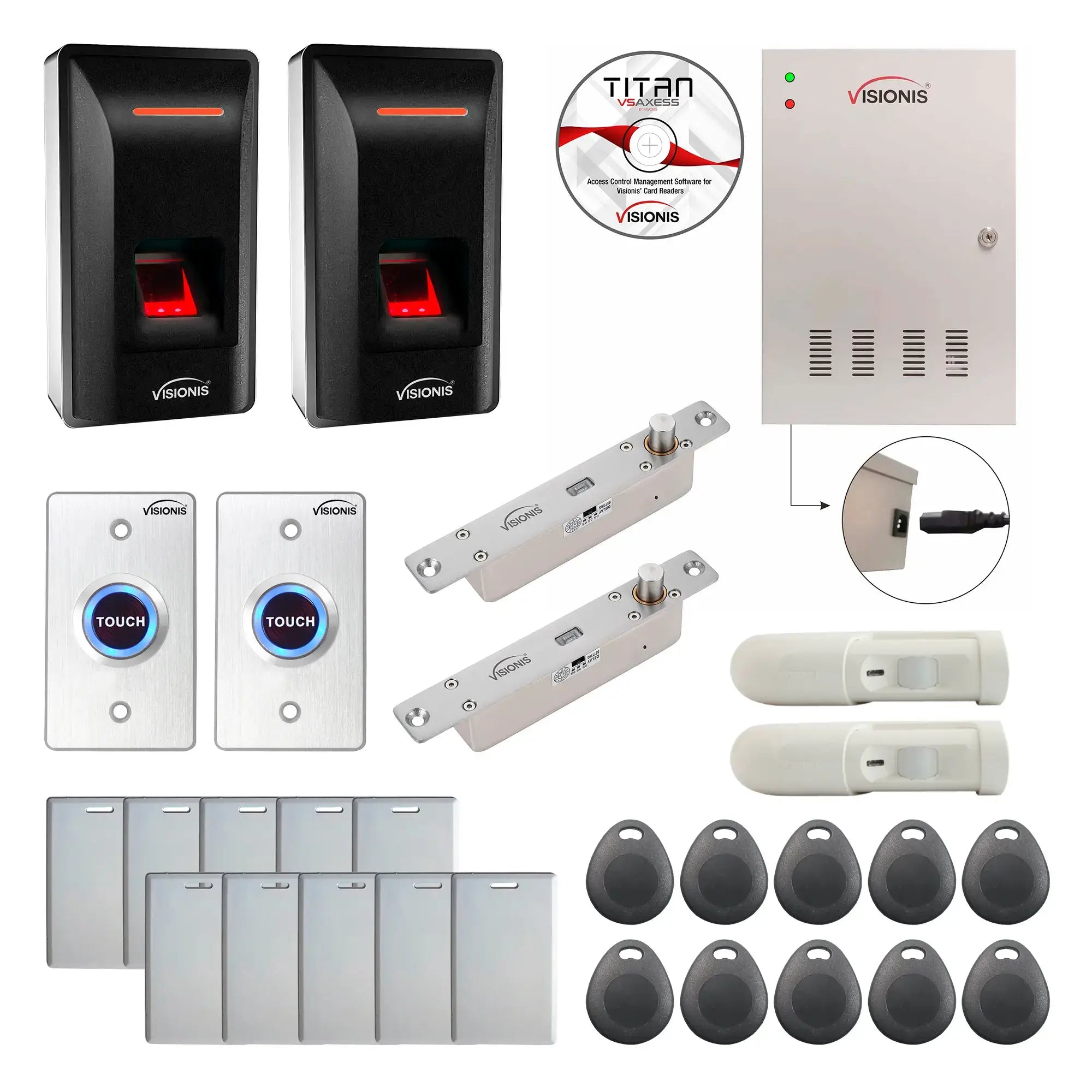

Office Access Control Systems with Fingerprint Reader, Electric Bolt Lock, Software, Motion Sensors - FPC-9286
Entry and Deluxe Access Control Panels Main Features - VISIONIS
Visionis ETL Access Control Panel Wiring - VIS-AXESS-2D-ETL, VIS-AXESS-4D-ETL
Visionis TITAN VSAXESS Access Control Desktop Software
Two Doors + Network Access Control Panel + Controller Board With Cabinet VIS-AXESS-2D-ETL
Two Doors + Network Access Control Panel + Controller Board With Cabinet VIS-AXESS-2D-ETL
Two Doors + Network Access Control Panel + Controller Board With Cabinet VIS-AXESS-2D-ETL
VIS-3031: Standalone biometric fingerprint and card reader with time & attendance tracking
VIS-3031: Standalone biometric fingerprint and card reader with time & attendance tracking
Dimensions VIS-3031: Standalone biometric fingerprint and card reader
Electric drop bolt lock​ dimensions VIS-DP102-FSE-LED Visionis
electric bolt lock with time delay VIS-DP102-FSE-LED
Dimensions. Request to exit button with LED lights for secure access control systems VISIONIS VIS-7005
PIR sensor dimensions for request to exit applications in access control - AL-OD22
    Office Access Control Systems with Fingerprint Reader, Electric Bolt Lock, Software, Motion Sensors - FPC-9286
    Entry and Deluxe Access Control Panels Main Features - VISIONIS
    Visionis ETL Access Control Panel Wiring - VIS-AXESS-2D-ETL, VIS-AXESS-4D-ETL
    Visionis TITAN VSAXESS Access Control Desktop Software
    Two Doors + Network Access Control Panel + Controller Board With Cabinet VIS-AXESS-2D-ETL
    Two Doors + Network Access Control Panel + Controller Board With Cabinet VIS-AXESS-2D-ETL
    Two Doors + Network Access Control Panel + Controller Board With Cabinet VIS-AXESS-2D-ETL
    VIS-3031: Standalone biometric fingerprint and card reader with time & attendance tracking
    VIS-3031: Standalone biometric fingerprint and card reader with time & attendance tracking
    Dimensions VIS-3031: Standalone biometric fingerprint and card reader
    Electric drop bolt lock​ dimensions VIS-DP102-FSE-LED Visionis
    electric bolt lock with time delay VIS-DP102-FSE-LED
    Dimensions. Request to exit button with LED lights for secure access control systems VISIONIS VIS-7005
    PIR sensor dimensions for request to exit applications in access control - AL-OD22
Office Access Control Systems with Fingerprint Reader, Electric Bolt Lock, Software, Motion Sensors - FPC-9286
Entry and Deluxe Access Control Panels Main Features - VISIONIS
Visionis ETL Access Control Panel Wiring - VIS-AXESS-2D-ETL, VIS-AXESS-4D-ETL
Visionis TITAN VSAXESS Access Control Desktop Software
Two Doors + Network Access Control Panel + Controller Board With Cabinet VIS-AXESS-2D-ETL
Two Doors + Network Access Control Panel + Controller Board With Cabinet VIS-AXESS-2D-ETL
Two Doors + Network Access Control Panel + Controller Board With Cabinet VIS-AXESS-2D-ETL
VIS-3031: Standalone biometric fingerprint and card reader with time & attendance tracking
VIS-3031: Standalone biometric fingerprint and card reader with time & attendance tracking
Dimensions VIS-3031: Standalone biometric fingerprint and card reader
Electric drop bolt lock​ dimensions VIS-DP102-FSE-LED Visionis
electric bolt lock with time delay VIS-DP102-FSE-LED
Dimensions. Request to exit button with LED lights for secure access control systems VISIONIS VIS-7005
PIR sensor dimensions for request to exit applications in access control - AL-OD22
Office Access Control Systems with Fingerprint Reader, Electric Bolt Lock, Software, Motion Sensors - FPC-9286
Entry and Deluxe Access Control Panels Main Features - VISIONIS
Visionis ETL Access Control Panel Wiring - VIS-AXESS-2D-ETL, VIS-AXESS-4D-ETL
Visionis TITAN VSAXESS Access Control Desktop Software
Two Doors + Network Access Control Panel + Controller Board With Cabinet VIS-AXESS-2D-ETL
Two Doors + Network Access Control Panel + Controller Board With Cabinet VIS-AXESS-2D-ETL
Two Doors + Network Access Control Panel + Controller Board With Cabinet VIS-AXESS-2D-ETL
VIS-3031: Standalone biometric fingerprint and card reader with time & attendance tracking
VIS-3031: Standalone biometric fingerprint and card reader with time & attendance tracking
Dimensions VIS-3031: Standalone biometric fingerprint and card reader
Electric drop bolt lock​ dimensions VIS-DP102-FSE-LED Visionis
electric bolt lock with time delay VIS-DP102-FSE-LED
Dimensions. Request to exit button with LED lights for secure access control systems VISIONIS VIS-7005
PIR sensor dimensions for request to exit applications in access control - AL-OD22
    Office Access Control Systems with Fingerprint Reader, Electric Bolt Lock, Software, Motion Sensors - FPC-9286
    Entry and Deluxe Access Control Panels Main Features - VISIONIS
    Visionis ETL Access Control Panel Wiring - VIS-AXESS-2D-ETL, VIS-AXESS-4D-ETL
    Visionis TITAN VSAXESS Access Control Desktop Software
    Two Doors + Network Access Control Panel + Controller Board With Cabinet VIS-AXESS-2D-ETL
    Two Doors + Network Access Control Panel + Controller Board With Cabinet VIS-AXESS-2D-ETL
    Two Doors + Network Access Control Panel + Controller Board With Cabinet VIS-AXESS-2D-ETL
    VIS-3031: Standalone biometric fingerprint and card reader with time & attendance tracking
    VIS-3031: Standalone biometric fingerprint and card reader with time & attendance tracking
    Dimensions VIS-3031: Standalone biometric fingerprint and card reader
    Electric drop bolt lock​ dimensions VIS-DP102-FSE-LED Visionis
    electric bolt lock with time delay VIS-DP102-FSE-LED
    Dimensions. Request to exit button with LED lights for secure access control systems VISIONIS VIS-7005
    PIR sensor dimensions for request to exit applications in access control - AL-OD22
Office Access Control Systems with Fingerprint Reader, Electric Bolt Lock, Software, Motion Sensors - FPC-9286
Entry and Deluxe Access Control Panels Main Features - VISIONIS
Visionis ETL Access Control Panel Wiring - VIS-AXESS-2D-ETL, VIS-AXESS-4D-ETL
Visionis TITAN VSAXESS Access Control Desktop Software
Two Doors + Network Access Control Panel + Controller Board With Cabinet VIS-AXESS-2D-ETL
Two Doors + Network Access Control Panel + Controller Board With Cabinet VIS-AXESS-2D-ETL
Two Doors + Network Access Control Panel + Controller Board With Cabinet VIS-AXESS-2D-ETL
VIS-3031: Standalone biometric fingerprint and card reader with time & attendance tracking
VIS-3031: Standalone biometric fingerprint and card reader with time & attendance tracking
Dimensions VIS-3031: Standalone biometric fingerprint and card reader
Electric drop bolt lock​ dimensions VIS-DP102-FSE-LED Visionis
electric bolt lock with time delay VIS-DP102-FSE-LED
Dimensions. Request to exit button with LED lights for secure access control systems VISIONIS VIS-7005
PIR sensor dimensions for request to exit applications in access control - AL-OD22

This PRODUCT has a 3 YEAR warranty with full access to tech support in the USA!

Description

Attention:

  • These access control panels (Version 2.0) are only compatible with access control panels (Version 2.0) and with the Titan VSAxess software. They are not compatible with access control panels (Version 1.0) nor with VSAxess software.
  • Includes CD software
  • Power supply and power cord included
  • Install wires are not included
  • This software is not compatible with MAC computers, only with Microsoft.
Characteristics

Model No. VIS-DP102-FSE-LED:

  • Voltage: DC12V - DC24V
  • Holding Force: 1200Kg (2600lbs)
  • Current: (DC12V): Standby 110mA
  • Function: Fail Secure. N/O with power it’s unlock
  • Time Delay: 0/3/6 sec; Unlock time delay: 6 sec (If do not push the door after unlocking, again automatically lock)
  • Bolt: SUS 304 solid stainless steel
  • Size: 175Lx25Wx35H (mm) - 6.89Lx0.98Wx1.38H (in.)
  • Product + Packaging Weight: 0.64Kg (1.41 pounds)
  • Operating Temperature: -20°C / +50°C (-4°F / 122°F)
  • Cycles Tested: 300.000
Packaging of this product

Model No. VIS-3031:

  • Standalone Application: The unit needs to be connected to the ethernet so you can use the software and add fingerprints.
  • Communication: TCP/IP
  • Working Voltage: DC12V±10%/1A
  • Users / Records: 3.000 / 70.000
  • Recognition Mode: RFID Fingerprint
  • Wiegand Input: 1
  • Wiegand: 26 - 34
  • Exit Button Input: 1
  • Door-magnet Input: 1
  • Alarm Output / Input: 1 / 1
  • Lock Control Output: 1
  • Refusal Rate: < 0.01%
  • Fales Rate: < 0.0001%
  • Working Humidity: 20% ~ 60%
  • Working Temperature: -10°C ~ 45°C (14°F ~ 113°F)
  • Size: 122Lx77Wx45H (mm) - 4.80Lx3.03Wx1.77H (in.)

Model No. VIS-AXESS-2D-ETL-version2:

  • Arm 7 processor, RTOS system, new PCB circuit design
  • Advanced access control function, including multi-card, first card, interlock and anti-passback etc.
  • Multiple authentication mode, it supports card, password, card + code and fingerprint.
  • TCP/IP communication mode, there is 5 SOCKET port.
  • Optical coupling isolation protection, more stable
  • Record capacity can be extended, it can be 130,000pcs
  • Alarm linkage and relay self-defined.
  • Access Mode: It supports card, card+ password, card or password, password
  • Event Type: Legal card, illegal card, anti-passback, exit button, password, threaten code
  • Alarm Event Type: Door-magnet alarm, self-defined alarm, threaten code alarm
  • Linkage Function: All event and alarm can linkage any or multiple relay output
  • Access Group: 200 group
  • Holiday Schedule: 300
  • User Capacity: 20000
  • Record Capacity: 70000
  • Reader Port: 2
  • Exit Button Port: 2
  • Door-magnet Port: 2
  • Lock Output: 2
  • Door-magnet Alarm Output: 1
  • Self-defined Alarm Output: 1
  • Self-defined Alarm Input: 2
  • Communication Port: 10/100MTCP/IP, 1 extension RS485 communication port
  • Input Protection: Opto-isolator protection
  • Output Protection: Varistor Protection
  • Extension Function: It supports LED displayer, alarm host and so on

Model No. VIS-7005:

  • Contact Rating: 3A/12-24V
  • Output Contact: NO/NC/COM
  • Power: 12VDC - 24VDC
  • LED Color: Blue (Stand by Mode), Green (Active/Open Mode)
  • Panel: 4mm (0.15in.) Thick Aluminium alloy (CNC)
  • Suitable for Door: Hollow Door
  • Mechanical Life: 100.000 tests
  • Operating Temperature: -20°C~+55°C (14°F-131°F)
  • Operating Humidity: 0-95% (relative humidity)
  • Weight: 0.065kg
  • Dimension Of Plate: 86L × 50W × 25H mm - 3.38L x 1.96W x 0.98H in.
Packaging of this product

Model No. AL-OD22 :

  • Supply Voltage: 12-24VDC or VAC
  • Supply Current: 18-30mA@12-24VDC,45-80mA@12-24VAC
  • Relay Output: 2C Contact(N.C/N.O), 24VDC 1A Max.
  • Detection Type: Passive infrared
  • Relay Hold Time: 0.5-64 seconds
  • LED Indication: Red
  • Operating Temp: -14° F to 131° F(-10° Cto55°C)
  • Weight: 0. 4Ib (0. 18kg)
  • Range Coverage: 12x5 ft at 7ft high,30x12 ft at 15 ft high (Adjustment)
  • Humidity: 0-95% non-condensing
  • Dimensions: 6.53"Wx1. 57"Hx1. 53"0 ( 166x40x39mm)
Description

Attention:

  • These access control panels (Version 2.0) are only compatible with access control panels (Version 2.0) and with the Titan VSAxess software. They are not compatible with access control panels (Version 1.0) nor with VSAxess software.
  • Includes CD software
  • Power supply and power cord included
  • Install wires are not included
  • This software is not compatible with MAC computers, only with Microsoft.

Compatible Software

TITAN VSAXESS is a powerful and complete Access control management software for Visionis products for a our second generation of Access Control Panels.

DOWNLOAD SOFTWARE

Screenshots Examples of the Software

Click the image to open a bigger version

  • TITAN VSAXESS software for Access Control and Time and Attendance Management
  • TITAN VSAXESS software for Access Control and Time and Attendance Management
  • TITAN VSAXESS software for Access Control and Time and Attendance Management
  • TITAN VSAXESS software for Access Control and Time and Attendance Management

Download Datasheets and Manuals of this product

VIS-DP102-FSE-LED

VIS-3031

VIS-AXESS-2D-ETL

VIS-7005

AL-OD22

VIS-PROXCARD

VIS-KEYTAG / VIS-KEYTAG-BLUE
