This PRODUCT has a 3 YEAR warranty with full access to tech support in the USA!

Characteristics

Model No. VIS-EL104-FSESA:

  • Lock Size: 124.6Lx32.3H (mm) - 4.90Lx1.27H (in.)
  • Holding Strength: 350kg (770 pounds)
  • Voltage: 12VDC
  • Current: 12VDC - 280mA // 24VDC - 140mA
  • Feature: Fail Safe and Fail Secure Adjustable
  • Suitable For: Wooden Door, Metal Door, PVC Door
  • Cycles Tested: 300.000
  • Operating Temperature: -15°C / +40°C (5°F / 104°F)
  • Product + Packaging Weight: 0.50kg (1.10 pounds)

Model No. VIS-3031:

  • Standalone Application: The unit needs to be connected to the ethernet so you can use the software and add fingerprints.
  • Communication: TCP/IP
  • Working Voltage: DC12V±10%/1A
  • Users / Records: 3.000 / 70.000
  • Recognition Mode: RFID Fingerprint
  • Wiegand Input: 1
  • Wiegand: 26 - 34
  • Exit Button Input: 1
  • Door-magnet Input: 1
  • Alarm Output / Input: 1 / 1
  • Lock Control Output: 1
  • Refusal Rate: < 0.01%
  • Fales Rate: < 0.0001%
  • Working Humidity: 20% ~ 60%
  • Working Temperature: -10°C ~ 45°C (14°F ~ 113°F)
  • Size: 122Lx77Wx45H (mm) - 4.80Lx3.03Wx1.77H (in.)

Model No. IrexPlus:

  • Voltage: 12-30 Volts DC or AC
  • Current Consumption: 8 mA standby, 25 mA (Relay+LED), 44 mA maximum (Buzzer+Relay+LED) at 12/24 VDC
  • Relay Output: 1A @ 30 VDC or VAC, two form “C” contacts
  • Tamper Output: 50 mA @ 30 volts DC or AC
  • Detection System
  • Mounting Height: 2.3m - 4.6m (7.5' - 15')
  • Detection Range: Up to 2.4m (8')
  • Dimensions (LxHxD): 177mm x 50mm x 45mm (7'' x 2'' x 1.8'')
  • Weight: 0.15Kg (0.3lb)
  • Colour: White or Black
  • Environmental
  • RFI Immunity: 30 V/m from 10MHz to 2GHz
  • Operating & Storage Temperature: -20°C to 60°C (-4°F to 140°F)

Model No. VISCP200:

  • Input Voltage Range: AC90V-264V
  • Input Frequency Range: 50Hz-60Hz
  • Output Voltage Range: DC12V+/-5%
  • Output Current: 2A
  • Output Power: 24 Watts
  • Output Ripple&Noise: ≤46MV
  • Output Efficiency: ≥79%
  • Environment Operating: -30°C~45°C 20%~90%RH
  • Environment Storage Temp.: -40°C~85°C 10%~95%RH
  • Product Dimension: 87*36.5*70mm (3.42x1.43x2.75in.)
  • Product Weight: 116g
  • Certificate: UL, CE, RoHS, FCC

Download Datasheets and Manuals of this product

Contact Us for Support

LET US HELP YOU WITH YOUR PURCHASE

Feel free to contact our dedicated support team if you have any questions or if you're ready to place an order.

I Need Help
Visionis by Visionis

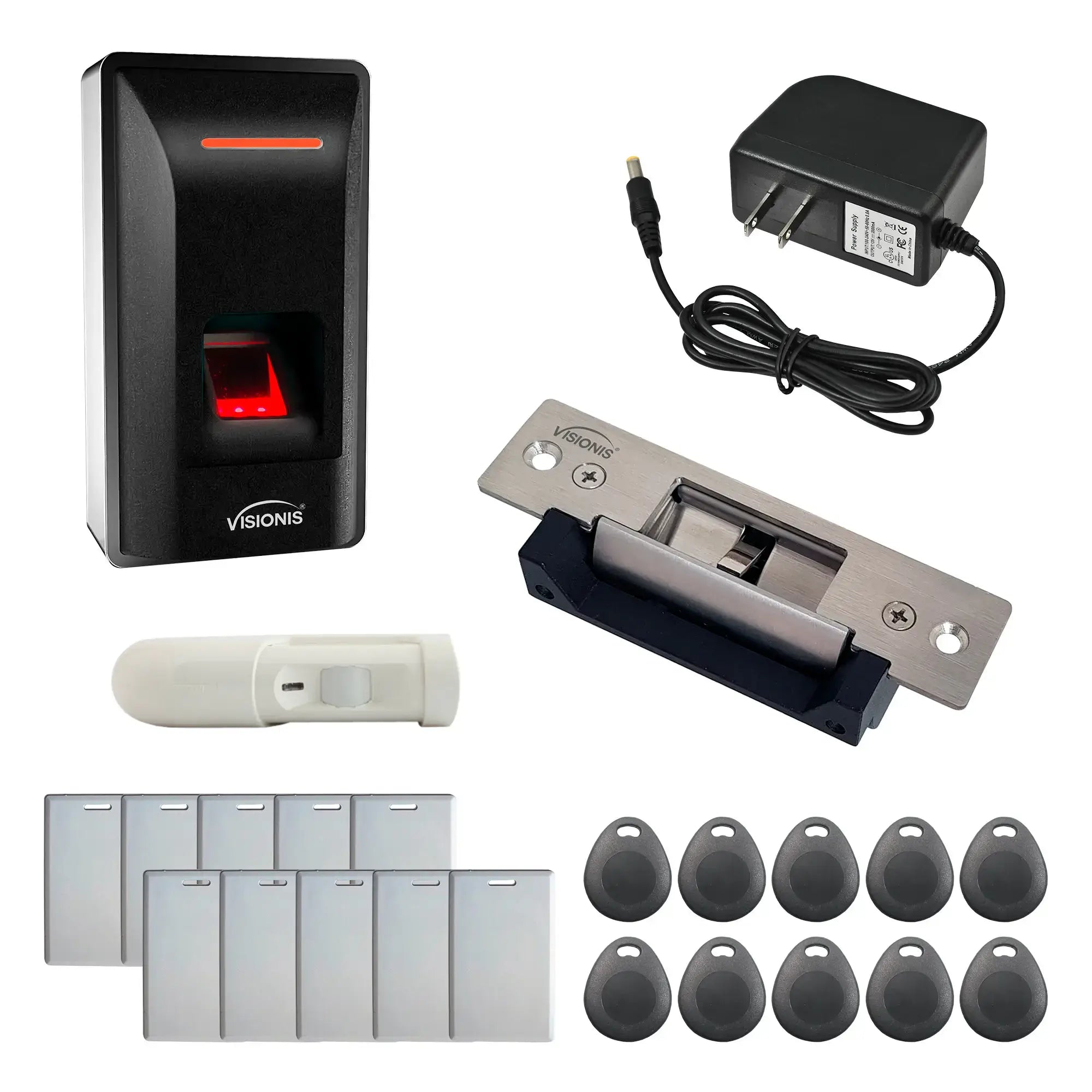

FPC-9260 – One Door Access Control With 770lbs Electric Door Strike + Indoor Biometric Fingerprint Reader Standalone + Wiegand 26 + TCP/IP + Time and Attendance + EM Cards + PIR Motion Detector

Translation missing: en.products.product.sku:FPC-9260

UPC Code: 734598807276
Product Weight: 6.0 lb
Regular price
$366.80
Sale price
$366.80
Regular price
Shipping calculated at checkout.
Contact an Expert
Return Policy
NOTE
Order Before 3:00pm EST on a week day and your order will be shipped out the same day
Free Shipping
Free shipping with in the USA
Including Puerto Rico, Hawaii and Alaska
ATTENTION:
Before purchasing, it is recommended that the customer checks with their local fire authority to see if there is any additional product they may need in order to comply with the local fire codes. We are not responsible for the improper installation of our product(s) or any type of fees that can be incurred by not complying with your local fire authority.
