This PRODUCT has a 3 YEAR warranty with full access to tech support in the USA!

Description

Attention:

  • These access control panels (Version 2.0) are only compatible with access control panels (Version 2.0) and with the Titan VSAxess software. They are not compatible with access control panels (Version 1.0) nor with VSAxess software.
  • Includes CD software
  • Power supply and power cord included
  • Install wires are not included
  • This software is not compatible with MAC computers, only with Microsoft.
Characteristics

Model VIS-ML600LED:

  • Voltage Input: 12 VDC / 24 VDC
  • Current Draw: 12V / 500mA ; 24V / 250mA (±5%)
  • Holding Force: Up to 600 lbs (272 kg)
  • Hall Effect Contact: SPDT rated 2A at 24 VDC
  • Magnetic Contact Rating: 28 VDC, 0.5A, 10W
  • Anti-Rust Surface Treatment: Blue Zinc Plating
  • Operating Temperature: 0~55° C (32~131° F)
  • Weight (Magnet): 1.1 kg (±1%)
  • Dimensions: Magnet - (L)250x(W)42x(T)25 mm Armature - (L)180x(W)38x(T)11 mm
  • Green/Red LED Indication for EM Lock Status
Packaging of this product

Model No. VIS-3031:

  • Standalone Application: The unit needs to be connected to the ethernet so you can use the software and add fingerprints.
  • Communication: TCP/IP
  • Working Voltage: DC12V±10%/1A
  • Users / Records: 3.000 / 70.000
  • Recognition Mode: RFID Fingerprint
  • Wiegand Input: 1
  • Wiegand: 26 - 34
  • Exit Button Input: 1
  • Door-magnet Input: 1
  • Alarm Output / Input: 1 / 1
  • Lock Control Output: 1
  • Refusal Rate: < 0.01%
  • Fales Rate: < 0.0001%
  • Working Humidity: 20% ~ 60%
  • Working Temperature: -10°C ~ 45°C (14°F ~ 113°F)
  • Size: 122Lx77Wx45H (mm) - 4.80Lx3.03Wx1.77H (in.)

Model No. VIS-7005:

  • Contact Rating: 3A/12-24V
  • Output Contact: NO/NC/COM
  • Power: 12VDC - 24VDC
  • LED Color: Blue (Stand by Mode), Green (Active/Open Mode)
  • Panel: 4mm (0.15in.) Thick Aluminium alloy (CNC)
  • Suitable for Door: Hollow Door
  • Mechanical Life: 100.000 tests
  • Operating Temperature: -20°C~+55°C (14°F-131°F)
  • Operating Humidity: 0-95% (relative humidity)
  • Weight: 0.065kg
  • Dimension Of Plate: 86L × 50W × 25H mm - 3.38L x 1.96W x 0.98H in.
Packaging of this product

Model No. VS-AXESS-4DLX-version2:

  • Access Mode: It supports card, card+ password, card or password, password
  • Event Type: Legal card, illegal card, anti-passback, exit button, password, threaten code
  • Alarm Event Type: Door-magnet alarm, self-defined alarm, threaten code alarm
  • Linkage Function: All event and alarm can linkage any or multiple relay output
  • Access Group: 200 group
  • Holiday Schedule: 300
  • User Capacity: 20,000
  • User Record Capacity: 70,000
  • Reader Port: 4
  • Exit Button Port: 4
  • Door-magnet Port: 4
  • Lock Output: 4
  • Door-magnet Alarm Output: 1
  • Self-defined Alarm Output: 1
  • Self-defined Alarm Input: 4
  • Communication Port: 10/100MTCP/IP, 1 extension RS485 communication port
  • Input Protection: Opto-isolator protection
  • Output Protection: Varistor Protection
  • Extension Function: It supports LED displayer, alarm host and so on
  • Video Recording and Snapshot: All Event and alarm can linkage any video to record or snapshot by software
  • First Card: Any cards can be first card
  • Multiple Cards: To open a door by multiple cards, manager can set 4 cards to open a door at most
  • Remote Control: Any doors can be opened by center authentication
  • Forced Control: User can open/close door forcibly
  • Threaten Code: 6 digits password, it is used in some special situation
  • Open by Password: Each of user have a group password
  • Timed Normal Open: User can setup three time-segment to let door open timed
  • Door Bolt Mode: It can open door by card during some special time
  • Timed Invalidation for Exit Button: Exit button invalidation can be set for three time-segments
  • Anti-passback: Two readers or all readers can be set in a group
  • Temporary Card Quantity: All users can be set as temporary cards
  • Self-defined Input/Output: User can self-define input/output function to relative relay
  • Activate/dismiss security:
    By manually: Any user card can be appointed to activate/dismiss security function
    By software: Activate/dismiss security function can be realized by software
  • Communication Security: Password encryption during data transmission
  • Transmission Mode: It supports TCP, UDP, RTP and multicast mode
  • Data Storage Mode: Cycled storage

Model No. IrexPlus:

  • Voltage: 12-30 Volts DC or AC
  • Current Consumption: 8 mA standby, 25 mA (Relay+LED), 44 mA maximum (Buzzer+Relay+LED) at 12/24 VDC
  • Relay Output: 1A @ 30 VDC or VAC, two form “C” contacts
  • Tamper Output: 50 mA @ 30 volts DC or AC
  • Detection System
  • Mounting Height: 2.3m - 4.6m (7.5' - 15')
  • Detection Range: Up to 2.4m (8')
  • Dimensions (LxHxD): 177mm x 50mm x 45mm (7'' x 2'' x 1.8'')
  • Weight: 0.15Kg (0.3lb)
  • Colour: White or Black
  • Environmental
  • RFI Immunity: 30 V/m from 10MHz to 2GHz
  • Operating & Storage Temperature: -20°C to 60°C (-4°F to 140°F)
Description

Attention:

  • These access control panels (Version 2.0) are only compatible with access control panels (Version 2.0) and with the Titan VSAxess software. They are not compatible with access control panels (Version 1.0) nor with VSAxess software.
  • Includes CD software
  • Power supply and power cord included
  • Install wires are not included
  • This software is not compatible with MAC computers, only with Microsoft.

Compatible Software

TITAN VSAXESS is a powerful and complete Access control management software for Visionis products for a our second generation of Access Control Panels.

DOWNLOAD SOFTWARE

Screenshots Examples of the Software

Click the image to open a bigger version

Download Datasheets and Manuals of this product

Contact Us for Support

LET US HELP YOU WITH YOUR PURCHASE

Feel free to contact our dedicated support team if you have any questions or if you're ready to place an order.

I Need Help
Visionis by Visionis

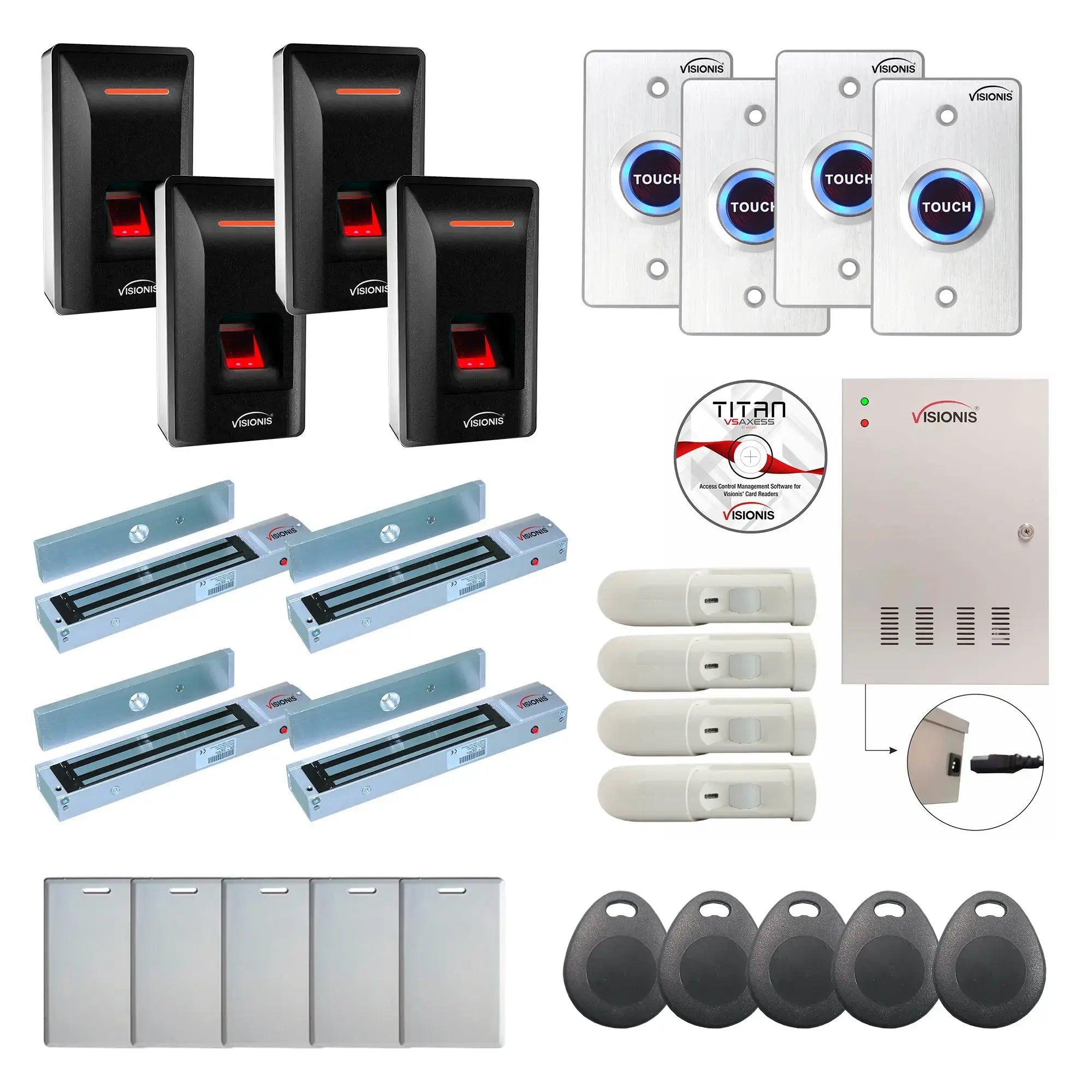

FPC-9343 4 Door Professional Access Control Outswinging Door 600lbs Mag Lock Time Attendance TCP/IP Wiegand Controller Box, Biometric Fingerprint Reader, Software, 20,000 Users, 70,000 Records, PIR

Translation missing: en.products.product.sku:FPC-9343

UPC Code: 718910360663
Product Weight: 25.0 lb
Regular price
$1,780.11
Sale price
$1,780.11
Regular price
Shipping calculated at checkout.

In Stock

Phone Support Icon

Phone Life-Time Technical Support

Return Policy Icon

30-Day No Questions Return Policy

Free Shipping Icon

*Free Shipping within the USA

Contact an Expert
Return Policy
NOTE
Order Before 3:00pm EST on a week day and your order will be shipped out the same day
Free Shipping
*Free shipping within the USA
Including Puerto Rico, Hawaii and Alaska
ATTENTION:
Before purchasing, it is recommended that the customer checks with their local fire authority to see if there is any additional product they may need in order to comply with the local fire codes. We are not responsible for the improper installation of our product(s) or any type of fees that can be incurred by not complying with your local fire authority.
