This PRODUCT has a 3 YEAR warranty with full access to tech support in the USA!

Characteristics

Model VIS-ML300LED:

  • Voltage Input: 12 VDC / 24 VDC
  • Current Draw: 12V / 300mA ; 24V / 150mA (±5%)
  • Holding Force: Up to 300 lbs (136 kg)
  • Anti-Rust Surface Treatment: Blue Zinc Plating
  • Operating Temperature: 0~55° C ( 32~131° F)
  • Operating Humidity: 0~95% ( non condensing)
  • Weight ( Magnet): 0.6 kg (±1%)
  • Dimensions: Magnet - (L)210x(W)35x(T)21 mm Armature - (L)130x(W)33x(T)11 mm
  • Green/Red LED Indication for EM Lock Status
Packaging of this product

Model No. VIS-3031:

  • Standalone Application: The unit needs to be connected to the ethernet so you can use the software and add fingerprints.
  • Communication: TCP/IP
  • Working Voltage: DC12V±10%/1A
  • Users / Records: 3.000 / 70.000
  • Recognition Mode: RFID Fingerprint
  • Wiegand Input: 1
  • Wiegand: 26 - 34
  • Exit Button Input: 1
  • Door-magnet Input: 1
  • Alarm Output / Input: 1 / 1
  • Lock Control Output: 1
  • Refusal Rate: < 0.01%
  • Fales Rate: < 0.0001%
  • Working Humidity: 20% ~ 60%
  • Working Temperature: -10°C ~ 45°C (14°F ~ 113°F)
  • Size: 122Lx77Wx45H (mm) - 4.80Lx3.03Wx1.77H (in.)

Model No. VIS-7013:

  • Contact Rating: 12-24V, 3A
  • Output Contact: NO/NC/COM
  • Detection Range: 5-15cm (1.96 - 5.90in.), Adjustable
  • Power: 12VDC or 24VDC
  • LED Color: Blue (Stand by Mode), Green (Active/Open Mode)
  • Time Delay: 0.5~22s
  • Panel: 4mm (0.15) Thick Aluminium Alloy (CNC)
  • Suitable for: Hollow Door
  • Mechanical Life: 100.000 tests
  • Operating Temperature: -20°C~+55°C (14°F-131°F)
  • Operating Humidity: 0-95% (relative humidity)
  • Weight: 0.105kg
  • Dimensions: 115L × 70W × 25H mm - 4.52L x 2.75W x 0.98H in.
Packaging of this product

Model No. IrexPlus:

  • Voltage: 12-30 Volts DC or AC
  • Current Consumption: 8 mA standby, 25 mA (Relay+LED), 44 mA maximum (Buzzer+Relay+LED) at 12/24 VDC
  • Relay Output: 1A @ 30 VDC or VAC, two form “C” contacts
  • Tamper Output: 50 mA @ 30 volts DC or AC
  • Detection System
  • Mounting Height: 2.3m - 4.6m (7.5' - 15')
  • Detection Range: Up to 2.4m (8')
  • Dimensions (LxHxD): 177mm x 50mm x 45mm (7'' x 2'' x 1.8'')
  • Weight: 0.15Kg (0.3lb)
  • Colour: White or Black
  • Environmental
  • RFI Immunity: 30 V/m from 10MHz to 2GHz
  • Operating & Storage Temperature: -20°C to 60°C (-4°F to 140°F)

Model No. VISCP200:

  • Input Voltage Range: AC90V-264V
  • Input Frequency Range: 50Hz-60Hz
  • Output Voltage Range: DC12V+/-5%
  • Output Current: 2A
  • Output Power: 24 Watts
  • Output Ripple&Noise: ≤46MV
  • Output Efficiency: ≥79%
  • Environment Operating: -30°C~45°C 20%~90%RH
  • Environment Storage Temp.: -40°C~85°C 10%~95%RH
  • Product Dimension: 87*36.5*70mm (3.42x1.43x2.75in.)
  • Product Weight: 116g
  • Certificate: UL, CE, RoHS, FCC

Download Datasheets and Manuals of this product

Contact Us for Support

LET US HELP YOU WITH YOUR PURCHASE

Feel free to contact our dedicated support team if you have any questions or if you're ready to place an order.

I Need Help
Visionis by Visionis

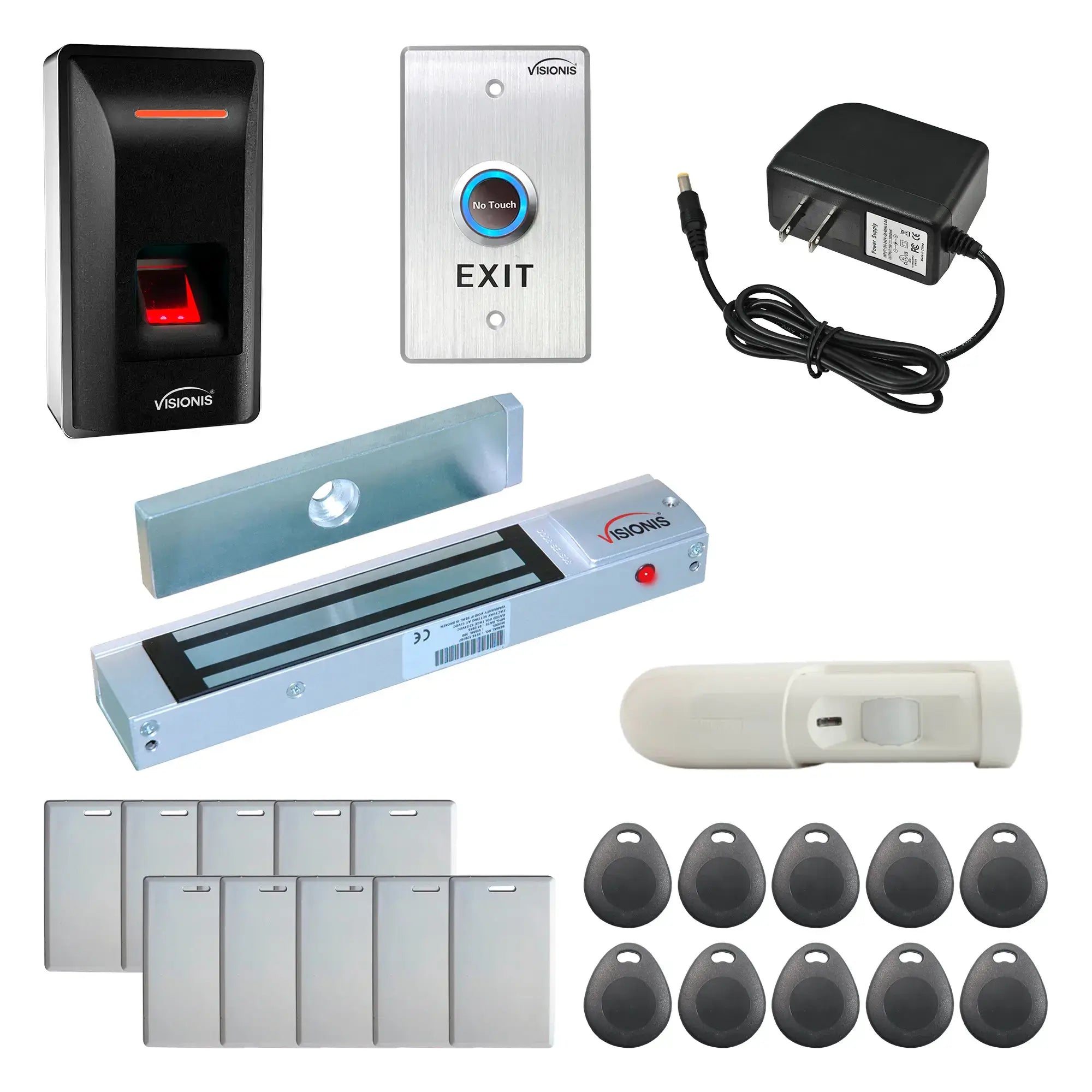

FPC-9246 1 Door Access Control Out Swinging Door 300lbs Maglock + VIS-3031 Indoor Biometric Fingerprint Reader/Card Reader Standalone + Wiegand 26, Time and Attendance, 3000 EM Cards and Fingerprints + Motion Detector

Translation missing: en.products.product.sku:FPC-9246

UPC Code: 734598807139
Product Weight: 6.0 lb
Regular price
$368.43
Sale price
$368.43
Regular price
Shipping calculated at checkout.

Out of Stock

Phone Support Icon

Phone Life-Time Technical Support

Return Policy Icon

30-Day No Questions Return Policy

Free Shipping Icon

*Free Shipping within the USA

Contact an Expert
Return Policy
NOTE
Order Before 3:00pm EST on a week day and your order will be shipped out the same day
Free Shipping
*Free shipping within the USA
Including Puerto Rico, Hawaii and Alaska
ATTENTION:
Before purchasing, it is recommended that the customer checks with their local fire authority to see if there is any additional product they may need in order to comply with the local fire codes. We are not responsible for the improper installation of our product(s) or any type of fees that can be incurred by not complying with your local fire authority.
