This PRODUCT has a 3 YEAR warranty with full access to tech support in the USA!

Description

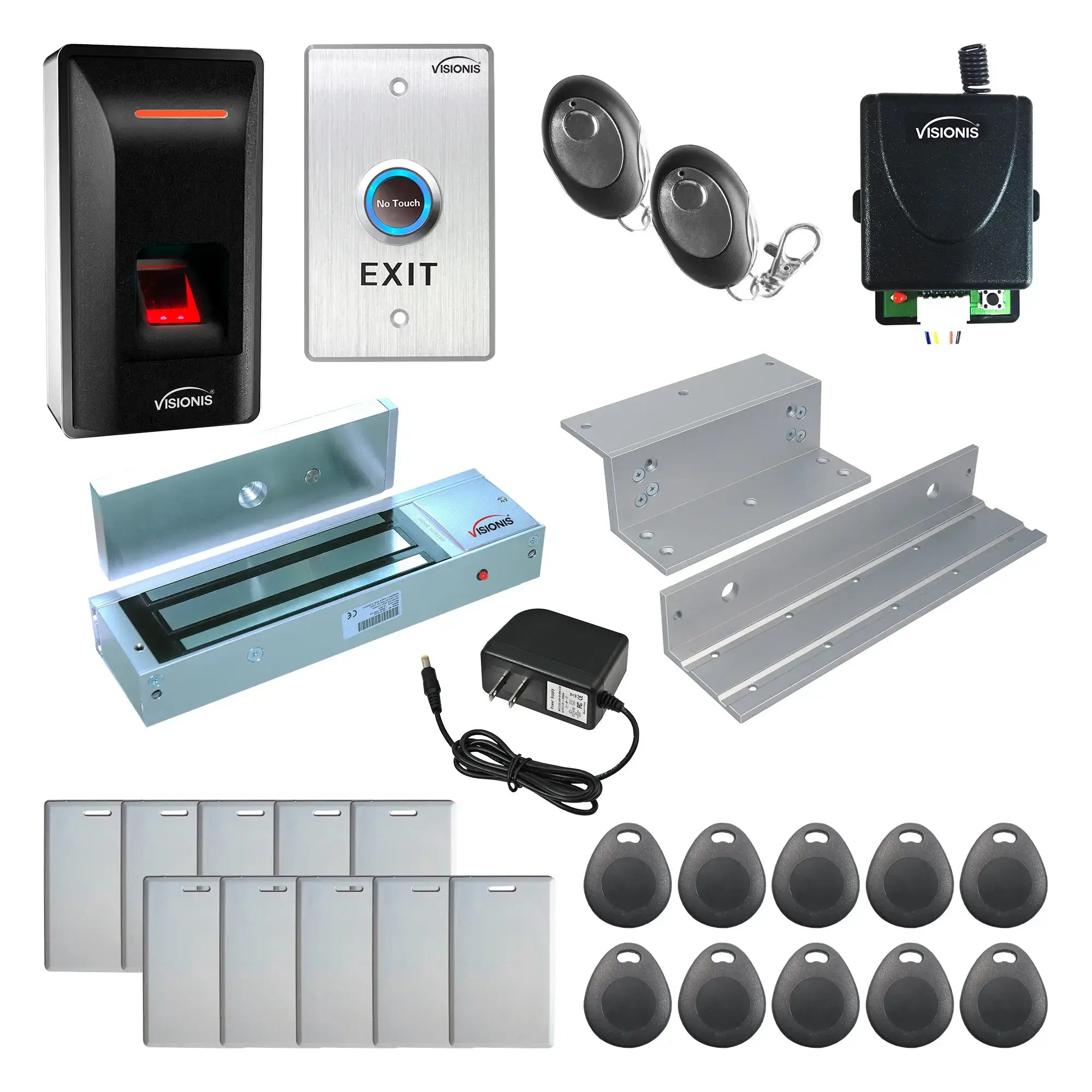

The FPC-9245 is a complete 1-door access control system designed for secure outswinging doors. This kit includes a 1200lb magnetic lock, a VIS-3031 standalone indoor biometric fingerprint reader/card reader, and a wireless receiver set for convenient remote operation. Engineered for performance, durability, and accessibility, this kit is ideal for offices, commercial buildings, and restricted access areas requiring precise control and attendance tracking.

The VIS-ML1200LED maglock delivers up to 1200lbs of holding force and is treated with anti-rust blue zinc plating for longevity. With red/green LED status indicators, this lock ensures clear visibility of door security status.

The VIS-3031 biometric fingerprint reader combines fingerprint and RFID access for up to 3,000 users and stores 70,000 records. The device supports Wiegand 26-34 output, TCP/IP communication, and integrates seamlessly with access control software for real-time monitoring, time tracking, and attendance reporting

Also included is a wireless receiver (VIS-8004) and remote transmitter (VIS-8005), offering convenient access from distances up to 160 ft (50m) in open areas. The receiver supports momentary, latch, and toggle functions and can connect with up to 50 remotes.

For hands-free egress, the VIS-7013 no-touch exit button adds both hygiene and ease of use. With a 5–15cm adjustable detection range, programmable delay (0.5–22 seconds), and LED status indicators, this sensor is ideal for modern access systems.

Characteristics

Model No. VIS-ML1200LED:

  • Voltage Input: 12 VDC / 24 VDC
  • Current Draw: 12V / 500mA ; 24V / 250mA (±5%)
  • Holding Force: Up to 1200 lbs (545 kg)
  • Hall Effect Contact: SPDT rated 2A at 24 VDC
  • Magnetic Contact Rating: 28 VDC, 0.2A, 5W
  • Anti-Rust Surface Treatment: Blue Zinc Plating
  • Operating Temperature: 0~55° C (32~131° F)
  • Weight (Magnet): 2.5 kg (±1%)
  • Dimensions: Magnet - (L)266x(W)67x(T)39 mm Armature - (L)185x(W)61x(T)16.5 mm
  • Green/Red LED Indication for EM Lock Status
Packaging of this product

Model No. VIS-ZL1200:

  • L and Z bracket for 1200lbs electromagnetic lock
Packaging of this product

Model No. VIS-3031:

  • Standalone Application: The unit needs to be connected to the ethernet so you can use the software and add fingerprints.
  • Communication: TCP/IP
  • Working Voltage: DC12V±10%/1A
  • Users / Records: 3.000 / 70.000
  • Recognition Mode: RFID Fingerprint
  • Wiegand Input: 1
  • Wiegand: 26 - 34
  • Exit Button Input: 1
  • Door-magnet Input: 1
  • Alarm Output / Input: 1 / 1
  • Lock Control Output: 1
  • Refusal Rate: < 0.01%
  • Fales Rate: < 0.0001%
  • Working Humidity: 20% ~ 60%
  • Working Temperature: -10°C ~ 45°C (14°F ~ 113°F)
  • Size: 122Lx77Wx45H (mm) - 4.80Lx3.03Wx1.77H (in.)

Model No. VIS-8004:

  • Operating Frequency: 315mhz
  • Number of Codes: 1,048,576
  • Data Format: PWM
  • Operating Voltage: +12V 24V
  • Operating Distance: Up to 160ft (50m) - The maximum range needs to be used in an open area. The distance will start to diminish based on some type of interference such as metal, concrete and others.
  • Operating Temperature: 0-70°C or 32 - 158°F
  • Current Draw: 19mA
  • Compatible Transmitter: VIS-8005
  • RF channels: One
  • No. of Remotes that are able to connect to one Receiver: Up to 50
  • Receiver Output: C dry contact (NO/NC/COM)
  • Receiver Output Functions: 4 (Default) 4 second momentary, latch, toggle (On/Off), press on function
  • Connectors: 5 screw Terminal (NO, COM, NC + -)
  • Case Construction: ABS Plastic
  • Dimensions: 62*43.5*30mm (2.44* 1.71*1.18 Inches)
  • Weight: 43g or 1.52 Ounces
  • Certifications: FCC
  • Antenna: Wire lead
  • Mounting Screws: Comes with two mounting screws
  • Wire Harness: Included
  • Power supply: Not included (only included in the form of kits.)
Packaging of this product

Model No. VIS-8005:

  • Frequency: 315mhz
  • Chip: 1527
  • Input Voltage: 6V
  • Button Quantity: 1 button
  • Input Power: 0.06W
  • Input Current: 0.01A
  • Up to 160ft (50m) - The maximum range needs to be used in an open area. The distance will start to diminish based on some type of interference such as metal, concrete and others.
Packaging of this product

Model No. VIS-7013:

  • Contact Rating: 12-24V, 3A
  • Output Contact: NO/NC/COM
  • Detection Range: 5-15cm (1.96 - 5.90in.), Adjustable
  • Power: 12VDC or 24VDC
  • LED Color: Blue (Stand by Mode), Green (Active/Open Mode)
  • Time Delay: 0.5~22s
  • Panel: 4mm (0.15) Thick Aluminium Alloy (CNC)
  • Suitable for: Hollow Door
  • Mechanical Life: 100.000 tests
  • Operating Temperature: -20°C~+55°C (14°F-131°F)
  • Operating Humidity: 0-95% (relative humidity)
  • Weight: 0.105kg
  • Dimensions: 115L × 70W × 25H mm - 4.52L x 2.75W x 0.98H in.
Packaging of this product

Model No. VIS-CP200:

  • Input Voltage Range: AC90V-264V
  • Input Frequency Range: 50Hz-60Hz
  • Output Voltage Range: DC12V+/-5%
  • Output Current: 2A
  • Output Power: 24 Watts
  • Output Ripple&Noise: ≤46MV
  • Output Efficiency: ≥79%
  • Environment Operating: -30°C~45°C 20%~90%RH
  • Environment Storage Temp.: -40°C~85°C 10%~95%RH
  • Product Dimension: 87*36.5*70mm (3.42x1.43x2.75in.)
  • Product Weight: 116g
  • Certificate: UL, CE, RoHS, FCC
Description

The FPC-9245 is a complete 1-door access control system designed for secure outswinging doors. This kit includes a 1200lb magnetic lock, a VIS-3031 standalone indoor biometric fingerprint reader/card reader, and a wireless receiver set for convenient remote operation. Engineered for performance, durability, and accessibility, this kit is ideal for offices, commercial buildings, and restricted access areas requiring precise control and attendance tracking.

The VIS-ML1200LED maglock delivers up to 1200lbs of holding force and is treated with anti-rust blue zinc plating for longevity. With red/green LED status indicators, this lock ensures clear visibility of door security status.

The VIS-3031 biometric fingerprint reader combines fingerprint and RFID access for up to 3,000 users and stores 70,000 records. The device supports Wiegand 26-34 output, TCP/IP communication, and integrates seamlessly with access control software for real-time monitoring, time tracking, and attendance reporting

Also included is a wireless receiver (VIS-8004) and remote transmitter (VIS-8005), offering convenient access from distances up to 160 ft (50m) in open areas. The receiver supports momentary, latch, and toggle functions and can connect with up to 50 remotes.

For hands-free egress, the VIS-7013 no-touch exit button adds both hygiene and ease of use. With a 5–15cm adjustable detection range, programmable delay (0.5–22 seconds), and LED status indicators, this sensor is ideal for modern access systems.

Download Datasheets and Manuals of this product

VIS-ZL1200

VIS-3031

VIS-8004

VIS-8005

VIS-7013
