Do these locks work with both 12V and 24V power supplies?

Yes, each lock is compatible with 12V and 24V DC inputs, making it adaptable to different setups.

Will I be able to tell if the magnetic lock is working by looking at it?

Yes, the maglock has a bright-colored status LED. It provides a clear indication of the lock status, so you know at a glance if the door is secured.Green = LockedRed = ReleasedOff = No input

Can these magnetic locks be installed on glass/sliding doors?

Yes, they can be installed on glass doors and they can be installed on sliding doors. You might need a proper bracket.

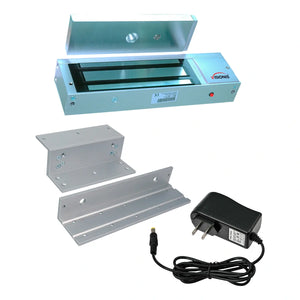

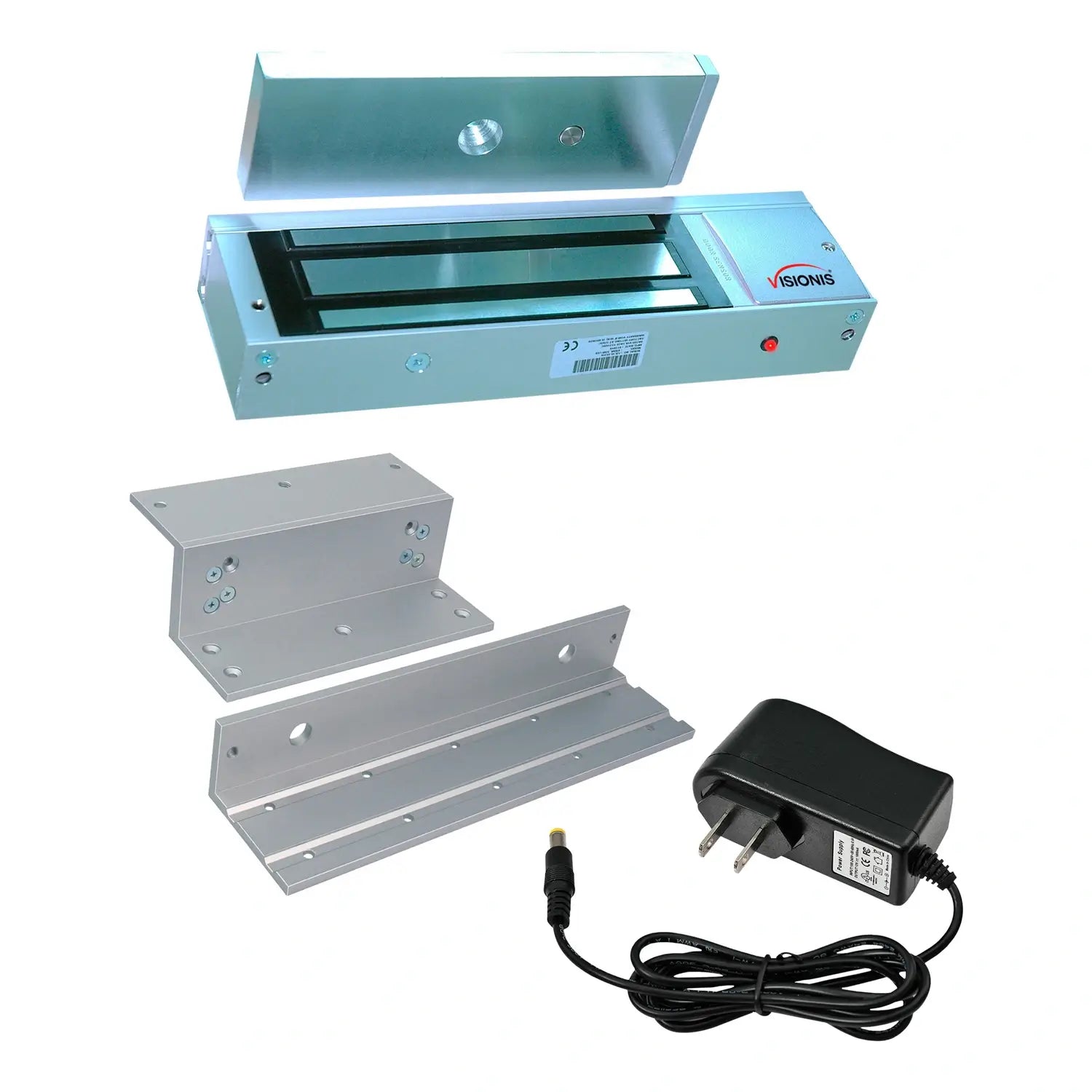

Magnetic door lock kit with 1200lb electromagnetic lock, ZL bracket, and power supply for inswinging doors. VIS-ML1200LED FPC-5365 VISIONIS

Indoor Maglock Installation (VIS-ML300LED, VIS-ML600LED, VIS-ML1200LED) - FPC Security

1200 lbs Magnetic door lock for access control - VIS-ML1200LED Visionis

1200 lbs Magnetic door lock with LED Sensor - VIS-ML1200LED Visionis

Dimensions 1200lb Indoor Electromagnetic Lock with LED Sensor VIS-ML1200LED

1200lb Indoor Electromagnetic Lock with LED Sensor VIS-ML1200LED

L And Z Bracket For 1200lbs Electromagnetic Lock VIS-ZL1200

Looking for something slightly different? Check out these variations:

This PRODUCT has a 3 YEAR warranty with full access to tech support in the USA!

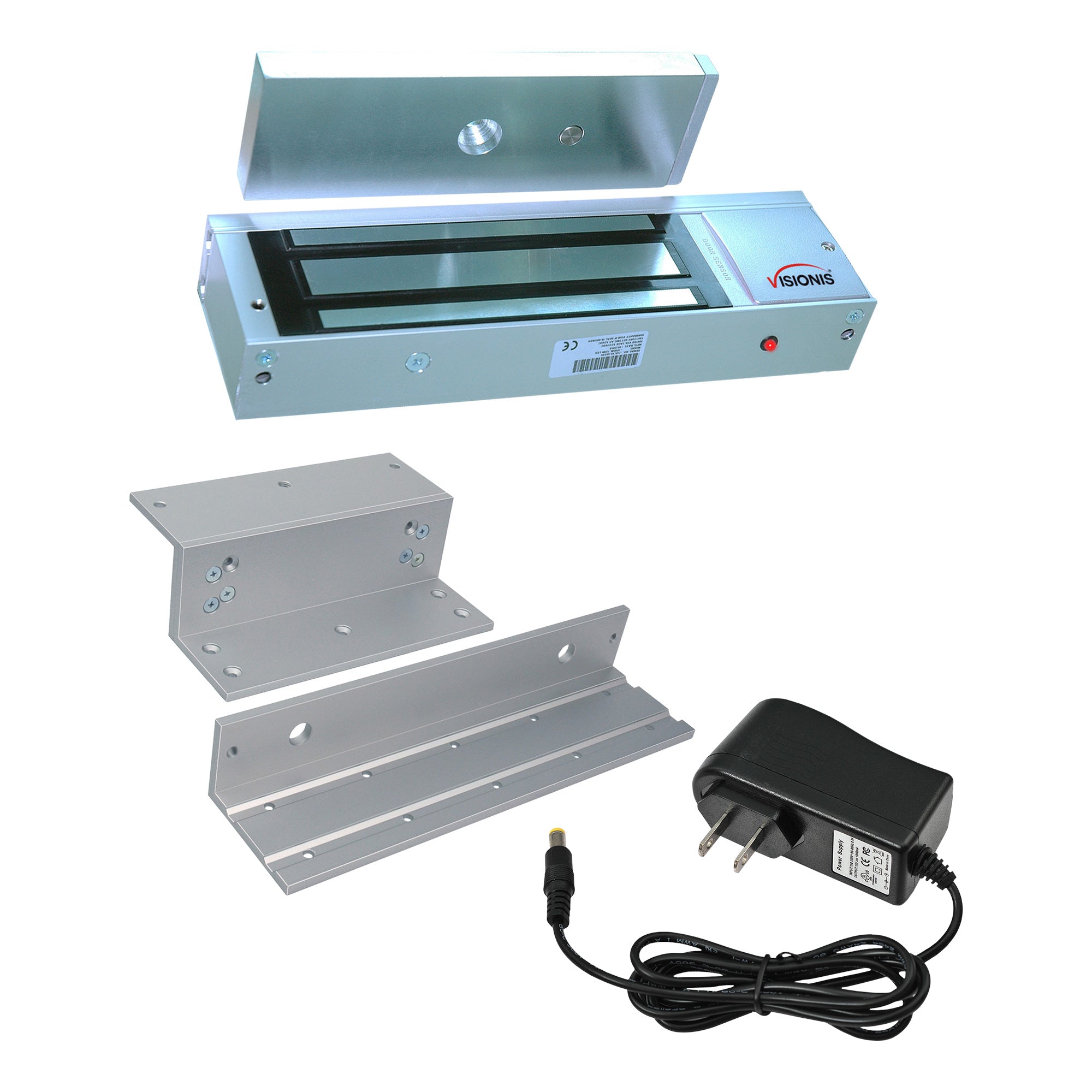

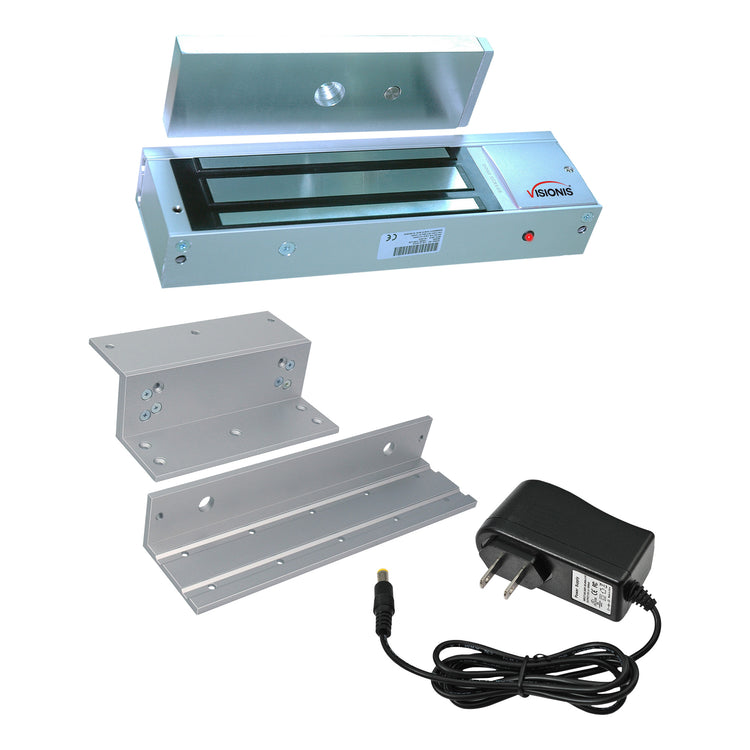

Kit Includes:

(1)

VIS-ML1200LED: 1200lb Indoor Electromagnetic Lock with LED Sensor

VIS-ZL1200: L and Z Bracket for 1200lbs Electromagnetic Lock

VIS-CP200: 12 Volt 2Amp Power Supply Transformer, UL Listed

Description

The VISIONIS FPC-5365 Magnetic Door Lock Kit is a complete security package for inswinging doors, offering a powerful 1200 lb electromagnetic door lock, an inswing-compatible ZL bracket, and a 12V power supply—everything you need to get started right away.

The VIS-ML1200LED door magnetic lock installs at the top of the door frame and holds the door securely shut when energized. With a massive 1200 lbs of holding force, it’s built to withstand high levels of pressure and prevent forced entry. The integrated LED status light provides instant feedback: red means locked, green means unlocked.

This kit also includes the VIS-ZL1200 bracket, allowing clean and secure installation on doors that swing inward, and a 12VDC power supply to simplify setup. It’s ideal for commercial, office, or indoor access control systems requiring heavy-duty protection.

NOTE: This is a Fail Safe or Normally Close lock, meaning it will unlock without power. You can add a battery backup to keep the lock engaged in case of an outage.

Characteristics

Model No. VIS-ML1200LED:

Voltage Input: 12 VDC / 24 VDC
Current Draw: 12V / 500mA ; 24V / 250mA (±5%)
Holding Force: Up to 1200 lbs (545 kg)
Hall Effect Contact: SPDT rated 2A at 24 VDC
Magnetic Contact Rating: 28 VDC, 0.2A, 5W
Anti-Rust Surface Treatment: Blue Zinc Plating
Operating Temperature: 0~55° C (32~131° F)
Weight (Magnet): 2.5 kg (±1%)
Dimensions: Magnet - (L)266x(W)67x(T)39 mm Armature - (L)185x(W)61x(T)16.5 mm
Green/Red LED Indication for EM Lock Status

Model No. VIS-ZL1200:

L and Z bracket for 1200lbs electromagnetic lock

Model No. VIS-CP200:

Input Voltage Range: AC90V-264V
Input Frequency Range: 50Hz-60Hz
Output Voltage Range: DC12V+/-5%
Output Current: 2A
Output Power: 24 Watts
Output Ripple&Noise: ≤46MV
Output Efficiency: ≥79%
Environment Operating: -30°C~45°C 20%~90%RH
Environment Storage Temp.: -40°C~85°C 10%~95%RH
Product Dimension: 87*36.5*70mm (3.42x1.43x2.75in.)
Product Weight: 116g
Certificate: UL, CE, RoHS, FCC

Description

The VISIONIS FPC-5365 Magnetic Door Lock Kit is a complete security package for inswinging doors, offering a powerful 1200 lb electromagnetic door lock, an inswing-compatible ZL bracket, and a 12V power supply—everything you need to get started right away.

The VIS-ML1200LED door magnetic lock installs at the top of the door frame and holds the door securely shut when energized. With a massive 1200 lbs of holding force, it’s built to withstand high levels of pressure and prevent forced entry. The integrated LED status light provides instant feedback: red means locked, green means unlocked.

This kit also includes the VIS-ZL1200 bracket, allowing clean and secure installation on doors that swing inward, and a 12VDC power supply to simplify setup. It’s ideal for commercial, office, or indoor access control systems requiring heavy-duty protection.

NOTE: This is a Fail Safe or Normally Close lock, meaning it will unlock without power. You can add a battery backup to keep the lock engaged in case of an outage.

Product FAQs

Do these locks work with both 12V and 24V power supplies?

Yes, each lock is compatible with 12V and 24V DC inputs, making it adaptable to different setups.
Will I be able to tell if the magnetic lock is working by looking at it?

Yes, the maglock has a bright-colored status LED. It provides a clear indication of the lock status, so you know at a glance if the door is secured.

Green = Locked
Red = Released
Off = No input
Can these magnetic locks be installed on glass/sliding doors?

Yes, they can be installed on glass doors and they can be installed on sliding doors. You might need a proper bracket.
What happens to the maglock when the power goes out?

This is a Fail Safe or Normally Close lock, meaning it will unlock without power. You can add a battery backup to keep the lock engaged in case of an outage.
Does the magnetic lock make a noise when unlocking?

The maglock makes a sort of clicking noise when it unlocks. If you want a louder noise to identify when the door unlocks, you can add a buzzer to your system.
Does it have a time delay or timer function?

No, it doesn't.
Is this magnetic door lock kit weatherproof?

This model is designed for indoor use only. For outdoor use, look for weatherproof-rated maglocks.

Download Datasheets and Manuals of this product

VIS-ML1200LED

VIS-ZL1200

Datasheet
