What voltage does this lock support?

It supports 12VDC or 24VDC, offering compatibility with standard access control power supplies.

Does the receiver support more than one remote?

Yes, the VIS-8004 receiver can pair with up to 50 remotes.

Are the lock and the exit button weatherproof for outdoor cabinets?

No. The components are intended for indoor use only.

Can the unlock duration be changed?

Yes, the receiver has 3 modes: 1-second delay, 4-second delay (default), and toggle mode (on/off).

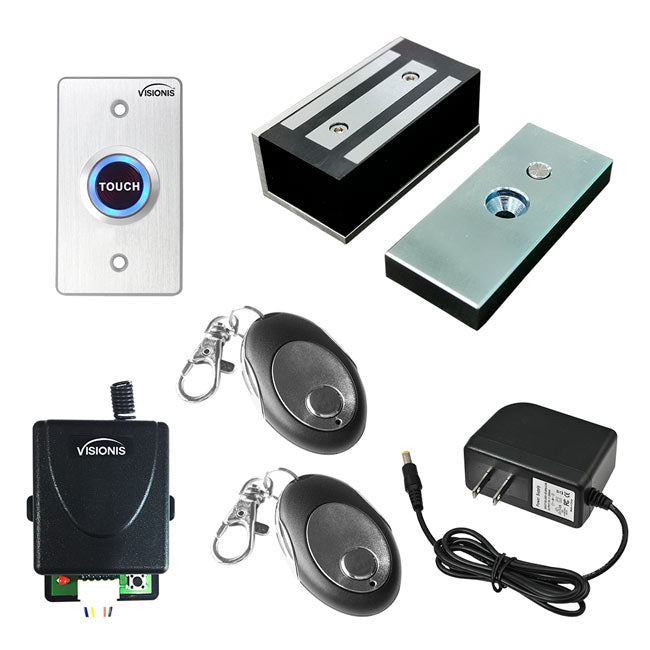

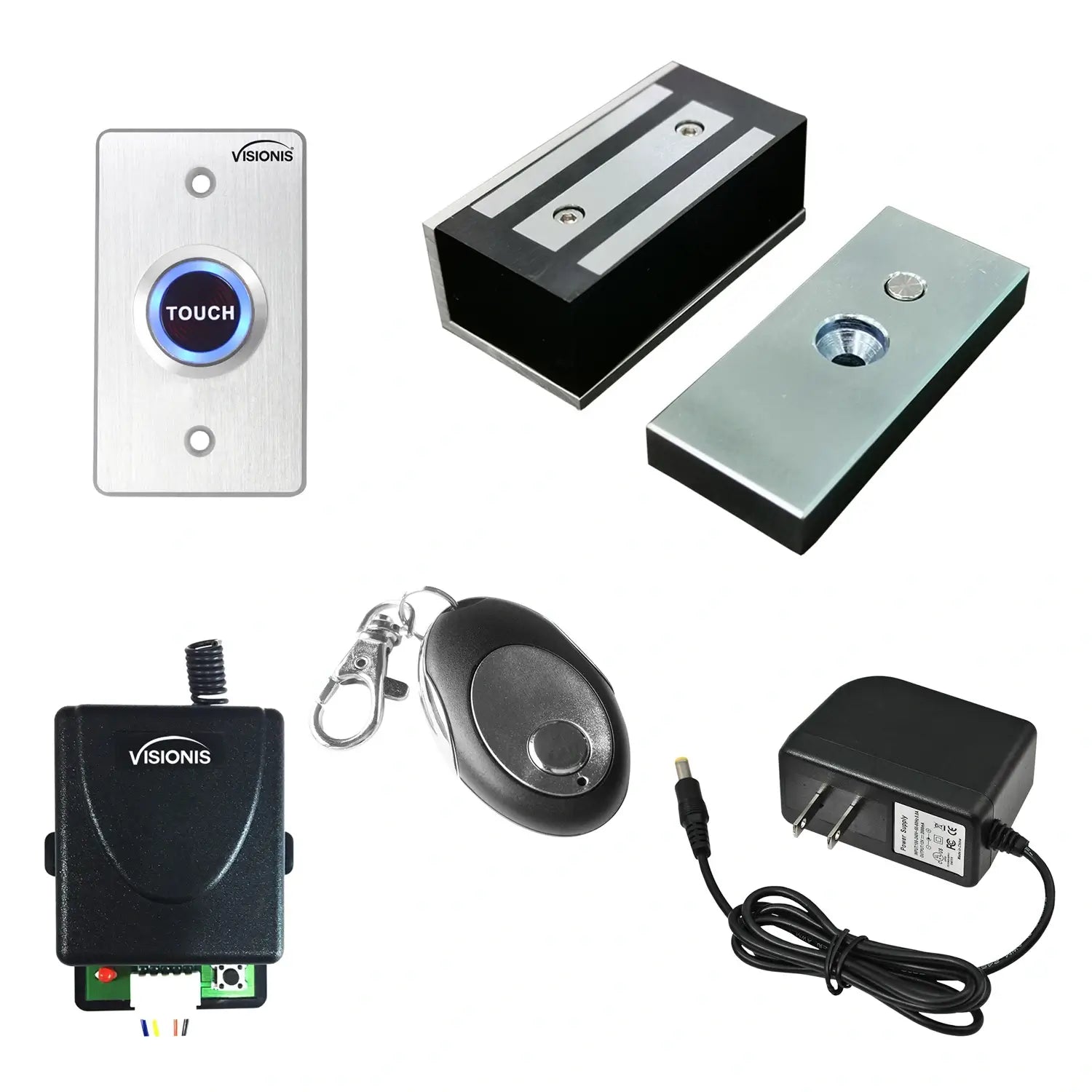

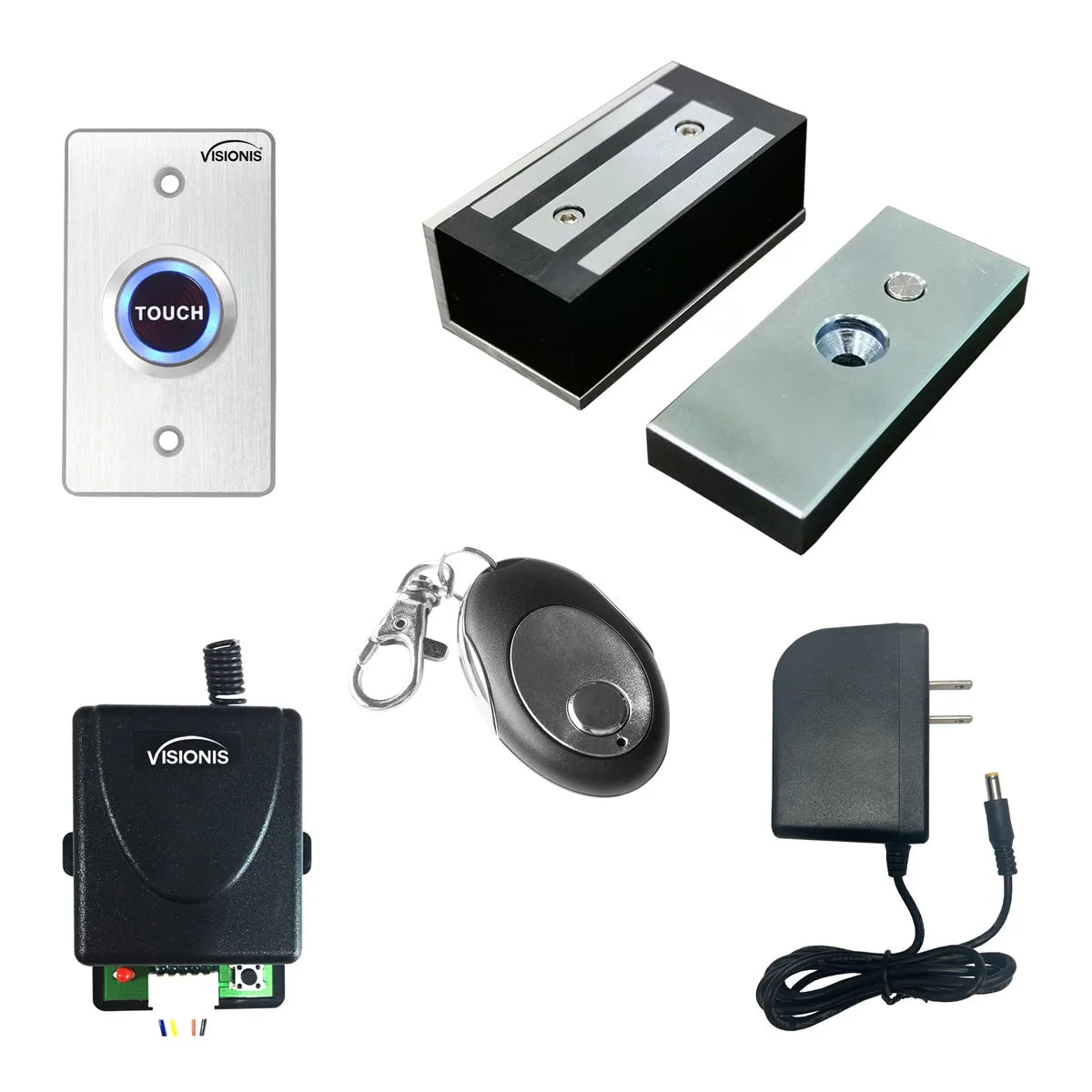

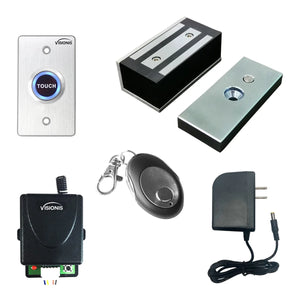

Cabinet magnetic lock buzz-in kit with remote control and exit button. VIS-ML120 FPC-7460 VISIONIS

Buzz In Kit for One Door Access Control With Electromagnetic Lock, Wireless Receiver, Exit Button

Small Cabinet Magnetic Lock with 140lbs of Force VIS-ML120 Visionis

Small Magnetic Lock with 140lbs of Force VIS-ML120 Visionis DIMENSIONS

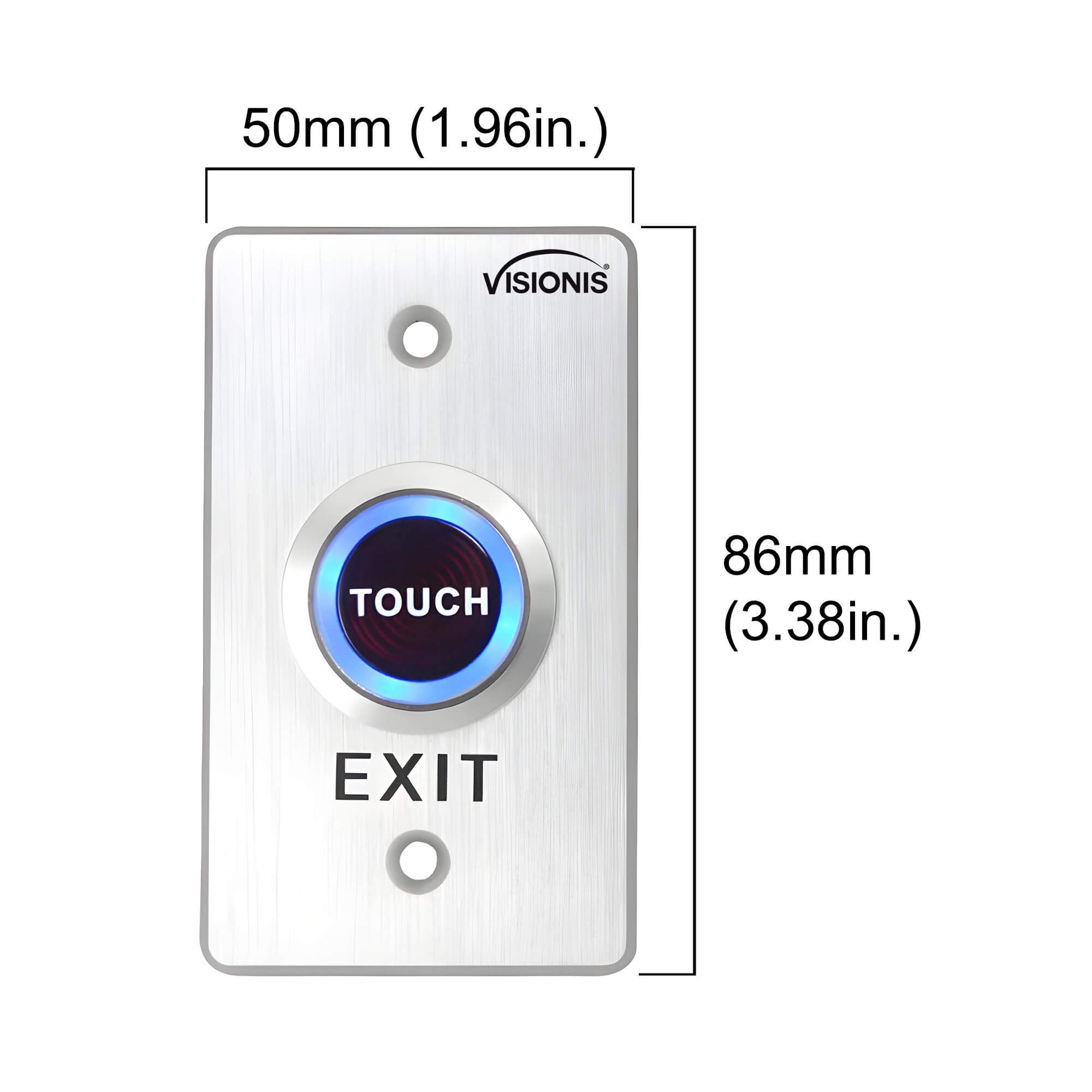

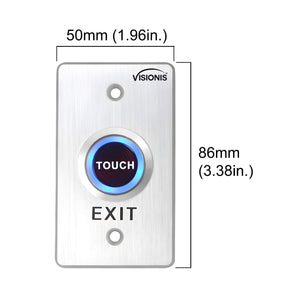

Dimensions. Request to exit button with LED lights for secure access control systems VISIONIS VIS-7005

VIS-CP200 – 12 Volt 2Amp Power Supply Transformer, UL Listed

1 channel rf transmitter and receiver - VIS-8004

1 channel rf transmitter and receiver for Opening Doors, Garage Doors, and Gates - VIS-8004

Remote Control Transmitter 1 Channel 315MHz VIS-8005 Visionis

Kit Includes:

(1)

(2)

(1)

VIS-ML120: Small Electric Cabinet and Small Door Maglock 140lbs for Indoor and Outdoor Use Fail Safe Normally Closed 12V

VIS-7005: Indoor Ultra Thin Push + Touch To Exit Button For Door Access Control With LED Light NC COM and NO Outputs

VIS-8004: 1 Channel RF Receiver 315MHz

VIS-8005: 1 Channel RF 315mhz Transmitter Remote Control

VIS-CP200: 12 Volt 2Amp Power Supply Transformer, UL Listed

Description

The VISIONIS FPC-7460 Cabinet Magnetic Lock Kit is a complete buzz-in access control system built for out-swinging small doors and cabinets. Whether you're securing an office drawer, display cabinet, or interior storage door, this kit makes entry simple and secure. With just one click on the wireless remote, you can unlock the door from up to 160 feet away.

At the core is the compact VIS-ML120 mini maglock, delivering 140 lbs of holding force to keep your cabinet or door firmly closed. The system is powered by a UL-listed transformer and includes a push/touch exit button with LED light. Installation is easy and ideal for both home and business use.

With three programmable modes on the wireless receiver, you can control how the maglock responds—momentary unlock (1 or 4 seconds) or toggle on/off like a light switch. Whether you prefer a temporary release or persistent open mode, the FPC-7460 adapts to your needs.

Key Features:

Complete cabinet magnetic lock kit with 140 lb holding force
Includes wireless RF remote (up to 160 ft range) + receiver (programs up to 50 remotes)
Mini maglock ideal for small doors, drawers, and glass cabinets
Three receiver modes: 1-sec, 4-sec unlock, or toggle on/off
Includes ultra-thin LED push/touch exit button (VIS-7005)
Power supply (12V 2A) included – UL listed
Great for small businesses, offices, reception areas, or DIY projects
Easy install and indoor use

Characteristics

Model No. VIS-ML120:

Voltage Input: 12VDC / 24VDC
Current Draw: 12V / 200mA ; 24V / 100mA (±5%)
Holding Force: Up to 140lbs (63kg)
Anti-Rust Surface Treatment: Blue Zinc Plating
Operating Temperature: 0~55°C (32~131°F)
Operating Humidity: 0~95% (non condensing)
Weight (Magnet): 0.7 kg (±1%)
Dimensions Magnet: 36 x 69 x 26 mm (1.41 x 2.71 x 1.02 inches)
Dimensions Armature: 68 x 32 x 10 mm (2.67 x 1.25 x 0.39 inches)

Model No. VIS-7005:

Contact Rating: 3A/12-24V
Output Contact: NO/NC/COM
Power: 12VDC - 24VDC
LED Color: Blue (Stand by Mode), Green (Active/Open Mode)
Panel: 4mm (0.15in.) Thick Aluminium alloy (CNC)
Suitable for Door: Hollow Door
Mechanical Life: 100.000 tests
Operating Temperature: -20°C~+55°C (14°F-131°F)
Operating Humidity: 0-95% (relative humidity)
Weight: 0.065kg
Dimension Of Plate: 86L × 50W × 25H mm - 3.38L x 1.96W x 0.98H in.

Model No. VIS-8004:

Operating Frequency: 315mhz
Number of Codes: 1,048,576
Data Format: PWM
Operating Voltage: +12V 24V
Operating Distance: Up to 160ft (50m) - The maximum range needs to be used in an open area. The distance will start to diminish based on some type of interference such as metal, concrete and others.
Operating Temperature: 0-70°C or 32 - 158°F
Current Draw: 19mA
Compatible Transmitter: VIS-8005
RF channels: One
No. of Remotes that are able to connect to one Receiver: Up to 50
Receiver Output: C dry contact (NO/NC/COM)
Receiver Output Functions: 4 (Default) 4 second momentary, latch, toggle (On/Off), press on function
Connectors: 5 screw Terminal (NO, COM, NC + -)
Case Construction: ABS Plastic
Dimensions: 62*43.5*30mm (2.44* 1.71*1.18 Inches)
Weight: 43g or 1.52 Ounces
Certifications: FCC
Antenna: Wire lead
Mounting Screws: Comes with two mounting screws
Wire Harness: Included
Power supply: Not included (only included in the form of kits.)

Model No. VIS-8005:

Frequency: 315mhz
Chip: 1527
Input Voltage: 6V
Button Quantity: 1 button
Input Power: 0.06W
Input Current: 0.01A
Up to 160ft (50m) - The maximum range needs to be used in an open area. The distance will start to diminish based on some type of interference such as metal, concrete and others.

Model No. VIS-CP200:

Cable Length: 1.2 meters (4 feet)
Input Voltage Range: AC90V-264V
Input Frequency Range: 50Hz-60Hz
Output Voltage Range: DC12V+/-5%
Output Current: 2A
Output Power: 24 Watts
Output Ripple&Noise: ≤46MV
Output Efficiency: ≥79%
Environment Operating: -30°C~45°C 20%~90%RH
Environment Storage Temp.: -40°C~85°C 10%~95%RH
Product Dimension: 87*36.5*70mm (3.42x1.43x2.75in.)
Product Weight: 116g
Certificate: UL, CE, RoHS, FCC

Description

Key Features:

Complete cabinet magnetic lock kit with 140 lb holding force
Includes wireless RF remote (up to 160 ft range) + receiver (programs up to 50 remotes)
Mini maglock ideal for small doors, drawers, and glass cabinets
Three receiver modes: 1-sec, 4-sec unlock, or toggle on/off
Includes ultra-thin LED push/touch exit button (VIS-7005)
Power supply (12V 2A) included – UL listed
Great for small businesses, offices, reception areas, or DIY projects
Easy install and indoor use

Product FAQs

What voltage does this lock support?

It supports 12VDC or 24VDC, offering compatibility with standard access control power supplies.
Does the receiver support more than one remote?

Yes, the VIS-8004 receiver can pair with up to 50 remotes.
Are the lock and the exit button weatherproof for outdoor cabinets?

No. The components are intended for indoor use only.
Can the unlock duration be changed?

Yes, the receiver has 3 modes: 1-second delay, 4-second delay (default), and toggle mode (on/off).
How far can the remote reach?

Up to 160 feet (50m) in open space. The distance will start to diminish based on some type of interference such as metal, concrete and others.

Download Datasheets and Manuals of this product

FPC-7460, FPC-7454-B, FPC-7455, FPC-7456, FPC-7457, FPC-7458, FPC-7459

Installation Diagram

VIS-ML120

VIS-7005

VIS-8004

VIS-8005

Datasheet

Visionis by Visionis

Kit One Door Access Control for Outswinging Door. Magnetic Lock 140 lbs (63kg) of Holding Force + Touch to Exit Button + Wireless Receiver + 2 Control Remotes - FPC-7460 Visionis

UPC Code: 680044676227

⚡ Order before 2:00 PM EST on weekdays for same-day shipping

Out of Stock

Regular price: $99.80
Sale price: $99.80
Regular price

Shipping calculated at checkout.

Looking for something slightly different? Check out these variations:

Quantity:

Free US Shipping
To all 50 states

3 YEAR Warranty

30-Day Returns
No questions asked

Lifetime Phone Support
Mon–Fri 9am–6pm EST

ATTENTION:

Before purchasing, it is recommended that the customer checks with their local fire authority to see if there is any additional product they may need in order to comply with the local fire codes. We are not responsible for the improper installation of our product(s) or any type of fees that can be incurred by not complying with your local fire authority.
