Looking for something slightly different? Check out these variations:

This PRODUCT has a 3 YEAR warranty with full access to tech support in the USA!

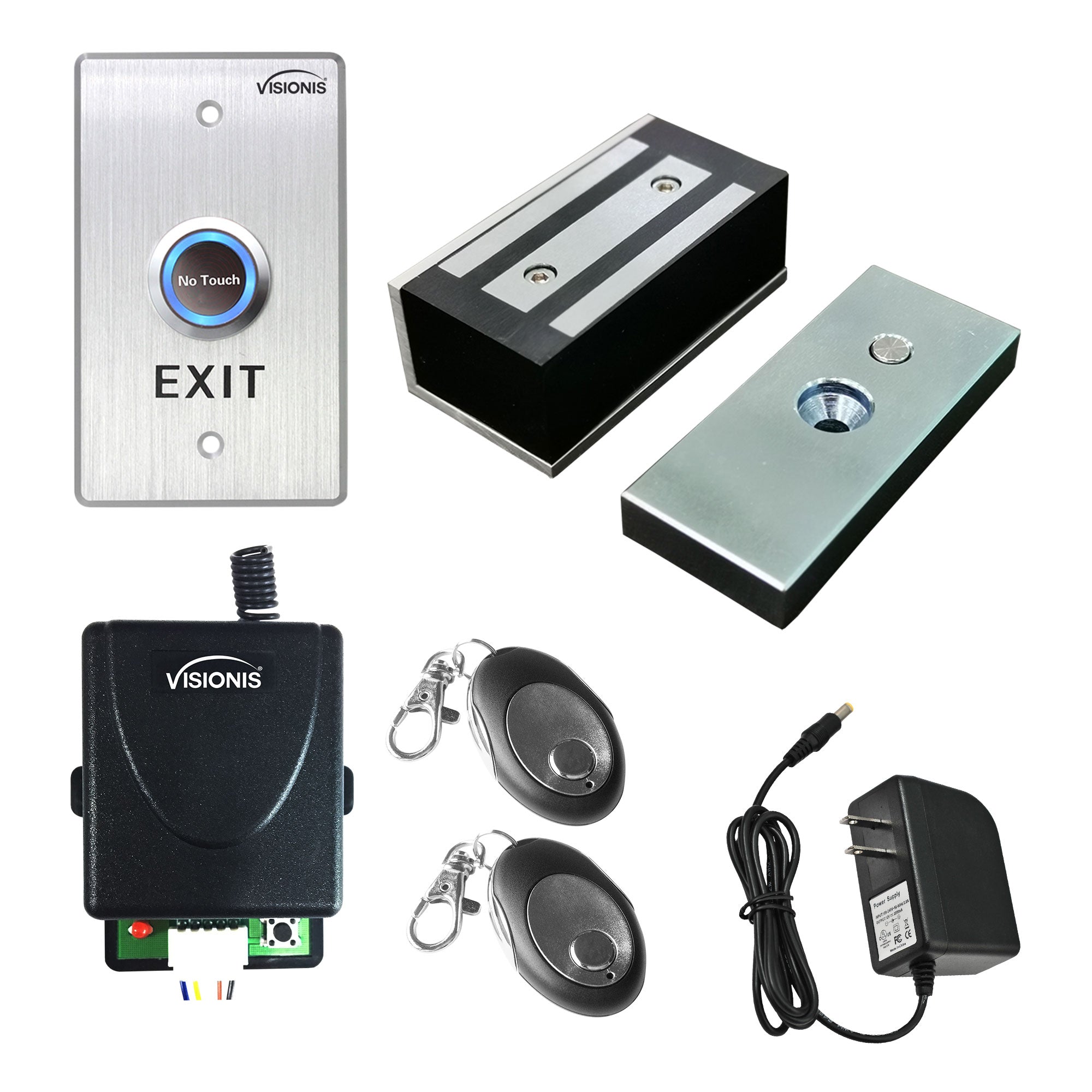

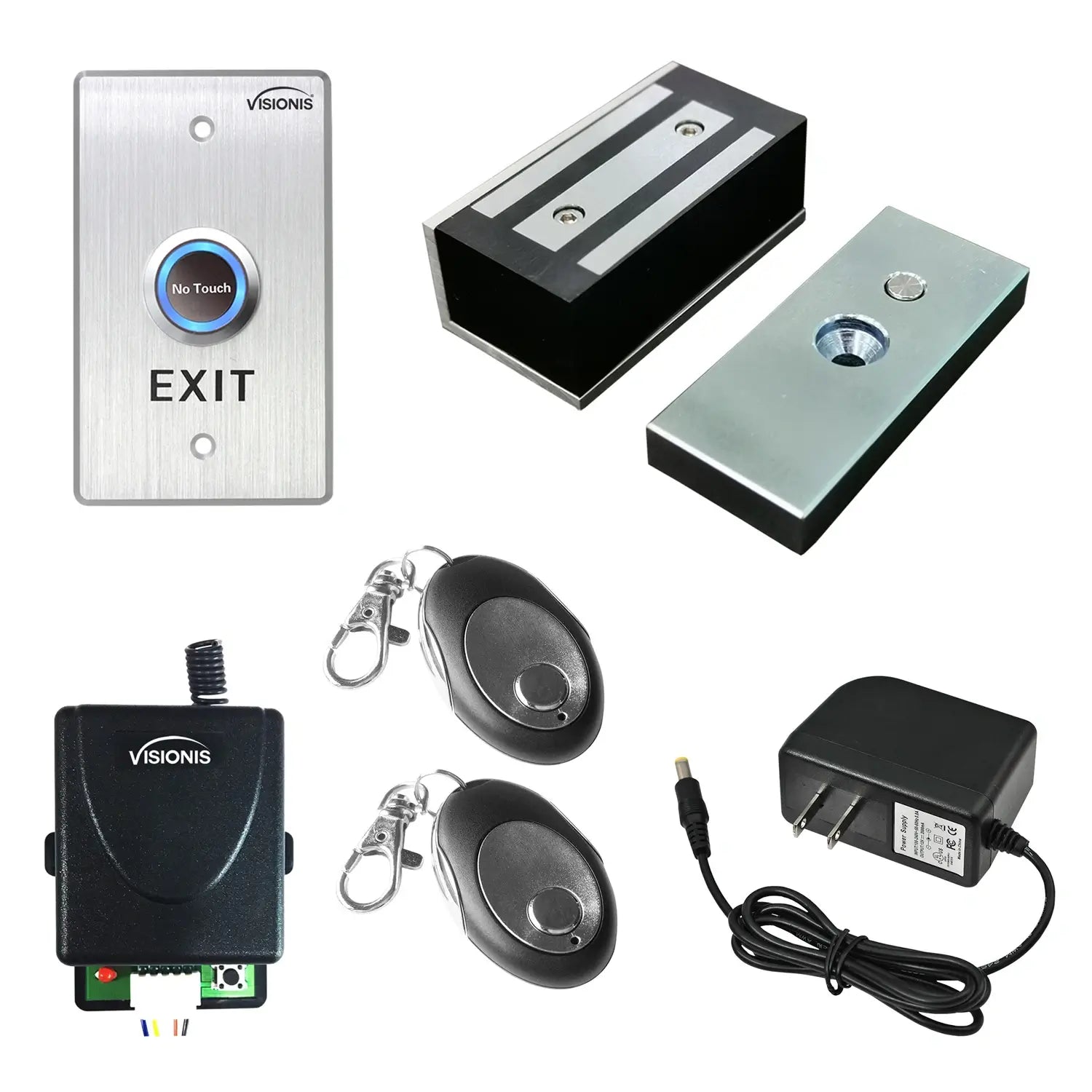

Kit Includes:

(1)
(1)
(1)
(2)
(1)
VIS-ML120: Small Electric Cabinet and Small Door Maglock 140lbs for Indoor and Outdoor Use Fail Safe Normally Closed 12V
VIS-7013: Indoor Stainless Steel No Touch Request to Exit Button with Time Delay Standard Size with LED Light NC COM and NO Outputs
VIS-8004: 1 Channel RF Receiver 315MHz
VIS-8005: 1 Channel RF 315mhz Transmitter Remote Control
VIS-CP200: 12 Volt 2Amp Power Supply Transformer, UL Listed
Description

The VISIONIS FPC-7475 Cabinet Magnetic Lock Kit is a hands-free buzz-in access control system designed for out-swinging small doors and cabinets. Ideal for offices, retail stores, or home safes, this compact setup allows remote entry and touchless exit—all in one reliable, easy-to-install kit.

The core of the system is the VIS-ML120 mini maglock, offering 140 lbs of holding force in a compact form. It's perfect for securing cabinets, small interior doors, or drawers. The RF receiver and remote (VIS-8004 + VIS-8005) give you wireless control from up to 160 feet away, and the receiver supports up to 50 remotes.

What sets this kit apart is the VISIONIS VIS-7013 No Touch Exit Button. With just a wave of your hand, it releases the lock—no physical contact needed. You can even program the delay from 0.5 to 22 seconds, making it ideal for hygiene-sensitive environments like clinics, retail, and shared spaces.

Key Features:

  • 140 lb cabinet magnetic lock with mini form factor (VIS-ML120)
  • Hands-free exit with programmable no-touch button (0.5–22 sec)
  • Wireless RF remote access from up to 160 ft
  • Receiver includes 3 modes: 1 sec, 4 sec, or toggle on/off
  • Exit button includes LED indicator (green = unlocked, blue = standby)
  • Ideal for drawers, glass cabinets, or interior doors
  • Great for hygienic environments—no contact required
  • UL-listed 12VDC power supply included
Characteristics

Model No. VIS-ML120:

  • Voltage Input: 12VDC / 24VDC
  • Current Draw: 12V / 200mA ; 24V / 100mA (±5%)
  • Holding Force: Up to 140lbs (63kg)
  • Anti-Rust Surface Treatment: Blue Zinc Plating
  • Operating Temperature: 0~55°C (32~131°F)
  • Operating Humidity: 0~95% (non condensing)
  • Weight (Magnet): 0.7 kg (±1%)
  • Dimensions Magnet: 36 x 69 x 26 mm (1.41 x 2.71 x 1.02 inches)
  • Dimensions Armature: 68 x 32 x 10 mm (2.67 x 1.25 x 0.39 inches)

Model No. VIS-7013:

  • Contact Rating: 12-24V, 3A
  • Output Contact: NO/NC/COM
  • Detection Range: 5-15cm (1.96 - 5.90in.), Adjustable
  • Power: 12VDC or 24VDC
  • LED Color: Blue (Stand by Mode), Green (Active/Open Mode)
  • Time Delay: 0.5~22s
  • Panel: 4mm (0.15) Thick Aluminium Alloy (CNC)
  • Suitable for: Hollow Door
  • Mechanical Life: 100.000 tests
  • Operating Temperature: -20°C~+55°C (14°F-131°F)
  • Operating Humidity: 0-95% (relative humidity)
  • Weight: 0.105kg
  • Dimensions: 115L × 70W × 25H mm - 4.52L x 2.75W x 0.98H in.
Packaging of this product

Model No. VIS-8004:

  • Operating Frequency: 315mhz
  • Number of Codes: 1,048,576
  • Data Format: PWM
  • Operating Voltage: +12V 24V
  • Operating Distance: Up to 160ft (50m) - The maximum range needs to be used in an open area. The distance will start to diminish based on some type of interference such as metal, concrete and others.
  • Operating Temperature: 0-70°C or 32 - 158°F
  • Current Draw: 19mA
  • Compatible Transmitter: VIS-8005
  • RF channels: One
  • No. of Remotes that are able to connect to one Receiver: Up to 50
  • Receiver Output: C dry contact (NO/NC/COM)
  • Receiver Output Functions: 4 (Default) 4 second momentary, latch, toggle (On/Off), press on function
  • Connectors: 5 screw Terminal (NO, COM, NC + -)
  • Case Construction: ABS Plastic
  • Dimensions: 62*43.5*30mm (2.44* 1.71*1.18 Inches)
  • Weight: 43g or 1.52 Ounces
  • Certifications: FCC
  • Antenna: Wire lead
  • Mounting Screws: Comes with two mounting screws
  • Wire Harness: Included
  • Power supply: Not included (only included in the form of kits.)
Packaging of this product

Model No. VIS-8005:

  • Frequency: 315mhz
  • Chip: 1527
  • Input Voltage: 6V
  • Button Quantity: 1 button
  • Input Power: 0.06W
  • Input Current: 0.01A
  • Up to 160ft (50m) - The maximum range needs to be used in an open area. The distance will start to diminish based on some type of interference such as metal, concrete and others.
Packaging of this product

Model No. VIS-CP200:

  • Cable Length: 1.2 meters (4 feet)
  • Input Voltage Range: AC90V-264V
  • Input Frequency Range: 50Hz-60Hz
  • Output Voltage Range: DC12V+/-5%
  • Output Current: 2A
  • Output Power: 24 Watts
  • Output Ripple&Noise: ≤46MV
  • Output Efficiency: ≥79%
  • Environment Operating: -30°C~45°C 20%~90%RH
  • Environment Storage Temp.: -40°C~85°C 10%~95%RH
  • Product Dimension: 87*36.5*70mm (3.42x1.43x2.75in.)
  • Product Weight: 116g
  • Certificate: UL, CE, RoHS, FCC
Description

The VISIONIS FPC-7475 Cabinet Magnetic Lock Kit is a hands-free buzz-in access control system designed for out-swinging small doors and cabinets. Ideal for offices, retail stores, or home safes, this compact setup allows remote entry and touchless exit—all in one reliable, easy-to-install kit.

The core of the system is the VIS-ML120 mini maglock, offering 140 lbs of holding force in a compact form. It's perfect for securing cabinets, small interior doors, or drawers. The RF receiver and remote (VIS-8004 + VIS-8005) give you wireless control from up to 160 feet away, and the receiver supports up to 50 remotes.

What sets this kit apart is the VISIONIS VIS-7013 No Touch Exit Button. With just a wave of your hand, it releases the lock—no physical contact needed. You can even program the delay from 0.5 to 22 seconds, making it ideal for hygiene-sensitive environments like clinics, retail, and shared spaces.

Key Features:

  • 140 lb cabinet magnetic lock with mini form factor (VIS-ML120)
  • Hands-free exit with programmable no-touch button (0.5–22 sec)
  • Wireless RF remote access from up to 160 ft
  • Receiver includes 3 modes: 1 sec, 4 sec, or toggle on/off
  • Exit button includes LED indicator (green = unlocked, blue = standby)
  • Ideal for drawers, glass cabinets, or interior doors
  • Great for hygienic environments—no contact required
  • UL-listed 12VDC power supply included

  • What voltage does this lock support?

    It supports 12VDC or 24VDC, offering compatibility with standard access control power supplies.

  • Does the receiver support more than one remote?

    Yes, the VIS-8004 receiver can pair with up to 50 remotes.

  • Are the lock and the exit button weatherproof for outdoor cabinets?

    No. The components are intended for indoor use only.

  • Can the unlock duration be changed?

    Yes, the receiver has 3 modes: 1-second delay, 4-second delay (default), and toggle mode (on/off).

  • How far can the remote reach?

    Up to 160 feet (50m) in open space. The distance will start to diminish based on some type of interference such as metal, concrete and others.
