This PRODUCT has a 3 YEAR warranty with full access to tech support in the USA!

Description

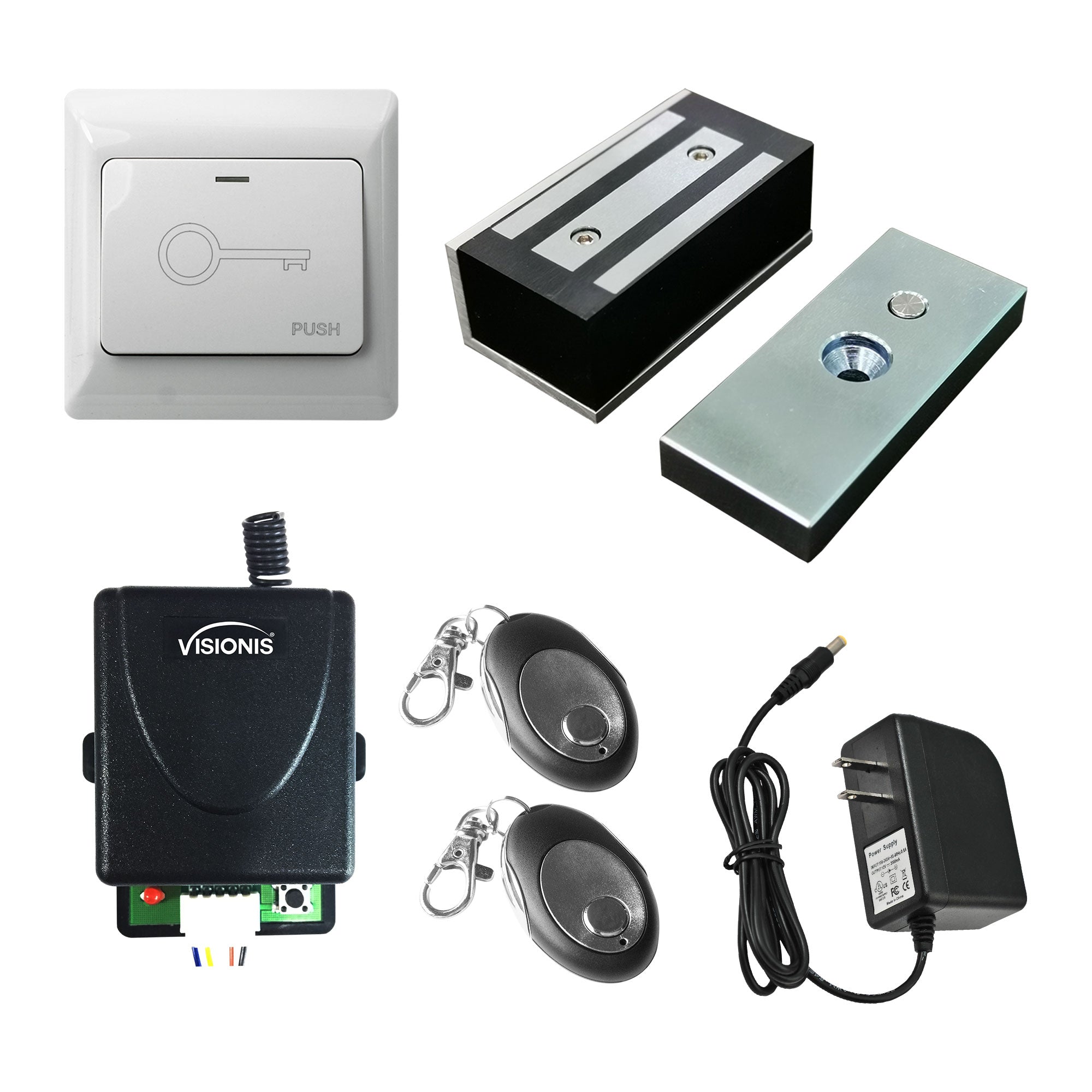

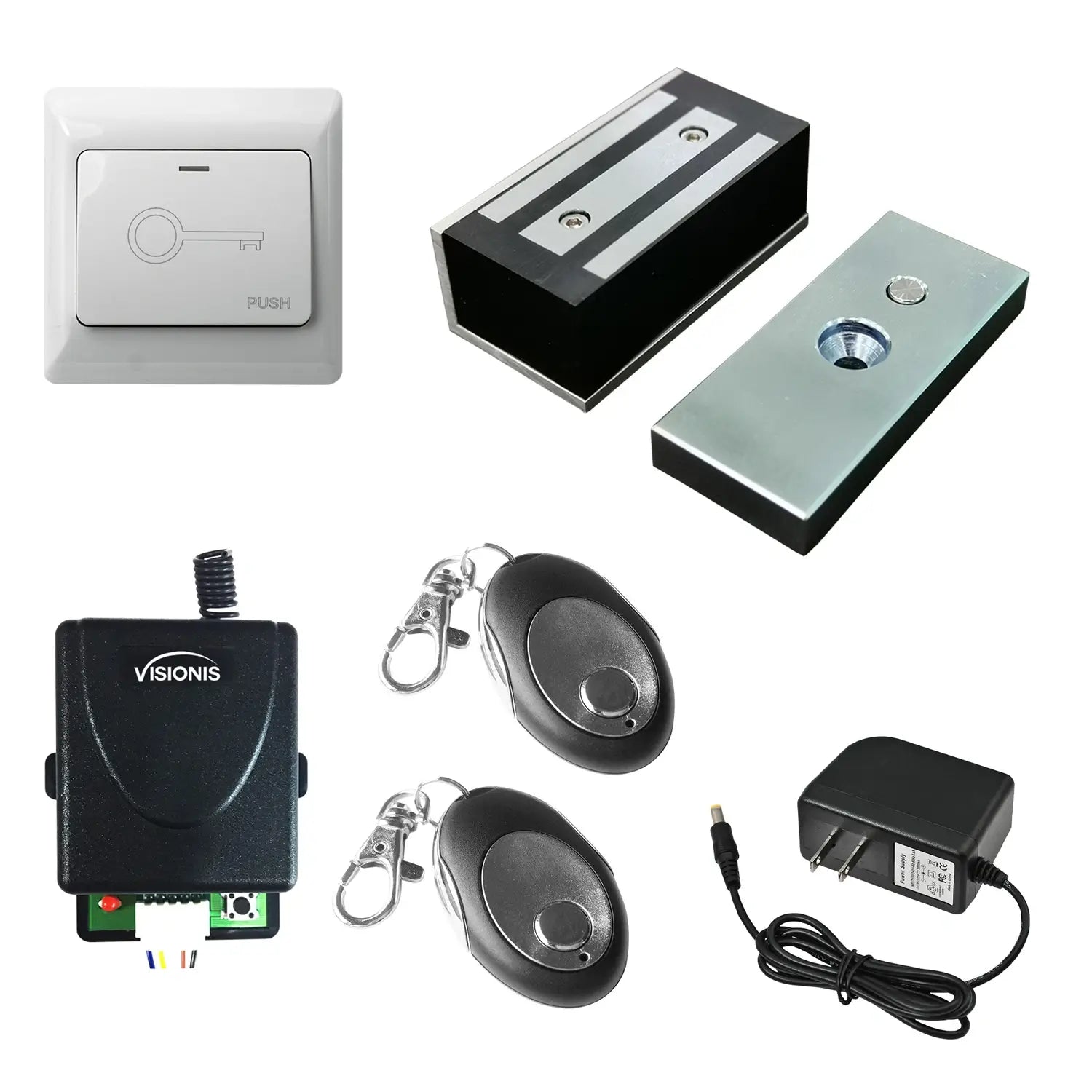

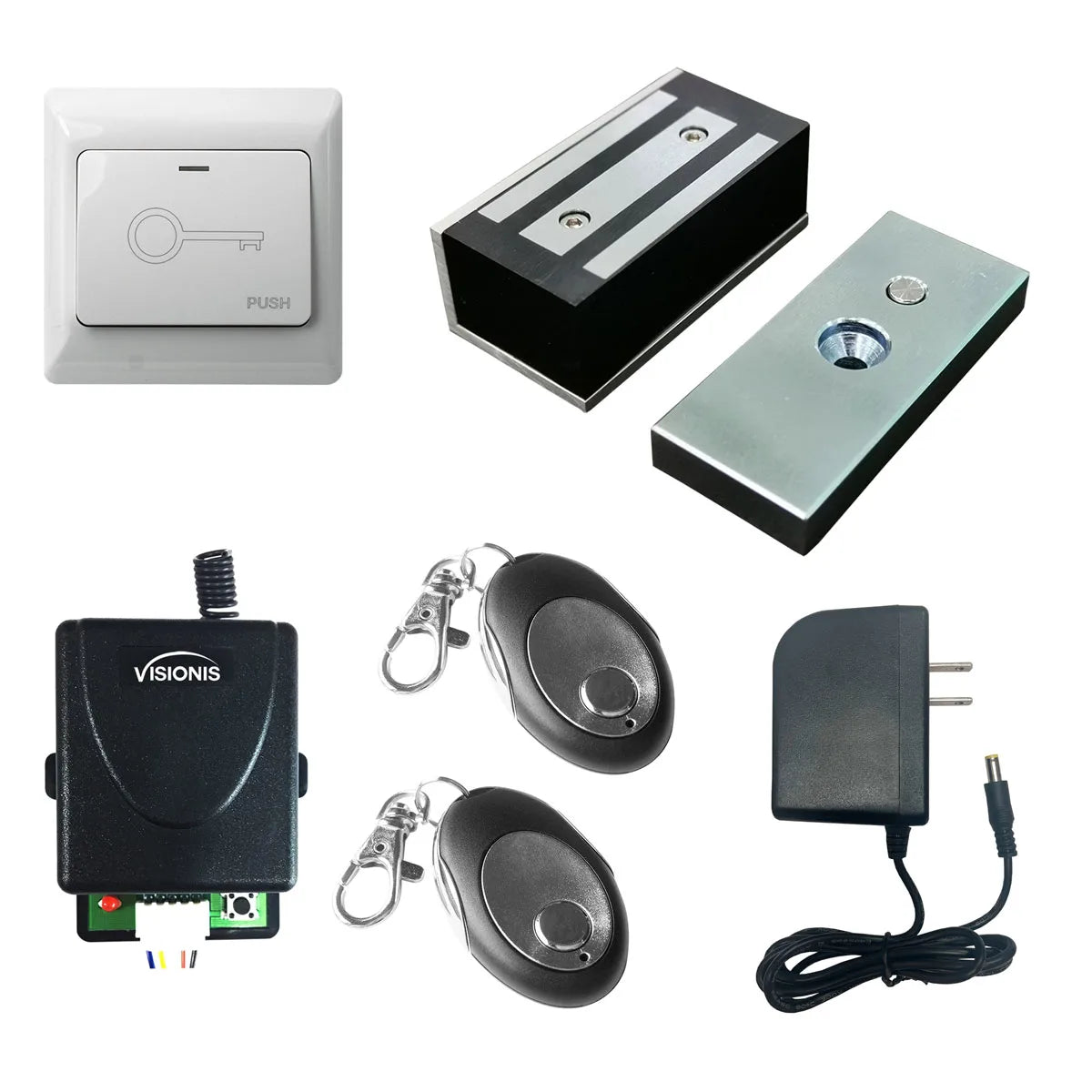

The VISIONIS FPC-7468 Cabinet Magnetic Lock Kit is a reliable buzz-in access control system designed for out-swinging small doors and cabinets. With a compact 140 lb mini maglock, wireless remotes, and a wide push-to-exit button, this complete kit makes it easy to manage access with the push of a button—no software or wiring headaches required.

The VIS-ML120 mini maglock offers strong protection for light-duty applications such as cabinets, drawers, and interior doors. Using the VIS-8005 RF remote, users can unlock the door from up to 160 feet away, making it ideal for reception desks, offices, or retail settings.

The receiver supports three modes:

  • Default: Temporary unlock for 4 seconds
  • Toggle mode: Press once to unlock, press again to lock
  • Fast release: Temporary unlock for 1 second

The system also includes the VIS-7030 wide push-to-exit button, designed for quick interior egress. It's perfect for setups where a simple, wired button offers instant access release.

Key Features:

  • 140 lb cabinet magnetic lock for small doors and drawers
  • Wireless RF remote access from up to 160 ft (VIS-8005 + VIS-8004)
  • Mini maglock offers compact security in tight spaces
  • 3 unlock modes: 1 sec, 4 sec, or on/off toggle
  • Includes wide white push-to-exit button (VIS-7030)
  • Power supply (12VDC 2A) included – UL listed
  • Ideal for home offices, retail displays, medical cabinets, or reception areas
  • Easy DIY installation with professional-grade components



Characteristics

Model No. VIS-ML120:

  • Voltage Input: 12VDC / 24VDC
  • Current Draw: 12V / 200mA ; 24V / 100mA (±5%)
  • Holding Force: Up to 140lbs (63kg)
  • Anti-Rust Surface Treatment: Blue Zinc Plating
  • Operating Temperature: 0~55°C (32~131°F)
  • Operating Humidity: 0~95% (non condensing)
  • Weight (Magnet): 0.7 kg (±1%)
  • Dimensions Magnet: 36 x 69 x 26 mm (1.41 x 2.71 x 1.02 inches)
  • Dimensions Armature: 68 x 32 x 10 mm (2.67 x 1.25 x 0.39 inches)

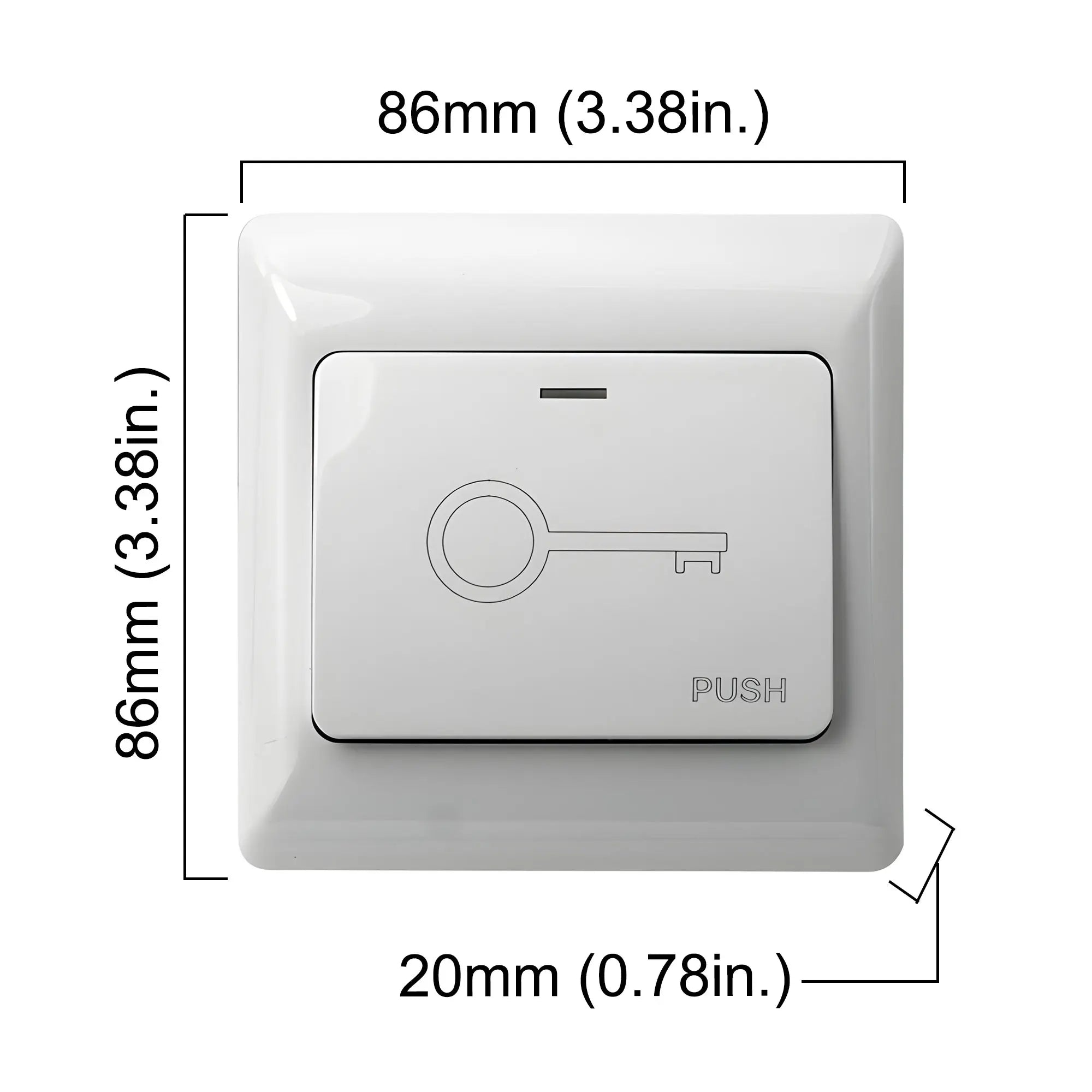

Model No. VIS-7030:

  • Dimensions: 86L*86W*20H mm (3.38*3.38*0.78in.)
  • Current Rating: 3A/125-250VAC
  • Output Contact: NC/NO/COM Surface
  • Operating Temp.: -20°C~+55°C(-4°F~ 131°F)
  • Suitable Humidity: 0-95% (relative humidity)
  • Weight: 0.045kg
  • Suitable for Door: Hollow Door
  • Mechanical Life: 100,000 tests

Model No. VIS-8004:

  • Operating Frequency: 315mhz
  • Number of Codes: 1,048,576
  • Data Format: PWM
  • Operating Voltage: +12V 24V
  • Operating Distance: Up to 160ft (50m) - The maximum range needs to be used in an open area. The distance will start to diminish based on some type of interference such as metal, concrete and others.
  • Operating Temperature: 0-70°C or 32 - 158°F
  • Current Draw: 19mA
  • Compatible Transmitter: VIS-8005
  • RF channels: One
  • No. of Remotes that are able to connect to one Receiver: Up to 50
  • Receiver Output: C dry contact (NO/NC/COM)
  • Receiver Output Functions: 4 (Default) 4 second momentary, latch, toggle (On/Off), press on function
  • Connectors: 5 screw Terminal (NO, COM, NC + -)
  • Case Construction: ABS Plastic
  • Dimensions: 62*43.5*30mm (2.44* 1.71*1.18 Inches)
  • Weight: 43g or 1.52 Ounces
  • Certifications: FCC
  • Antenna: Wire lead
  • Mounting Screws: Comes with two mounting screws
  • Wire Harness: Included
  • Power supply: Not included (only included in the form of kits.)
Packaging of this product

Model No. VIS-8005:

  • Frequency: 315mhz
  • Chip: 1527
  • Input Voltage: 6V
  • Button Quantity: 1 button
  • Input Power: 0.06W
  • Input Current: 0.01A
  • Up to 160ft (50m) - The maximum range needs to be used in an open area. The distance will start to diminish based on some type of interference such as metal, concrete and others.
Packaging of this product

Model No. VIS-CP200:

  • Input Voltage Range: AC90V-264V
  • Input Frequency Range: 50Hz-60Hz
  • Output Voltage Range: DC12V+/-5%
  • Output Current: 2A
  • Output Power: 24 Watts
  • Output Ripple&Noise: ≤46MV
  • Output Efficiency: ≥79%
  • Environment Operating: -30°C~45°C 20%~90%RH
  • Environment Storage Temp.: -40°C~85°C 10%~95%RH
  • Product Dimension: 87*36.5*70mm (3.42x1.43x2.75in.)
  • Product Weight: 116g
  • Certificate: UL, CE, RoHS, FCC
Description

The VISIONIS FPC-7468 Cabinet Magnetic Lock Kit is a reliable buzz-in access control system designed for out-swinging small doors and cabinets. With a compact 140 lb mini maglock, wireless remotes, and a wide push-to-exit button, this complete kit makes it easy to manage access with the push of a button—no software or wiring headaches required.

The VIS-ML120 mini maglock offers strong protection for light-duty applications such as cabinets, drawers, and interior doors. Using the VIS-8005 RF remote, users can unlock the door from up to 160 feet away, making it ideal for reception desks, offices, or retail settings.

The receiver supports three modes:

  • Default: Temporary unlock for 4 seconds
  • Toggle mode: Press once to unlock, press again to lock
  • Fast release: Temporary unlock for 1 second

The system also includes the VIS-7030 wide push-to-exit button, designed for quick interior egress. It's perfect for setups where a simple, wired button offers instant access release.

Key Features:

  • 140 lb cabinet magnetic lock for small doors and drawers
  • Wireless RF remote access from up to 160 ft (VIS-8005 + VIS-8004)
  • Mini maglock offers compact security in tight spaces
  • 3 unlock modes: 1 sec, 4 sec, or on/off toggle
  • Includes wide white push-to-exit button (VIS-7030)
  • Power supply (12VDC 2A) included – UL listed
  • Ideal for home offices, retail displays, medical cabinets, or reception areas
  • Easy DIY installation with professional-grade components



  • What voltage does this lock support?

    It supports 12VDC or 24VDC, offering compatibility with standard access control power supplies.

  • Does the receiver support more than one remote?

    Yes, the VIS-8004 receiver can pair with up to 50 remotes.

  • Are the lock and the exit button weatherproof for outdoor cabinets?

    No. The components are intended for indoor use only.

  • Can the unlock duration be changed?

    Yes, the receiver has 3 modes: 1-second delay, 4-second delay (default), and toggle mode (on/off).

  • How far can the remote reach?

    Up to 160 feet (50m) in open space. The distance will start to diminish based on some type of interference such as metal, concrete and others.

Download Datasheets and Manuals of this product

FPC-7462, FPC-7463, FPC-7464, FPC-7465, FPC-7466, FPC-7467, FPC-7468

VIS-ML120

VIS-7030

VIS-8004

VIS-8005

Contact Us for Support

LET US HELP YOU WITH YOUR PURCHASE

Feel free to contact our dedicated support team if you have any questions or if you're ready to place an order.

I Need Help
Visionis by Visionis

Kit One Door Access Control for Outswinging Door. Magnetic Lock 140 lbs (63kg) of Holding Force + Square Push to Exit Button + Wireless Receiver + 2 Control Remotes - FPC-7468 Visionis

Translation missing: en.products.product.sku:FPC-7468

UPC Code: 680044676302 Weight: 3.0 lb
