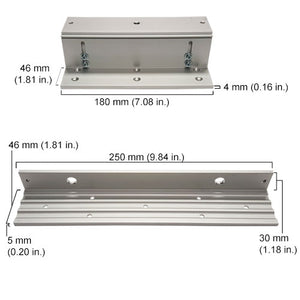

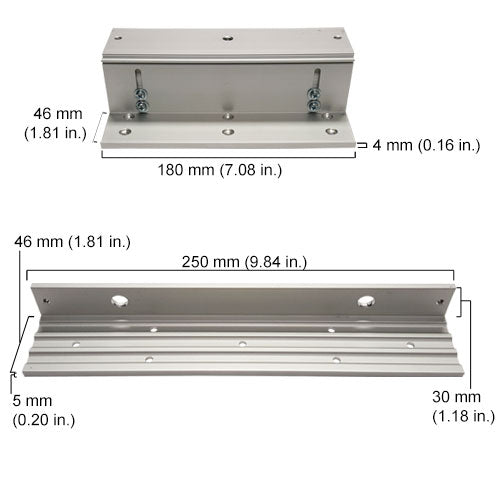

L and Z Bracket For 600lbs Electromagnetic Lock VIS-ZL600

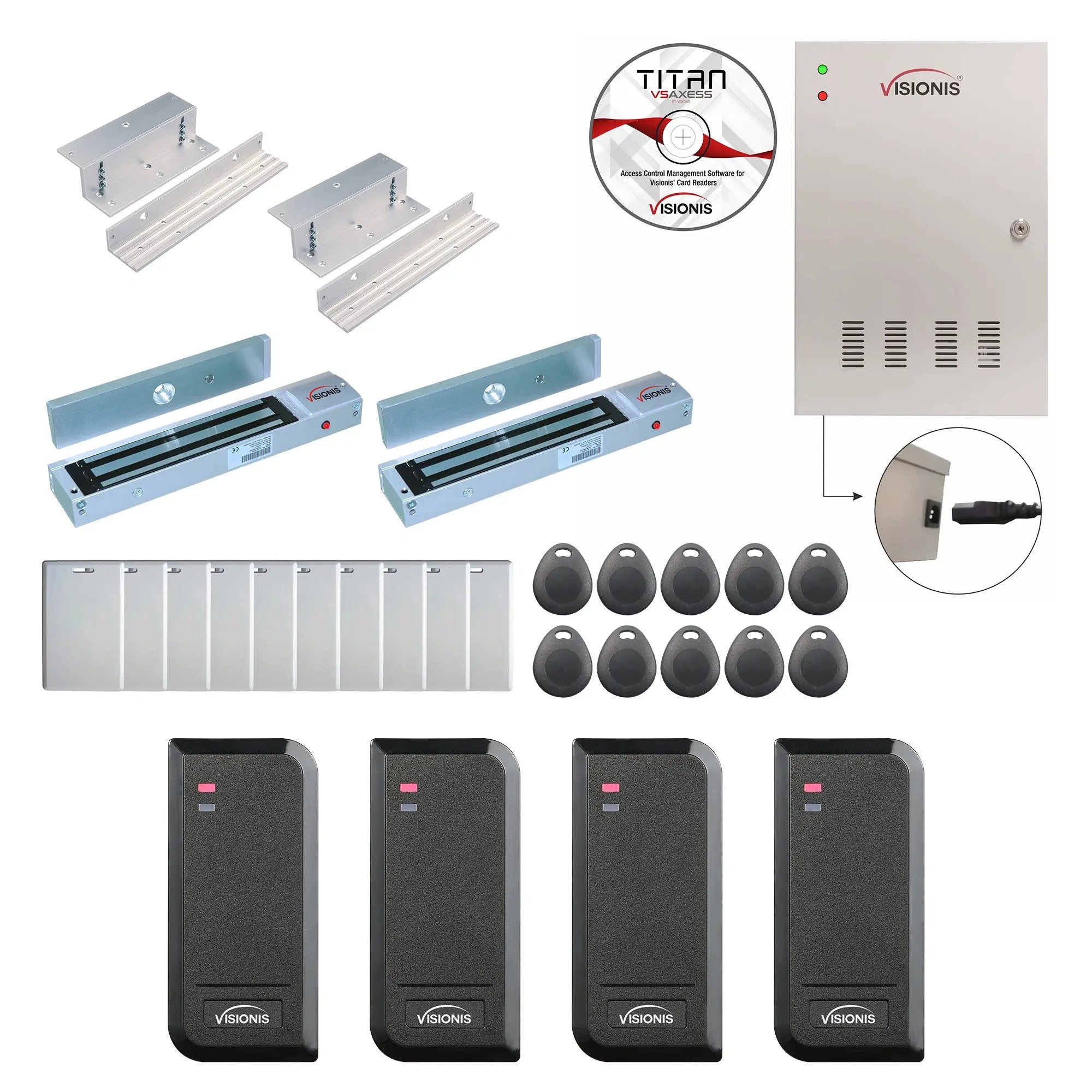

Kit Includes:

(2)

(4)

(1)

(10)

VIS-ML600LED: 600lbs Indoor Electromagnetic Lock with LED Sensor

VIS-ZL600: L and Z Bracket For 600lbs Electromagnetic Lock

VIS-3100: Access Control Black Outdoor IP66 Card Reader Only Compatible With Wiegand 26 Bit

VIS-AXESS-4D-ETL: Four Doors + Network Access Control Panel + Controller Board With Cabinet + TCP IP + Wiegand With Desktop Software + 20,000 Users, 70,000 Records

FPC-5267: Pack of Proximity Cards, 125kHz, 26-Bit

FPC-5274: Pack of RFID Proximity Key Fobs, 125kHz, 26-Bit

Description

FPC-8530 Two-Door Access Control Kit with Time & Attendance

Secure and manage access with confidence using the FPC-8530, a complete two-door access control solution designed for reliability, real-time monitoring, and easy deployment.

Ideal Application for This Kit

This kit is recommended for setups where one reader is required for entry and another for exit.

The included control panel can manage:

Up to 4 doors when all readers are configured for entry only
Up to 2 doors when using 2 readers for entry and 2 for exit

To enable both entry and exit reader functionality in the Titan VSAXESS software, you must configure the number of doors to 2, as shown in the image below.

Smart Access Control & Monitoring

The system includes powerful management software that lets you:

Track real-time entry and exit activity
Monitor attendance and staff movement
Generate detailed reports of all events
Set custom door access restrictions

Advanced Controller Features

TCP/IP network communication for easy integration
Supports Wiegand 26/34 interfaces
Multiple card types: normal, visitor, blacklist, patrol, duress, and more
Built-in security alerts:
- Forced entry
- Door left open
- Invalid card attempts
- Tamper alarms
Works in online and offline modes

Electromagnetic Lock

The included maglock provides up to 600 lbs of holding force, keeping your door securely locked.

LED status indicator:

🔴 Red = Maglock Released
🟢 Green = Maglock Locked

Durable Outdoor Card Readers

Slim, modern design with IP66 waterproof protection
Wiegand output (26–37 bits, default 26-bit)
Reading range: up to 7 cm (2.75 inches)
Operating temperature: -40°F to 140°F
Compatible with EM proximity cards only (MIFARE not supported)

The included cards and key fobs can be quickly programmed, so your system is up and running in no time.

Need more users? Additional cards and tags are available for purchase.

Ideal For

Offices, warehouses, commercial buildings, and any facility requiring secure, trackable access control.

Attention:

IMPORTANT: These access control panels (Version 2.0) are only compatible with access control panels (Version 2.0) and with the Titan VSAxess software. They are not compatible with access control panels (Version 1.0) nor with VSAxess software.
Includes USB software
Power supply and power cord included
Install wires are not included
This software is not compatible with MAC computers, only with Microsoft.

Characteristics

Model VIS-ML600LED:

Voltage Input: 12 VDC / 24 VDC
Current Draw: 12V / 500mA ; 24V / 250mA (±5%)
Holding Force: Up to 600 lbs (272 kg)
Hall Effect Contact: SPDT rated 2A at 24 VDC
Magnetic Contact Rating: 28 VDC, 0.5A, 10W
Anti-Rust Surface Treatment: Blue Zinc Plating
Operating Temperature: 0~55° C (32~131° F)
Weight (Magnet): 1.1 kg (±1%)
Dimensions: Magnet - (L)250x(W)42x(T)25 mm Armature - (L)180x(W)38x(T)11 mm
Green/Red LED Indication for EM Lock Status

Model No. VIS-ZL600:

L and Z bracket for 600lbs electromagnetic lock

Model No. VIS-3100:

Color: Black
Operating Voltage: 9~24V DC
Frequency: 125KHz
Card Type: EM card
Reading Distance: 7 cm (2.75 in.)
Output Format: Wiegand 26 bits
Operating Temperature: -40°C ~ 60°C (-40°F ~ 140°F)
Standby Current: < 25mA
Operating Humidity: 10%~95% RH
Index of Protection: IP66
Dimensions: 102L x 48W x 20H (mm) – 4.01L x 1.88W x 0.78H (in.)

Model No. VIS-AXESS-4D-ETL-version2:

Arm 7 processor, RTOS system, new PCB circuit design
Advanced access control function, including multi-card, first card, interlock and anti-passback etc.
Multiple authentication mode, it supports card, password, card + code and fingerprint.
TCP/IP communication mode, there is 5 SOCKET port.
Optical coupling isolation protection, more stable
Record capacity can be extended, it can be 130,000pcs
Alarm linkage and relay self-defined.
Access Mode: It supports card, card+ password, card or password, password
Event Type: Legal card, illegal card, anti-passback, exit button, password, threaten code
Alarm Event Type: Door-magnet alarm, self-defined alarm, threaten code alarm
Linkage Function: All event and alarm can linkage any or multiple relay output
Access Group: 200 group
Holiday Schedule: 300
User Capacity: 20000
Record Capacity: 70000
Reader Port: 4
Exit Button Port: 4
Door-magnet Port: 4
Lock Output: 4
Door-magnet Alarm Output: 1
Self-defined Alarm Output: 1
Self-defined Alarm Input: 4
Communication Port: 10/100MTCP/IP, 1 extension RS485 communication port
Input Protection: Opto-isolator protection
Output Protection: Varistor Protection
Extension Function: It supports LED displayer, alarm host and so on

Description

FPC-8530 Two-Door Access Control Kit with Time & Attendance

Secure and manage access with confidence using the FPC-8530, a complete two-door access control solution designed for reliability, real-time monitoring, and easy deployment.

Ideal Application for This Kit

This kit is recommended for setups where one reader is required for entry and another for exit.

The included control panel can manage:

Up to 4 doors when all readers are configured for entry only
Up to 2 doors when using 2 readers for entry and 2 for exit

To enable both entry and exit reader functionality in the Titan VSAXESS software, you must configure the number of doors to 2, as shown in the image below.

Smart Access Control & Monitoring

The system includes powerful management software that lets you:

Track real-time entry and exit activity
Monitor attendance and staff movement
Generate detailed reports of all events
Set custom door access restrictions

Advanced Controller Features

TCP/IP network communication for easy integration
Supports Wiegand 26/34 interfaces
Multiple card types: normal, visitor, blacklist, patrol, duress, and more
Built-in security alerts:
- Forced entry
- Door left open
- Invalid card attempts
- Tamper alarms
Works in online and offline modes

Electromagnetic Lock

The included maglock provides up to 600 lbs of holding force, keeping your door securely locked.

LED status indicator:

🔴 Red = Maglock Released
🟢 Green = Maglock Locked

Durable Outdoor Card Readers

Slim, modern design with IP66 waterproof protection
Wiegand output (26–37 bits, default 26-bit)
Reading range: up to 7 cm (2.75 inches)
Operating temperature: -40°F to 140°F
Compatible with EM proximity cards only (MIFARE not supported)

The included cards and key fobs can be quickly programmed, so your system is up and running in no time.

Need more users? Additional cards and tags are available for purchase.

Ideal For

Offices, warehouses, commercial buildings, and any facility requiring secure, trackable access control.

Attention:

IMPORTANT: These access control panels (Version 2.0) are only compatible with access control panels (Version 2.0) and with the Titan VSAxess software. They are not compatible with access control panels (Version 1.0) nor with VSAxess software.
Includes USB software
Power supply and power cord included
Install wires are not included
This software is not compatible with MAC computers, only with Microsoft.

Compatible Software

TITAN VSAXESS is a powerful and complete Access control management software for Visionis products for a our second generation of Access Control Panels.

DOWNLOAD SOFTWARE

Screenshots Examples of the Software

Click the image to open a bigger version

Download Datasheets and Manuals of this product

FPC-8526, FPC-8527, FPC-8528, FPC-8530

Installation Diagram

VIS-AXESS-4D-ETL

VIS-3100 / VIS-3101

VIS-ML600LED

VIS-ZL600

Datasheet

VIS-PROXCARD

Datasheet

VIS-KEYTAG / VIS-KEYTAG-BLUE

Datasheet
