The main benefit of this kit is that you do not need to wire the keypad, only the electromagnetic lock, the motion detector, and the no touch exit button require wiring. This means less installation time, less money spent and less wire.

The FPC-8917 wireless reader kit includes a wireless reader and a receiver with a 30m (100 feet) maximum of communication distance. A 433MHz rolling code of encryption algorithm that guarantees higher-secure. The programmable Wiegand output of the receiver makes it can work with most Wiegand controllers in the world. A super strong 3M stickers provide a simple way for installing the wireless reader. The proximity cards and key tags in this kit can be programmed to the reader quickly to use right away. If you need more, you can always order extra cards or tags.

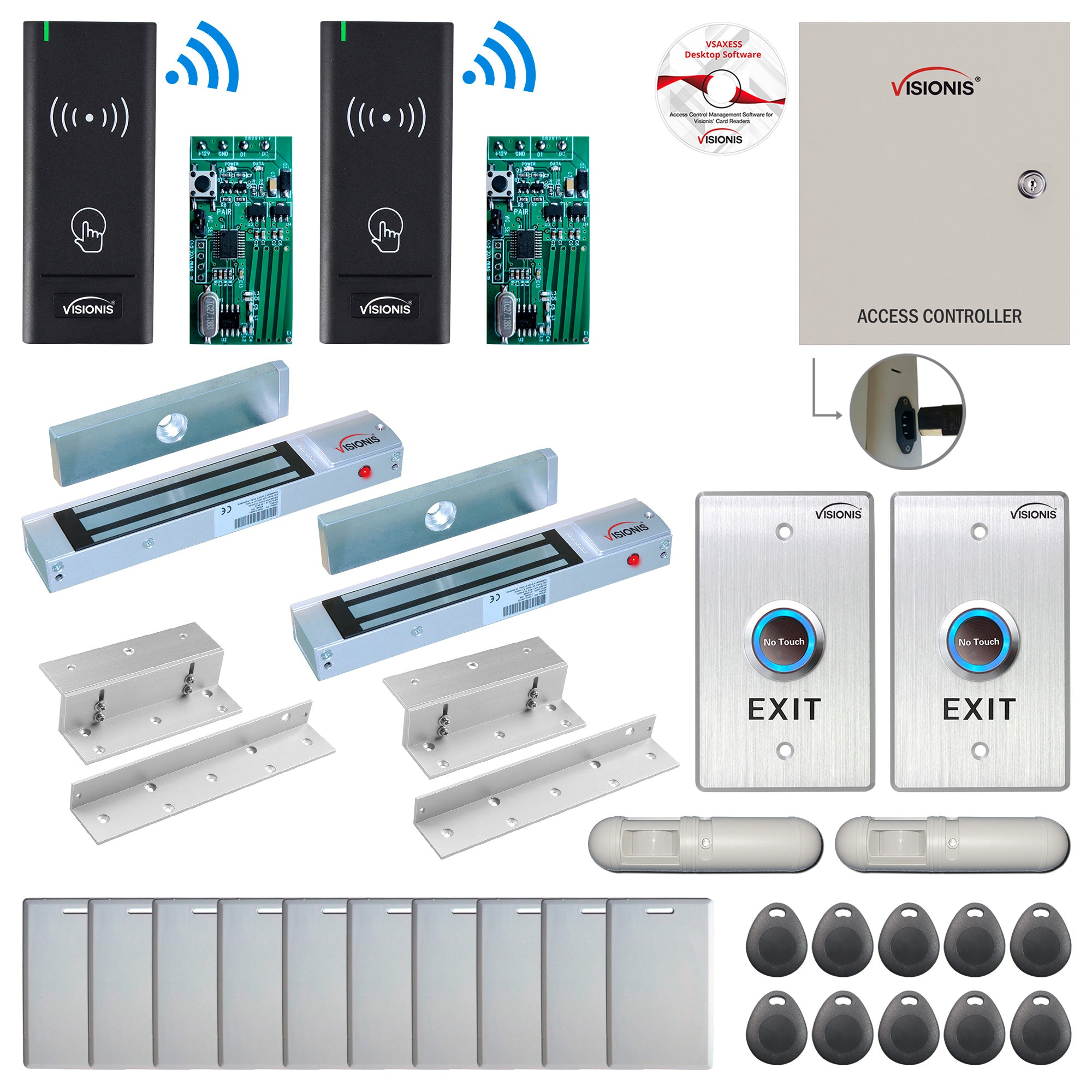

The FPC-8982 kit is a two-door access control system with time and attendance. The kit comes with a wireless reader and a wireless receiver PCB, maglock, bracket, request to exit motion sensor, and a no-touch exit button for each door. Plus, a two-door network access control TCP/IP controller, proximity cards, and key tags. The controller comes with software that provides time and attendance, real time of who came in and who came out, a reporting system to view all events and a door restriction system.

The controller works through TCP/IP network communication. It supports Wiegand interface for accessing card reader and supports W26/W34. The system supports various card types such as normal, disabled, blacklist, patrol, visitor, duress, super card, and more. It has a tamper proof alarm for the reader and several alarms for unsecured door, forced entry, door opening, duress, and invalid card attempts. In addition, it supports online and offline operating mode with time synchronization via NTP, manual or automatic method.

The electromagnetic lock (commonly referred to as a “maglock”) is installed beneath the top of the door frame to make sure that the door remains closed and locked. With the VIS-ML300LED, you have up to 300lbs of force protecting the door, which means it would take above 300lbs of force to open the door if someone wanted to force entry. The LED light on the maglock helps you identify when the maglock is locked and unlocked. When the light is red, the maglock is unlocked. When the light is green, the maglock is locked.

The no touch request to exit button (VIS-7013) is for indoor use. With just the wave of your hand, the sensor will unlock the door. This exit button also has a release that can be programmed between 0.5-22 seconds. The LED light on the button helps you recognize when it is on standby (blue), sensation (green), or off. It has an adjustable range of 5-15cm (1.96 – 5.90in.) so you can pick your distance of detection.

The request to exit PIR included in the kit allows for the door to unlock when it senses motion within 2.4m.

Attention:

• Includes CD software
• Power supply and power cord included
• Install wires are not included
• This software is not compatible with MAC computers, only with Microsoft.
