This PRODUCT has a 3 YEAR warranty with full access to tech support in the USA!

Kit Includes:

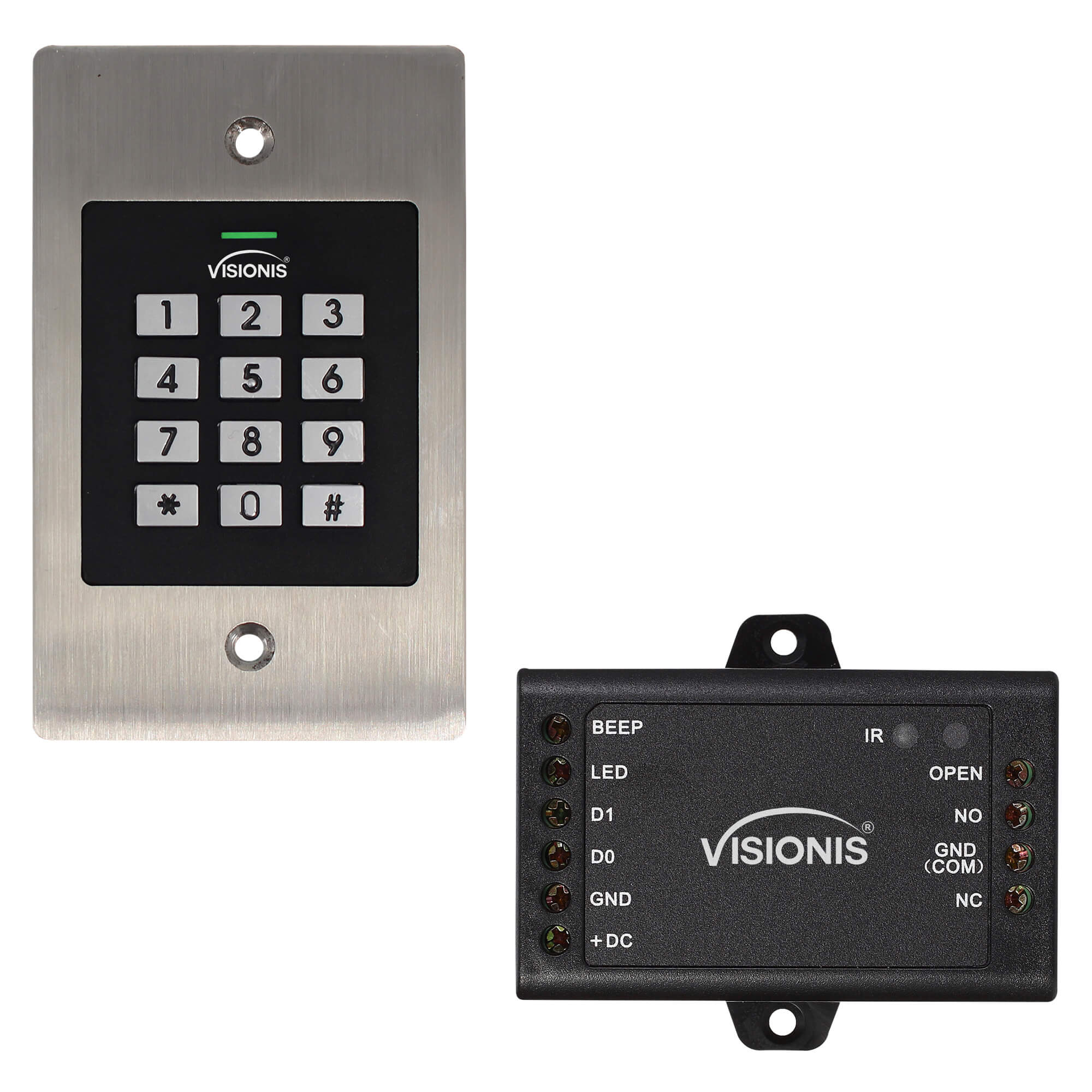

VIS-3029+: Indoor + Outdoor Rated IP66 Metal Access Control Standalone + Keypad + Card Reader Standalone with Mini Controller + Wiegand 26 + 1000 EM Cards
VIS-MINI-CNTRL: 1 Door Controller for Access Control Systems with No Software. Up to 1,000 users
Description

VIS-3029 Keypad/Card Reader Description

The VISIONIS VIS-3029 is a compact, waterproof stand-alone programmable access control Wiegand 26 keypad/card reader that provides proximity entry for up to 1000 users. It uses an Atmel microcontroller that assures maximum performance in any environment, and the low-power circuit makes its service life prolonged. The product has a simple design, easy operation, and high reliability.



VIS-3029 Features

  • Metal case, embedded design, waterproof, conforms to IP66
  • Read 125kHz EM card or tag
  • One programmable relay operation, pulse mode, toggle mode
  • Wiegand 26 bits output
  • Wiegand 26/34 bits input automatic identification



VIS-MINI-CNTRL Mini Controller Description

This keypad comes with the VIS-MINI-CNTRL. This device is a mini single door control panel that can work with any Wiegand 26~37 bits output reader. It uses Atmel microcontroller to assure stable performance, and it is equipped with an infrared remote control for easy operation. The VIS-MINI-CNTRL supports 1,000 users.



VIS-MINI-CNTRL Features

  • User Capacity: 1,000
  • Multi access modes: Card, Card or PIN, Card with PIN and multi Cards/PINs
  • Can connect with any reader with Wiegand 26~37 bits output
  • Can connect with any keypad reader with 4bits, 8bits (ASCII), or 10bits virtual number output
  • Support Master Card function
  • Low temperature resistance (-40°C)

(these products do not include a power supply)



IMPORTANT:

  • Professional installation is recommended.
  • For better security the VIS-MINI-CNTRL needs to be installed inside the facility in a restricted area. This device becomes the hub of this standalone application and all the credentials are being stored on the device while no information is stored on the reader itself. Additional recommendations for added security is to add the controller within an enclosure.
  • If the keypad/card reader (entry device) is tampered with, the door will remain locked. The mini controller is the one controlling and securing your locking device.
  • The VIS-MINI-CNTRL offers a more secure option to provide additional security to all type of standalone access control products.
Characteristics

Model No. VIS-3029:

  • Proximity Card Reader: EM
  • Radio Technology: 125KHz Proximity Card
  • Read Range: 0~6 cm (0~2.36 in.)
  • Wiring Connections: Relay output, exit button, Wiegand (in&out)
  • Relay: One (NO, NC, Common)
  • Adjustable Relay Output Time: 0~99 Seconds (5 seconds default)
  • Lock Output Load: 2 Amp Maximum
  • User Capacity: 1000 Cards/PINs and 10 Visitors - PIN Length: 4-6 digits
  • Operating Voltage: 12~18VDC
  • ldle Current: ≤30mA
  • Active Current: ≤120mA
  • Index of Protection: IP66 (No ingress of dust; complete protection against contact (dust-tight). Protection against powerful water jets.)
  • Operating Temperature: -40ºC ~ 60ºC (-40ºF ~ 140ºF)
  • Operating Humidity: 10%RH ~ 99%RH
  • Physical / Color: Stainless Steel Plate / Silver & Black
  • Dimensions: L115 x W70 x H25 (mm) - L4.53 x W2.76 x H0.98 (in.)
  • Unit Weight: 230g
Characteristics

Model No. VIS-3029:

  • Proximity Card Reader: EM
  • Radio Technology: 125KHz Proximity Card
  • Read Range: 0~6 cm (0~2.36 in.)
  • Wiring Connections: Relay output, exit button, Wiegand (in&out)
  • Relay: One (NO, NC, Common)
  • Adjustable Relay Output Time: 0~99 Seconds (5 seconds default)
  • Lock Output Load: 2 Amp Maximum
  • User Capacity: 1000 Cards/PINs and 10 Visitors - PIN Length: 4-6 digits
  • Operating Voltage: 12~18VDC
  • ldle Current: ≤30mA
  • Active Current: ≤120mA
  • Index of Protection: IP66 (No ingress of dust; complete protection against contact (dust-tight). Protection against powerful water jets.)
  • Operating Temperature: -40ºC ~ 60ºC (-40ºF ~ 140ºF)
  • Operating Humidity: 10%RH ~ 99%RH
  • Physical / Color: Stainless Steel Plate / Silver & Black
  • Dimensions: L115 x W70 x H25 (mm) - L4.53 x W2.76 x H0.98 (in.)
  • Unit Weight: 230g

Model No. VIS-MINI-CNTRL:

  • User Capacity: 1,000
  • Operating Voltage: 9~24V DC
  • Idle Current: < 20mA
  • Relay One: (NO, NC, Common)
  • Adjustable Relay Output Time: 1~99 Seconds (5 seconds default)
  • Lock Output Load: 2 Amp Maximum
  • Wiegand Interface Input: Wiegand 26~37 bits
  • Wiegand Interface Output: Wiegand 26~37 bits (for user transfer)
  • Environment: Indoor
  • Operating Temperature: -40°C~60°C (-40°F~140°F)
  • Operating Humidity: 0 ~ 90%RH
  • Physical: ABS Shell
  • Dimensions: L65 x W54 x H19 (mm) - L2.56 x W2.13 x H0.75 (in.)
  • Unit Weight: 40g
  • Shipping Weight: 100g
Description

VIS-3029 Keypad/Card Reader Description

The VISIONIS VIS-3029 is a compact, waterproof stand-alone programmable access control Wiegand 26 keypad/card reader that provides proximity entry for up to 1000 users. It uses an Atmel microcontroller that assures maximum performance in any environment, and the low-power circuit makes its service life prolonged. The product has a simple design, easy operation, and high reliability.



VIS-3029 Features

  • Metal case, embedded design, waterproof, conforms to IP66
  • Read 125kHz EM card or tag
  • One programmable relay operation, pulse mode, toggle mode
  • Wiegand 26 bits output
  • Wiegand 26/34 bits input automatic identification



VIS-MINI-CNTRL Mini Controller Description

This keypad comes with the VIS-MINI-CNTRL. This device is a mini single door control panel that can work with any Wiegand 26~37 bits output reader. It uses Atmel microcontroller to assure stable performance, and it is equipped with an infrared remote control for easy operation. The VIS-MINI-CNTRL supports 1,000 users.



VIS-MINI-CNTRL Features

  • User Capacity: 1,000
  • Multi access modes: Card, Card or PIN, Card with PIN and multi Cards/PINs
  • Can connect with any reader with Wiegand 26~37 bits output
  • Can connect with any keypad reader with 4bits, 8bits (ASCII), or 10bits virtual number output
  • Support Master Card function
  • Low temperature resistance (-40°C)

(these products do not include a power supply)



IMPORTANT:

  • Professional installation is recommended.
  • For better security the VIS-MINI-CNTRL needs to be installed inside the facility in a restricted area. This device becomes the hub of this standalone application and all the credentials are being stored on the device while no information is stored on the reader itself. Additional recommendations for added security is to add the controller within an enclosure.
  • If the keypad/card reader (entry device) is tampered with, the door will remain locked. The mini controller is the one controlling and securing your locking device.
  • The VIS-MINI-CNTRL offers a more secure option to provide additional security to all type of standalone access control products.
Characteristics
Packaging of this product

Model No. VIS-3029:

  • Proximity Card Reader: EM
  • Radio Technology: 125KHz Proximity Card
  • Read Range: 0~6 cm (0~2.36 in.)
  • Wiring Connections: Relay output, exit button, Wiegand (in&out)
  • Relay: One (NO, NC, Common)
  • Adjustable Relay Output Time: 0~99 Seconds (5 seconds default)
  • Lock Output Load: 2 Amp Maximum
  • User Capacity: 1000 Cards/PINs and 10 Visitors - PIN Length: 4-6 digits
  • Operating Voltage: 12~18VDC
  • ldle Current: ≤30mA
  • Active Current: ≤120mA
  • Index of Protection: IP66 (No ingress of dust; complete protection against contact (dust-tight). Protection against powerful water jets.)
  • Operating Temperature: -40ºC ~ 60ºC (-40ºF ~ 140ºF)
  • Operating Humidity: 10%RH ~ 99%RH
  • Physical / Color: Stainless Steel Plate / Silver & Black
  • Dimensions: L115 x W70 x H25 (mm) - L4.53 x W2.76 x H0.98 (in.)
  • Unit Weight: 230g

Download Datasheets and Manuals of this product

VIS-3029

VIS-MINI-CNTRL

Contact Us for Support

LET US HELP YOU WITH YOUR PURCHASE

Feel free to contact our dedicated support team if you have any questions or if you're ready to place an order.

I Need Help
Visionis by Visionis

Visionis VIS-3029 – Indoor + Outdoor Rated IP66 Metal Access Control Standalone + Keypad + Card Reader Standalone with Mini Controller + Wiegand 26 + 1000 EM Cards + Flush Mount Design

VIS-3029+

UPC Code: 734598804817
Product Weight: 1.0 lb
$64.79
$64.79
Shipping calculated at checkout.
Contact an Expert
Return Policy
NOTE
Order Before 3:00pm EST on a week day and your order will be shipped out the same day
Free Shipping
Free shipping with in the USA
Including Puerto Rico, Hawaii and Alaska

Popup Title

Popup description
ATTENTION:
Before purchasing, it is recommended that the customer checks with their local fire authority to see if there is any additional product they may need in order to comply with the local fire codes. We are not responsible for the improper installation of our product(s) or any type of fees that can be incurred by not complying with your local fire authority.
