Description

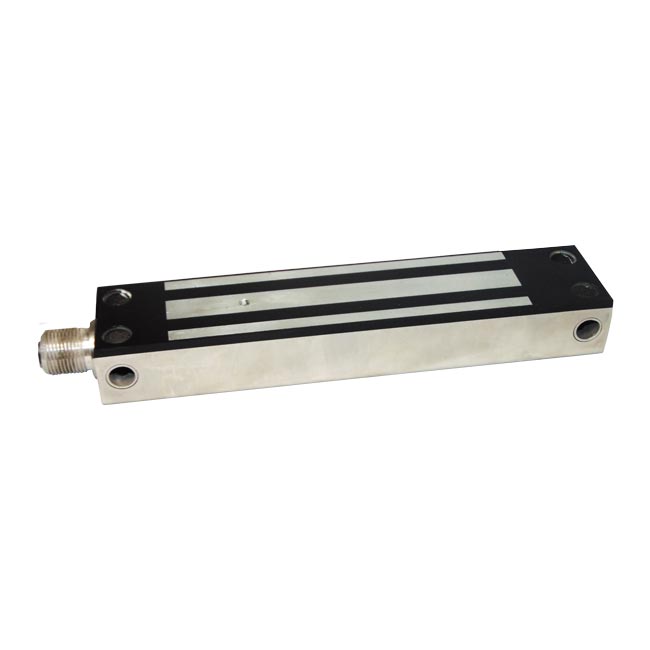

The Visionis SS800-G is an electromagnetic lock that is renown with its water-proof construction for all weather conditions and its heavy duty excellent holding force. For your outdoor and gate applications, this maglock provides 800lbs of reinforcement and secures your door at all times.

This lock is designed to handle the outside elements and still provide the security for your doors to remain closed and locked. The popular areas for these type of locks are outdoor and industrial areas.

Characteristics

Model No. VS-SS800-G:

  • Voltage Input: 12 VDC / 24 VDC
  • Current Draw: 12V / 480mA; 24V / 240mA (±5%)
  • Holding Force: Up to 800 lbs (362 kg)
  • Hall Effect Contact: 28 VDC, 0.2A, 5W
  • Anti-Rust Surface Treatment: Blue Zinc Plating
  • Operating Temperature: 0~55° C (32~131° F)
  • Operating Humidity: 0~95% (non condensing)
  • Weight (Magnet): 1.5 kg (±1%)

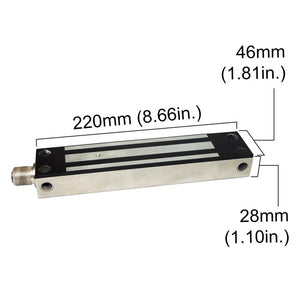

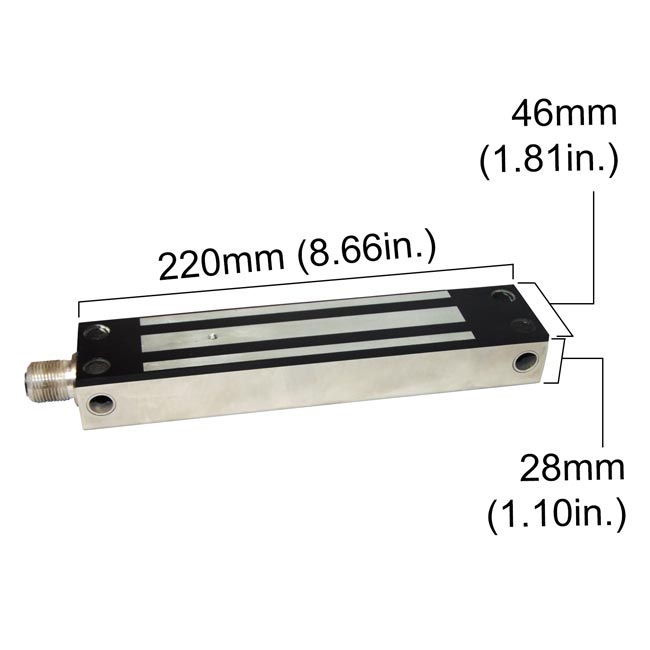

  • Dimensions:
    Magnet - (L)220x(W)46x(T)28 mm
    Armature - (L)182x(W)44x(T)12 mm

Packaging of this product
Description

The Visionis SS800-G is an electromagnetic lock that is renown with its water-proof construction for all weather conditions and its heavy duty excellent holding force. For your outdoor and gate applications, this maglock provides 800lbs of reinforcement and secures your door at all times.

This lock is designed to handle the outside elements and still provide the security for your doors to remain closed and locked. The popular areas for these type of locks are outdoor and industrial areas.

Characteristics
Packaging of this product

Model No. VS-SS800-G:

  • Voltage Input: 12 VDC / 24 VDC
  • Current Draw: 12V / 480mA; 24V / 240mA (±5%)
  • Holding Force: Up to 800 lbs (362 kg)
  • Hall Effect Contact: 28 VDC, 0.2A, 5W
  • Anti-Rust Surface Treatment: Blue Zinc Plating
  • Operating Temperature: 0~55° C (32~131° F)
  • Operating Humidity: 0~95% (non condensing)
  • Weight (Magnet): 1.5 kg (±1%)
  • Dimensions:
    Magnet - (L)220x(W)46x(T)28 mm
    Armature - (L)182x(W)44x(T)12 mm

Download Datasheets and Manuals of this product

VS-SS800-G

Contact Us for Support

LET US HELP YOU WITH YOUR PURCHASE

Feel free to contact our dedicated support team if you have any questions or if you're ready to place an order.

I Need Help
Visionis by Visionis

5.0

VS-SS800-G - 800 lbs Outdoor and Gate Electromagnetic Lock

VS-SS800-G

UPC Code: 701980451737
Product Weight: 8.0 lb
  • CE Certificate
$105.25
$105.25
Shipping calculated at checkout.

In Stock
