Looking for something slightly different? Check out these variations:

This PRODUCT has a 3 YEAR warranty with full access to tech support in the USA!

Description

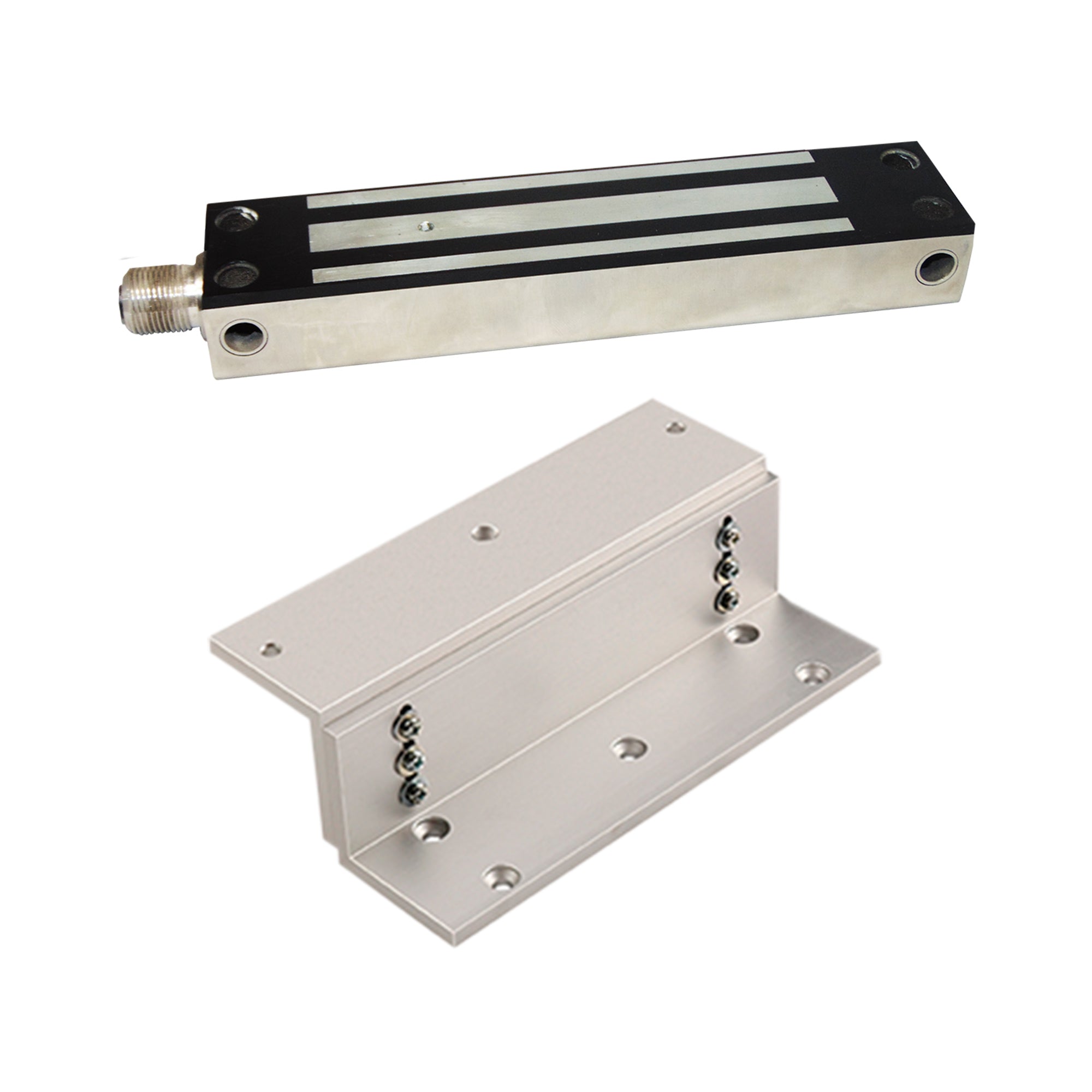

The FPC-5701 gate maglock kit includes the VIS-SS800-G outdoor magnetic gate lock along with an LZ bracket designed for inswinging doors or gates. Engineered for all-weather durability, the VIS-SS800-G delivers a strong 800 lbs of holding force, ensuring your gate or door remains securely locked—even in harsh outdoor conditions.

This magnetic lock is built to withstand the elements while maintaining reliable performance, making it an ideal solution for outdoor, industrial, and gate security applications. Whether you're securing a residential gate or a commercial entry point, the VIS-SS800-G offers dependable protection around the clock.

IMPORTANT: This kit includes a bracket, but depending on your setup, you may need to adjust it or create a custom one.

What is the recommended application for this waterproof lock for outdoor gate?

This maglock is ideal for outdoor and gate applications. It provides 800 lbs of holding force to keep your door secure at all times. It’s built to handle outdoor conditions while still providing reliable security. These locks are commonly used in outdoor and industrial areas.

Characteristics

Model No. VIS-SS800-G:

  • Voltage Input: 12 VDC / 24 VDC
  • Current Draw: 12V / 480mA; 24V / 240mA (±5%)
  • Holding Force: Up to 800 lbs (362 kg)
  • Hall Effect Contact: 28 VDC, 0.2A, 5W
  • Anti-Rust Surface Treatment: Blue Zinc Plating
  • Operating Temperature: 0~55° C (32~131° F)
  • Operating Humidity: 0~95% (non condensing)
  • Weight (Magnet): 1.5 kg (±1%)
  • Dimensions:
    Magnet - (L)220x(W)46x(T)28 mm
    Armature - (L)182x(W)44x(T)12 mm
Packaging of this product
Description

The FPC-5701 gate maglock kit includes the VIS-SS800-G outdoor magnetic gate lock along with an LZ bracket designed for inswinging doors or gates. Engineered for all-weather durability, the VIS-SS800-G delivers a strong 800 lbs of holding force, ensuring your gate or door remains securely locked—even in harsh outdoor conditions.

This magnetic lock is built to withstand the elements while maintaining reliable performance, making it an ideal solution for outdoor, industrial, and gate security applications. Whether you're securing a residential gate or a commercial entry point, the VIS-SS800-G offers dependable protection around the clock.

IMPORTANT: This kit includes a bracket, but depending on your setup, you may need to adjust it or create a custom one.

What is the recommended application for this waterproof lock for outdoor gate?

This maglock is ideal for outdoor and gate applications. It provides 800 lbs of holding force to keep your door secure at all times. It’s built to handle outdoor conditions while still providing reliable security. These locks are commonly used in outdoor and industrial areas.

  • What is the gate maglock made of?

    This maglock is made of heavy-duty stainless steel, which provides durability, corrosion resistance, and protection against vandalism.

  • Does this magnetic door lock kit come with an installation manual?

    Yes, it does. A printed installation guide is included in the box, or you can download the digital version for 800 lbs maglock or 1500 lbs maglock.

  • Does it have a key override?

    No, these maglocks don’t have a key override feature. If you need one, an electric strike may be a better option.

  • Does this waterproof lock for an outdoor gate kit come with a remote?

    No, it doesn’t. But we do offer kits that include a gate maglock, a wireless receiver, and two remotes. Check out the 800 lbs kit or the 1500 lbs kit.

  • Is this mag lock for gates waterproof?

    Yes. The gate maglock is designed for outdoor use and built with a sealed, weather-resistant stainless steel case. All parts are sealed for water resistance, making it durable enough to withstand rain and harsh outdoor conditions.

  • Can this lock be used in cold weather? and What is the operating temperature range?

    Absolutely. The operating temperature range is from 0°C to 55°C (32°F to 131°F), making it ideal for diverse outdoor environments.

Download Datasheets and Manuals of this product

VIS-ZL-SS800

Contact Us for Support
LET US HELP YOU WITH YOUR PURCHASE

Feel free to contact our dedicated support team if you have any questions or if you're ready to place an order.

I Need Help
Visionis by Visionis

5.0

1 reviews

Outdoor and Gate Magnetic Door Lock with 800 lbs (362 kg) Holding Force VIS-SS800-G. Waterpoof. 12 VDC / 24 VDC + L and Z Bracket - FPC-5701 Visionis

Translation missing: en.products.product.sku:FPC-5701

UPC Code: 614961171886 Weight: 9.0 lb
Regular price
$119.55
Sale price
$119.55
Regular price
Shipping calculated at checkout.

In Stock

Phone Support Icon

Phone Life-Time Technical Support

Return Policy Icon

30-Day No Questions Return Policy

Free Shipping Icon

*Free Shipping within the USA

Contact an Expert
Return Policy
NOTE
Order Before 3:00pm EST on a week day and your order will be shipped out the same day
Free Shipping
*Free shipping within the USA
Including Puerto Rico, Hawaii and Alaska
ATTENTION:
Before purchasing, it is recommended that the customer checks with their local fire authority to see if there is any additional product they may need in order to comply with the local fire codes. We are not responsible for the improper installation of our product(s) or any type of fees that can be incurred by not complying with your local fire authority.
