Is this access control power supply compatible with all electric lock types?

It works well with most standard residential and commercial electric locks, as long as they operate on 12V DC and draw 3A or less.

How long does the delay adjustment go up to?

The VIS-PS100 power supply has a delay adjustment range of 0 to 15 seconds. This is controlled via a built-in relay-based delay circuit, allowing you to fine-tune the lock timing without any extra wiring changes.

What exit buttons work with this professional power supply unit?

The VIS-PS100 power supply works with any standard exit push button that has NC/NO/COM outputs and operates at 12V DC / 3A. Here are some compatible options:Visionis VIS-7000 Green Square Push to Exit Button Visionis VIS-7008 Waterproof Rated IP65 Stainless Steel Push to Exit Button Visionis VIS-7029 No Touch Exit Button with Timer Delay

Does the VIS-PS100 power supply have built-in protection against overload?

Yes! Visionis VIS-PS100 Access Control Power Supply has robust built-in protection features:Overload protection — safeguards the unit if the connected load exceeds safe operating limitsOvervoltage protection — shields connected devices from voltage spikesShort circuit protection — prevents damage in the event of a wiring faultAuto-reset fuse — automatically resets after a temporary power disconnection, so you don't need to manually replace a fuse after a minor fault

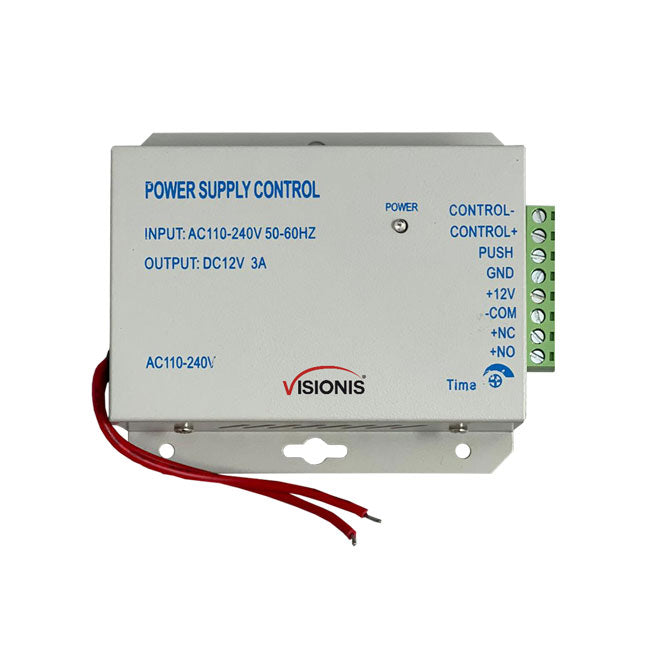

Power Supply For Door Access Control Intercom Doorbell Worldwide Voltage - VIS-PS100 Visionis

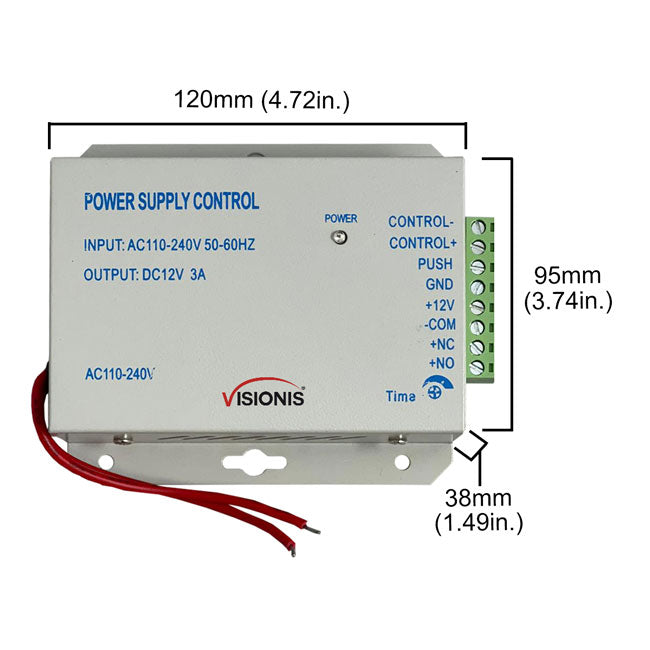

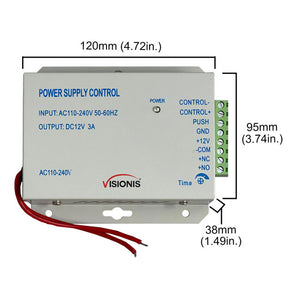

Power supply for door access control dimensions - VIS-PS100 Visionis

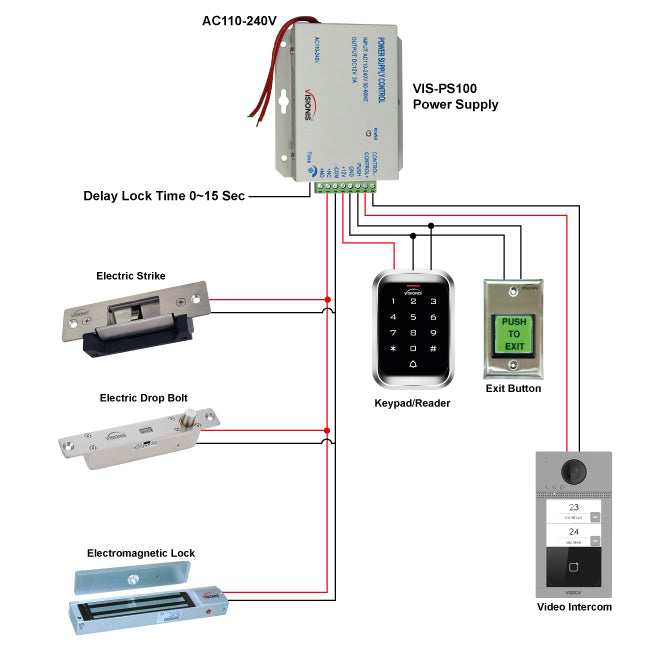

Power supply for door access control connection diagram - VIS-PS100 Visionis

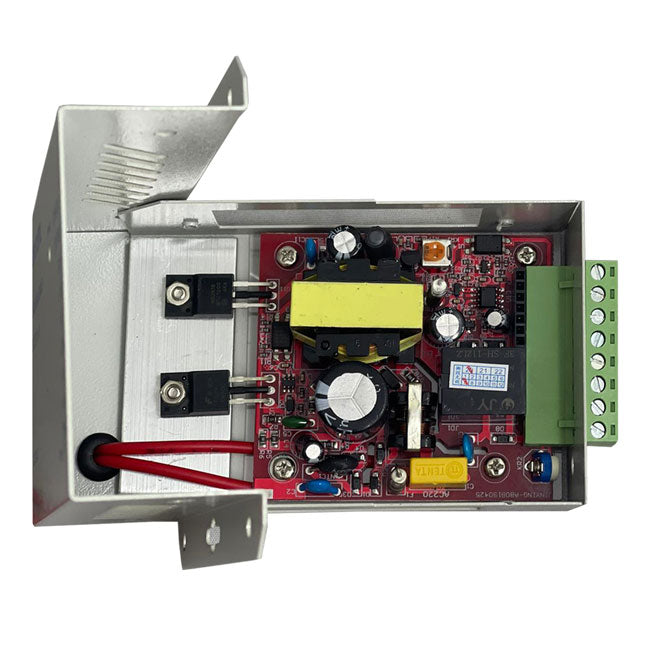

Power supply for door access control internal board - VIS-PS100 Visionis

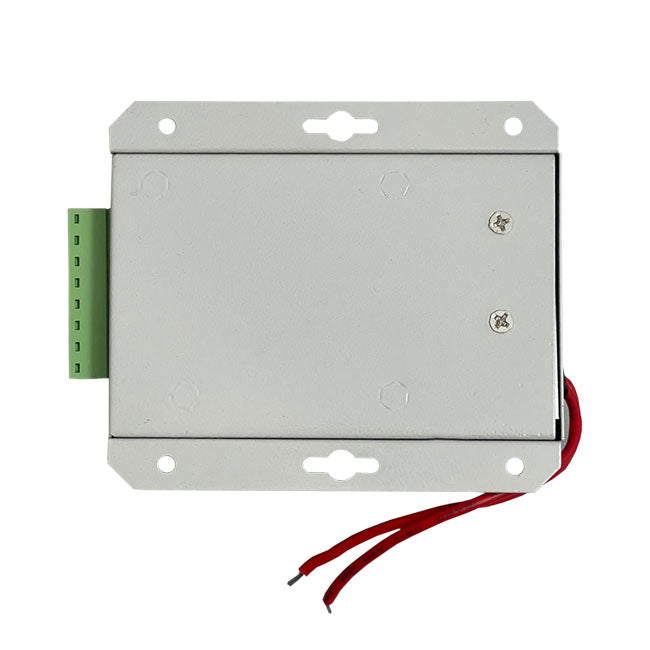

Power supply for door access control rear view - VIS-PS100 Visionis

Description

The VIS-PS100 is a power supply for door access control. It is small sized with high reliability while maintaining efficiency for its electromagnetic compatibility. Its input voltage ranges from 110-240V AC and an output voltage of DC12V and current of 3 Amps. This unit is ideal for a simple access control system with products such as magnetic locks, keypads, and exit buttons.

Input voltage range
Small size, high reliability
Electromagnetic compatibility, efficiency
Protection function with door remote control

Characteristics

Model No. VIS-PS100:

Input voltage: 110 ~ 240V AC
Input Frequency: 50 ~ 60Hz
Output Voltage: DC12V
Output Current: 3A
Output Voltage: Trim Range ±10% ~ ±15%
Load: 1% Typical
Output Stability: 0.5% Typical
Ripple and Noise: 1%, peak to peak (100mVp-p typical)
Insulation voltage: Junior / sub-polar inter-1500V AC, primary / shell between 1500V AC, sub-polar / Shell between 500V AC
Hold Time: Full load typically 20ms
Operating Temperature: -20°C ~ +65°C (-4°F ~ 149°F)
Overload Protection: All outputs in a short circuit, overload are protected. Power output of 0-15 seconds delay locks
Outer Steel Case Size: 120mm x 95mm 38mm (4.72in. x 3.74in. x 1.49in.)
Weight: 315g

Description

The VIS-PS100 is a power supply for door access control. It is small sized with high reliability while maintaining efficiency for its electromagnetic compatibility. Its input voltage ranges from 110-240V AC and an output voltage of DC12V and current of 3 Amps. This unit is ideal for a simple access control system with products such as magnetic locks, keypads, and exit buttons.

Input voltage range
Small size, high reliability
Electromagnetic compatibility, efficiency
Protection function with door remote control

Characteristics

Model No. VIS-PS100:

Input voltage: 110 ~ 240V AC
Input Frequency: 50 ~ 60Hz
Output Voltage: DC12V
Output Current: 3A
Output Voltage: Trim Range ±10% ~ ±15%
Load: 1% Typical
Output Stability: 0.5% Typical
Ripple and Noise: 1%, peak to peak (100mVp-p typical)
Insulation voltage: Junior / sub-polar inter-1500V AC, primary / shell between 1500V AC, sub-polar / Shell between 500V AC
Hold Time: Full load typically 20ms
Operating Temperature: -20°C ~ +65°C (-4°F ~ 149°F)
Overload Protection: All outputs in a short circuit, overload are protected. Power output of 0-15 seconds delay locks
Outer Steel Case Size: 120mm x 95mm 38mm (4.72in. x 3.74in. x 1.49in.)
Weight: 315g

Product FAQs

Is this access control power supply compatible with all electric lock types?

It works well with most standard residential and commercial electric locks, as long as they operate on 12V DC and draw 3A or less.
How long does the delay adjustment go up to?

The VIS-PS100 power supply has a delay adjustment range of 0 to 15 seconds. This is controlled via a built-in relay-based delay circuit, allowing you to fine-tune the lock timing without any extra wiring changes.
What exit buttons work with this professional power supply unit?
The VIS-PS100 power supply works with any standard exit push button that has NC/NO/COM outputs and operates at 12V DC / 3A. Here are some compatible options:
Does the VIS-PS100 power supply have built-in protection against overload?
Yes! Visionis VIS-PS100 Access Control Power Supply has robust built-in protection features:
- Overload protection — safeguards the unit if the connected load exceeds safe operating limits
- Overvoltage protection — shields connected devices from voltage spikes
- Short circuit protection — prevents damage in the event of a wiring fault
- Auto-reset fuse — automatically resets after a temporary power disconnection, so you don't need to manually replace a fuse after a minor fault
Can this 3A power supply be used outdoors?

This unit is best suited for indoor installation (e.g., inside a door frame, utility room, or electrical cabinet).

Download Datasheets and Manuals of this product

VIS-PS100

Datasheet

Visionis by Visionis

Power Supply For Door Access Control Intercom Doorbell Worldwide Voltage. AC110-240V to DC12V 3A - VIS-PS100 Visionis

UPC Code: 602168926682

⚡ Order before 2:00 PM EST on weekdays for same-day shipping

In Stock

Regular price: $19.93
Sale price: $19.93
Regular price

Shipping calculated at checkout.

Quantity:

Free US Shipping
To all 50 states

3 YEAR Warranty

30-Day Returns
No questions asked

Lifetime Phone Support
Mon–Fri 9am–6pm EST

ATTENTION:

Before purchasing, it is recommended that the customer checks with their local fire authority to see if there is any additional product they may need in order to comply with the local fire codes. We are not responsible for the improper installation of our product(s) or any type of fees that can be incurred by not complying with your local fire authority.
