VIS-3022 Keypad/Card Reader Description

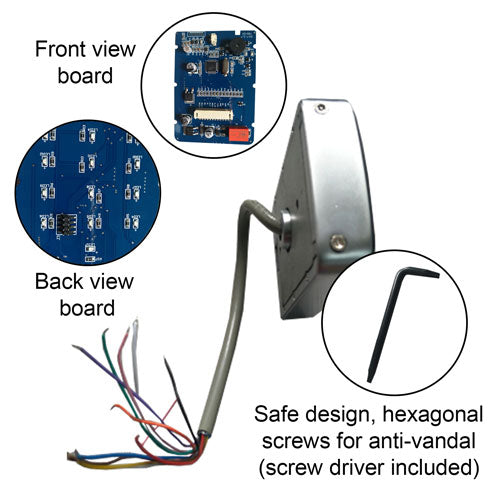

The VIS-3022 is single door multifunction standalone access controller or a Wiegand output keypad or card reader. It is suitable for mounting either indoor or outdoor in harsh environments. It is housed in a strong, sturdy and vandal proof Zinc Alloy electroplated case.

This unit supports up to 1000 users in either a Card, 4 digit PIN, or a Card + PIN option. The inbuilt card reader supports 125KHZ EM cards. The unit has many extra features including lock output current short circuit protection, Wiegand output , and a backlit keypad.

These features make the unit an ideal choice for door access not only for small shops and domestic households but also for commercial and industrial applications such as factories, warehouses, laboratories, banks and prisons.

 VIS-3022 Features

• Can be used as a stand alone keypad.
• Wiegand 26 input for connection to external reader.
• Wiegand 26 output for connection to a controller.
• Adjustable Door Output time, Alarm time, Door Open time.
• Very low power consumption (30mA).
• Lock output current short circuit protection.
• Easy to install and program.
• Built in light dependent resistor (LDR) for anti tamper.
• Built in buzzer.

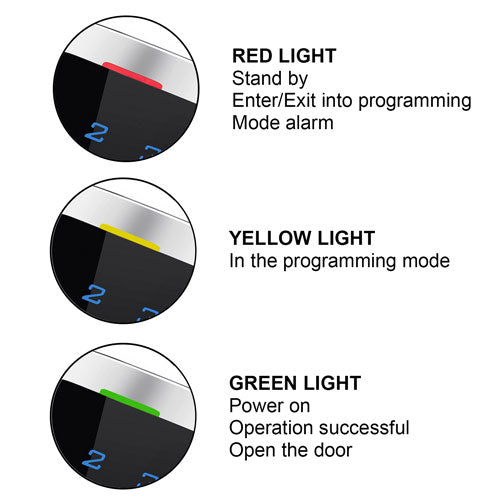

• Red, Yellow and Green LEDS display the working status.

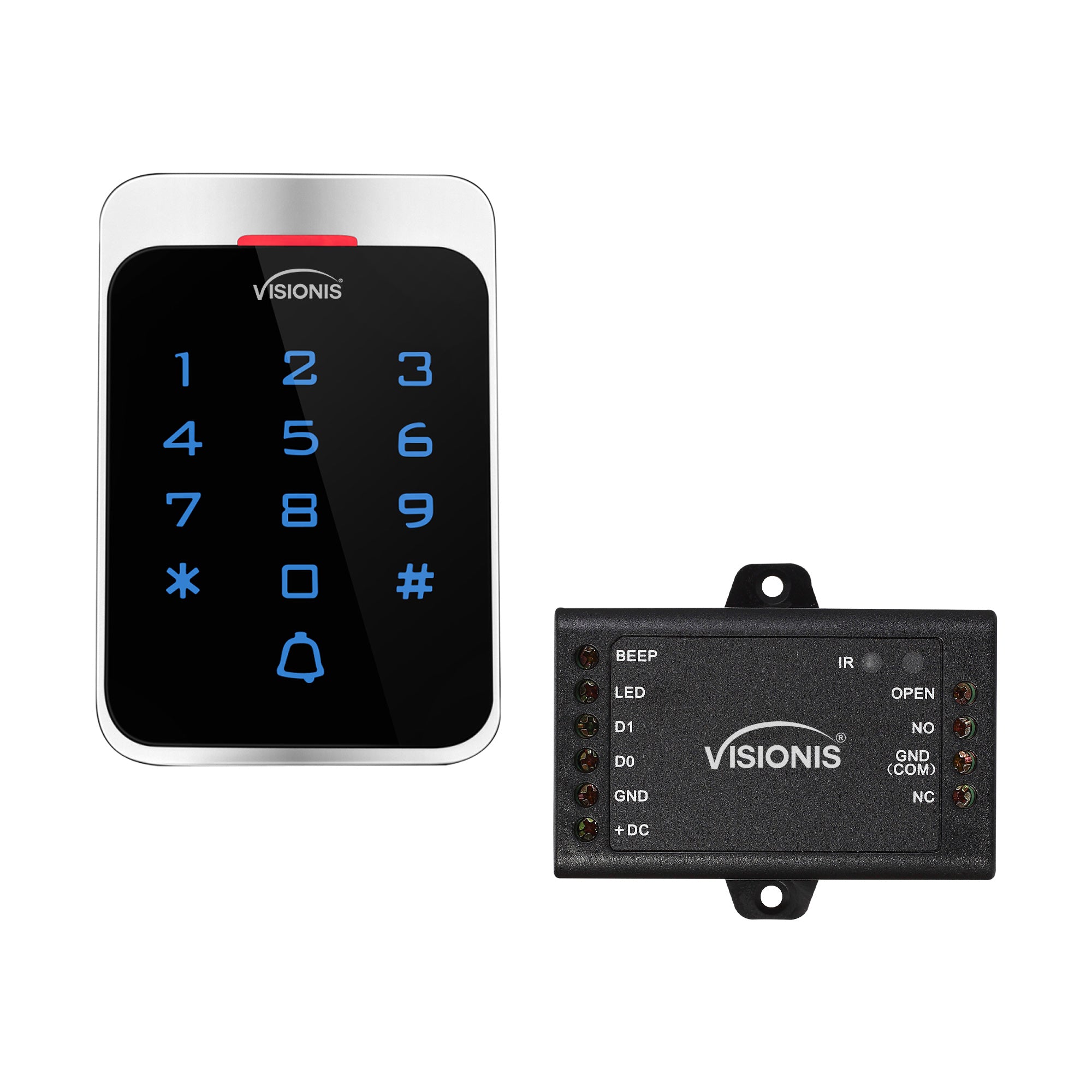

VIS-MINI-CNTRL Mini Controller Description

This keypad comes with the VIS-MINI-CNTRL. This device is a mini single door control panel that can work with any Wiegand 26~37 bits output reader. It uses Atmel microcontroller to assure stable performance, and it is equipped with an infrared remote control for easy operation. The VIS-MINI-CNTRL supports 1,000 users.

 VIS-MINI-CNTRL Features

• User Capacity: 1,000
• Multi access modes: Card, Card or PIN, Card with PIN and multi Cards/PINs
• Can connect with any reader with Wiegand 26~37 bits output
• Can connect with any keypad reader with 4bits, 8bits (ASCII), or 10bits virtual number output
• Support Master Card function
• Low temperature resistance (-40°C)



IMPORTANT:

• Professional installation is recommended.
• For better security the VIS-MINI-CNTRL needs to be installed inside the facility in a restricted area. This device becomes the hub of this standalone application and all the credentials are being stored on the device while no information is stored on the reader itself. Additional recommendations for added security is to add the controller within an enclosure.
• If the keypad/card reader (entry device) is tampered with, the door will remain locked. The mini controller is the one controlling and securing your locking device.
• The VIS-MINI-CNTRL offers a more secure option to provide additional security to all type of standalone access control products.



---
