Looking for something slightly different? Check out these variations:

This PRODUCT has a 3 YEAR warranty with full access to tech support in the USA!

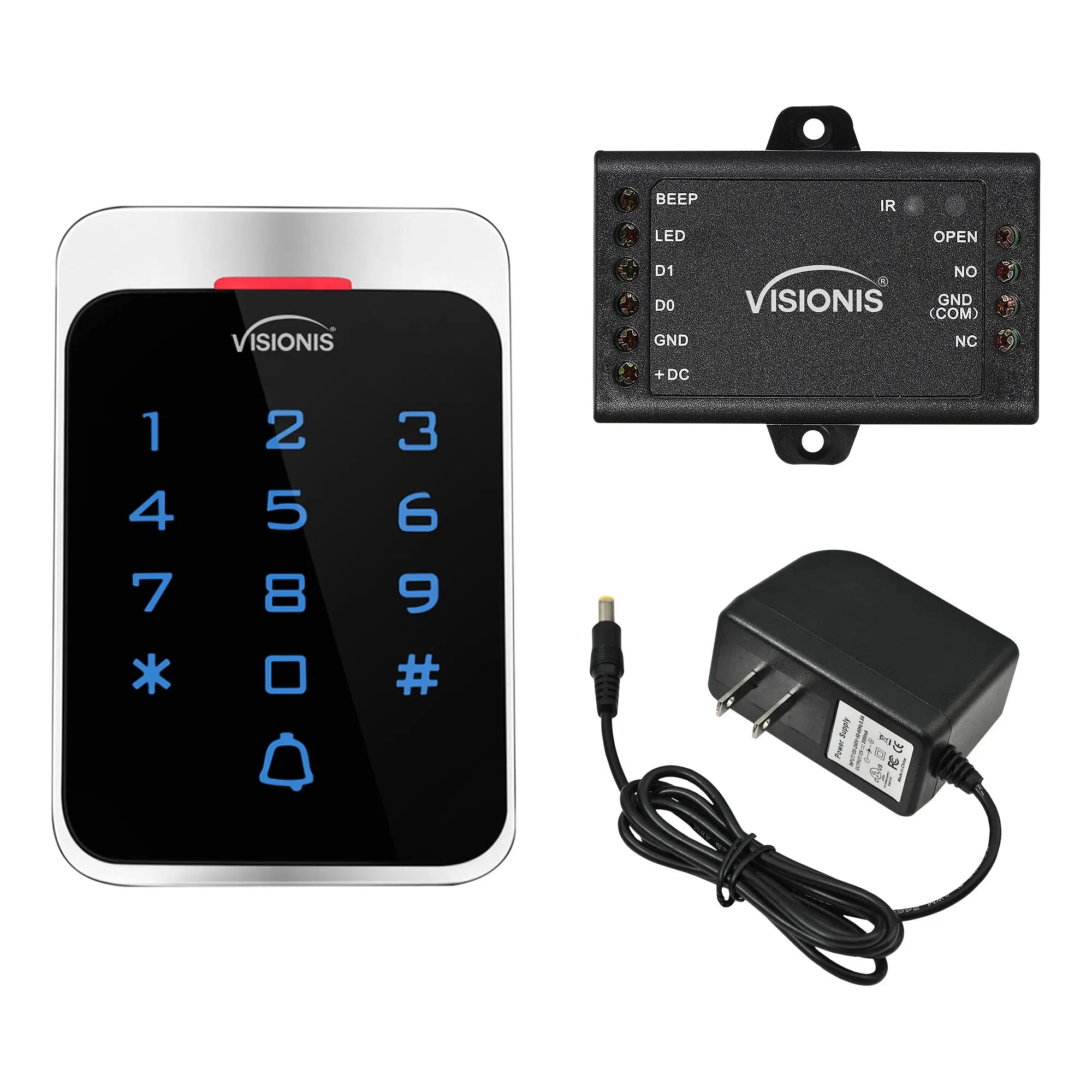

Kit Includes:
(1)
(1)
VIS-3022: Access Control Outdoor Weatherproof Metal Housing Anti Vandal Digital Touch Keypad + Reader Standalone with Mini Controller + Wiegand 26, 125khz, EM Cards
VIS-CP200: 12 Volt 2Amp Power Supply Transformer, UL Listed
Single Door Mini Controller VIS-MINI-CNTRL
RECOMMENDATION: Use the Mini Controller VIS-MINI-CNTRL for Added Security

Pairing your keypad with a mini controller keeps user credentials secure inside a protected area, preventing tampering or breaches. It's an essential upgrade for enhanced security and reliable access control.

Discover More Benefits
Description

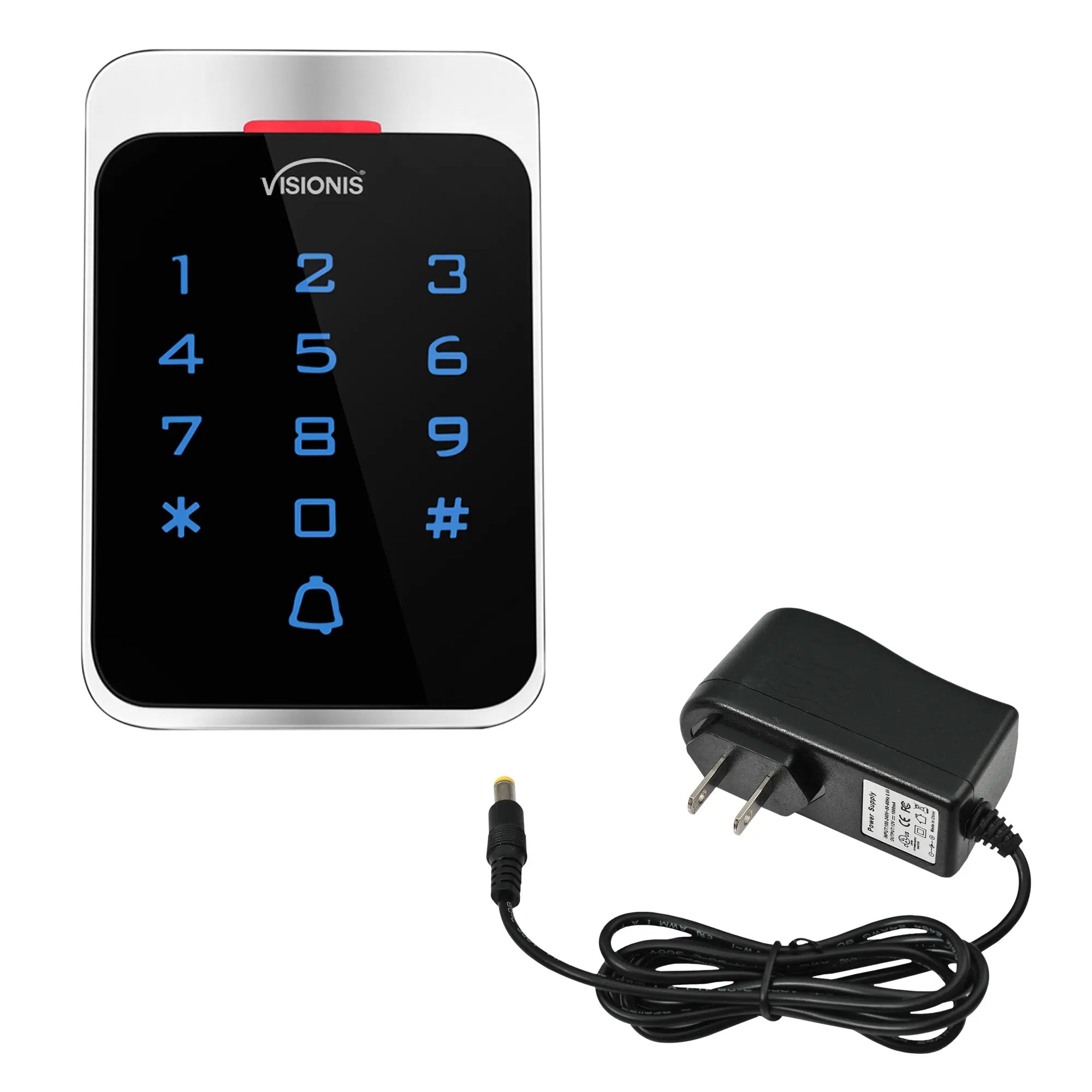

The FPC-8908 kit includes a Visionis VIS-3022 keypad and a power supply, offering a reliable and flexible access control solution. The VIS-3022 can be used as a standalone keypad or connected to an external reader or access control panel through its Wiegand 26 input and output.

This keypad features adjustable door output time, alarm time, and door open time, allowing full customization to meet specific access control needs. It offers low power consumption (30mA) and includes short-circuit protection on the lock output for added safety.

The VIS-3022 is easy to install and program, with a built-in light-dependent resistor (LDR) for anti-tamper protection, a buzzer, and LED indicators (red, yellow, and green) that clearly display the device’s working status.

With its compact design, efficiency, and versatile functionality, the FPC-8908 kit is ideal for small offices, commercial

buildings, or any location requiring secure, dependable access control.

Characteristics

Model No. VIS-3022:

  • Operating Voltage: DC 12V±10%
  • Card Reading Distance: 3-6 cm (1.18 - 2.36in.)
  • Active Current: >60mA
  • Idle Current: 25±5 mA
  • Lock Output Load Max: Max 3A
  • Alarm Output Load Max: Max 20A
  • Operating Temperature: -45°C ~ 60°C (-49°F ~ 140°F)
  • Operating Humidity: 10%- 90% RH
  • Adjustable Alarm Time: 0- 3 minutes
  • Wiegand Interface: Wiegand 26 bit
  • Wiring Connections: Electric Lock, Exit Button, External Alarm, External reader
  • Dimensions: 100*68*22mm (3.93*2.67*0.86in.)

Model No. VIS-CP200:

  • Cable Length: 1.2 meters (4 feet)
  • Input Voltage Range: AC90V-264V
  • Input Frequency Range: 50Hz-60Hz
  • Output Voltage Range: DC12V+/-5%
  • Output Current: 2A
  • Output Power: 24 Watts
  • Output Ripple&Noise: ≤46MV
  • Output Efficiency: ≥79%
  • Environment Operating: -30°C~45°C 20%~90%RH
  • Environment Storage Temp.: -40°C~85°C 10%~95%RH
  • Product Dimension: 87*36.5*70mm (3.42x1.43x2.75in.)
  • Product Weight: 116g
  • Certificate: UL, CE, RoHS, FCC
Description

The FPC-8908 kit includes a Visionis VIS-3022 keypad and a power supply, offering a reliable and flexible access control solution. The VIS-3022 can be used as a standalone keypad or connected to an external reader or access control panel through its Wiegand 26 input and output.

This keypad features adjustable door output time, alarm time, and door open time, allowing full customization to meet specific access control needs. It offers low power consumption (30mA) and includes short-circuit protection on the lock output for added safety.

The VIS-3022 is easy to install and program, with a built-in light-dependent resistor (LDR) for anti-tamper protection, a buzzer, and LED indicators (red, yellow, and green) that clearly display the device’s working status.

With its compact design, efficiency, and versatile functionality, the FPC-8908 kit is ideal for small offices, commercial

buildings, or any location requiring secure, dependable access control.

Download Datasheets and Manuals of this product

VIS-3022

Contact Us for Support
LET US HELP YOU WITH YOUR PURCHASE

Feel free to contact our dedicated support team if you have any questions or if you're ready to place an order.

I Need Help
Visionis by Visionis

Standalone Access Control Keypad and Card Reader VIS-3022. Outdoor Weatherproof Metal Housing Digital Touch Keypad. Wiegand 26 + Power Supply Included - FPC-8908 Visionis

FPC-8908

UPC Code: 718910359926 Weight: 2.0 lb
