Below are more variations of this product:
- VIS-3022+: Weatherproof Keypad/Reader Standalone - $79.11
- FPC-8907: With a Pack of 10 Proximity Cards - $86.81
- FPC-8908: With Power Supply - $88.81
- FPC-8909: With Power Supply and Pack of 10 Proximity Cards - $92.52
- FPC-8910: With a Pack of 10 Proximity Key Tags - $86.20

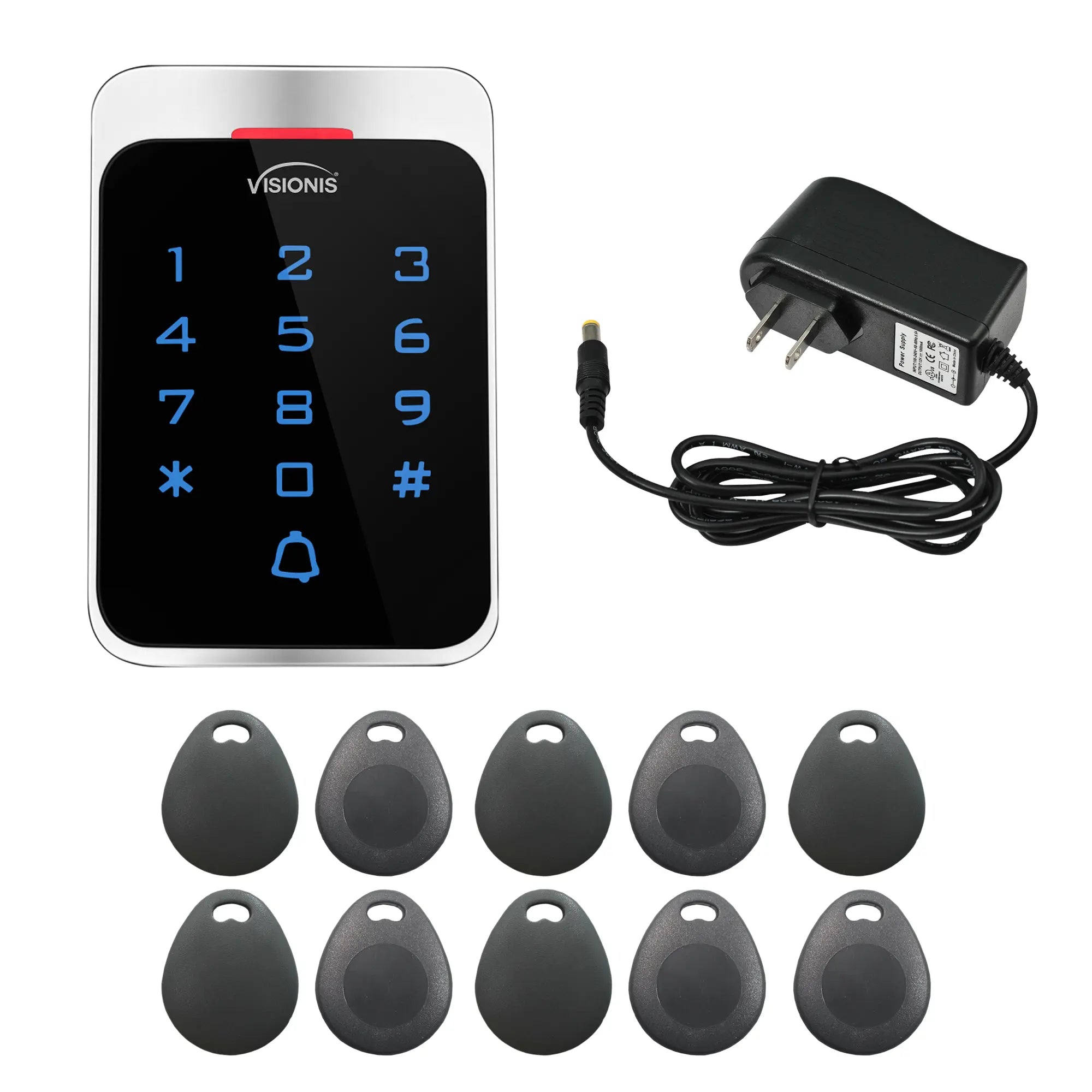

- FPC-8911: With Power Supply, Pack of 10 Proximity Key Tags - $91.90
This PRODUCT has a 3 YEAR warranty with full access to tech support in the USA!
Kit Includes:
VIS-3022 Features
- Can be used as a stand alone keypad.
- Wiegand 26 input for connection to external reader.
- Wiegand 26 output for connection to a controller.
- Adjustable Door Output time, Alarm time, Door Open time.
- Very low power consumption (30mA).
- Lock output current short circuit protection.
- Easy to install and program.
- Built in light dependent resistor (LDR) for anti tamper.
- Built in buzzer.
- Red, Yellow and Green LEDS display the working status.
The VIS-MINI-CNTRL is a mini single door control panel that can work with any Wiegand 26~37 bits output reader. It uses Atmel microcontroller to assure stable performance, and it is equipped with an infrared remote control for easy operation. The VIS-MINI-CNTRL supports 1,000 users.
IMPORTANT:
- Professional installation is recommended.
- For better security the VIS-MINI-CNTRL needs to be installed inside the facility in a restricted area. This device becomes the hub of this standalone application and all the credentials are being stored on the device while no information is stored on the reader itself. Additional recommendations for added security is to add the controller within an enclosure.
- If the keypad/card reader (entry device) is tampered with, the door will remain locked. The mini controller is the one controlling and securing your locking device.
- The VIS-MINI-CNTRL offers a more secure option to provide additional security to all type of standalone access control products.
VIS-3022 Features
- Can be used as a stand alone keypad.
- Wiegand 26 input for connection to external reader.
- Wiegand 26 output for connection to a controller.
- Adjustable Door Output time, Alarm time, Door Open time.
- Very low power consumption (30mA).
- Lock output current short circuit protection.
- Easy to install and program.
- Built in light dependent resistor (LDR) for anti tamper.
- Built in buzzer.
- Red, Yellow and Green LEDS display the working status.
The VIS-MINI-CNTRL is a mini single door control panel that can work with any Wiegand 26~37 bits output reader. It uses Atmel microcontroller to assure stable performance, and it is equipped with an infrared remote control for easy operation. The VIS-MINI-CNTRL supports 1,000 users.
IMPORTANT:
- Professional installation is recommended.
- For better security the VIS-MINI-CNTRL needs to be installed inside the facility in a restricted area. This device becomes the hub of this standalone application and all the credentials are being stored on the device while no information is stored on the reader itself. Additional recommendations for added security is to add the controller within an enclosure.
- If the keypad/card reader (entry device) is tampered with, the door will remain locked. The mini controller is the one controlling and securing your locking device.
- The VIS-MINI-CNTRL offers a more secure option to provide additional security to all type of standalone access control products.
Download Datasheets and Manuals of this product
LET US HELP YOU WITH YOUR PURCHASE
Feel free to contact our dedicated support team if you have any questions or if you're ready to place an order.

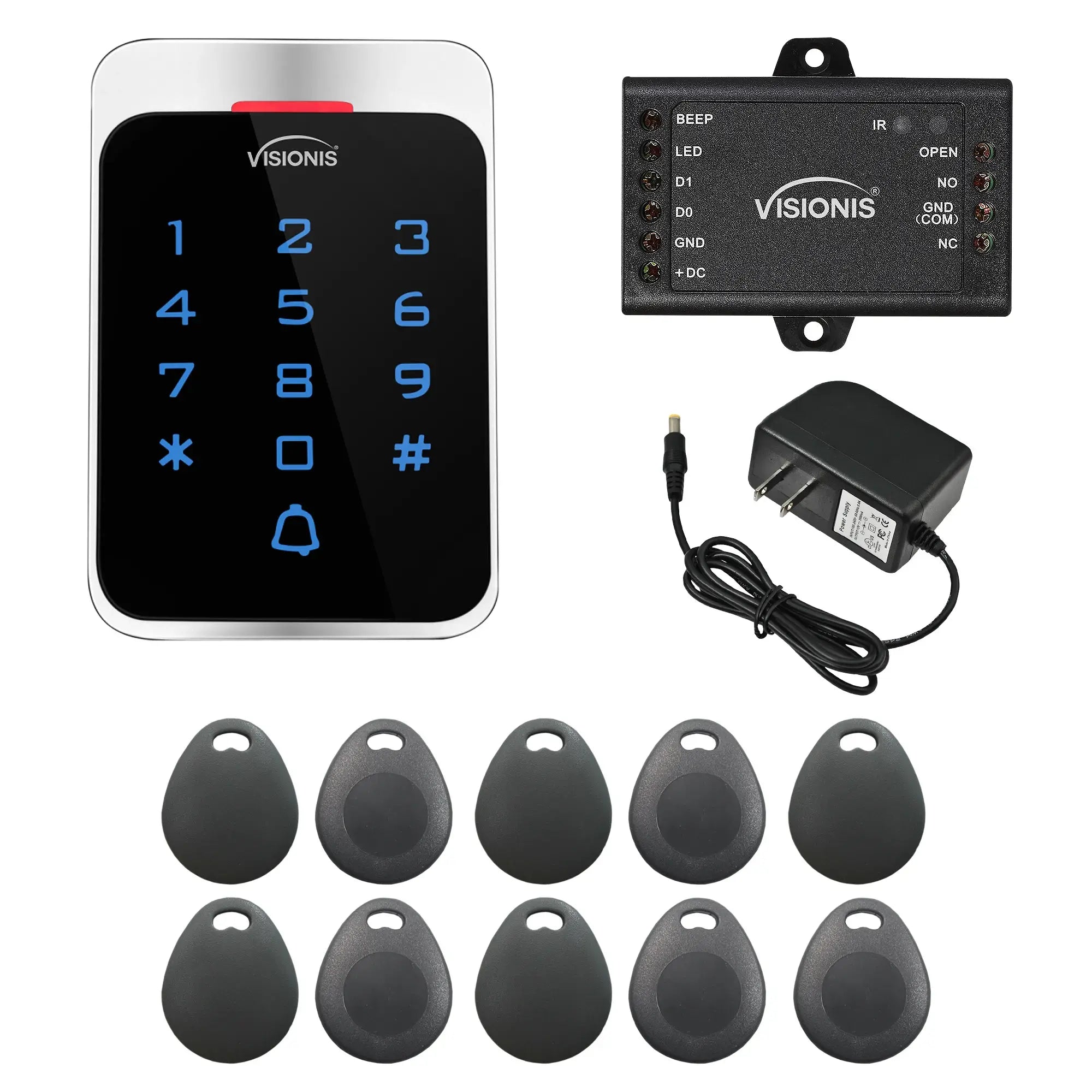

I Need HelpFPC-8911 VIS-3022 Access Control Outdoor Weatherproof Metal Housing Digital Touch Keypad + Reader Standalone with Mini Controller + Wiegand 26, EM Cards, Power Supply, Pack Of 10 Proximity Key Tags
Translation missing: en.products.product.sku:FPC-8911
- Regular price
- $91.90
- Sale price
- $91.90
- Regular price
-
In Stock
Phone Life-Time Technical Support
30-Day No Questions Return Policy
*Free Shipping within the USA
