Kit Includes:

(50)

MET-200AR: TANE Wired Surface Mount Armored Commercial Magnetic Door Window Contact with Wire Leads or Armored Cable Aluminum Case Normally Open, UL Listed

Description

2″L×0.74″W×0.37″H Surface Mount Armored Commercial Type with Wire Leads or Armored Cable.

You can install this magnetic sensor on the door or window frame. This product does NOT INCLUDE screws or adhesive tape.

Contact Size: 2″L×0.74″W×0.37″H (51mm×18.8mm×9.5mm)
Standard Magnet Size: 2″L×0.74″W×0.37″H (51mm×18.8mm×9.5mm)
Color: Aluminum Case
18″(458mm) Armor Cable Standard

Dimensions

MET-200AR Magnetic contact dimensions

Installation Diagram

TANE Wired Surface Mount Armored Commercial Magnetic Door Window Contact MET-200AR

Characteristics

Model No. MET-200AR:

Contact Size: 2"L×0.74"W×0.37"H (51mm×18.8mm×9.5mm)
Standard Magnet Size: 2"L×0.74"W×0.37"H (51mm×18.8mm×9.5mm)
Gap Inch (mm): 1.25" (32)
Loop Open/Closed: CLOSED
Reed Form: Normally Open
Max. Contact Rating (W): 10
Max. Initial Contact Resistance (mΩ): 100
Max. Switching Voltage (V): AC110/DC100
Max. Switching Current (A): 0.5
Operating Temperature:-40°C to +60°C (-40°F to 140°F)

Description

2″L×0.74″W×0.37″H Surface Mount Armored Commercial Type with Wire Leads or Armored Cable.

You can install this magnetic sensor on the door or window frame. This product does NOT INCLUDE screws or adhesive tape.

Contact Size: 2″L×0.74″W×0.37″H (51mm×18.8mm×9.5mm)
Standard Magnet Size: 2″L×0.74″W×0.37″H (51mm×18.8mm×9.5mm)
Color: Aluminum Case
18″(458mm) Armor Cable Standard

Dimensions

MET-200AR Magnetic contact dimensions

Installation Diagram

TANE Wired Surface Mount Armored Commercial Magnetic Door Window Contact MET-200AR

Download Datasheets and Manuals of this product

TANE MET-200AR

Tane by Tane

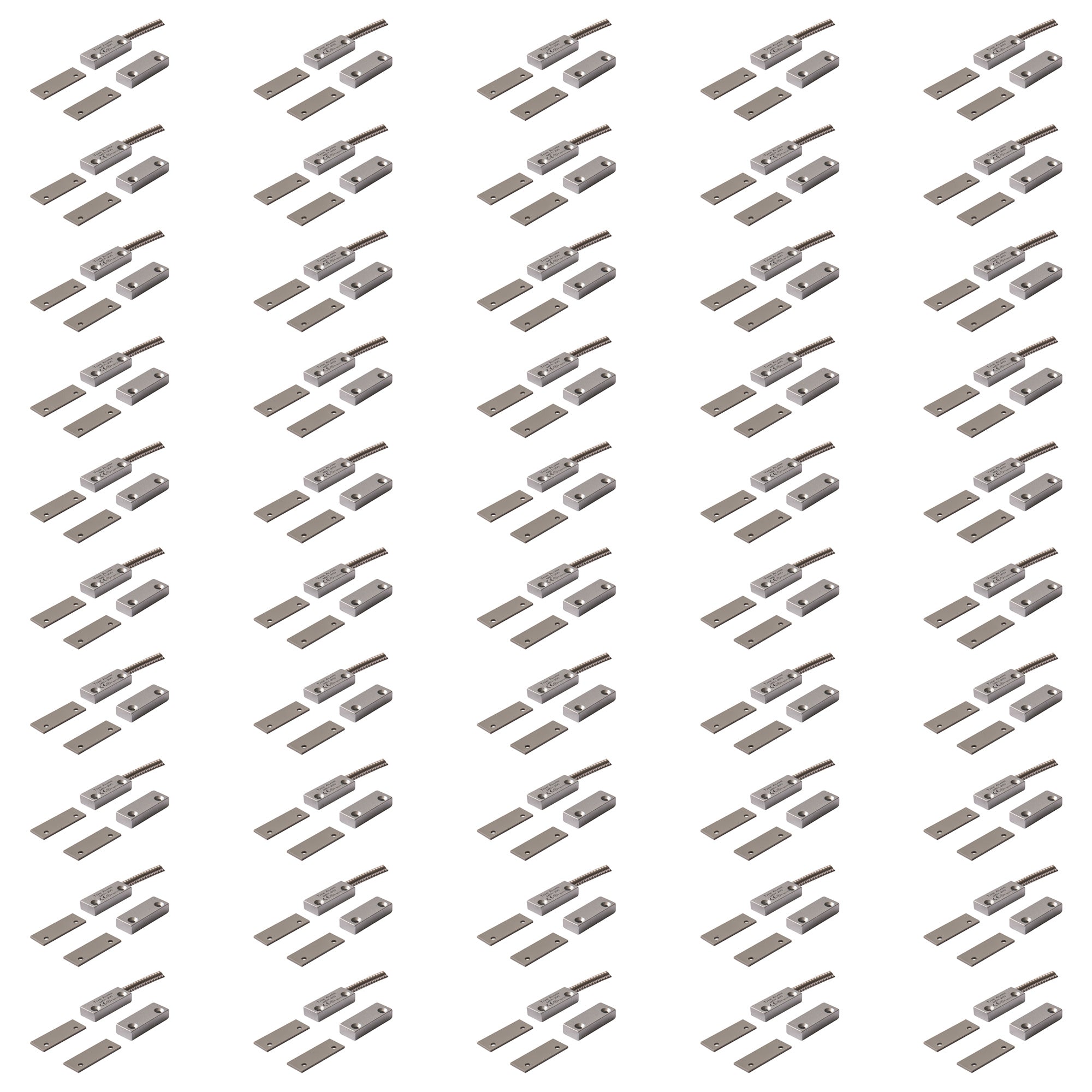

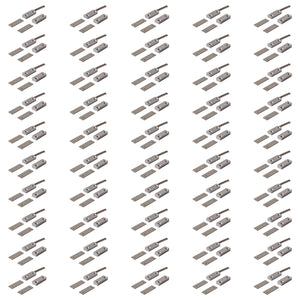

TANE Wired Surface Mount Armored Commercial Magnetic Door Window Contact + Wire Leads Or Armored Cable Aluminum Case Alarm Security Reed Switch Normally Open + UL Listed MET-200AR-PK50 (Pack Of 50)

Name: TANE Wired Surface Mount Armored Commercial Magnetic Door Window Contact + Wire Leads Or Armored Cable Aluminum Case Alarm Security Reed Switch Normally Open + UL Listed MET-200AR-PK50 (Pack Of 50)
Brand: Tane
SKU: MET-200AR-PK50
Price: 399.99 USD
Availability: OutOfStock

Translation missing: en.products.product.sku:MET-200AR-PK50

UPC Code: 734598804770

Product Weight: 1.0 lb

Regular price: $399.99
Sale price: $399.99
Regular price

Shipping calculated at checkout.

Out of Stock

Quantity:

Phone Life-Time Technical Support

30-Day No Questions Return Policy

*Free Shipping within the USA

Contact an Expert

NOTE

Order Before 3:00pm EST on a week day and your order will be shipped out the same day

*Free shipping within the USA

Including Puerto Rico, Hawaii and Alaska

ATTENTION:

Before purchasing, it is recommended that the customer checks with their local fire authority to see if there is any additional product they may need in order to comply with the local fire codes. We are not responsible for the improper installation of our product(s) or any type of fees that can be incurred by not complying with your local fire authority.
