Description

2″L×0.74″W×0.37″H Surface Mount Armored Commercial Type with Wire Leads or Armored Cable.

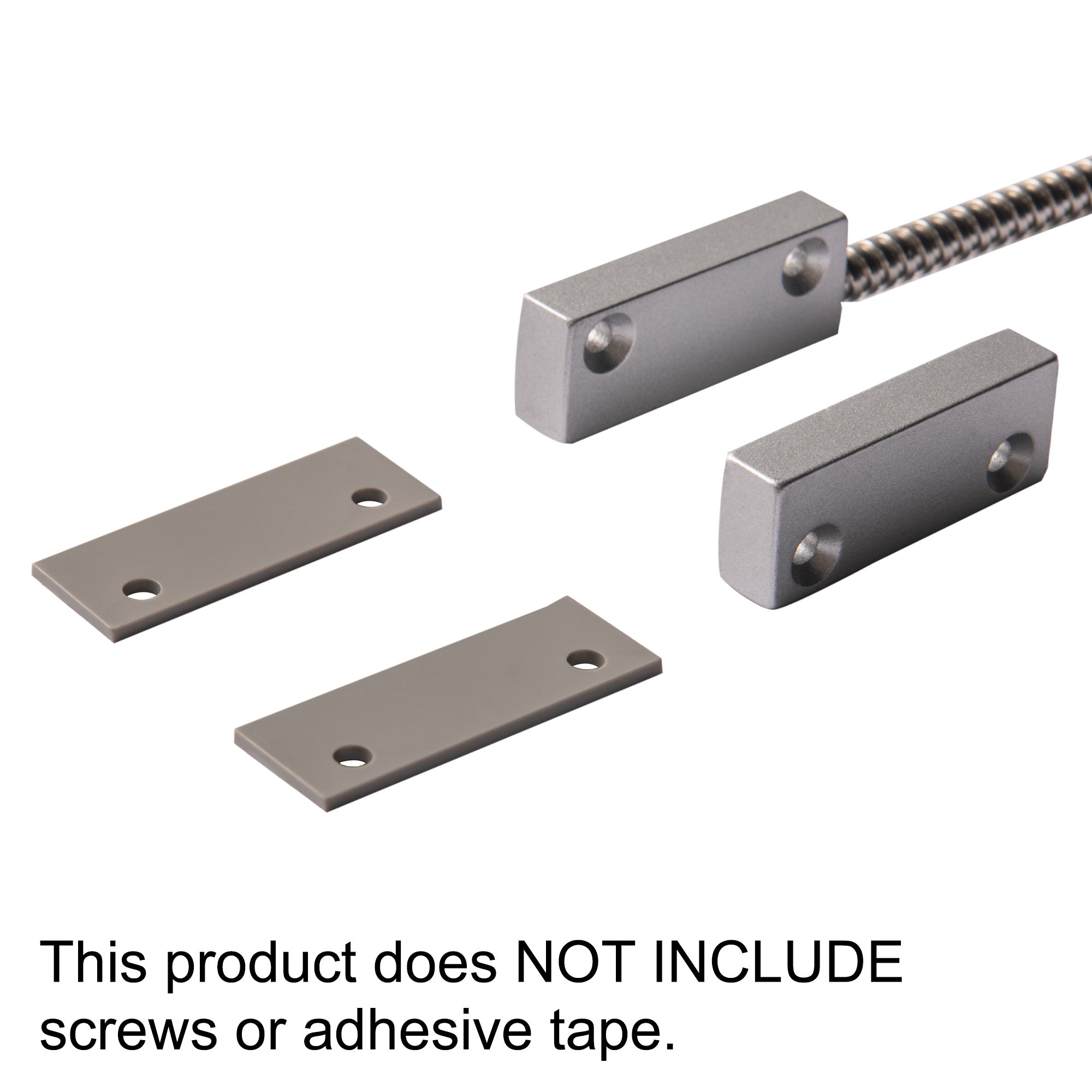

You can install this magnetic sensor on the door or window frame. This product does NOT INCLUDE screws or adhesive tape.

  • Contact Size: 2″L×0.74″W×0.37″H (51mm×18.8mm×9.5mm)
  • Standard Magnet Size: 2″L×0.74″W×0.37″H (51mm×18.8mm×9.5mm)
  • Color: Aluminum Case
  • 18″(458mm) Armor Cable Standard

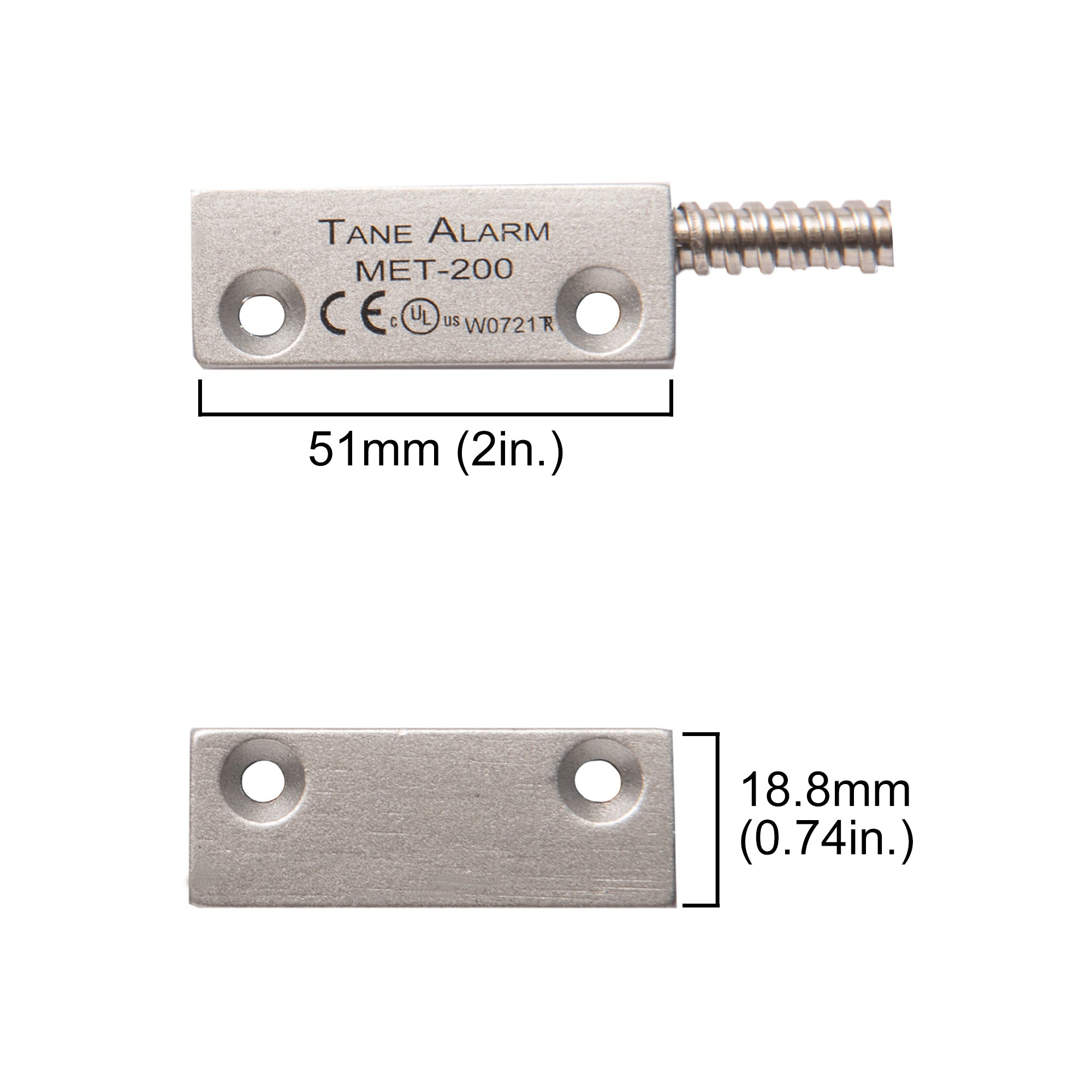

Dimensions

MET-200AR Magnetic contact dimensions

Installation Diagram

TANE Wired Surface Mount Armored Commercial Magnetic Door Window Contact MET-200AR

Characteristics

Model No. MET-200AR:

  • Contact Size: 2"L×0.74"W×0.37"H (51mm×18.8mm×9.5mm)
  • Standard Magnet Size: 2"L×0.74"W×0.37"H (51mm×18.8mm×9.5mm)
  • Gap Inch (mm): 1.25" (32)
  • Loop Open/Closed: CLOSED
  • Reed Form: Normally Open
  • Max. Contact Rating (W): 10
  • Max. Initial Contact Resistance (mΩ): 100
  • Max. Switching Voltage (V): AC110/DC100
  • Max. Switching Current (A): 0.5
  • Operating Temperature:-40°C to +60°C (-40°F to 140°F)

Description

2″L×0.74″W×0.37″H Surface Mount Armored Commercial Type with Wire Leads or Armored Cable.

You can install this magnetic sensor on the door or window frame. This product does NOT INCLUDE screws or adhesive tape.

  • Contact Size: 2″L×0.74″W×0.37″H (51mm×18.8mm×9.5mm)
  • Standard Magnet Size: 2″L×0.74″W×0.37″H (51mm×18.8mm×9.5mm)
  • Color: Aluminum Case
  • 18″(458mm) Armor Cable Standard



Dimensions

MET-200AR Magnetic contact dimensions

Installation Diagram

TANE Wired Surface Mount Armored Commercial Magnetic Door Window Contact MET-200AR

Characteristics
Packaging of this product

Model No. MET-200AR:

  • Contact Size: 2"L×0.74"W×0.37"H (51mm×18.8mm×9.5mm)
  • Standard Magnet Size: 2"L×0.74"W×0.37"H (51mm×18.8mm×9.5mm)
  • Gap Inch (mm): 1.25" (32)
  • Loop Open/Closed: CLOSED
  • Reed Form: Normally Open
  • Max. Contact Rating (W): 10
  • Max. Initial Contact Resistance (mΩ): 100
  • Max. Switching Voltage (V): AC110/DC100
  • Max. Switching Current (A): 0.5
  • Operating Temperature:-40°C to +60°C (-40°F to 140°F)

Download Datasheets and Manuals of this product

TANE MET-200AR

Contact Us for Support

LET US HELP YOU WITH YOUR PURCHASE

Feel free to contact our dedicated support team if you have any questions or if you're ready to place an order.

I Need Help
Tane by Tane

TANE Wired Surface Mount Armored Commercial Magnetic Door Window Contact With Wire Leads Or Armored Cable Aluminum Case Alarm Security Reed Switch Normally Open + UL Listed MET-200AR

Translation missing: en.products.product.sku:MET-200AR

UPC Code: 734598804732
Product Weight: 1.0 lb
