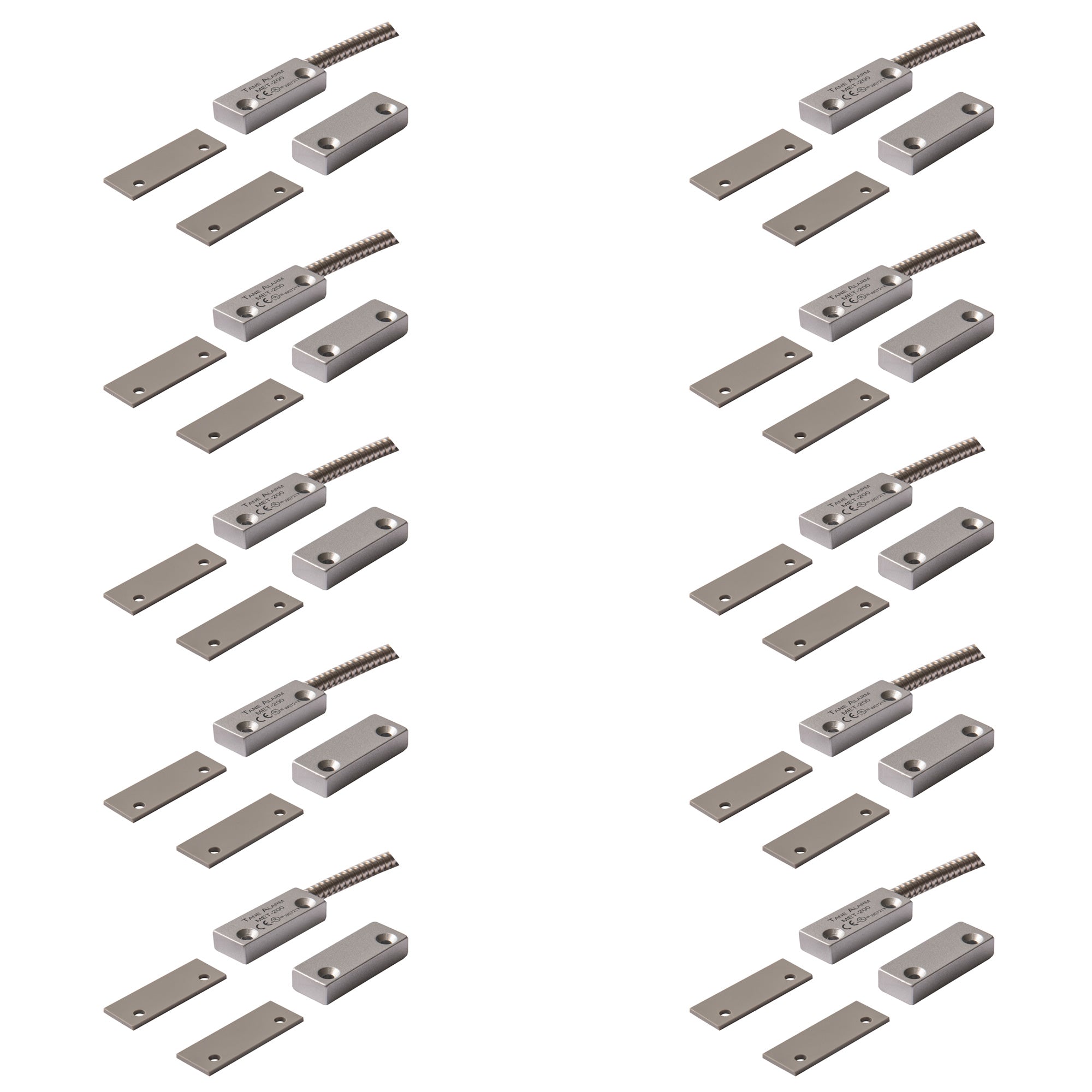

Kit Includes:

(10)

MET-200AR: TANE Wired Surface Mount Armored Commercial Magnetic Door Window Contact with Wire Leads or Armored Cable Aluminum Case Normally Open, UL Listed

Description

2″L×0.74″W×0.37″H Surface Mount Armored Commercial Type with Wire Leads or Armored Cable.

The TANE MET-200AR magnetic door/window contact combines durability and strength with a compact surface-mount design. The armor cable protection ensures wiring integrity in even harsh environments, making it ideal for industrial, retail, and high-security applications.

This product does NOT INCLUDE screws or adhesive tape.

Contact Size: 2″L×0.74″W×0.37″H (51mm×18.8mm×9.5mm)
Standard Magnet Size: 2″L×0.74″W×0.37″H (51mm×18.8mm×9.5mm)
Color: Aluminum Case
18″(458mm) Armor Cable Standard

Dimensions

MET-200AR Magnetic contact dimensions

Installation Diagram

TANE Wired Surface Mount Armored Commercial Magnetic Door Window Contact MET-200AR

Characteristics

Model No. MET-200AR:

Contact Size: 2"L×0.74"W×0.37"H (51mm×18.8mm×9.5mm)
Standard Magnet Size: 2"L×0.74"W×0.37"H (51mm×18.8mm×9.5mm)
Gap Inch (mm): 1.25" (32)
Loop Open/Closed: CLOSED
Reed Form: Normally Open
Max. Contact Rating (W): 10
Max. Initial Contact Resistance (mΩ): 100
Max. Switching Voltage (V): AC110/DC100
Max. Switching Current (A): 0.5
Operating Temperature:-40°C to +60°C (-40°F to 140°F)

Description

2″L×0.74″W×0.37″H Surface Mount Armored Commercial Type with Wire Leads or Armored Cable.

The TANE MET-200AR magnetic door/window contact combines durability and strength with a compact surface-mount design. The armor cable protection ensures wiring integrity in even harsh environments, making it ideal for industrial, retail, and high-security applications.

This product does NOT INCLUDE screws or adhesive tape.

Contact Size: 2″L×0.74″W×0.37″H (51mm×18.8mm×9.5mm)
Standard Magnet Size: 2″L×0.74″W×0.37″H (51mm×18.8mm×9.5mm)
Color: Aluminum Case
18″(458mm) Armor Cable Standard

Dimensions

MET-200AR Magnetic contact dimensions

Installation Diagram

TANE Wired Surface Mount Armored Commercial Magnetic Door Window Contact MET-200AR

Download Datasheets and Manuals of this product

TANE MET-200AR

Tane by Tane

TANE Wired Surface Mount Armored Commercial Magnetic Door Window Contact + Wire Leads Or Armored Cable Aluminum Case Alarm Security Reed Switch Normally Open + UL Listed MET-200AR-PK10 (Pack Of 10)

Name: TANE Wired Surface Mount Armored Commercial Magnetic Door Window Contact + Wire Leads Or Armored Cable Aluminum Case Alarm Security Reed Switch Normally Open + UL Listed MET-200AR-PK10 (Pack Of 10)
Brand: Tane
SKU: MET-200AR-PK10
Price: 89.99 USD
Availability: OutOfStock

Translation missing: en.products.product.sku:MET-200AR-PK10

UPC Code: 734598804756 Weight: 1.0 lb

Regular price: $89.99
Sale price: $89.99
Regular price

Shipping calculated at checkout.

Out of Stock
