Can it be programmed to allow temporary access codes?

Yes, it can be programmed to allow temporary access codes.

Does it support using both cards and keycodes for access?

Yes, it supports using both cards and keycodes for access. The keypad allows for three modes of entry: entering a pin code, using a proximity card, and/or using a proximity key tag.

What security features does it have to prevent unauthorized access?

The standalone keypad offers anti-tamper alarm that activates after illegal tear down.

Is its construction truly weatherproof and durable?

Our device is IP68-rated, meaning it is completely dustproof and water-resistant, making it suitable for both indoor and outdoor use.

Standalone access control keypad VIS-3000 Visionis, IP68-rated, wide design, waterproof keypad

Visionis VIS-3000 standalone access keypads, IP68-rated, indoor/outdoor use, anti-vandal keypad

Waterproof keypad and card reader VIS-3000 Visionis

Standalone keypad for access control FEATURES VIS-3000 Visionis

Standalone keypad for access control REVIEWS VIS-3000 Visionis

Dimensions Outdoor access control keypad, Visionis VIS-3000, IP68 anti-vandal metal, standalone use

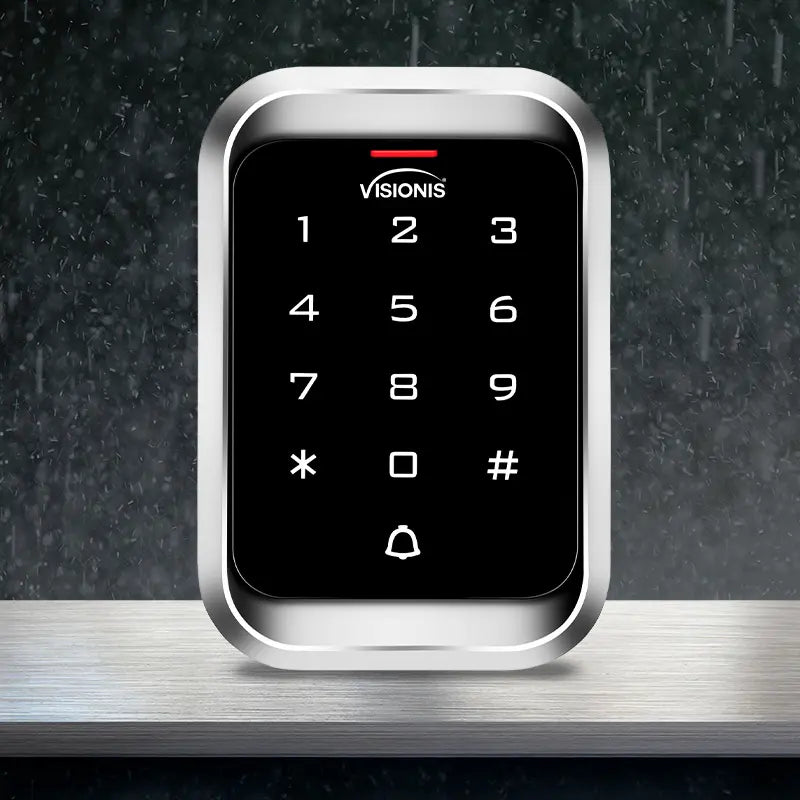

Outdoor standalone keypad and card reader VIS-3000 Visionis

Security Access Control Keypads Visionis VIS-3000

Standalone access control keypads, Visionis VIS-3000, weatherproof metal digital touch keypad

Stand Alone Keypads for access controls systems VIS-3000 Visionis

Looking for something slightly different? Check out these variations:

This PRODUCT has a 3 YEAR warranty with full access to tech support in the USA!

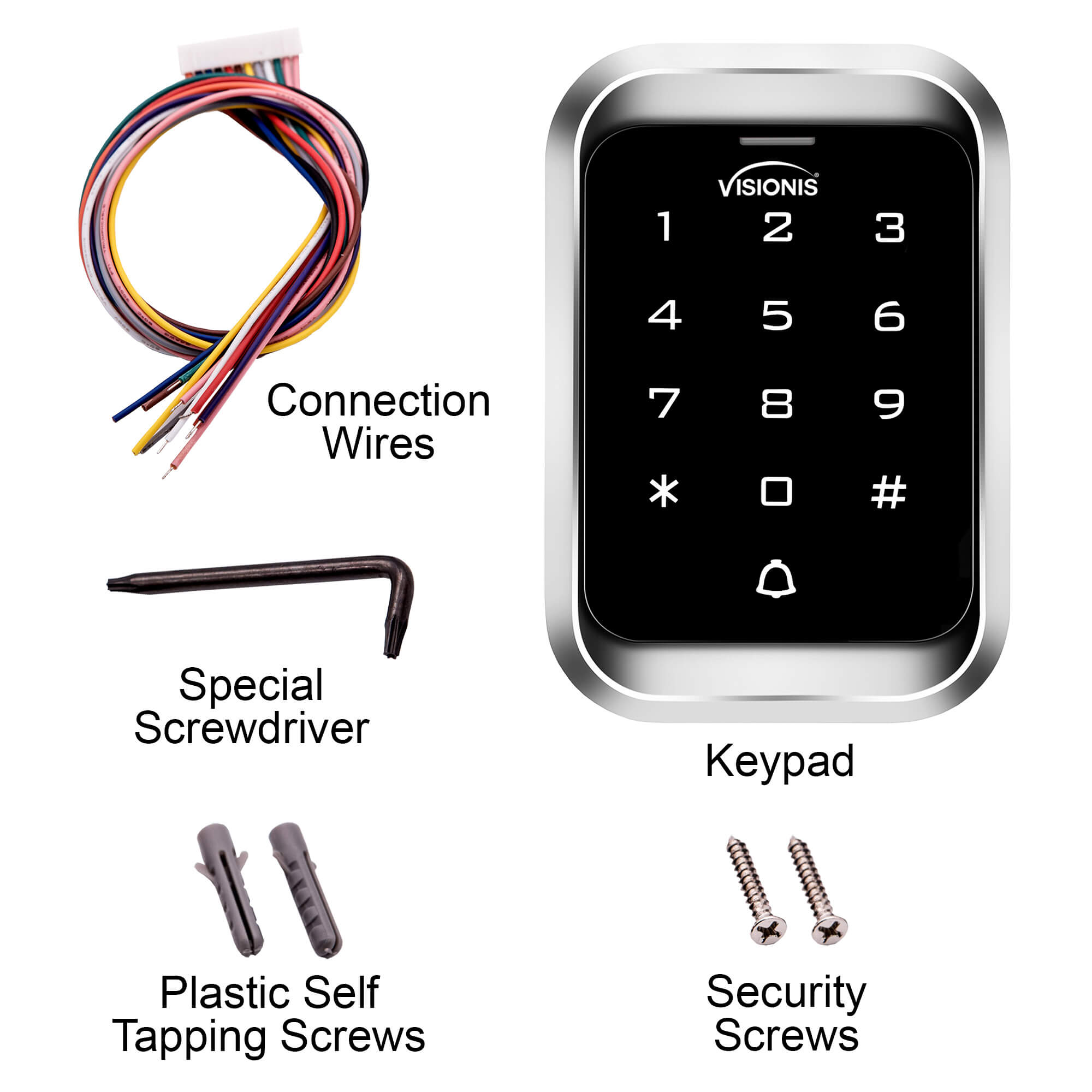

Kit Includes:

(1)

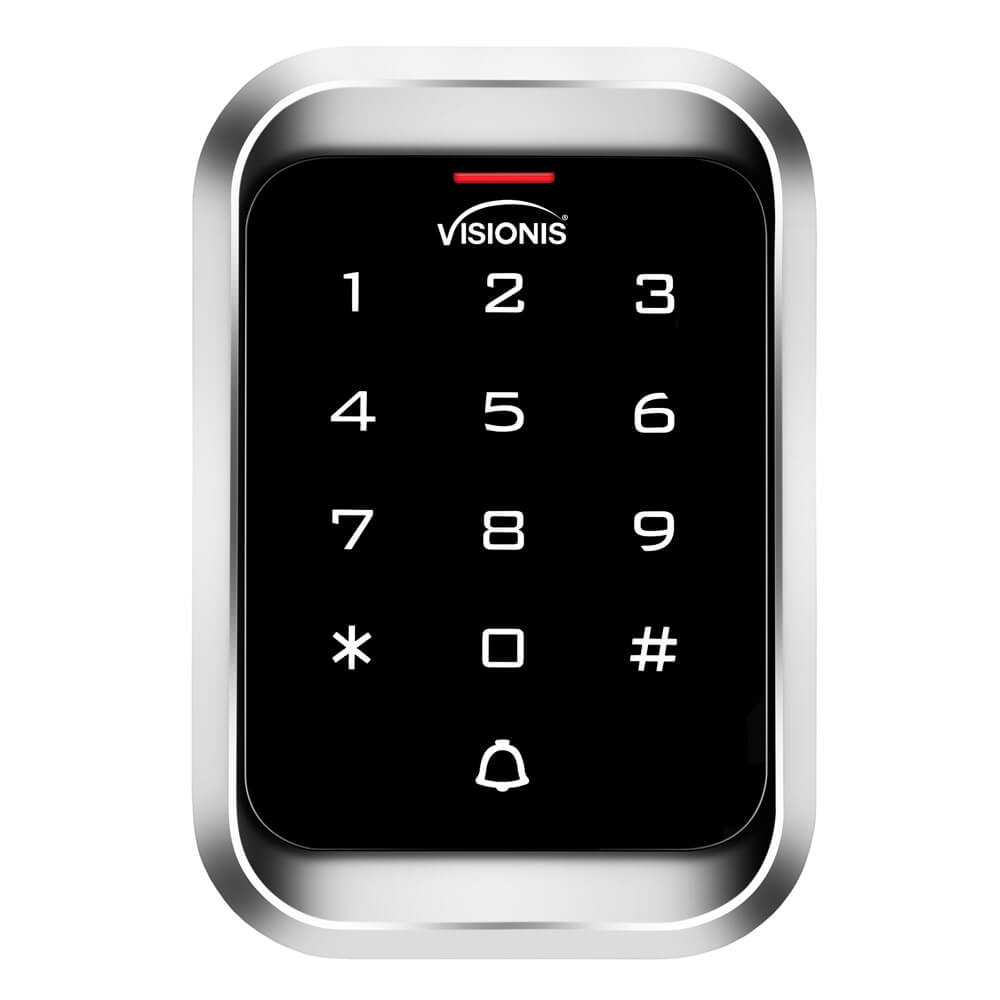

VIS-3000: Standalone Keypad and Card Reader. Indoor + Outdoor Rated IP68 Metal Anti Vandal Digital Touch Keypad.

VIS-MINI-CNTRL: 1 Door Controller for Access Control Systems with No Software. Up to 1,000 users

Description

IMPORTANT:

These products do not include a power supply
Since this is a standalone system with no software, it is recommended to keep a record of all personnel and their assigned user ID, key code, key card, or key tag.
Professional installation is recommended.
For better security the VIS-MINI-CNTRL needs to be installed inside the facility in a restricted area. This device becomes the hub of this standalone application and all the credentials are being stored on the device while no information is stored on the reader itself. Additional recommendations for added security is to add the controller within an enclosure.

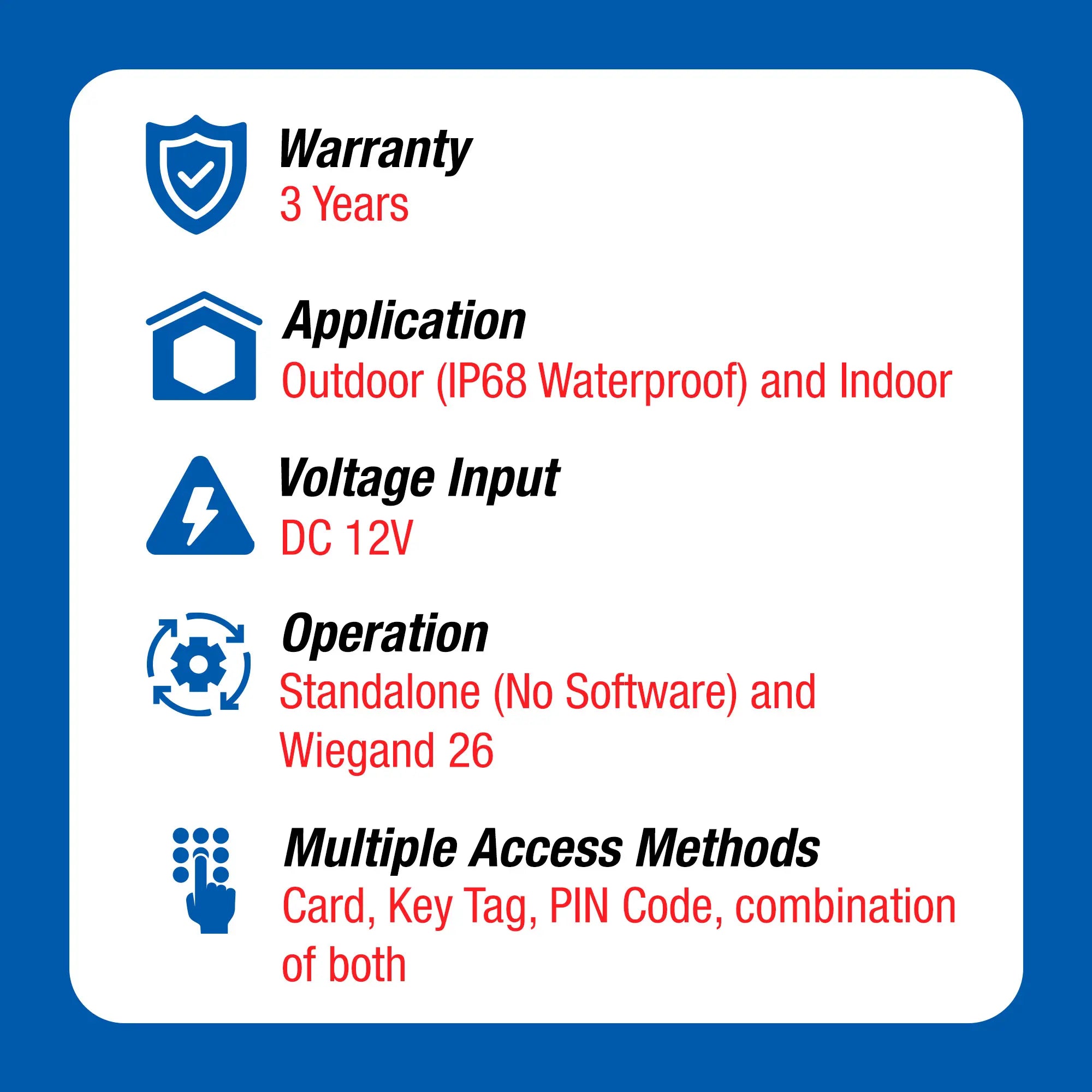

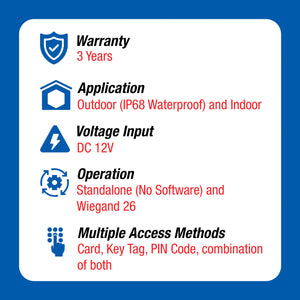

Main Features

Operation

Standalone (No Software) and Wiegand 26

Applications

Outdoor and Indoor

Card Reading Distance

2 - 3 cm (0.78 - 1.18 in.)

Standalone access control system VIS-3000 Visionis

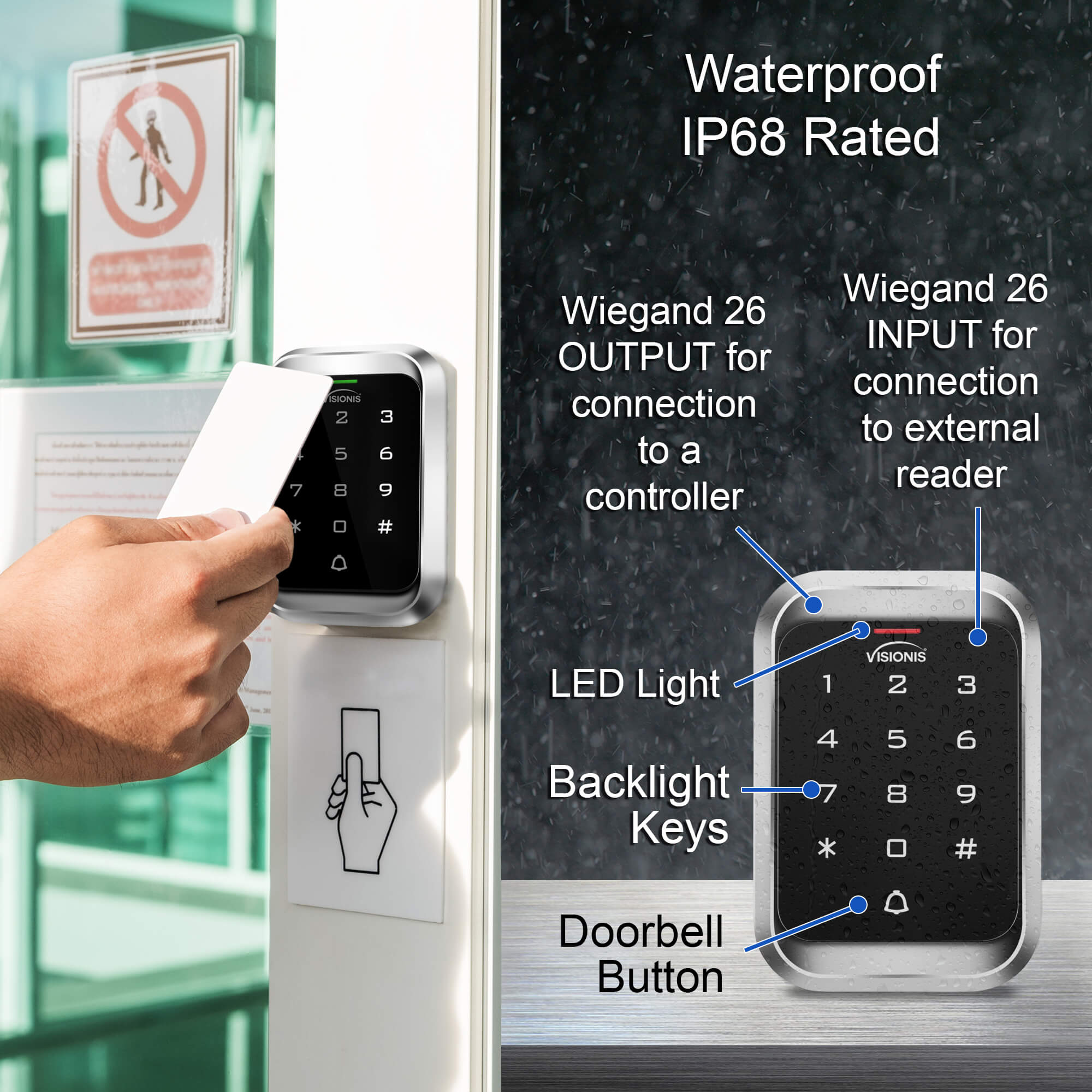

Durable and Weatherproof Design for Any Environment

The VISIONIS VIS-3000 is buil to withstand the toughest conditions, featuring an IP68 waterproof rating that makes it ideal for both indoor and outdoor installations.

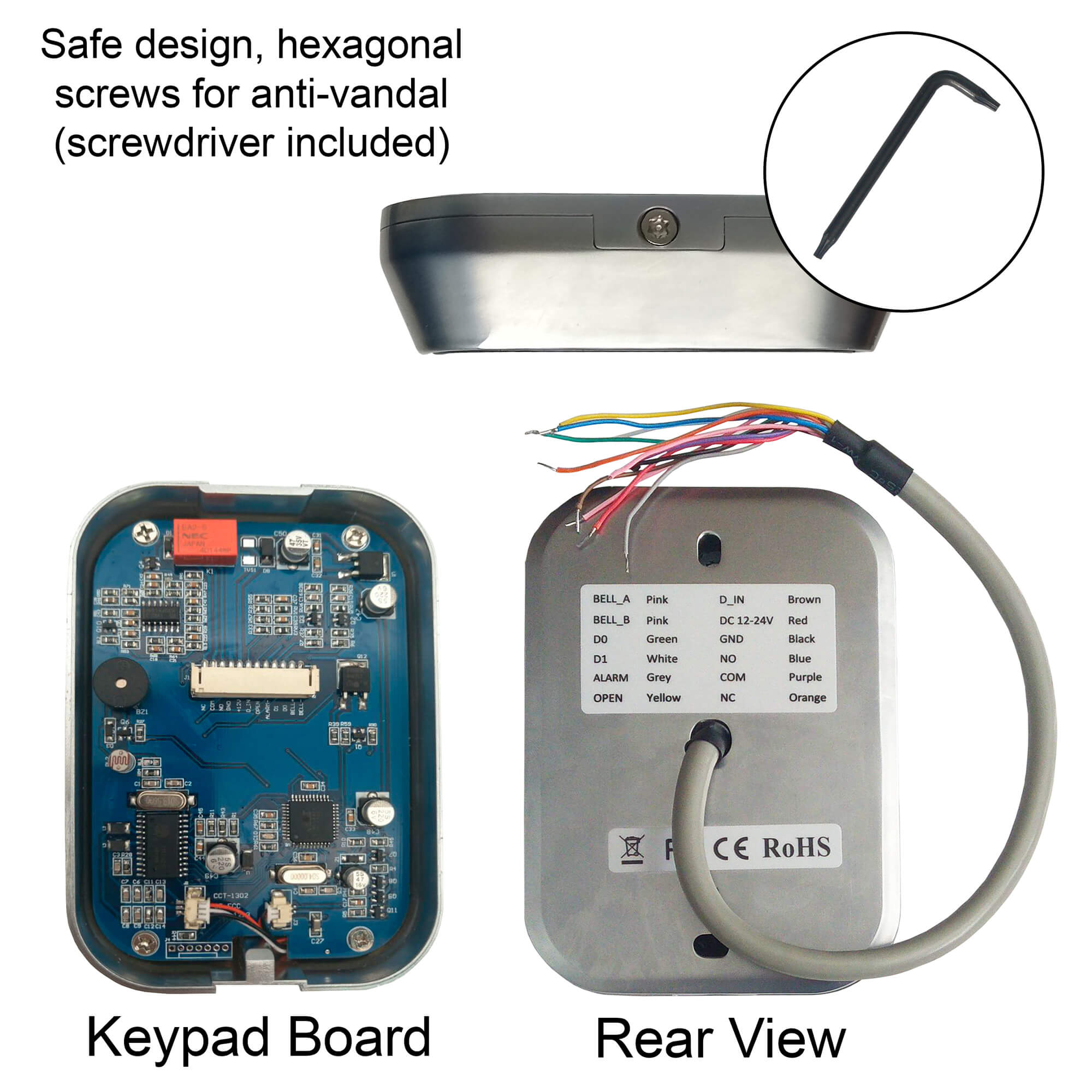

Its sturdy metal construction provides anti-vandal protection, ensuring longevity and reliability in high-security areas like office buildings, warehouses, and residential complexes.

Standalone keypad for access control with mini controller VIS-3000 Visionis

Enhanced Security with Remote Credential Storage

Even if the keypad is tampered with, access remains secure, as the mini controller VIS-MINI-CNTRL is the one managing and securing the locking mechanism. This setup ensures that sensitive information is never stored on the external reader, preventing unauthorized access attempts.

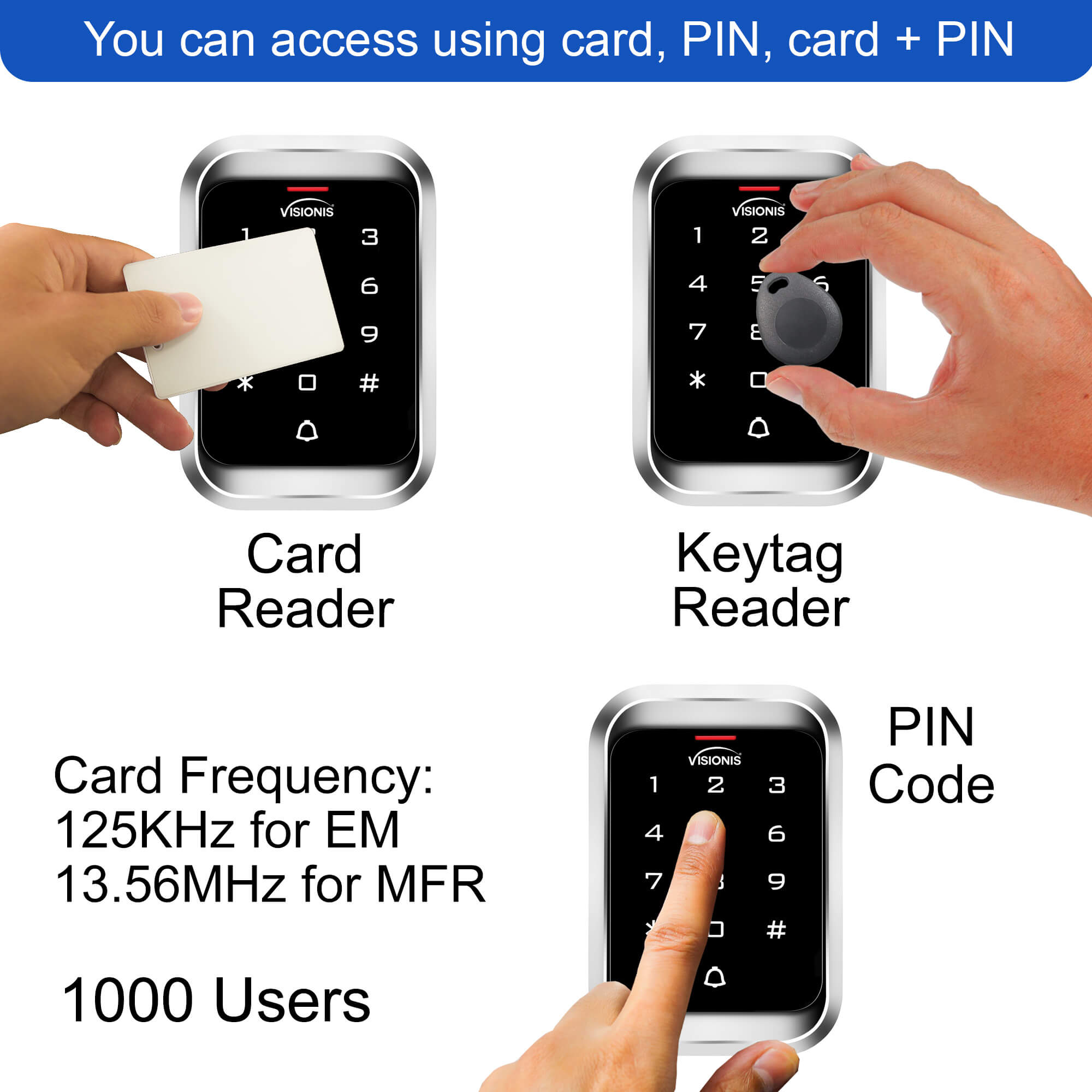

Standalone access control keypads VIS-3000 Visionis

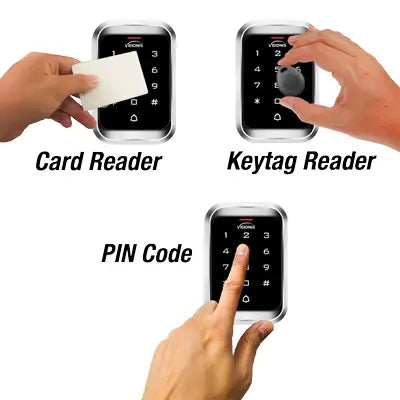

Multiple Access Methods for Maximum Flexibility

This standalone access control system supports multiple access modes, including card, PIN code, or a combination of both.

The independent code feature allows users to gain access without needing a card, adding convenience for temporary or frequent visitors.

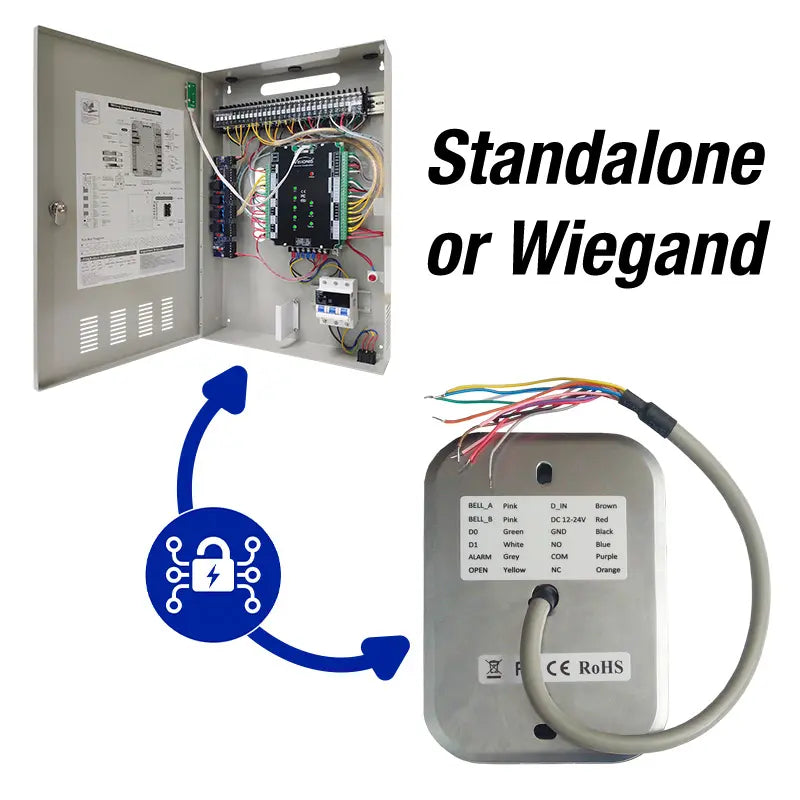

standalone keypad access control with Wiegand 26 VIS-3000 Visionis

Standalone or Integrated Access Control with Wiegand 26 Compatibility

The VISIONIS VIS-3000 functions as a standalone keypad or seamlessly connects to a central access control panel via Wiegand 26 input/output compatibility.

This flexibility ensures easy integration with existing security systems while supporting both local and centralized management for enhanced access control.

Characteristics

Model No. VIS-3000:

Supports up to 2,000 users. (If connected to the mini controller VIS-MINI-CNTRL, the capacity is limited to 1,000 users)
Input Voltage: DC 12V
Idle Current: ≤25mA
Card Reading Distance: 2 - 3 cm (0.78 - 1.18 in.)
Card Frequency: 125KHz for EM // 13.56MHz for MFR
Input & Output: Wiegand26
Keypad Transmission Format: 4bit, 8bit and Virtual card number
Operating Temperature: -45°C ～55° C (-49°F ～131°F)
Operating Humidity: 0%～95%

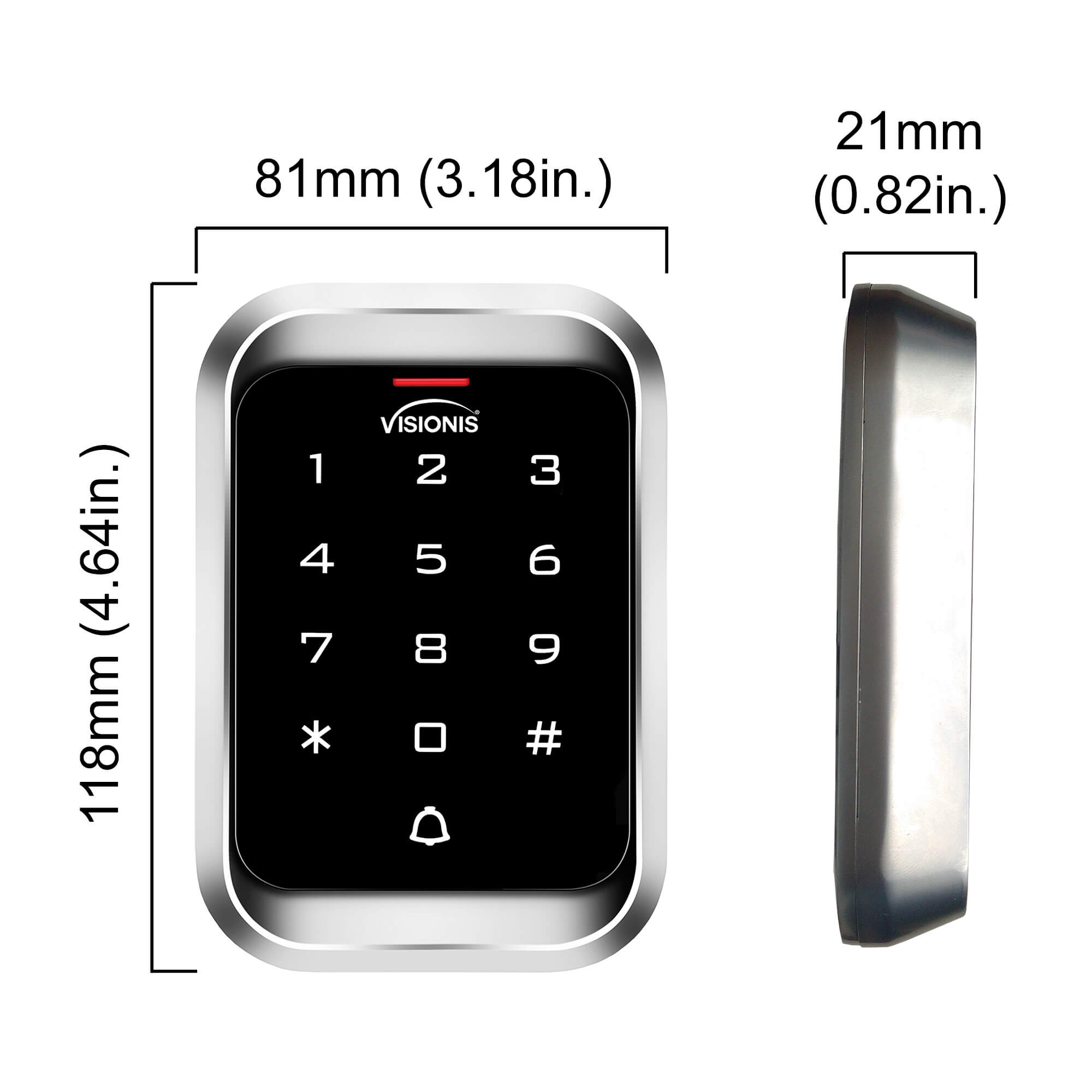

Product Size: 118Lx81Wx21H (mm) - 4.64Lx3.18Wx0.82H (in.)
Protection Level: IP68 - No ingress of dust; complete protection against contact (dust tight), and waterproof
Support external wired doorbell

Model No. VIS-MINI-CNTRL:

User Capacity: 1,000
Operating Voltage: 9~24V DC
Idle Current: < 20mA
Relay One: (NO, NC, Common)
Adjustable Relay Output Time: 1~99 Seconds (5 seconds default)
Lock Output Load: 2 Amp Maximum
Wiegand Interface Input: Wiegand 26~37 bits
Wiegand Interface Output: Wiegand 26~37 bits (for user transfer)
Environment: Indoor
Operating Temperature: -40°C~60°C (-40°F~140°F)
Operating Humidity: 0 ~ 90%RH
Physical: ABS Shell
Dimensions: L65 x W54 x H19 (mm) - L2.56 x W2.13 x H0.75 (in.)
Unit Weight: 40g
Shipping Weight: 100g

Description

IMPORTANT:

These products do not include a power supply
Since this is a standalone system with no software, it is recommended to keep a record of all personnel and their assigned user ID, key code, key card, or key tag.
Professional installation is recommended.
For better security the VIS-MINI-CNTRL needs to be installed inside the facility in a restricted area. This device becomes the hub of this standalone application and all the credentials are being stored on the device while no information is stored on the reader itself. Additional recommendations for added security is to add the controller within an enclosure.

Product FAQs

Can it be programmed to allow temporary access codes?

Yes, it can be programmed to allow temporary access codes.
Does it support using both cards and keycodes for access?

Yes, it supports using both cards and keycodes for access. The keypad allows for three modes of entry: entering a pin code, using a proximity card, and/or using a proximity key tag.
What security features does it have to prevent unauthorized access?

The standalone keypad offers anti-tamper alarm that activates after illegal tear down.
Is its construction truly weatherproof and durable?

Our device is IP68-rated, meaning it is completely dustproof and water-resistant, making it suitable for both indoor and outdoor use.
Can its access codes or credentials be easily changed?

Yes, you can easily delete or change your credentials when you need to.
Is it compatible with other access control system components or with third-party access control systems?

Yes, it’s compatible with the majority of commercially available systems. Please review the product’s datasheet to find its spec.
Can it change how long the door stays open?

Yes, the relay timer can be adjusted on the keypads. You can program your delay from 0 to 99 seconds.

Download Datasheets and Manuals of this product

VIS-3000

VIS-MINI-CNTRL

LET US HELP YOU WITH YOUR PURCHASE

Feel free to contact our dedicated support team if you have any questions or if you're ready to place an order.

I Need Help

Visionis by Visionis

5.0

Standalone Access Control Keypad and Card Reader. Indoor + Outdoor Rated IP68 Metal Anti Vandal Digital Touch Keypad. Wiegand 26. Wide Design. No Software + Mini Controller - VIS-3000+ Visionis

Translation missing: en.products.product.sku:VIS-3000+

UPC Code: 701772944348 Weight: 2.0 lb

Includes a Mini Controller. Pairing your keypad with a mini controller keeps user credentials secure inside a protected area, preventing tampering or breaches.
Waterproof and weatherproof (IP68 Rated). For indoor and outdoor use.
Card Reading Distance: 2 - 3 cm (0.78 - 1.18 in.).
Card Frequency: 125KHz for EM // 13.56MHz for MFR.
