Can it be programmed to allow temporary access codes?

Yes, it can be programmed to allow temporary access codes.

Does it support using both cards and keycodes for access?

Yes, it supports using both cards and keycodes for access. The keypad allows for three modes of entry: entering a pin code, using a proximity card, and/or using a proximity key tag.

What security features does it have to prevent unauthorized access?

The standalone keypad offers anti-tamper alarm that activates after illegal tear down.

Is its construction truly weatherproof and durable?

Our device is IP68-rated, meaning it is completely dustproof and water-resistant, making it suitable for both indoor and outdoor use.

standalone keypad access control with power supply and key tags - FPC-5664

Visionis VIS-3000 standalone access keypads, IP68-rated, indoor/outdoor use, anti-vandal keypad

Standalone access control keypad VIS-3000 Visionis

Standalone keypad for access control FEATURES VIS-3000 Visionis

Standalone keypad for access control REVIEWS VIS-3000 Visionis

Dimensions Outdoor access control keypad, Visionis VIS-3000, IP68 anti-vandal metal, standalone use

Outdoor standalone keypad and card reader VIS-3000 Visionis

Standalone access control keypads, Visionis VIS-3000, weatherproof metal digital touch keypad

Security Access Control Keypads Visionis VIS-3000

Looking for something slightly different? Check out these variations:

This PRODUCT has a 3 YEAR warranty with full access to tech support in the USA!

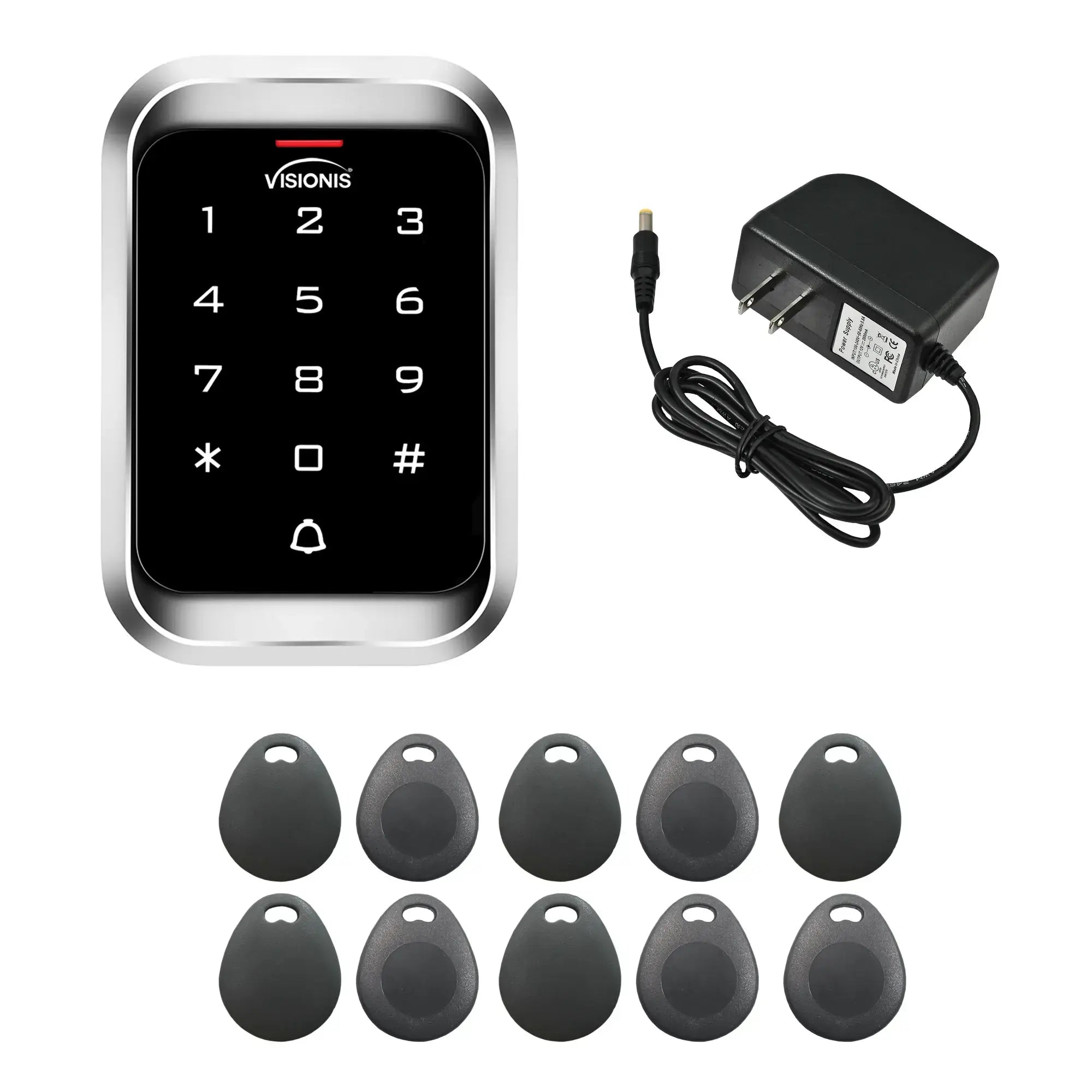

Kit Includes:

(1)

(10)

(1)

VIS-3000: Standalone Keypad and Card Reader. Indoor + Outdoor Rated IP68 Metal Anti Vandal Digital Touch Keypad.

FPC-5274: Pack of RFID Proximity Key Fobs, 125kHz, 26-Bit

VIS-CP200: 12 Volt 2Amp Power Supply Transformer, UL Listed

Single Door Mini Controller VIS-MINI-CNTRL

RECOMMENDATION: Use the Mini Controller VIS-MINI-CNTRL for Added Security

Pairing your keypad with a mini controller keeps user credentials secure inside a protected area, preventing tampering or breaches. It's an essential upgrade for enhanced security and reliable access control.

Discover More Benefits

Description

This device can be used as a standalone keypad, or it can be connected to an access control panel using its Wiegand 26-bit output.

Main Features

Operation

Standalone (No Software) and Wiegand 26

Applications

Outdoor and Indoor

Card Reading Distance

2 - 3 cm (0.78 - 1.18 in.)

Standalone access control system VIS-3000 Visionis

Durable and Weatherproof Design for Any Environment

The VISIONIS VIS-3000 is buil to withstand the toughest conditions, featuring an IP68 waterproof rating that makes it ideal for both indoor and outdoor installations.

Its sturdy metal construction provides anti-vandal protection, ensuring longevity and reliability in high-security areas like office buildings, warehouses, and residential complexes.

Standalone keypad for access control with mini controller VIS-3000 Visionis

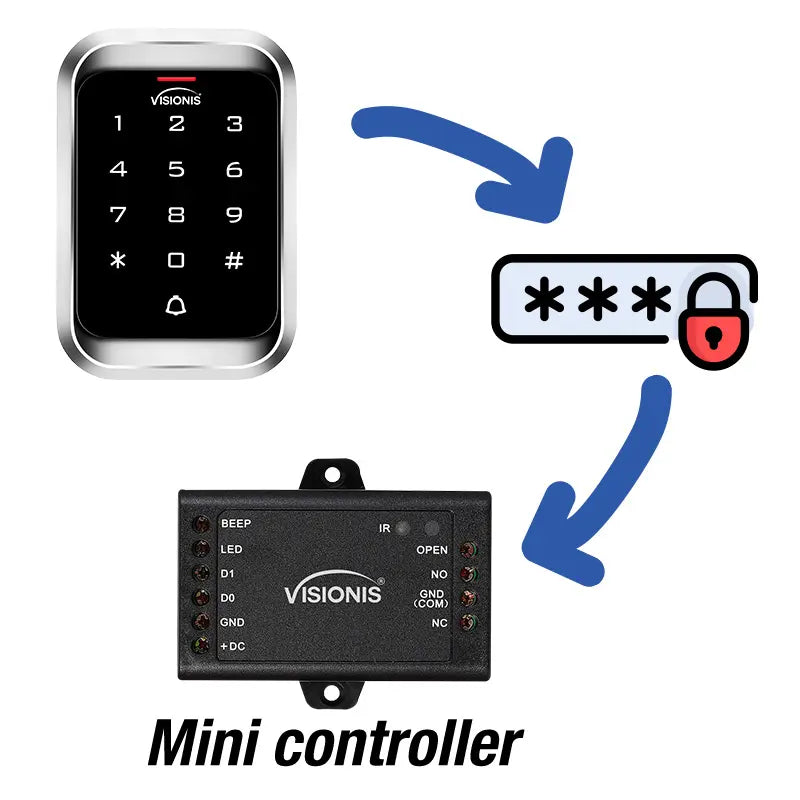

Enhanced Security with Remote Credential Storage

Even if the keypad is tampered with, access remains secure, as the mini controller VIS-MINI-CNTRL is the one managing and securing the locking mechanism. This setup ensures that sensitive information is never stored on the external reader, preventing unauthorized access attempts.

Standalone access control keypads VIS-3000 Visionis

Multiple Access Methods for Maximum Flexibility

This standalone access control system supports multiple access modes, including card, PIN code, or a combination of both.

The independent code feature allows users to gain access without needing a card, adding convenience for temporary or frequent visitors.

standalone keypad access control with Wiegand 26 VIS-3000 Visionis

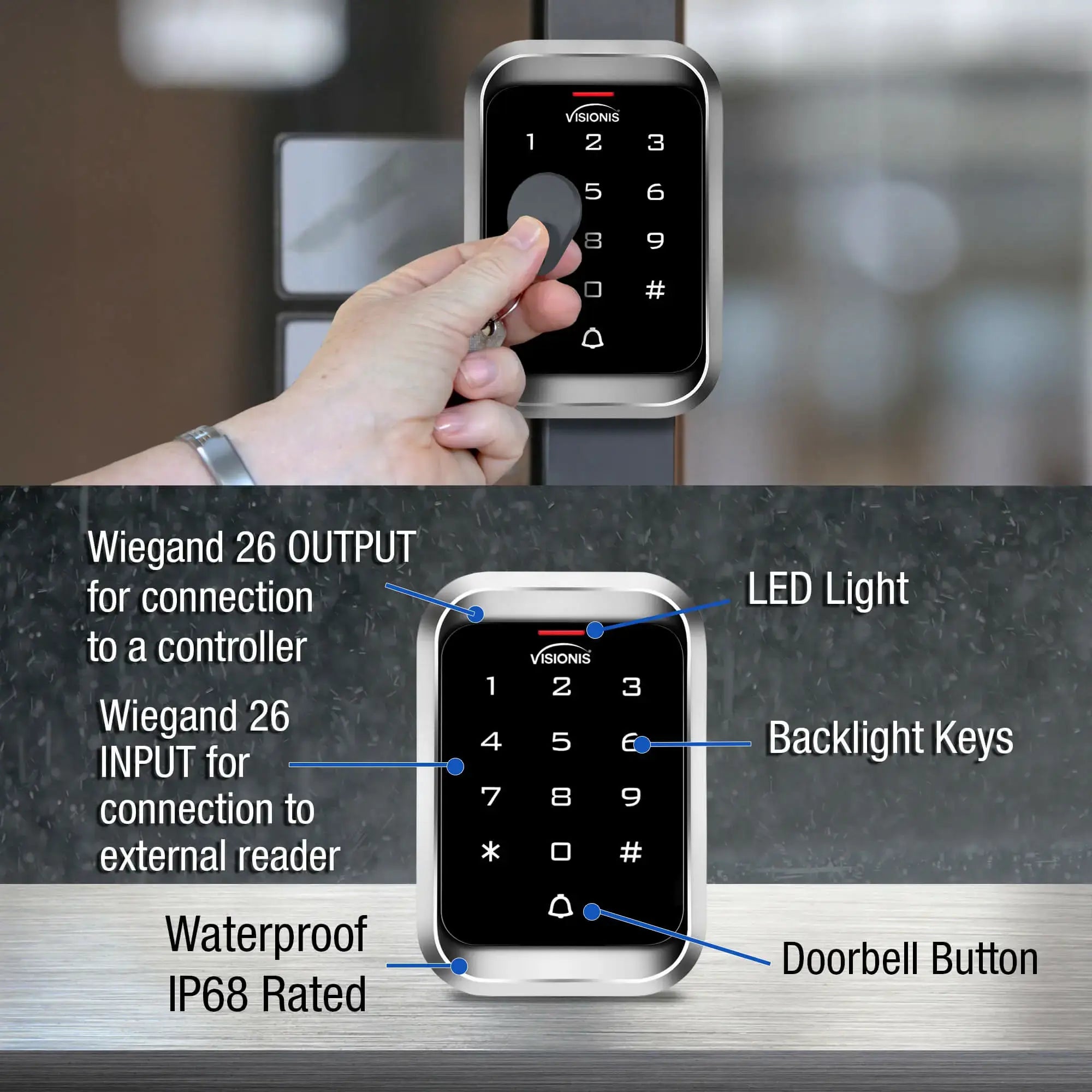

Standalone or Integrated Access Control with Wiegand 26 Compatibility

The VISIONIS VIS-3000 functions as a standalone keypad or seamlessly connects to a central access control panel via Wiegand 26 input/output compatibility.

This flexibility ensures easy integration with existing security systems while supporting both local and centralized management for enhanced access control.

Characteristics

Model No. VIS-3000:

Supports up to 2,000 users. (If connected to the mini controller VIS-MINI-CNTRL, the capacity is limited to 1,000 users)
Input Voltage: DC 12V
Idle Current: ≤25mA
Card Reading Distance: 2 - 3 cm (0.78 - 1.18 in.)
Card Frequency: 125KHz for EM // 13.56MHz for MFR
Input & Output: Wiegand26
Keypad Transmission Format: 4bit, 8bit and Virtual card number
Operating Temperature: -45°C ～55° C (-49°F ～131°F)
Operating Humidity: 0%～95%
Product Size: 118Lx81Wx21H (mm) - 4.64Lx3.18Wx0.82H (in.)
Protection Level: IP68 - No ingress of dust; complete protection against contact (dust tight), and waterproof
Support external wired doorbell

Model No. VIS-CP200:

Cable Length: 1.2 meters (4 feet)
Input Voltage Range: AC90V-264V
Input Frequency Range: 50Hz-60Hz
Output Voltage Range: DC12V+/-5%
Output Current: 2A
Output Power: 24 Watts
Output Ripple&Noise: ≤46MV
Output Efficiency: ≥79%
Environment Operating: -30°C~45°C 20%~90%RH
Environment Storage Temp.: -40°C~85°C 10%~95%RH
Product Dimension: 87*36.5*70mm (3.42x1.43x2.75in.)
Product Weight: 116g
Certificate: UL, CE, RoHS, FCC

Description

This device can be used as a standalone keypad, or it can be connected to an access control panel using its Wiegand 26-bit output.

Product FAQs

Can it be programmed to allow temporary access codes?

Yes, it can be programmed to allow temporary access codes.
Does it support using both cards and keycodes for access?

Yes, it supports using both cards and keycodes for access. The keypad allows for three modes of entry: entering a pin code, using a proximity card, and/or using a proximity key tag.
What security features does it have to prevent unauthorized access?

The standalone keypad offers anti-tamper alarm that activates after illegal tear down.
Is its construction truly weatherproof and durable?

Our device is IP68-rated, meaning it is completely dustproof and water-resistant, making it suitable for both indoor and outdoor use.
Can its access codes or credentials be easily changed?

Yes, you can easily delete or change your credentials when you need to.
Is it compatible with other access control system components or with third-party access control systems?

Yes, it’s compatible with the majority of commercially available systems. Please review the product’s datasheet to find its spec.
Can it change how long the door stays open?

Yes, the relay timer can be adjusted on the keypads. You can program your delay from 0 to 99 seconds.

Download Datasheets and Manuals of this product

VIS-3000

VIS-KEYTAG / VIS-KEYTAG-BLUE

Datasheet

LET US HELP YOU WITH YOUR PURCHASE

Feel free to contact our dedicated support team if you have any questions or if you're ready to place an order.

I Need Help

Visionis by Visionis

Standalone Access Control Keypad and Card Reader VIS-3000. Indoor + Outdoor Rated IP68. Wiegand 26. Wide Design. No Software + Pack 10 Proximity Key Tags + Power Supply - FPC-5664

Translation missing: en.products.product.sku:FPC-5664

UPC Code: 709445354791 Weight: 2.0 lb

Waterproof and weatherproof (IP68 Rated). For indoor and outdoor use.
Card Reading Distance: 2 - 3 cm (0.78 - 1.18 in.).
Card Frequency: 125KHz for EM // 13.56MHz for MFR.

Regular price: $138.80
Sale price: $138.80
Regular price

Shipping calculated at checkout.

In Stock

Quantity:

Phone Life-Time Technical Support

30-Day No Questions Return Policy

*Free Shipping within the USA

Contact an Expert

NOTE

Order Before 3:00pm EST on a week day and your order will be shipped out the same day

*Free shipping within the USA

Including Puerto Rico, Hawaii and Alaska

ATTENTION:

Before purchasing, it is recommended that the customer checks with their local fire authority to see if there is any additional product they may need in order to comply with the local fire codes. We are not responsible for the improper installation of our product(s) or any type of fees that can be incurred by not complying with your local fire authority.
