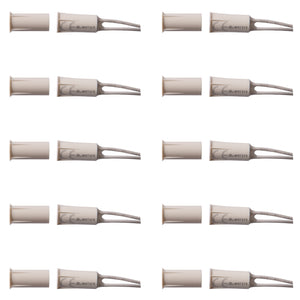

Kit Includes:

(10)

STB-10: TANE Recessed Wired Security Window Door Magnetic Contact Sensor for Alarm Home Security and Burglar Alarm Systems Normally Open WHITE Color, UL Listed

Description

0.35″×0.75″ (9mm×19mm) stubby type recessed wired security window door magnetic contact sensor.

You can install this recessed wired magnetic sensor on the door or window frame. This product does NOT INCLUDE screws or adhesive tape.

Contact Size: 0.35″×0.75″ (9mm×19mm)
Standard Magnet Size: 0.35″×0.75″ (9mm×19mm)
Color: White
12″ (305mm) 22 AWG Leads Standard
Standard Gap: 0.6″ (15mm)

Dimensions

STB-10 Magnetic contact dimensions

Characteristics

Model No. STB-10:

Color: WHITE
Contact Size: .35"×.75" (9mm×19mm)
Standard Magnet Size: .35"×.75" (9mm×19mm)
Gap Inch (mm): .6" (15)
Loop Open/Closed: CLOSED
Reed Form: Normally Open
Max. Contact Rating (W): 10
Max. Initial Contact Resistance (mΩ): 100
Max. Switching Voltage (V): AC110/DC100
Max. Switching Current (A): 0.5
Operating Temperature:-40°C to +60°C (-40°F to 140°F)

Description

0.35″×0.75″ (9mm×19mm) stubby type recessed wired security window door magnetic contact sensor.

You can install this recessed wired magnetic sensor on the door or window frame. This product does NOT INCLUDE screws or adhesive tape.

Contact Size: 0.35″×0.75″ (9mm×19mm)
Standard Magnet Size: 0.35″×0.75″ (9mm×19mm)
Color: White
12″ (305mm) 22 AWG Leads Standard
Standard Gap: 0.6″ (15mm)

Dimensions

STB-10 Magnetic contact dimensions

Download Datasheets and Manuals of this product

TANE STB-10

Tane by Tane

TANE Recessed Wired Security Window Door Magnetic Contact Sensor For Alarm Home Security And Burglar Alarm Systems Normally Open WHITE Color + UL Listed STB-10-PK10 (Pack Of 10)

Name: TANE Recessed Wired Security Window Door Magnetic Contact Sensor For Alarm Home Security And Burglar Alarm Systems Normally Open WHITE Color + UL Listed STB-10-PK10 (Pack Of 10)
Brand: Tane
SKU: STB-10-PK10
Price: 19.99 USD
Availability: OutOfStock

Translation missing: en.products.product.sku:STB-10-PK10

UPC Code: 734598804558

Product Weight: 1.0 lb
