Description

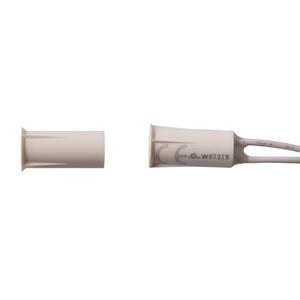

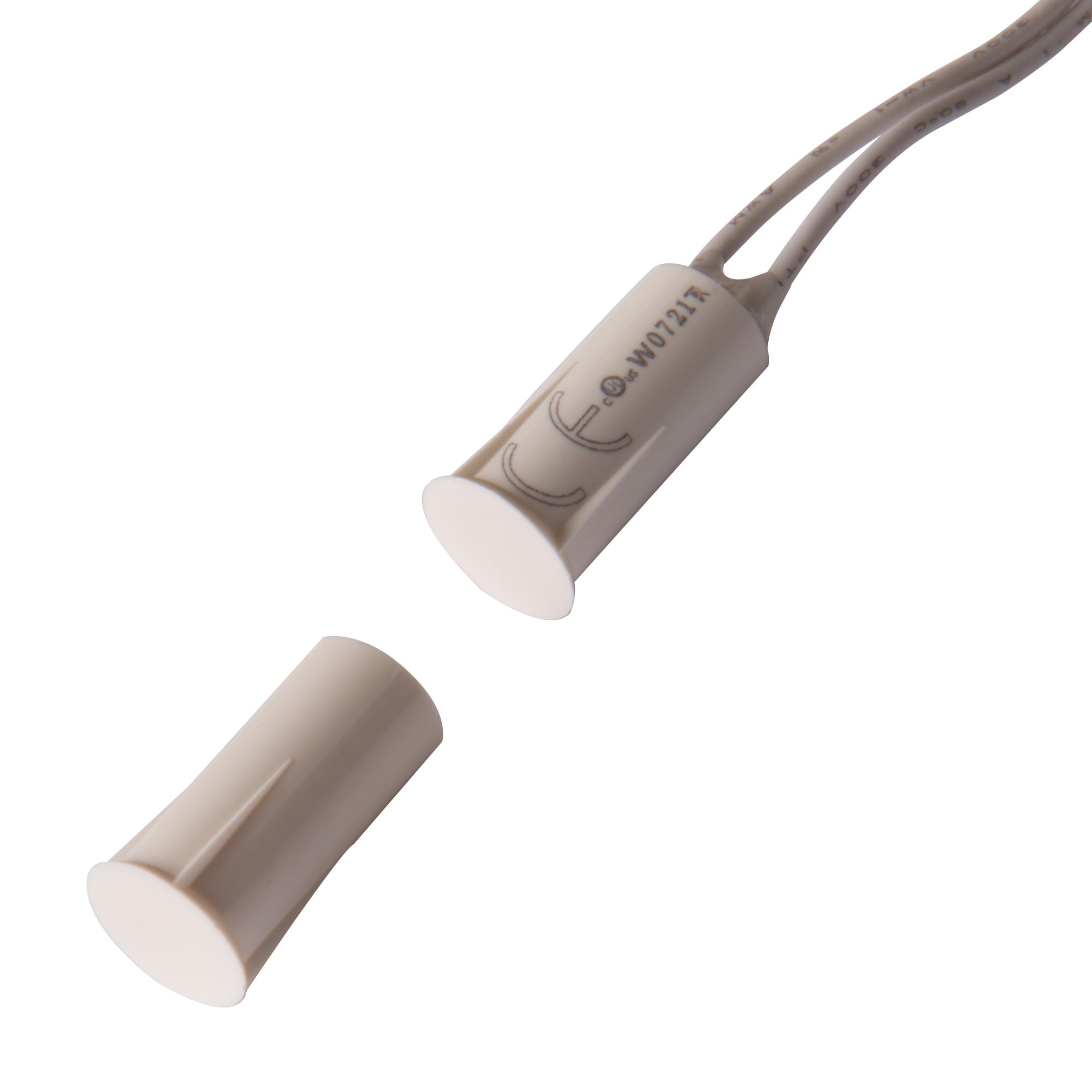

0.35″×0.75″ (9mm×19mm) stubby type recessed wired security window door magnetic contact sensor.

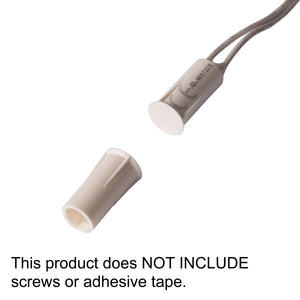

You can install this recessed wired magnetic sensor on the door or window frame. This product does NOT INCLUDE screws or adhesive tape.

  • Contact Size: 0.35″×0.75″ (9mm×19mm)
  • Standard Magnet Size: 0.35″×0.75″ (9mm×19mm)
  • Color: White
  • 12″ (305mm) 22 AWG Leads Standard
  • Standard Gap: 0.6″ (15mm)



Dimensions

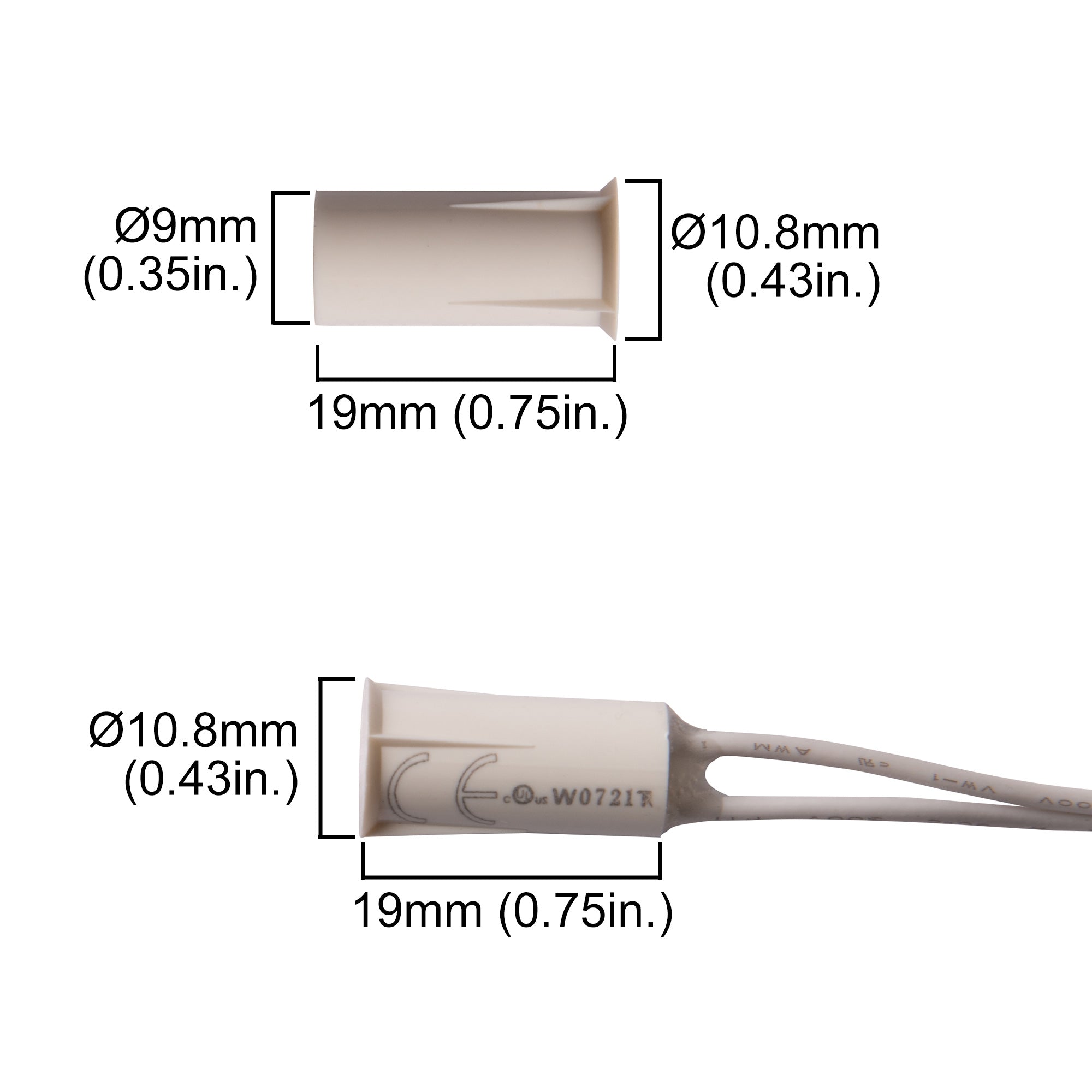

STB-10 Magnetic contact dimensions

Characteristics

Model No. STB-10:

  • Color: WHITE
  • Contact Size: .35"×.75" (9mm×19mm)
  • Standard Magnet Size: .35"×.75" (9mm×19mm)
  • Gap Inch (mm): .6" (15)
  • Loop Open/Closed: CLOSED
  • Reed Form: Normally Open
  • Max. Contact Rating (W): 10
  • Max. Initial Contact Resistance (mΩ): 100
  • Max. Switching Voltage (V): AC110/DC100
  • Max. Switching Current (A): 0.5
  • Operating Temperature:-40°C to +60°C (-40°F to 140°F)

Description

0.35″×0.75″ (9mm×19mm) stubby type recessed wired security window door magnetic contact sensor.

You can install this recessed wired magnetic sensor on the door or window frame. This product does NOT INCLUDE screws or adhesive tape.

  • Contact Size: 0.35″×0.75″ (9mm×19mm)
  • Standard Magnet Size: 0.35″×0.75″ (9mm×19mm)
  • Color: White
  • 12″ (305mm) 22 AWG Leads Standard
  • Standard Gap: 0.6″ (15mm)



Dimensions

STB-10 Magnetic contact dimensions

Characteristics
Packaging of this product

Model No. STB-10:

  • Color: WHITE
  • Contact Size: .35"×.75" (9mm×19mm)
  • Standard Magnet Size: .35"×.75" (9mm×19mm)
  • Gap Inch (mm): .6" (15)
  • Loop Open/Closed: CLOSED
  • Reed Form: Normally Open
  • Max. Contact Rating (W): 10
  • Max. Initial Contact Resistance (mΩ): 100
  • Max. Switching Voltage (V): AC110/DC100
  • Max. Switching Current (A): 0.5
  • Operating Temperature:-40°C to +60°C (-40°F to 140°F)

Download Datasheets and Manuals of this product

TANE STB-10

Contact Us for Support

LET US HELP YOU WITH YOUR PURCHASE

Feel free to contact our dedicated support team if you have any questions or if you're ready to place an order.

I Need Help
Tane by Tane

TANE Recessed Wired Security Window Door Magnetic Contact Sensor For Alarm Home Security And Burglar Alarm Systems Normally Open WHITE Color + UL Listed STB-10

STB-10

UPC Code: 734598804534
Product Weight: 1.0 lb
  • CE Certificate
  • UL Certificate
$9.99
$9.99
