Weatherproof push to exit button with power supply - Visionis VIS-7001

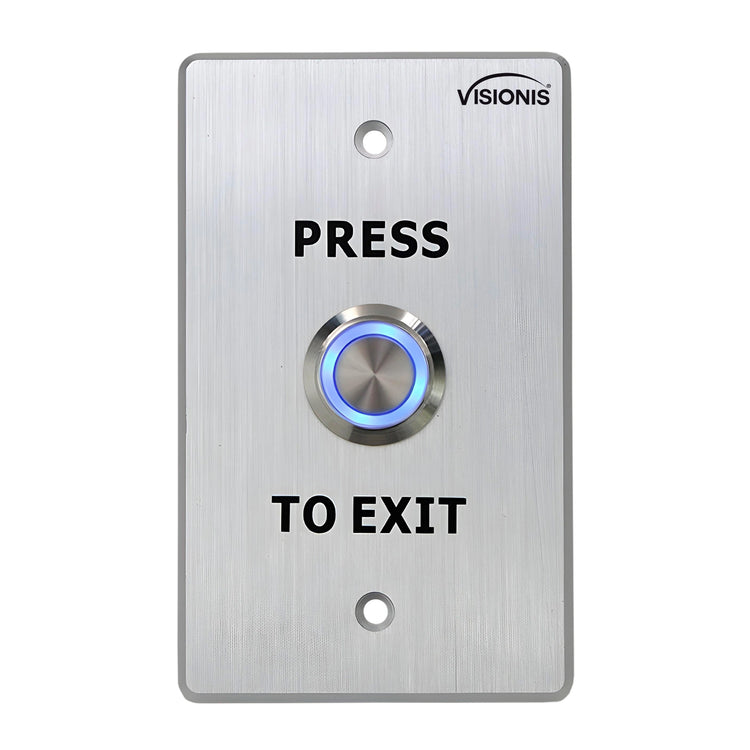

Visionis VIS-7001 weatherproof request to exit button with stainless steel and LED indicator

Visionis VIS-7001 outdoor push to exit button with stainless steel and LED indicator

Dimensions VIS-7001 outdoor push to exit button with stainless steel and LED indicator

Looking for something slightly different? Check out these variations:

This PRODUCT has a 3 YEAR warranty with full access to tech support in the USA!

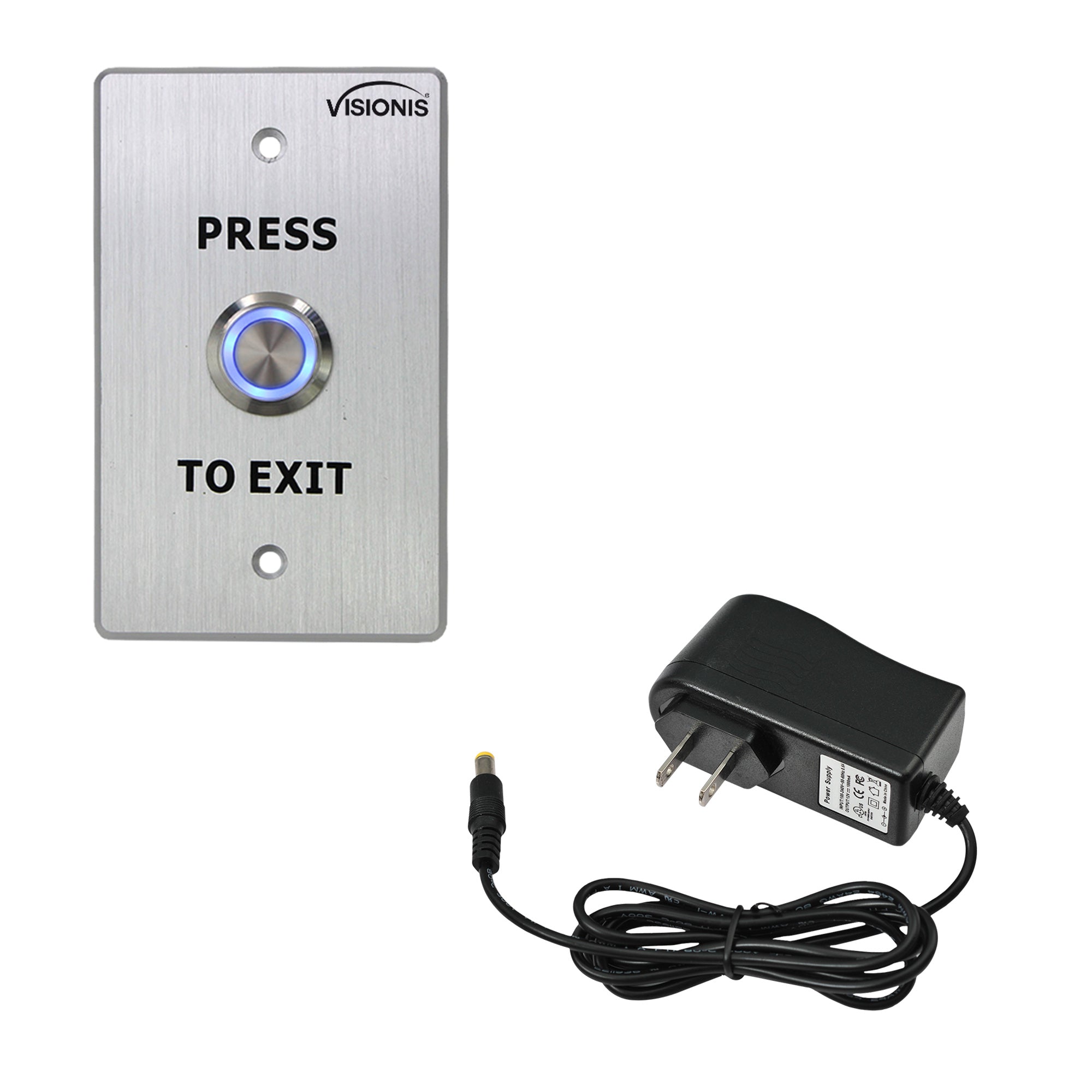

Kit Includes:

(1)

VIS-7001: Indoor + Outdoor Weather, Waterproof Rated IP65 Stainless Steel Door Bell Type Round Request To Exit Button Standard Size w/ LED Light

VIS-CP200: 12 Volt 2Amp Power Supply Transformer, UL Listed

Description

The FPC-5432 kit includes one Visionis VIS-7001 push to exit button and a power supply, offering a complete, ready-to-install solution for any access-controlled door.

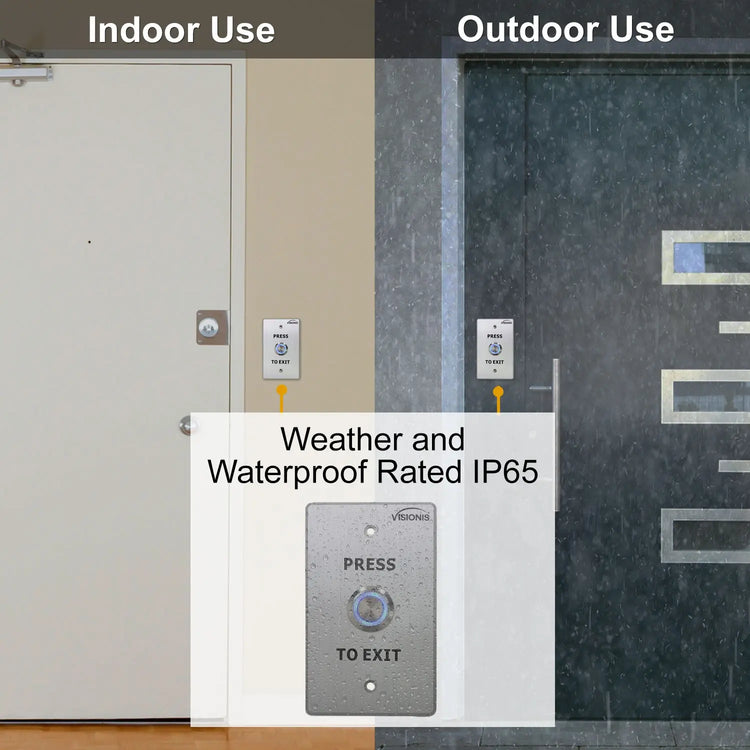

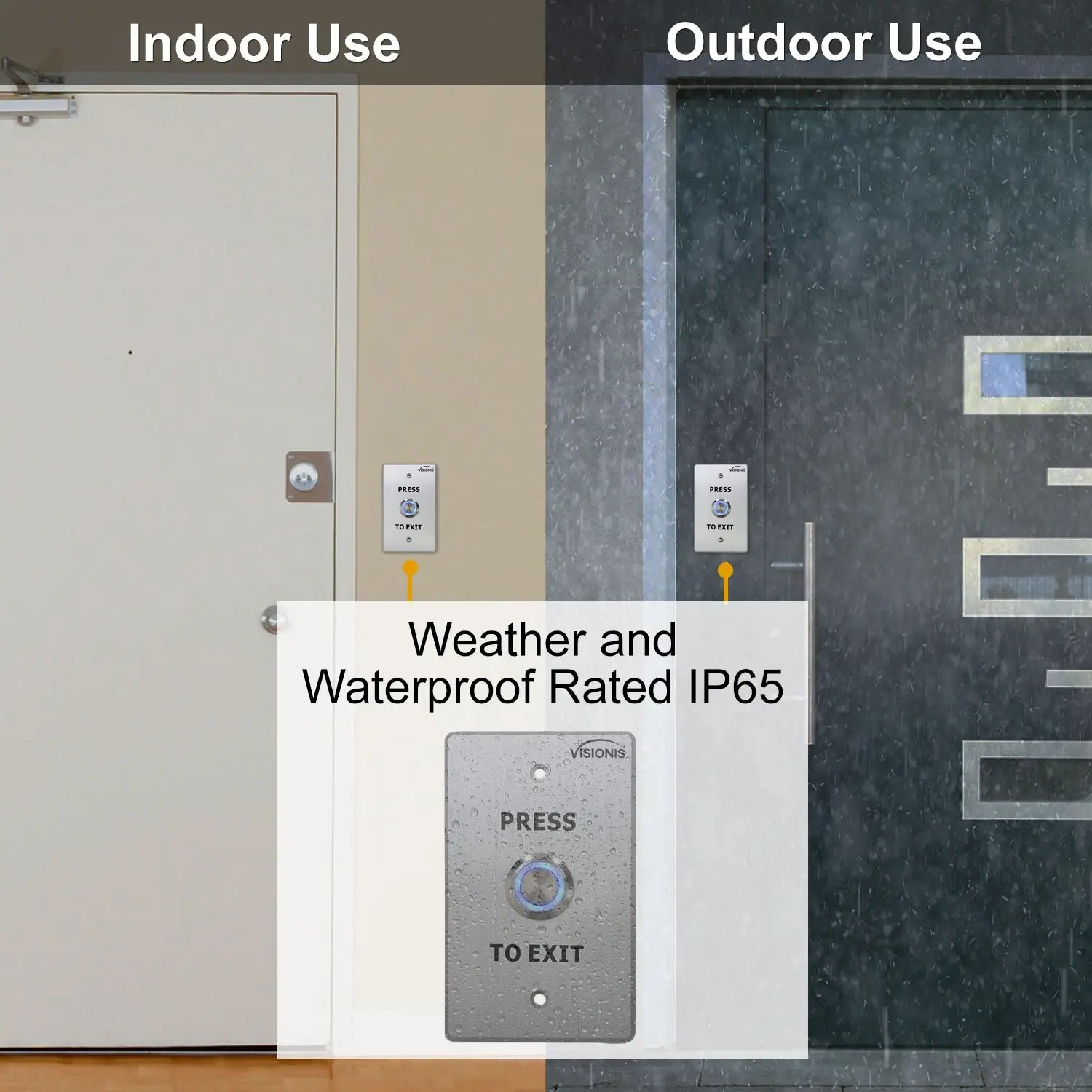

Designed for outdoor or indoor use, this request to exit button features an IP65 stainless steel body, LED indicator, and multiple outputs—perfect for a standalone gate, exit door, or entry system.

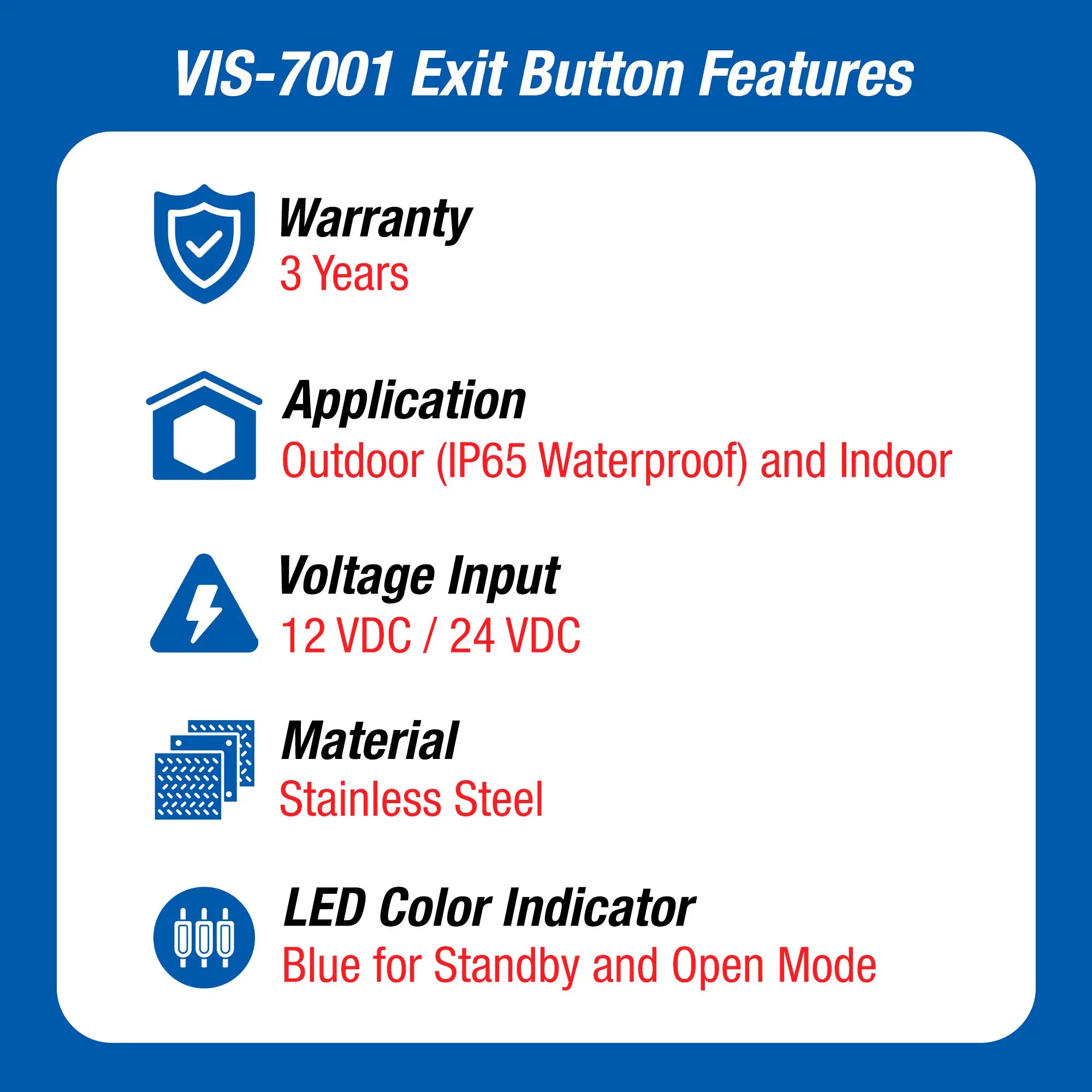

Characteristics

Model No. VIS-7001:

Contact Rating: 3A/125-250VAC
Output Contact: NC, COM, NO
Waterproof Grade: IP65
Power: 12VDC or 24VDC
Button: Stainless Steel
Button Installation Diameter: 19mm (0.74in.)
Panel: 1.7mm (0.07in.) Thick 304 Stainless Steel
Suitable for: Hollow Door
Mechanical Life: 100.000 tests
Operating Temperature: -20°C~+55°C (14°F-131°F)
Operating Humidity: 0-95% (relative humidity)
Weight: 0.12kg
Dimension Of Plate: 115L × 70W × 40H mm - 4.52L x 2.75W x 1.57H in.
LED Color Indicator: Blue

Model No. VIS-CP200:

Input Voltage Range: AC90V-264V
Input Frequency Range: 50Hz-60Hz
Output Voltage Range: DC12V+/-5%
Output Current: 2A
Output Power: 24 Watts
Output Ripple&Noise: ≤46MV
Output Efficiency: ≥79%
Environment Operating: -30°C~45°C 20%~90%RH
Environment Storage Temp.: -40°C~85°C 10%~95%RH
Product Dimension: 87*36.5*70mm (3.42x1.43x2.75in.)
Product Weight: 116g
Certificate: UL, CE, RoHS, FCC

Description

The FPC-5432 kit includes one Visionis VIS-7001 push to exit button and a power supply, offering a complete, ready-to-install solution for any access-controlled door.

Designed for outdoor or indoor use, this request to exit button features an IP65 stainless steel body, LED indicator, and multiple outputs—perfect for a standalone gate, exit door, or entry system.

Download Datasheets and Manuals of this product

VIS-7001

LET US HELP YOU WITH YOUR PURCHASE

Feel free to contact our dedicated support team if you have any questions or if you're ready to place an order.

I Need Help

Visionis by Visionis

Push To Exit Button Indoor + Outdoor Weather, Waterproof IP65 with Power Supply. Stainless Steel Standard Size For Door Access Control w/ LED Light, NC, COM, NO Outputs - FPC-5432 Visionis

Translation missing: en.products.product.sku:FPC-5432

UPC Code: 614961170933 Weight: 1.0 lb

Regular price: $34.09
Sale price: $34.09
Regular price

Shipping calculated at checkout.

In Stock

Quantity:

Phone Life-Time Technical Support

30-Day No Questions Return Policy

*Free Shipping within the USA

Contact an Expert

Order Before 3:00pm EST on a week day and your order will be shipped out the same day

*Free shipping within the USA

Including Puerto Rico, Hawaii and Alaska

ATTENTION:

Before purchasing, it is recommended that the customer checks with their local fire authority to see if there is any additional product they may need in order to comply with the local fire codes. We are not responsible for the improper installation of our product(s) or any type of fees that can be incurred by not complying with your local fire authority.
