Description

THIS PRODUCT IS NOT AVAILABLE FOR INDIVIDUAL SALE

BUY HERE PACKS OF 5, 10, 25, 50, 100,150, 200

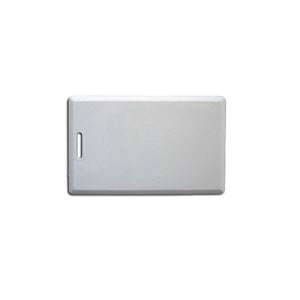

The Visionis proximity cards (or access cards) are hybrid technology that incorporate a simple electric circuit (proximity tag and coil) embedded in a plastic card. No battery is needed and the circuit is not removable without destroying it and the card. When the card is correctly positioned with respect to a reader a high speed RF signal passes between card and reader and unique data is transferred. This ISO standard proximity card is 1.8mm thick and can have printed material attached to the front. It is supplied with a pre-assigned unique code and the cards are 125khz.

  • EM proximity card
  • 125KHz passive type
  • 54(W) x 85(L) x 1.8(T) mm
Characteristics

Model No. VIS-PROXCARD:

  • Type: EM proximity card
  • Frequency: 125Khz
  • Card Size: 85.5 x 54 x 1.8mm (3.36 x 2.12 x 0.07 in.)
  • Read Range: 1 - 10 cm (0.39 - 3.93 in.)
  • Material: White ABS + PVC
  • Water Resistant: Yes. (Not recommended to submerge the card in water for an extended period)
  • Protocol: ISO18000-2
  • IC Chip: EM4200/TK4100
  • Memory: 64 bit
  • Write Endurance: Read Only
  • Operating Temp.: -10°C to +50°C (14°F to +122°F)
    20% to 90% RH
    Non-condensing

Description

THIS PRODUCT IS NOT AVAILABLE FOR INDIVIDUAL SALE

BUY HERE PACKS OF 5, 10, 25, 50, 100,150, 200

The Visionis proximity cards (or access cards) are hybrid technology that incorporate a simple electric circuit (proximity tag and coil) embedded in a plastic card. No battery is needed and the circuit is not removable without destroying it and the card. When the card is correctly positioned with respect to a reader a high speed RF signal passes between card and reader and unique data is transferred. This ISO standard proximity card is 1.8mm thick and can have printed material attached to the front. It is supplied with a pre-assigned unique code and the cards are 125khz.

  • EM proximity card
  • 125KHz passive type
  • 54(W) x 85(L) x 1.8(T) mm
Characteristics
Packaging of this product

Model No. VIS-PROXCARD:

  • Type: EM proximity card
  • Frequency: 125Khz
  • Card Size: 85.5 x 54 x 1.8mm (3.36 x 2.12 x 0.07 in.)
  • Read Range: 1 - 10 cm (0.39 - 3.93 in.)
  • Material: White ABS + PVC
  • Water Resistant: Yes. (Not recommended to submerge the card in water for an extended period)
  • Protocol: ISO18000-2
  • IC Chip: EM4200/TK4100
  • Memory: 64 bit
  • Write Endurance: Read Only
  • Operating Temp.: -10°C to +50°C (14°F to +122°F)
    20% to 90% RH
    Non-condensing
  • Is programming required for these proximity cards?

    No programming is required for this EM proximity cards. Each card comes with a factory-programmed unique ID, so no manual programming is needed. Just present the card to your access control reader and enroll it through your system's admin panel.

  • What readers are compatible with these cards?

    These ID card operate at 125kHz with a 26-bit Wiegand format, which makes them compatible with a wide range of readers. Like the Visionis VIS-3003 or VIS-3026. It will also work with other reader brands.

  • Are these proximity cards waterproof?

    Yes. It's not recommended to submerge the card in water for an extended period.

  • Can cards be customized with facility codes?

    No, the proximity card number is pre-programmed and it can’t be customized or changed.

Download Datasheets and Manuals of this product

VIS-PROXCARD
