This PRODUCT has a 3 YEAR warranty with full access to tech support in the USA!

Description

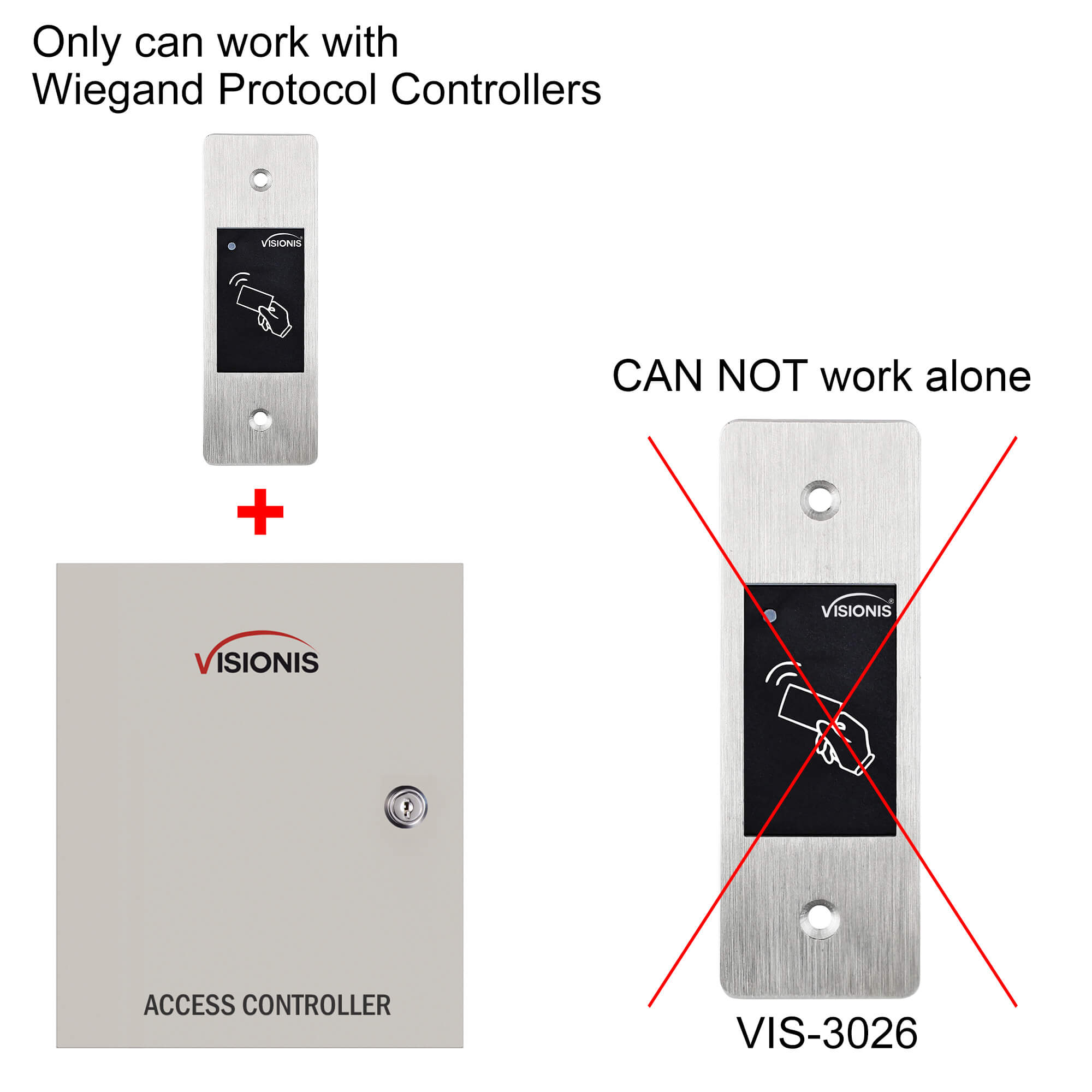

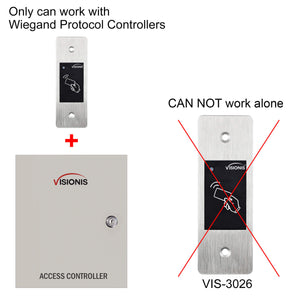

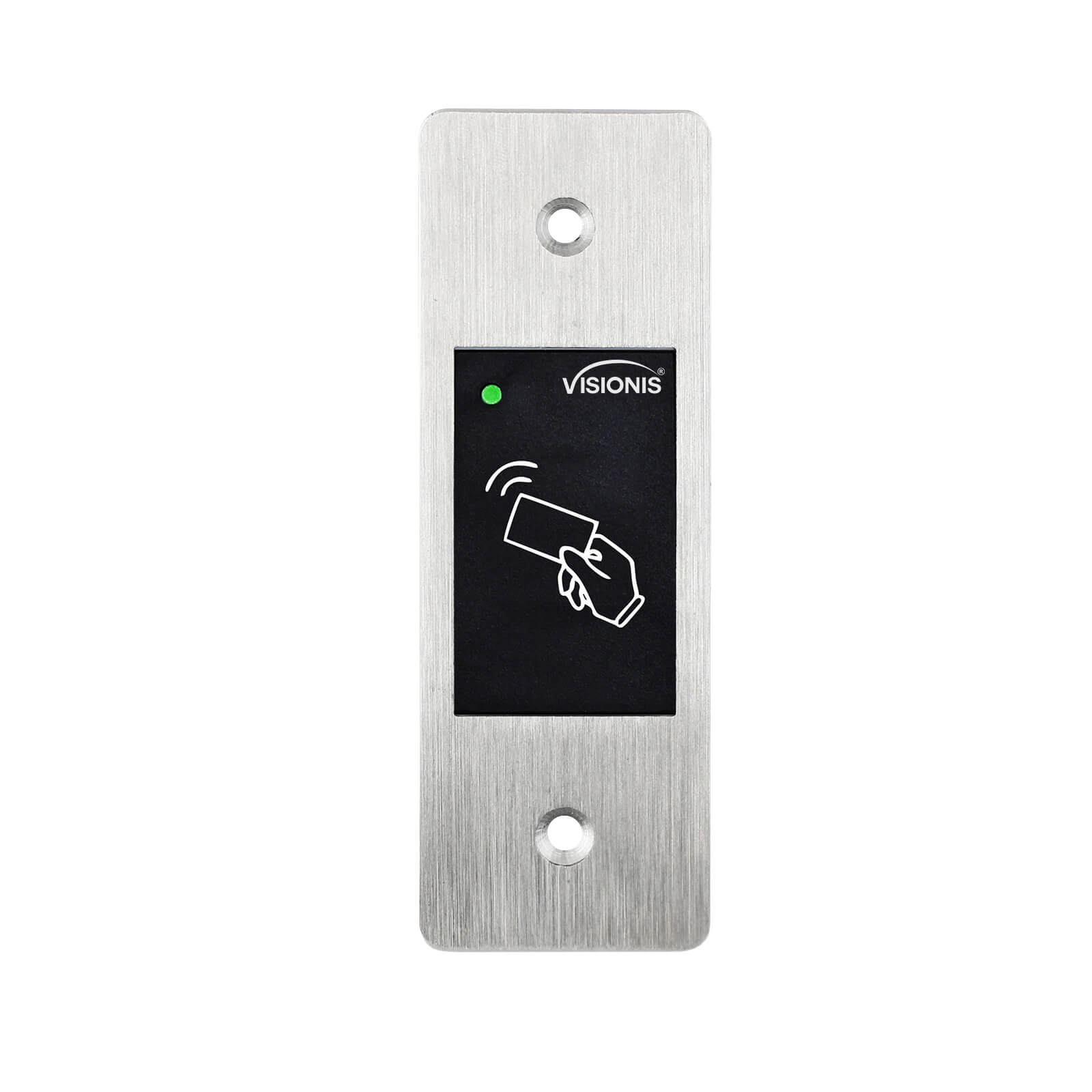

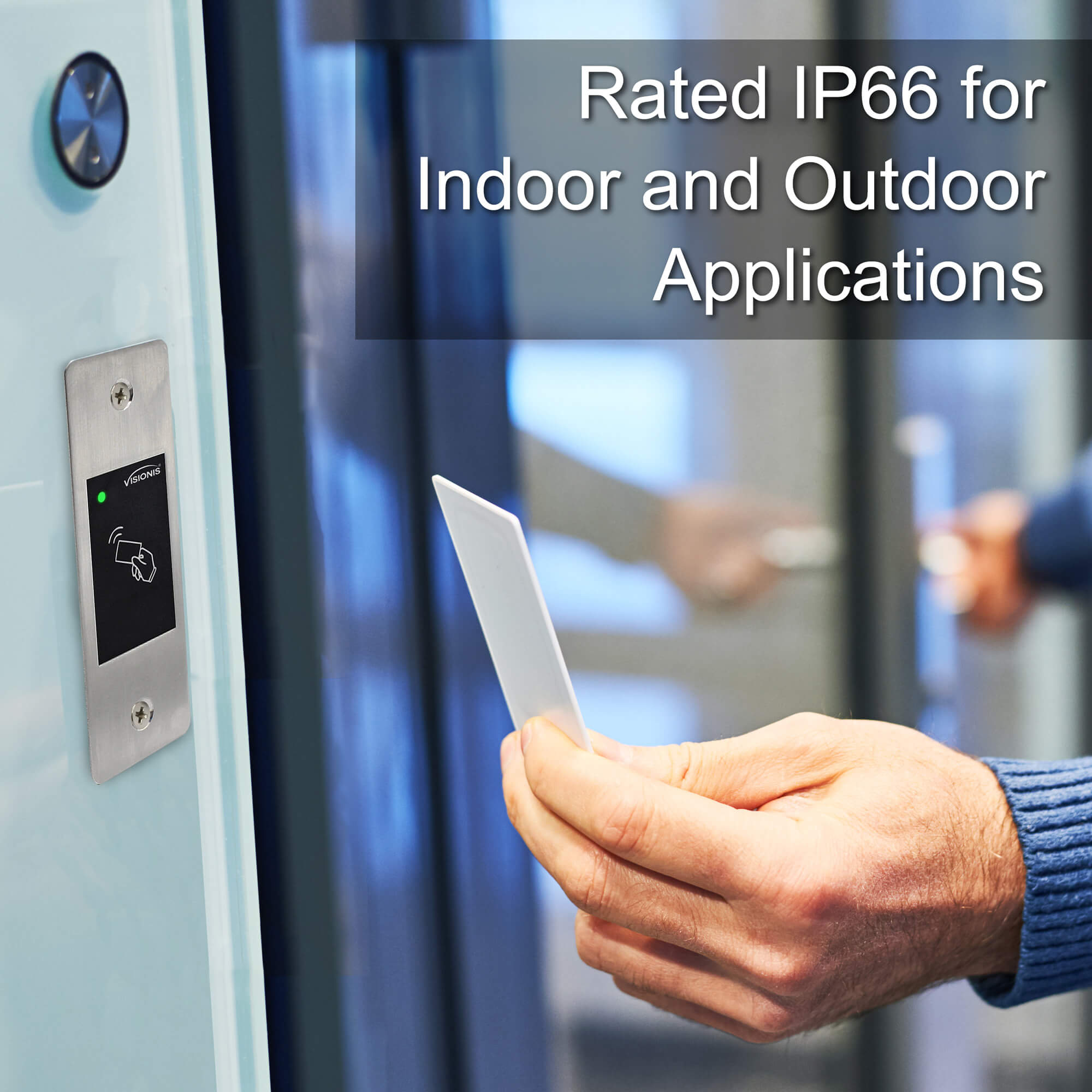

The VISIONIS VIS-3026 is a mini case proximity reader with embedded design, compatible with any Wiegand input controller. The reader is fully potted and can function at extreme temperatures (-40°C ~ 60°C / -40°F ~ 140°F), which allows indoor and outdoor applications.

Features

Metal case, anti-vandal
Waterproof, conforms to IP66
Wiegand 26~37 bits output (default: 26bits)

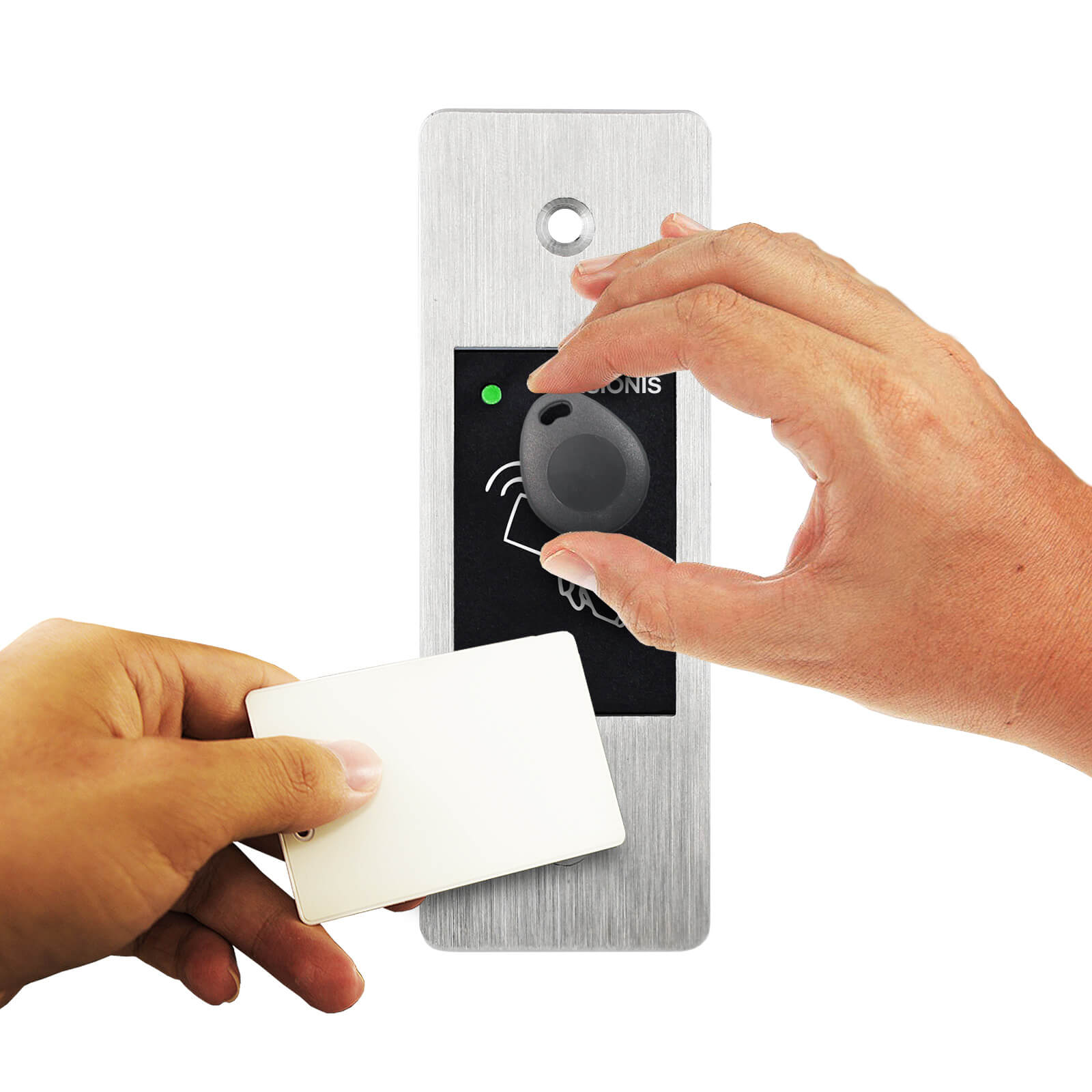

Card type: EM card
Reading range: Up to 7cm (2.8 inches)
External LED control & external buzzer control

Characteristics

Model No. VIS-3026:

Operating Voltage: 9~24V DC
Frequency: 125KHz
Card Type: EM Card
Reading Distance: Up to 7cm (2.8 inches)
Output Format Wiegand: 26~37 bits
Operating Temperature: -40°C ~ 60°C (-40°F ~ 140°F)
Standby Current: < 25mA
Index of Protection: IP66 (No ingress of dust; complete protection against contact (dust-tight). Protection against powerful water jets.)
Operating Humidity: 10%~95% RH
Physical: Zinc-alloy Plate
Color: Silver & Black

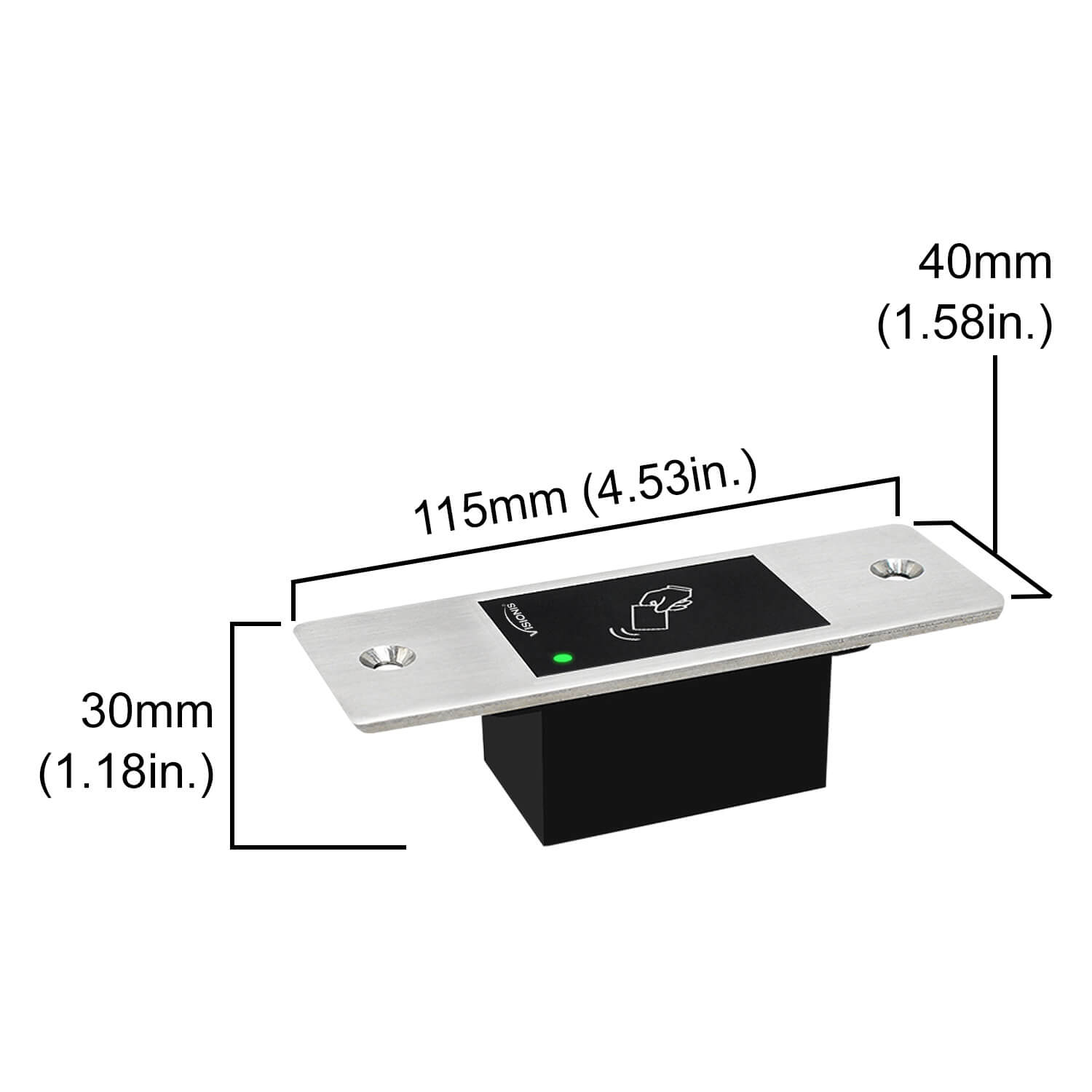

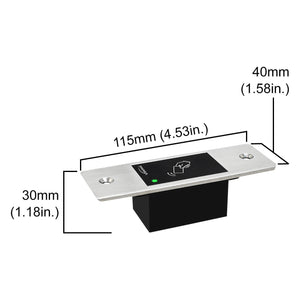

Dimensions: L115 x W40 x H30 (mm) - L4.53 x W1.58 x H1.18 (in.)
Net Weight: 105g

Description

Features

Metal case, anti-vandal
Waterproof, conforms to IP66
Wiegand 26~37 bits output (default: 26bits)
Card type: EM card
Reading range: Up to 7cm (2.8 inches)
External LED control & external buzzer control

Characteristics

Model No. VIS-3026:

Operating Voltage: 9~24V DC
Frequency: 125KHz
Card Type: EM Card
Reading Distance: Up to 7cm (2.8 inches)
Output Format Wiegand: 26~37 bits
Operating Temperature: -40°C ~ 60°C (-40°F ~ 140°F)
Standby Current: < 25mA
Index of Protection: IP66 (No ingress of dust; complete protection against contact (dust-tight). Protection against powerful water jets.)
Operating Humidity: 10%~95% RH
Physical: Zinc-alloy Plate
Color: Silver & Black
Dimensions: L115 x W40 x H30 (mm) - L4.53 x W1.58 x H1.18 (in.)
Net Weight: 105g

Download Datasheets and Manuals of this product

VIS-3026

Visionis by Visionis

Visionis VIS-3026 – Indoor + Outdoor Rated IP66 Metal Access Control + Card Reader + 3000 EM Cards + Wiegand Only + Flush Mount Slim Design

Name: Visionis VIS-3026 – Indoor + Outdoor Rated IP66 Metal Access Control + Card Reader + 3000 EM Cards + Wiegand Only + Flush Mount Slim Design
Brand: Visionis
SKU: VIS-3026
Price: 30.6 USD
Availability: InStock

Translation missing: en.products.product.sku:VIS-3026

UPC Code: 734598804787

Product Weight: 1.0 lb

Regular price: $30.60
Sale price: $30.60
Regular price

Shipping calculated at checkout.

Quantity:

Contact an Expert

NOTE

Order Before 3:00pm EST on a week day and your order will be shipped out the same day

Free shipping with in the USA

Including Puerto Rico, Hawaii and Alaska

ATTENTION:

Before purchasing, it is recommended that the customer checks with their local fire authority to see if there is any additional product they may need in order to comply with the local fire codes. We are not responsible for the improper installation of our product(s) or any type of fees that can be incurred by not complying with your local fire authority.
