Below are more variations of this product:

This PRODUCT has a 3 YEAR warranty with full access to tech support in the USA!

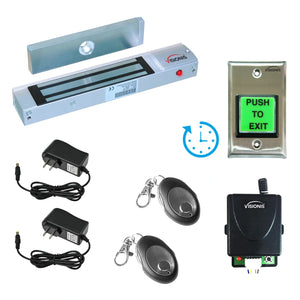

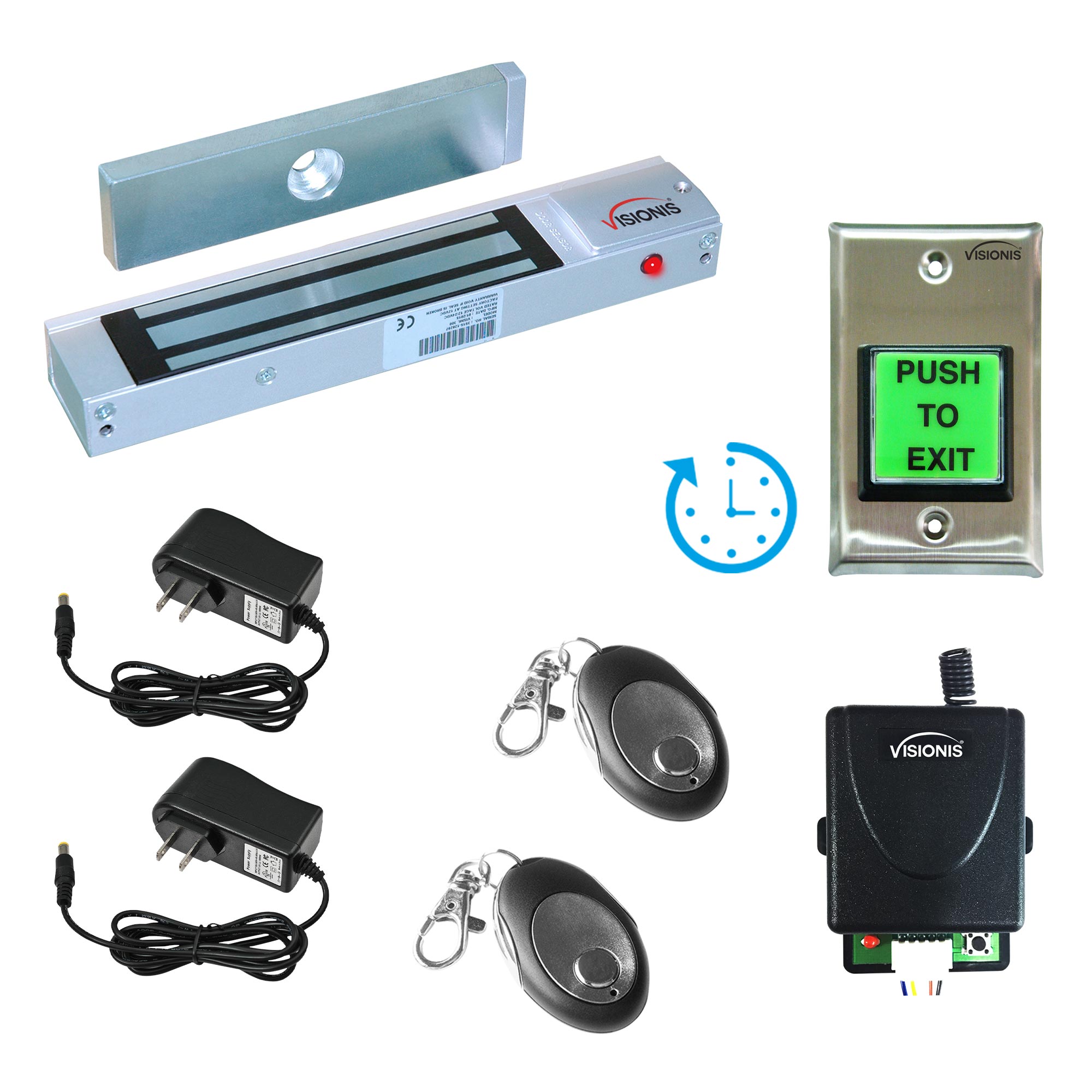

Kit Includes:

(1)
(1)
(2)
(1)
(2)
VIS-ML300LED: 300lbs Indoor Electromagnetic Lock
VIS-8004: 1 Channel RF Receiver 315MHz
VIS-8005: 1 Channel RF 315mhz Transmitter Remote Control
VIS-7100: Green with LED Square Request to Exit Button with Timer Delay for Door Access Control, NC, COM and NO Outputs
VS-VISCP200: 12 Volt 2Amp Power Supply Transformer, UL Listed
Description

The FPC-8510 kit is a one door 300lbs Maglock Buzz-in kit for doors that opens out. It is mainly used for customers that do not want to physically get up and open the door. With this system, you will be able to let people in by clicking on the wireless RF remote, the VIS-8005. The remote communicates with the wireless receiver, which can program up to 50 remotes, and it has a range of 160 feet.

 There are two main features on the receiver that will allow you to program the wireless receiver in two different ways. The default function of the receiver is that when the power is on, the mag lock of your kit is locked and when you press the remote the maglock will unlock temporarily to open the door. The other function that the receiver has is the ON/Off feature. This feature is very similar to a light switch; when you program this option you would press the remote once and the door will unlock and remain unlocked until you press the button again. When you press the remote again, the door will then lock.

This magnetic lock system also brings an exit button that will allow you to exit from the inside of the door.

Characteristics

Model VIS-ML300LED:

  • Voltage Input: 12 VDC / 24 VDC
  • Current Draw: 12V / 300mA ; 24V / 150mA (±5%)
  • Holding Force: Up to 300 lbs (136 kg)
  • Anti-Rust Surface Treatment: Blue Zinc Plating
  • Operating Temperature: 0~55° C ( 32~131° F)
  • Operating Humidity: 0~95% ( non condensing)
  • Weight ( Magnet): 0.6 kg (±1%)
  • Dimensions: Magnet - (L)210x(W)35x(T)21 mm Armature - (L)130x(W)33x(T)11 mm
  • Green/Red LED Indication for EM Lock Status
Packaging of this product

Model No. VIS-8004:

  • Operating Frequency: 315mhz
  • Number of Codes: 1,048,576
  • Data Format: PWM
  • Operating Voltage: +12V 24V
  • Operating Distance: Up to 160ft (50m) - The maximum range needs to be used in an open area. The distance will start to diminish based on some type of interference such as metal, concrete and others.
  • Operating Temperature: 0-70°C or 32 - 158°F
  • Current Draw: 19mA
  • Compatible Transmitter: VIS-8005
  • RF channels: One
  • No. of Remotes that are able to connect to one Receiver: Up to 50
  • Receiver Output: C dry contact (NO/NC/COM)
  • Receiver Output Functions: 4 (Default) 4 second momentary, latch, toggle (On/Off), press on function
  • Connectors: 5 screw Terminal (NO, COM, NC + -)
  • Case Construction: ABS Plastic
  • Dimensions: 62*43.5*30mm (2.44* 1.71*1.18 Inches)
  • Weight: 43g or 1.52 Ounces
  • Certifications: FCC
  • Antenna: Wire lead
  • Mounting Screws: Comes with two mounting screws
  • Warranty: 1 Year
  • Wire Harness: Included
  • Power supply: Not included (only included in the form of kits.)
Packaging of this product

Model No. VIS-8005:

  • Frequency: 315mhz
  • Chip: 1527
  • Input Voltage: 6V
  • Button Quantity: 1 button
  • Input Power: 0.06W
  • Input Current: 0.01A
  • Up to 160ft (50m) - The maximum range needs to be used in an open area. The distance will start to diminish based on some type of interference such as metal, concrete and others.
Packaging of this product

Model No. VIS-7100:

  • With Timer Delay Function.
  • "PUSH TO EXIT" & "PRESIONE PARA SALIR" inserts included
  • Fits into standard single-gang box, Large square green color push button.
  • 12-inch, AWG 18 wire leads
  • Degree of Protection: IP-40
  • LED: Yes
  • LED Life: 20.000 hours
  • Switch Material: Plastic
  • Switch Plate Material: Stainless Steel
  • Attention: This exit button is meant for indoor use.
Packaging of this product

Model No. VISCP200:

  • Input Voltage Range: AC90V-264V
  • Input Frequency Range: 50Hz-60Hz
  • Output Voltage Range: DC12V+/-5%
  • Output Current: 2A
  • Output Power: 24 Watts
  • Output Ripple&Noise: ≤46MV
  • Output Efficiency: ≥79%
  • Environment Operating: -30°C~45°C 20%~90%RH
  • Environment Storage Temp.: -40°C~85°C 10%~95%RH
  • Product Dimension: 87*36.5*70mm (3.42x1.43x2.75in.)
  • Product Weight: 116g
  • Certificate: UL, CE, RoHS, FCC
Description

The FPC-8510 kit is a one door 300lbs Maglock Buzz-in kit for doors that opens out. It is mainly used for customers that do not want to physically get up and open the door. With this system, you will be able to let people in by clicking on the wireless RF remote, the VIS-8005. The remote communicates with the wireless receiver, which can program up to 50 remotes, and it has a range of 160 feet.

 There are two main features on the receiver that will allow you to program the wireless receiver in two different ways. The default function of the receiver is that when the power is on, the mag lock of your kit is locked and when you press the remote the maglock will unlock temporarily to open the door. The other function that the receiver has is the ON/Off feature. This feature is very similar to a light switch; when you program this option you would press the remote once and the door will unlock and remain unlocked until you press the button again. When you press the remote again, the door will then lock.

This magnetic lock system also brings an exit button that will allow you to exit from the inside of the door.

Download Datasheets and Manuals of this product

Contact Us for Support

LET US HELP YOU WITH YOUR PURCHASE

Feel free to contact our dedicated support team if you have any questions or if you're ready to place an order.

I Need Help
Visionis by Visionis

FPC-8510 One Door Access Control Outswinging Door 300lbs Electromagnetic Lock + Visionis LED Request to Exit Button with Timer Delay + Wireless Receiver and Remote for Door Access Control Kit

FPC-8510

UPC Code: 655100124189
Product Weight: 5.0 lb
$145.47
$145.47
Shipping calculated at checkout.

In Stock
Phone Support Icon

Phone Life-Time Technical Support

Return Policy Icon

30-Day No Questions Return Policy

Free Shipping Icon

*Free Shipping within the USA

Contact an Expert
Return Policy
NOTE
Order Before 3:00pm EST on a week day and your order will be shipped out the same day
Free Shipping
*Free shipping within the USA
Including Puerto Rico, Hawaii and Alaska

Popup Title

Popup description
ATTENTION:
Before purchasing, it is recommended that the customer checks with their local fire authority to see if there is any additional product they may need in order to comply with the local fire codes. We are not responsible for the improper installation of our product(s) or any type of fees that can be incurred by not complying with your local fire authority.
