Kit Includes:
(10)

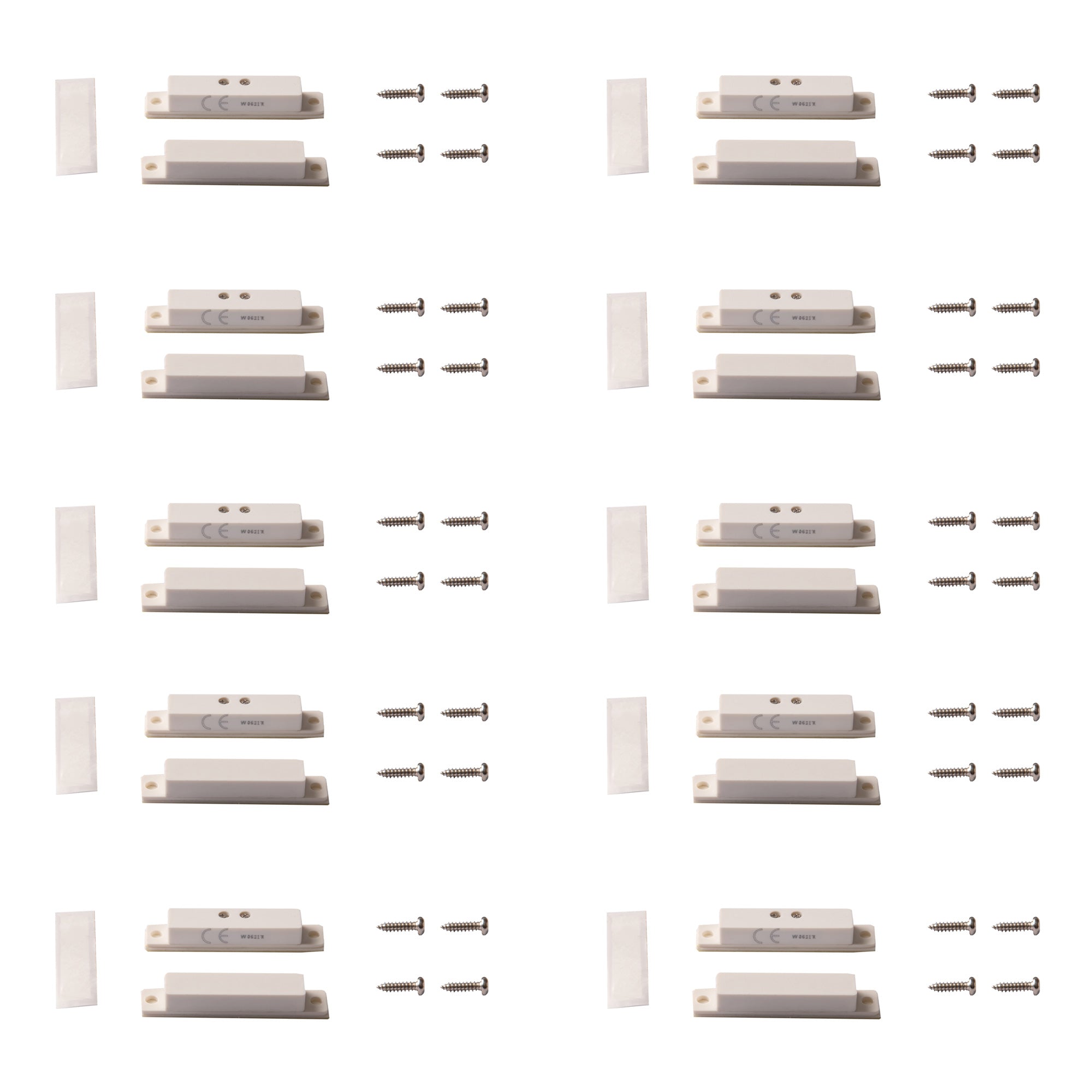

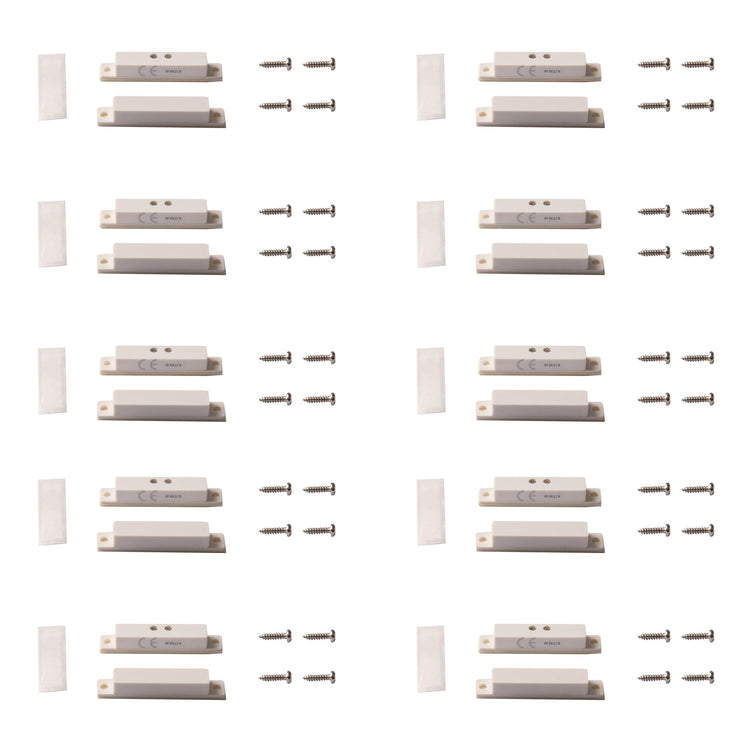

TANE-60QC-WG-WH: TANE Wired Surface Mount Quick Connect Magnetic Door Window Switch WHITE Color Alarm Security Magnetic Contact Switch Reed Switch Normally Open, UL Listed
Description

The TANE 60QC-WG-WH is designed for fast, efficient installs without sacrificing quality.

With screw and adhesive options, quick-connect terminals, and a clean white look, these sensors blend seamlessly while providing reliable security with a 1.26-inch gap.

Characteristics

Model No. TANE-60QC-WG-WH:

  • Color: WHITE
  • Contact Size: 2"L×.37"W×.28"H (50.8mm×9.5mm×7.1mm)
  • Standard Magnet Size: 2"L×.37"W×.28"H (50.8mm×9.5mm×7.1mm)
  • Gap Inch (mm): 1.26″(32)
  • Loop Open/Closed: CLOSED
  • Reed Form: Normally Open
  • Max. Contact Rating (W): 10
  • Max. Initial Contact Resistance (mΩ): 100
  • Max. Switching Voltage (V): AC110/DC100
  • Max. Switching Current (A): 0.5
  • Operating Temperature:-40°C to +60°C (-40°F to 140°F)
Description

The TANE 60QC-WG-WH is designed for fast, efficient installs without sacrificing quality.

With screw and adhesive options, quick-connect terminals, and a clean white look, these sensors blend seamlessly while providing reliable security with a 1.26-inch gap.

Download Datasheets and Manuals of this product

TANE-60QC-WG

Contact Us for Support
LET US HELP YOU WITH YOUR PURCHASE

Feel free to contact our dedicated support team if you have any questions or if you're ready to place an order.

I Need Help
Tane by Tane

TANE Wired Surface Mount Quick Connect Magnetic Door Window Contact WHITE Color Alarm Security Magnetic Contact Switch Reed Switch Normally Open + UL Listed TANE-60QC-WG-WH-PK10 (Pack Of 10)

TANE-60QC-WG-WH-PK10

UPC Code: 734598804053 Weight: 2.0 lb
  • CE Certificate
  • UL Certificate
$26.99
$26.99
Shipping calculated at checkout.

Out of Stock
Phone Support Icon

Phone Life-Time Technical Support

Return Policy Icon

30-Day No Questions Return Policy

Free Shipping Icon

*Free Shipping within the USA

Contact an Expert
Return Policy
NOTE
Order Before 3:00pm EST on a week day and your order will be shipped out the same day
Free Shipping
*Free shipping within the USA
Including Puerto Rico, Hawaii and Alaska

Popup Title

Popup description
ATTENTION:
Before purchasing, it is recommended that the customer checks with their local fire authority to see if there is any additional product they may need in order to comply with the local fire codes. We are not responsible for the improper installation of our product(s) or any type of fees that can be incurred by not complying with your local fire authority.
Check Out These Related Products
