Description

2″L×.37″W×.28″H Surface Mount Quick Connect Type WHITE Color.

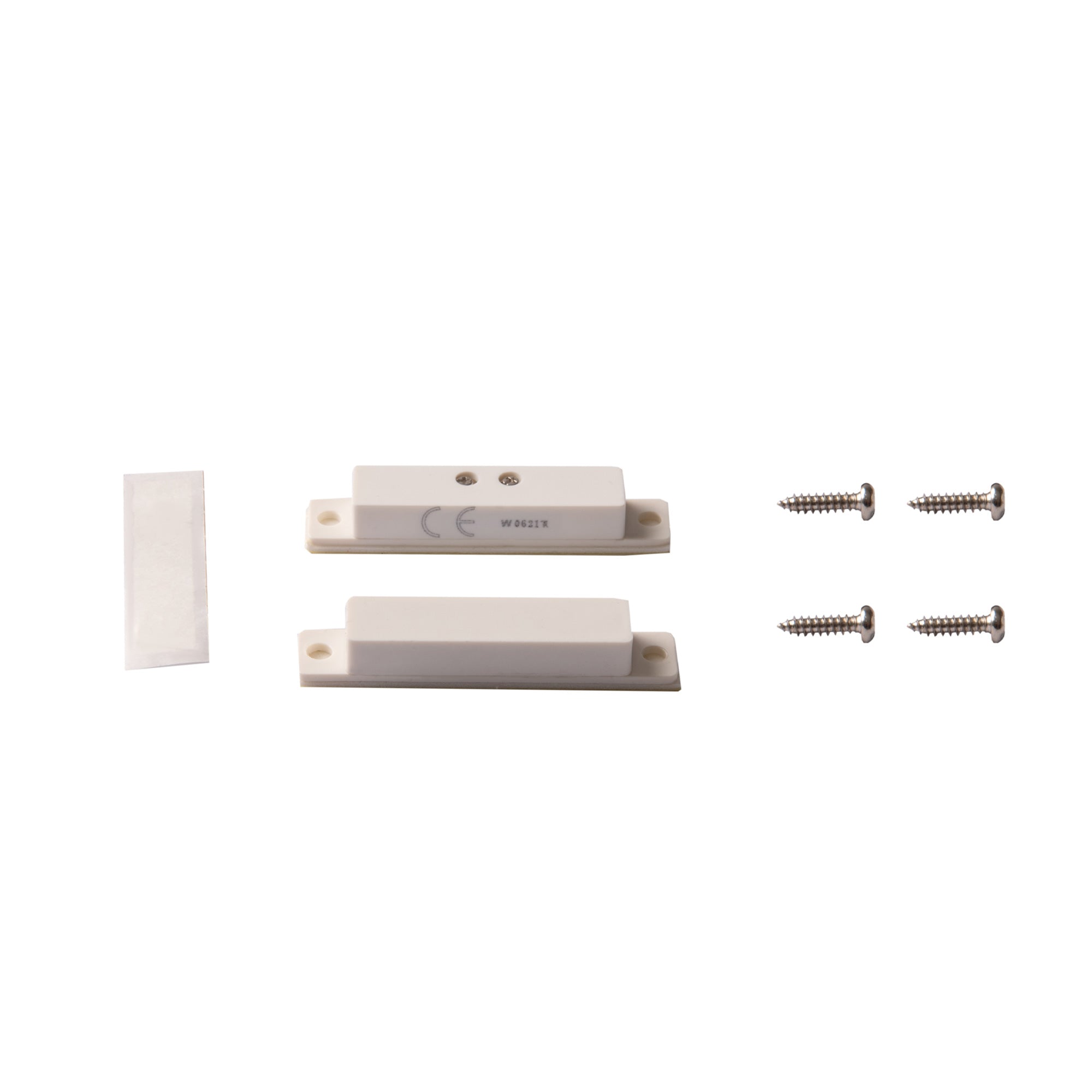

You can install the magnetic sensor on the door or window frame in two ways: with the 3M double sided tape or just with the screws that come included in the package.

  • Contact Size: 2″L×.37″W×.28″H (50.8mm×9.5mm×7.1mm)
  • Standard Magnet Size: 2″L×.37″W×.28″H (50.8mm×9.5mm×7.1mm)
  • Color: White
  • Standard Gap: 1.26″(32)



For Brown color Magnetic Contact look at TANE-60QC-WG-BR



Dimensions

TANE-60QC-WG-WH Magnetic contact dimensions

Installation Diagram

TANE Wired Surface Mount Quick Connect Magnetic Door Window Switch TANE-60QC-WG-WH

Characteristics

Model No. TANE-60QC-WG-WH:

  • Color: WHITE
  • Contact Size: 2"L×.37"W×.28"H (50.8mm×9.5mm×7.1mm)
  • Standard Magnet Size: 2"L×.37"W×.28"H (50.8mm×9.5mm×7.1mm)
  • Gap Inch (mm): 1.26″(32)
  • Loop Open/Closed: CLOSED
  • Reed Form: Normally Open
  • Max. Contact Rating (W): 10
  • Max. Initial Contact Resistance (mΩ): 100
  • Max. Switching Voltage (V): AC110/DC100
  • Max. Switching Current (A): 0.5
  • Operating Temperature:-40°C to +60°C (-40°F to 140°F)

Description

2″L×.37″W×.28″H Surface Mount Quick Connect Type WHITE Color.

You can install the magnetic sensor on the door or window frame in two ways: with the 3M double sided tape or just with the screws that come included in the package.

  • Contact Size: 2″L×.37″W×.28″H (50.8mm×9.5mm×7.1mm)
  • Standard Magnet Size: 2″L×.37″W×.28″H (50.8mm×9.5mm×7.1mm)
  • Color: White
  • Standard Gap: 1.26″(32)



For Brown color Magnetic Contact look at TANE-60QC-WG-BR



Dimensions

TANE-60QC-WG-WH Magnetic contact dimensions

Installation Diagram

TANE Wired Surface Mount Quick Connect Magnetic Door Window Switch TANE-60QC-WG-WH

Characteristics
Packaging of this product

Model No. TANE-60QC-WG-WH:

  • Color: WHITE
  • Contact Size: 2"L×.37"W×.28"H (50.8mm×9.5mm×7.1mm)
  • Standard Magnet Size: 2"L×.37"W×.28"H (50.8mm×9.5mm×7.1mm)
  • Gap Inch (mm): 1.26″(32)
  • Loop Open/Closed: CLOSED
  • Reed Form: Normally Open
  • Max. Contact Rating (W): 10
  • Max. Initial Contact Resistance (mΩ): 100
  • Max. Switching Voltage (V): AC110/DC100
  • Max. Switching Current (A): 0.5
  • Operating Temperature:-40°C to +60°C (-40°F to 140°F)

Download Datasheets and Manuals of this product

TANE-60QC-WG

Contact Us for Support

LET US HELP YOU WITH YOUR PURCHASE

Feel free to contact our dedicated support team if you have any questions or if you're ready to place an order.

I Need Help
Tane by Tane

TANE Wired Surface Mount Quick Connect Magnetic Door Window Switch WHITE Color Alarm Security Magnetic Contact Switch Reed Switch Normally Open + UL Listed TANE-60QC-WG-WH

TANE-60QC-WG-WH

UPC Code: 734598804039
Product Weight: 1.0 lb
  • CE Certificate
  • UL Certificate
$9.99
$9.99
Shipping calculated at checkout.

Out of Stock
