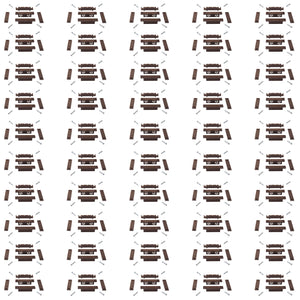

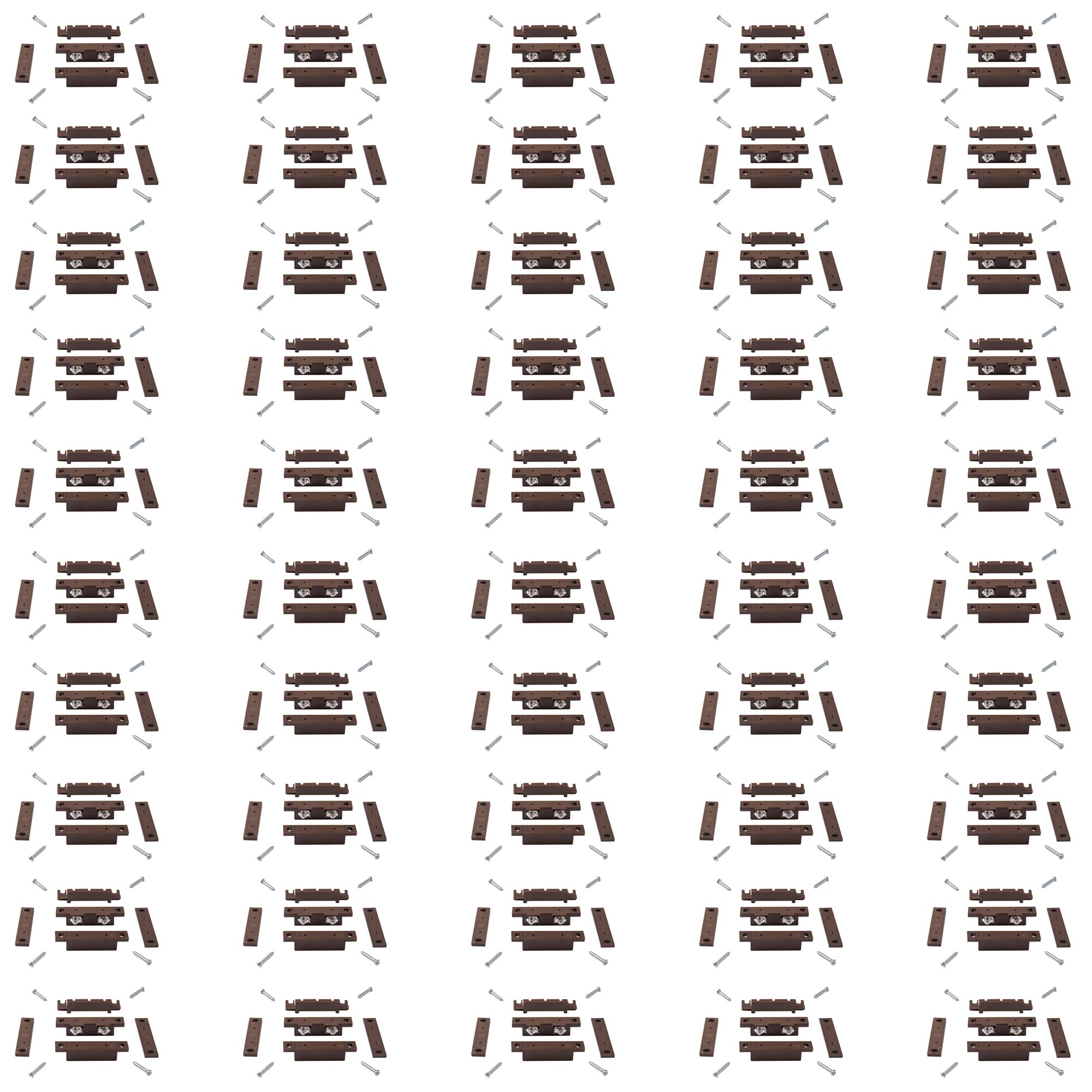

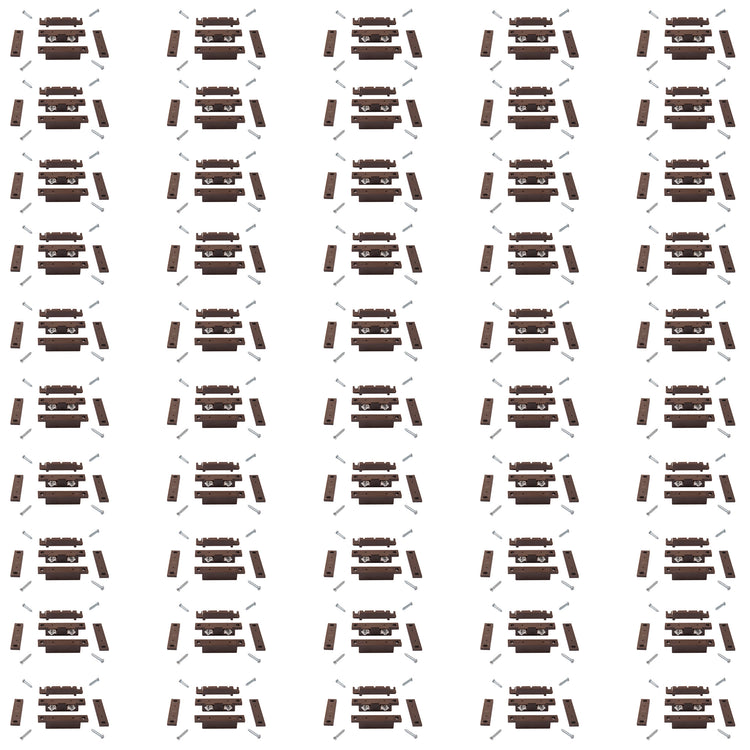

Kit Includes:

(50)

SM-35-BR: TANE Wired Surface Mount Magnetic Door Window Contact Switch Quick Connect with Spacers Screws Covers BROWN Color Alarm Security Reed Switch Normally Open

Description

2.48″L×.48″W×.51″H Surface Mount Quick Connect with Spacers Screws Covers BROWN Color.

Make installations smoother with the TANE SM-35-BR magnetic contacts.

With quick-connect terminals for simple wiring and included spacers and screws, you can set up high-quality protection quickly. Its rugged, UL Listed construction and natural brown color make it ideal for wood surfaces.

You can install this magnetic sensor on the door or window frame. It does NOT INCLUDE 3M double sided tape.

Contact Size: 2.48″L×.48″W×.51″H (63mm×12.2mm×13mm)
Standard Magnet Size: 2.48″L×.48″W×.51″H (63mm×12.2mm×13mm)
Color: White
Standard Gap: 0.91″ (23mm)

For White color Magnetic Contact look at SM-35-WH

Dimensions

SM-35-WH Magnetic contact dimensions

Characteristics

Model No. SM-35-BR:

Color: BROWN
Contact Size: 2.48"L×.48"W×.51"H (63mm×12.2mm×13mm)
Standard Magnet Size: 2.48"L×.48"W×.51"H (63mm×12.2mm×13mm)
Gap Inch (mm): 0.91″(23)
Loop Open/Closed: CLOSED
Reed Form: Normally Open
Max. Contact Rating (W): 10
Max. Initial Contact Resistance (mΩ): 100
Max. Switching Voltage (V): AC110/DC100
Max. Switching Current (A): 0.5
Operating Temperature:-40°C to +60°C (-40°F to 140°F)

Description

2.48″L×.48″W×.51″H Surface Mount Quick Connect with Spacers Screws Covers BROWN Color.

Make installations smoother with the TANE SM-35-BR magnetic contacts.

With quick-connect terminals for simple wiring and included spacers and screws, you can set up high-quality protection quickly. Its rugged, UL Listed construction and natural brown color make it ideal for wood surfaces.

You can install this magnetic sensor on the door or window frame. It does NOT INCLUDE 3M double sided tape.

Contact Size: 2.48″L×.48″W×.51″H (63mm×12.2mm×13mm)
Standard Magnet Size: 2.48″L×.48″W×.51″H (63mm×12.2mm×13mm)
Color: White
Standard Gap: 0.91″ (23mm)

For White color Magnetic Contact look at SM-35-WH

Dimensions

SM-35-WH Magnetic contact dimensions

Download Datasheets and Manuals of this product

TANE SM-35

Tane by Tane

TANE Wired Surface Mount Magnetic Door Window Contact Switch Quick Connect With Spacers Screws Covers BROWN Color Alarm Security Reed Switch Normally Open + UL Listed SM-35-BR-PK50 (Pack Of 50)

Name: TANE Wired Surface Mount Magnetic Door Window Contact Switch Quick Connect With Spacers Screws Covers BROWN Color Alarm Security Reed Switch Normally Open + UL Listed SM-35-BR-PK50 (Pack Of 50)
Brand: Tane
SKU: SM-35-BR-PK50
Price: 109.99 USD
Availability: OutOfStock

Translation missing: en.products.product.sku:SM-35-BR-PK50

UPC Code: 734598804220 Weight: 1.0 lb

Regular price: $109.99
Sale price: $109.99
Regular price

Shipping calculated at checkout.

Out of Stock

Quantity:

Phone Life-Time Technical Support

30-Day No Questions Return Policy

*Free Shipping within the USA

Contact an Expert

NOTE

Order Before 3:00pm EST on a week day and your order will be shipped out the same day

*Free shipping within the USA

Including Puerto Rico, Hawaii and Alaska

ATTENTION:

Before purchasing, it is recommended that the customer checks with their local fire authority to see if there is any additional product they may need in order to comply with the local fire codes. We are not responsible for the improper installation of our product(s) or any type of fees that can be incurred by not complying with your local fire authority.
