Description

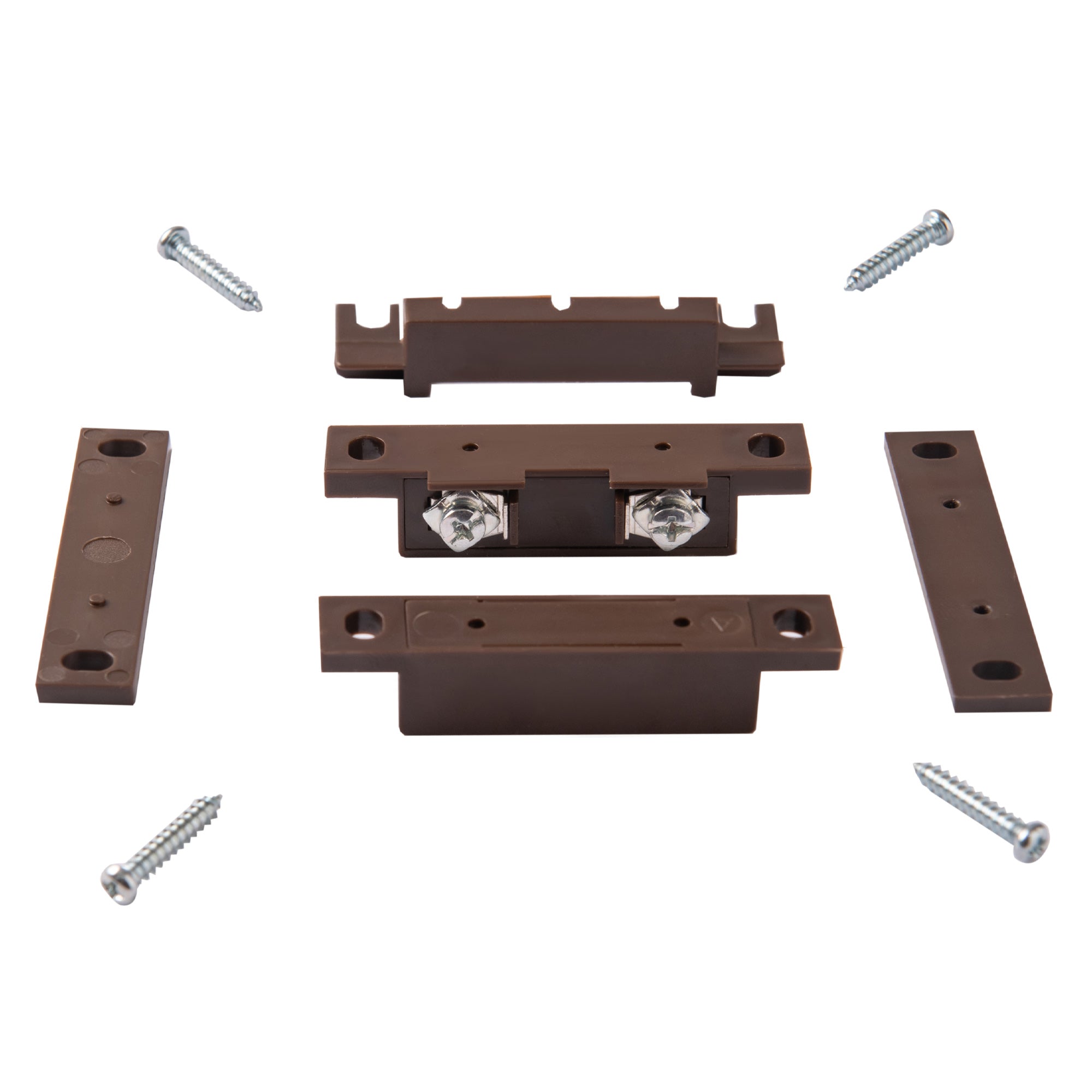

2.48″L×.48″W×.51″H Surface Mount Quick Connect with Spacers Screws Covers BROWN Color.

You can install this magnetic sensor on the door or window frame. This product includes screws in the package. It does NOT INCLUDE 3M double sided tape.

  • Contact Size: 2.48″L×.48″W×.51″H (63mm×12.2mm×13mm)
  • Standard Magnet Size: 2.48″L×.48″W×.51″H (63mm×12.2mm×13mm)
  • Color: White
  • Standard Gap: 0.91″ (23mm)



For White color Magnetic Contact look at SM-35-WH



Dimensions

SM-35-WH Magnetic contact dimensions

Characteristics

Model No. SM-35-BR:

  • Color: BROWN
  • Contact Size: 2.48"L×.48"W×.51"H (63mm×12.2mm×13mm)
  • Standard Magnet Size: 2.48"L×.48"W×.51"H (63mm×12.2mm×13mm)
  • Gap Inch (mm): 0.91″(23)
  • Loop Open/Closed: CLOSED
  • Reed Form: Normally Open
  • Max. Contact Rating (W): 10
  • Max. Initial Contact Resistance (mΩ): 100
  • Max. Switching Voltage (V): AC110/DC100
  • Max. Switching Current (A): 0.5
  • Operating Temperature:-40°C to +60°C (-40°F to 140°F)

Description

2.48″L×.48″W×.51″H Surface Mount Quick Connect with Spacers Screws Covers BROWN Color.

You can install this magnetic sensor on the door or window frame. This product includes screws in the package. It does NOT INCLUDE 3M double sided tape.

  • Contact Size: 2.48″L×.48″W×.51″H (63mm×12.2mm×13mm)
  • Standard Magnet Size: 2.48″L×.48″W×.51″H (63mm×12.2mm×13mm)
  • Color: White
  • Standard Gap: 0.91″ (23mm)



For White color Magnetic Contact look at SM-35-WH



Dimensions

SM-35-WH Magnetic contact dimensions

Characteristics
Packaging of this product

Model No. SM-35-BR:

  • Color: BROWN
  • Contact Size: 2.48"L×.48"W×.51"H (63mm×12.2mm×13mm)
  • Standard Magnet Size: 2.48"L×.48"W×.51"H (63mm×12.2mm×13mm)
  • Gap Inch (mm): 0.91″(23)
  • Loop Open/Closed: CLOSED
  • Reed Form: Normally Open
  • Max. Contact Rating (W): 10
  • Max. Initial Contact Resistance (mΩ): 100
  • Max. Switching Voltage (V): AC110/DC100
  • Max. Switching Current (A): 0.5
  • Operating Temperature:-40°C to +60°C (-40°F to 140°F)

Download Datasheets and Manuals of this product

TANE SM-35

Contact Us for Support

LET US HELP YOU WITH YOUR PURCHASE

Feel free to contact our dedicated support team if you have any questions or if you're ready to place an order.

I Need Help
Tane by Tane

TANE Wired Surface Mount Magnetic Door Window Contact Switch Quick Connect with Spacers Screws Covers BROWN Color Alarm Security Reed Switch Normally Open + UL Listed SM-35-BR

SM-35-BR

UPC Code: 734598804183
Product Weight: 1.0 lb
  • CE Certificate
  • UL Certificate
$9.99
$9.99
Shipping calculated at checkout.

Out of Stock
