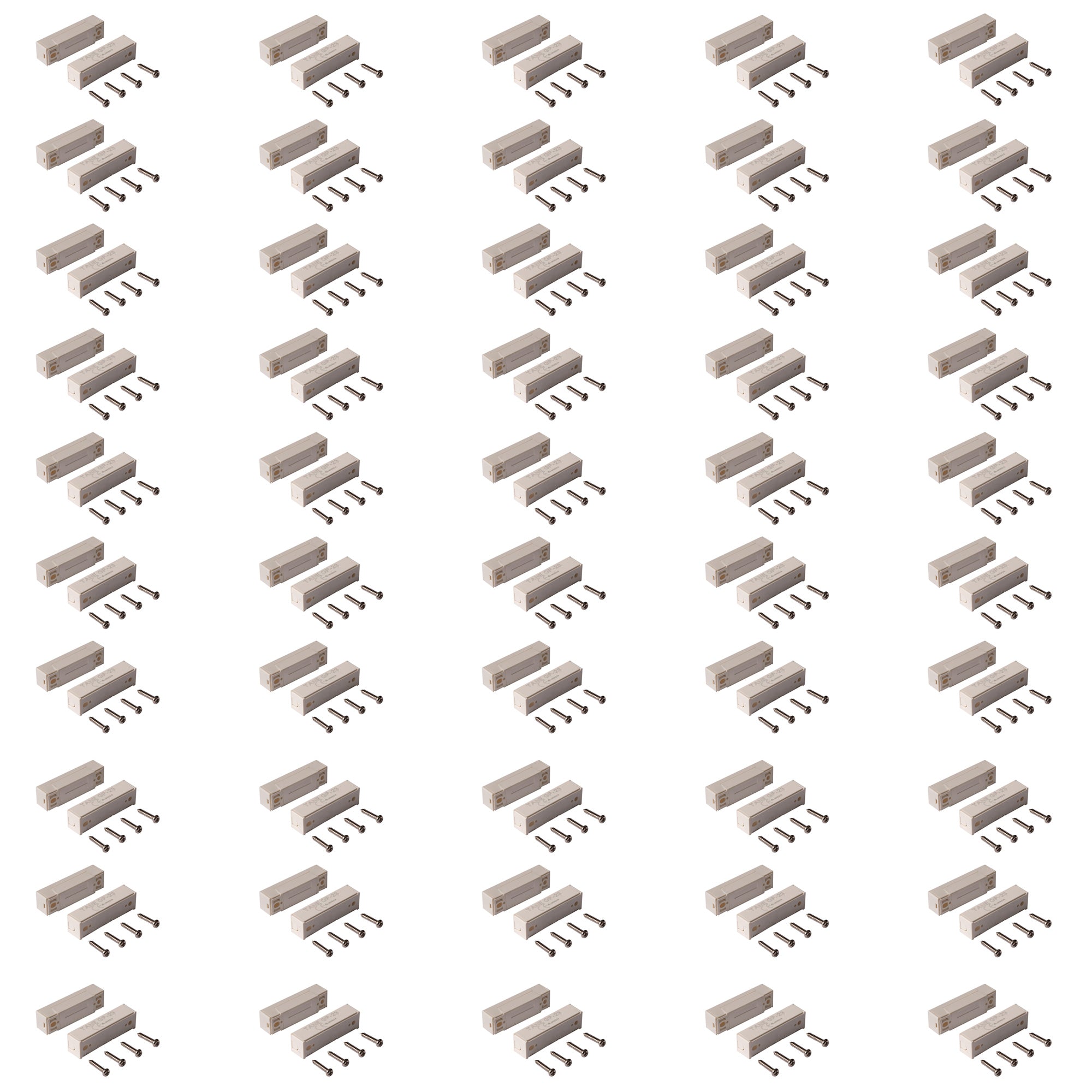

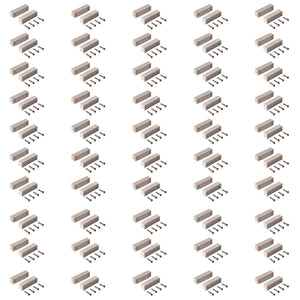

Kit Includes:

(50)
GP-23-WH: TANE Wired Surface Mount Magnetic Door Window Contact Switch with Hidden Wires + Screws WHITE Color Reed Switch Normally Open Alarm Security, UL Listed
Description

1.97″L×.55″W×.47″H Surface Mount Type with Hidden Wires and Screws WHITE Color.

Upgrade your alarm system with the trusted TANE GP-23-WH magnetic contacts.

With a 1.26" standard gap and neatly hidden wiring, these contacts are built to deliver reliable performance without cluttering your frames.

Easy to install with the included screws, and backed by a UL certification for quality assurance.

It does NOT INCLUDE 3M double sided tape.

  • Contact Size: 1.97″L×.55″W×.47″H (50mm×14mm×12mm)
  • Standard Magnet Size: 1.98″L×.56″W×.48″H (50.3mm×14.1mm×12.2mm)
  • Color: White
  • Standard Gap: 1.26″ (32mm)



For Brown color Magnetic Contact look at GP-23-BR



Dimensions

GP-23-WH Magnetic contact dimensions

Installation Diagram

TANE Wired Surface Mount Magnetic Door Window Contact Switch with Hidden Wires GP-23-WH

Characteristics

Model No. GP-23-WH:

  • Color: WHITE
  • Contact Size: 1.97"L×.55"W×.47"H (50mm×14mm×12mm)
  • Standard Magnet Size: 1.98"L×.56"W×.48"H (50.3mm×14.1mm×12.2mm)
  • Gap Inch (mm): 1.26" (32)
  • Loop Open/Closed: CLOSED
  • Reed Form: Normally Open
  • Max. Contact Rating (W): 10
  • Max. Initial Contact Resistance (mΩ): 100
  • Max. Switching Voltage (V): AC110/DC100
  • Max. Switching Current (A): 0.5
  • Operating Temperature:-40°C to +60°C (-40°F to 140°F)
Description

1.97″L×.55″W×.47″H Surface Mount Type with Hidden Wires and Screws WHITE Color.

Upgrade your alarm system with the trusted TANE GP-23-WH magnetic contacts.

With a 1.26" standard gap and neatly hidden wiring, these contacts are built to deliver reliable performance without cluttering your frames.

Easy to install with the included screws, and backed by a UL certification for quality assurance.

It does NOT INCLUDE 3M double sided tape.

  • Contact Size: 1.97″L×.55″W×.47″H (50mm×14mm×12mm)
  • Standard Magnet Size: 1.98″L×.56″W×.48″H (50.3mm×14.1mm×12.2mm)
  • Color: White
  • Standard Gap: 1.26″ (32mm)



For Brown color Magnetic Contact look at GP-23-BR



Dimensions

GP-23-WH Magnetic contact dimensions

Installation Diagram

TANE Wired Surface Mount Magnetic Door Window Contact Switch with Hidden Wires GP-23-WH

Download Datasheets and Manuals of this product

TANE GP-23

Contact Us for Support

LET US HELP YOU WITH YOUR PURCHASE

Feel free to contact our dedicated support team if you have any questions or if you're ready to place an order.

I Need Help
Tane by Tane

TANE Wired Surface Mount Magnetic Door Window Contact Switch With Hidden Wires + Screws WHITE Color Reed Switch + Alarm Home Security, Burglar Alarm Systems + UL Listed GP-23-WH-PK50 (Pack Of 50)

GP-23-WH-PK50

UPC Code: 734598804275 Weight: 1.0 lb
  • CE Certificate
  • UL Certificate
$109.99
$109.99
Shipping calculated at checkout.

Out of Stock
