Description

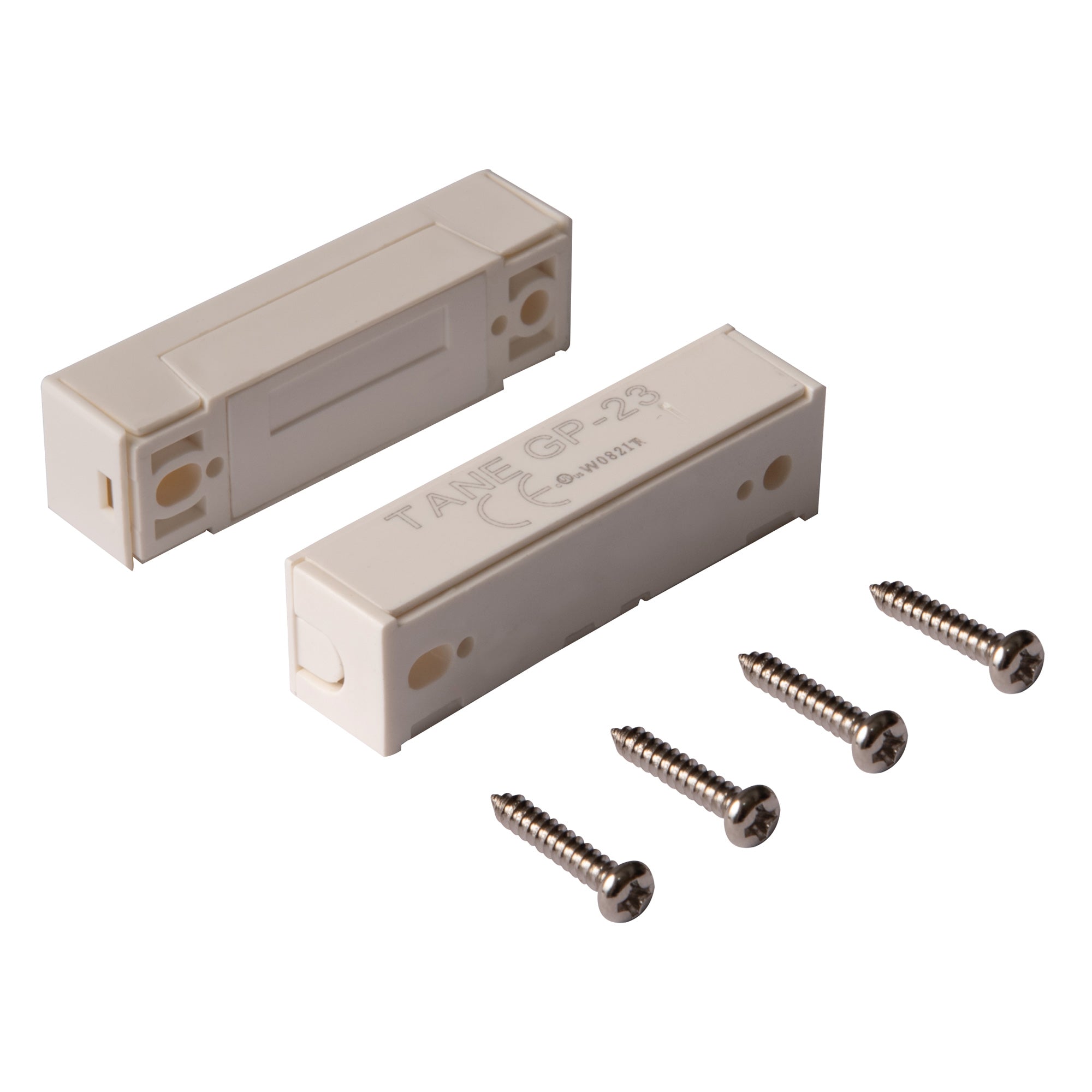

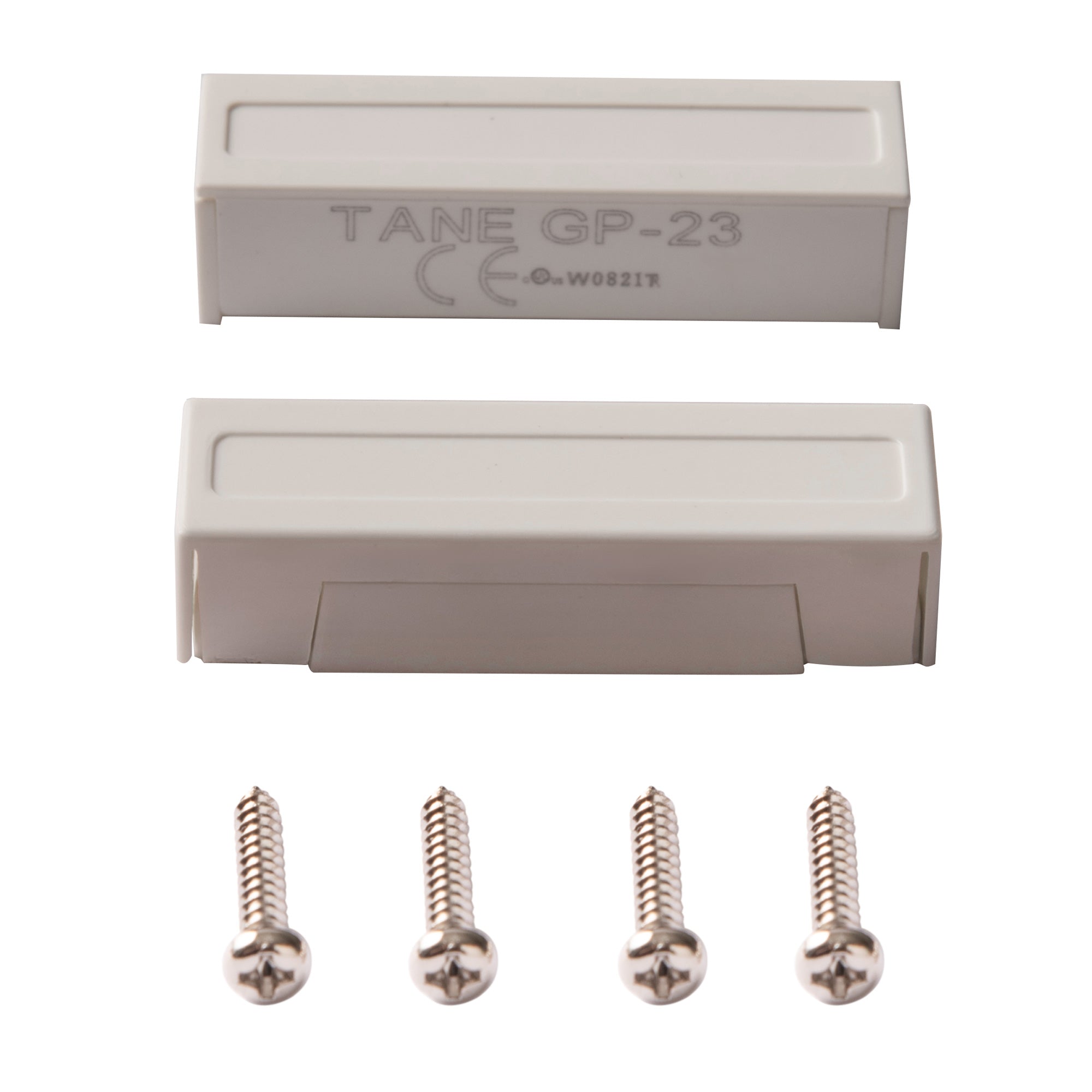

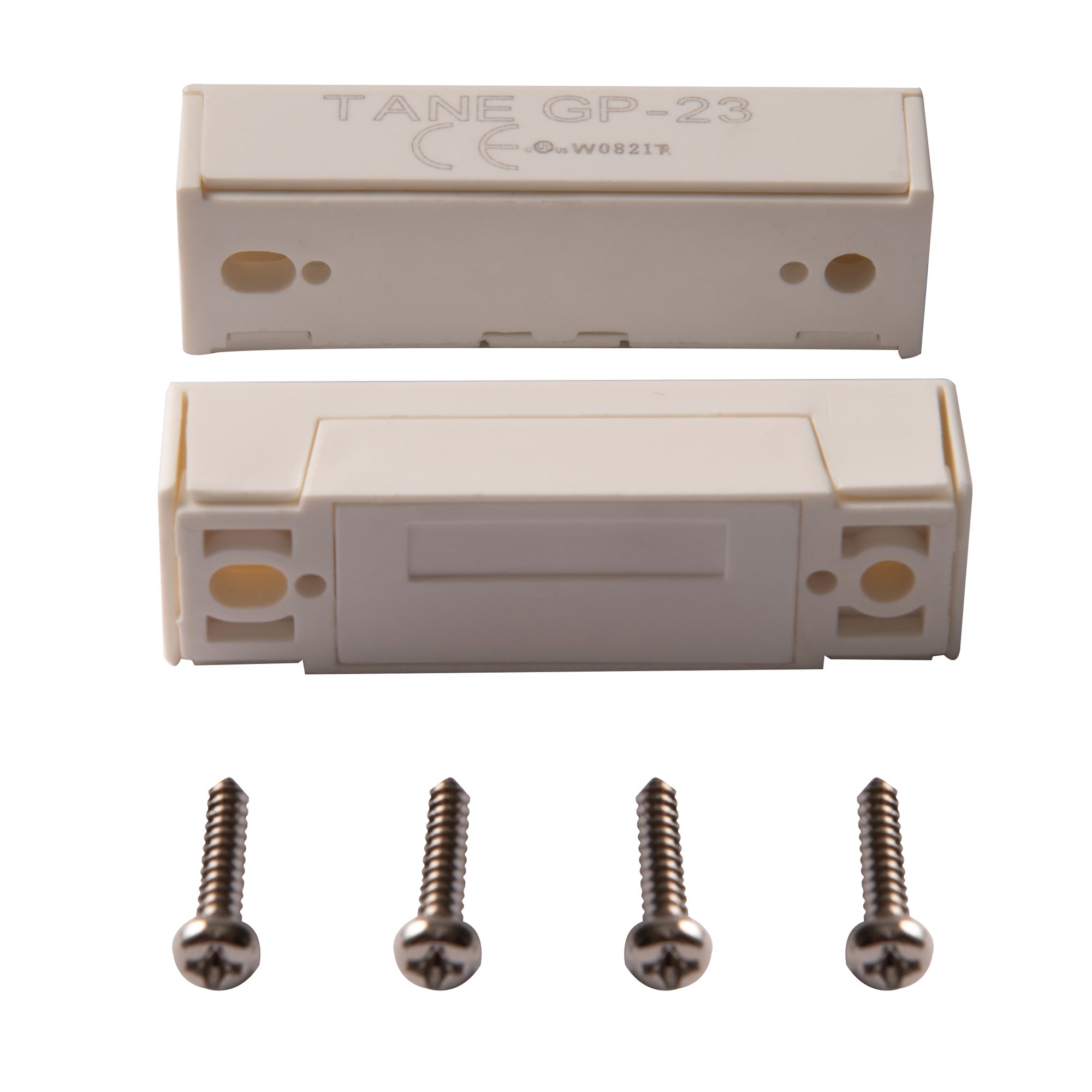

1.97″L×.55″W×.47″H Surface Mount Type with Hidden Wires and Screws WHITE Color.

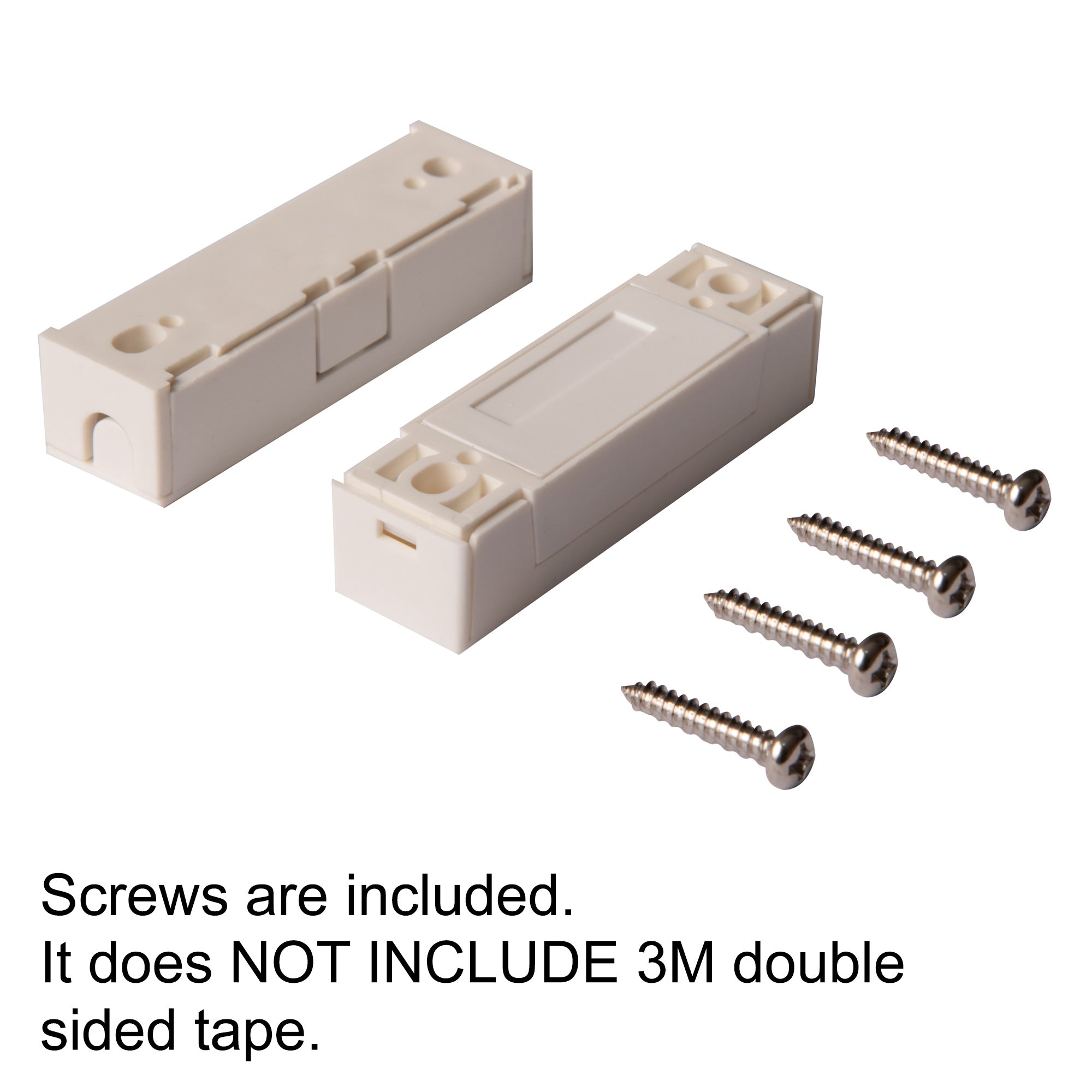

You can install this magnetic sensor on the door or window frame. This product includes screws in the package. It does NOT INCLUDE 3M double sided tape.

  • Contact Size: 1.97″L×.55″W×.47″H (50mm×14mm×12mm)
  • Standard Magnet Size: 1.98″L×.56″W×.48″H (50.3mm×14.1mm×12.2mm)
  • Color: White
  • Standard Gap: 1.26″ (32mm)



For Brown color Magnetic Contact look at GP-23-BR



Dimensions

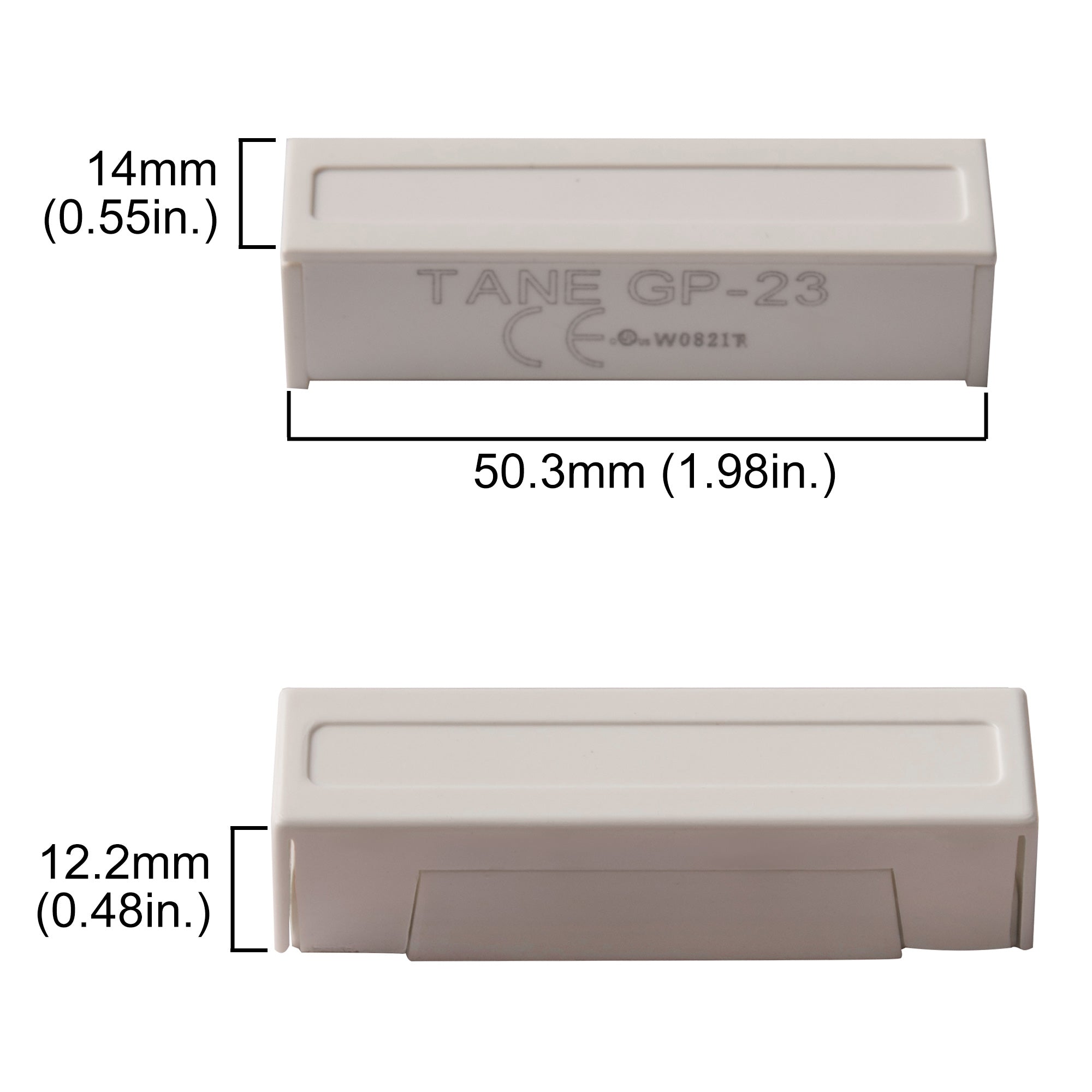

GP-23-WH Magnetic contact dimensions

Installation Diagram

TANE Wired Surface Mount Magnetic Door Window Contact Switch with Hidden Wires GP-23-WH

Characteristics

Model No. GP-23-WH:

  • Color: WHITE
  • Contact Size: 1.97"L×.55"W×.47"H (50mm×14mm×12mm)
  • Standard Magnet Size: 1.98"L×.56"W×.48"H (50.3mm×14.1mm×12.2mm)
  • Gap Inch (mm): 1.26" (32)
  • Loop Open/Closed: CLOSED
  • Reed Form: Normally Open
  • Max. Contact Rating (W): 10
  • Max. Initial Contact Resistance (mΩ): 100
  • Max. Switching Voltage (V): AC110/DC100
  • Max. Switching Current (A): 0.5
  • Operating Temperature:-40°C to +60°C (-40°F to 140°F)

Description

1.97″L×.55″W×.47″H Surface Mount Type with Hidden Wires and Screws WHITE Color.

You can install this magnetic sensor on the door or window frame. This product includes screws in the package. It does NOT INCLUDE 3M double sided tape.

  • Contact Size: 1.97″L×.55″W×.47″H (50mm×14mm×12mm)
  • Standard Magnet Size: 1.98″L×.56″W×.48″H (50.3mm×14.1mm×12.2mm)
  • Color: White
  • Standard Gap: 1.26″ (32mm)



For Brown color Magnetic Contact look at GP-23-BR



Dimensions

GP-23-WH Magnetic contact dimensions

Installation Diagram

TANE Wired Surface Mount Magnetic Door Window Contact Switch with Hidden Wires GP-23-WH

Characteristics
Packaging of this product

Model No. GP-23-WH:

  • Color: WHITE
  • Contact Size: 1.97"L×.55"W×.47"H (50mm×14mm×12mm)
  • Standard Magnet Size: 1.98"L×.56"W×.48"H (50.3mm×14.1mm×12.2mm)
  • Gap Inch (mm): 1.26" (32)
  • Loop Open/Closed: CLOSED
  • Reed Form: Normally Open
  • Max. Contact Rating (W): 10
  • Max. Initial Contact Resistance (mΩ): 100
  • Max. Switching Voltage (V): AC110/DC100
  • Max. Switching Current (A): 0.5
  • Operating Temperature:-40°C to +60°C (-40°F to 140°F)

Download Datasheets and Manuals of this product

TANE GP-23

Contact Us for Support

LET US HELP YOU WITH YOUR PURCHASE

Feel free to contact our dedicated support team if you have any questions or if you're ready to place an order.

I Need Help
Tane by Tane

TANE Wired Surface Mount Magnetic Door Window Contact Switch With Hidden Wires + Screws WHITE Color Reed Switch Normally Open Alarm Security, Home Security, Burglar Alarm Systems + UL Listed GP-23-WH

Translation missing: en.products.product.sku:GP-23-WH

UPC Code: 734598804237
Product Weight: 1.0 lb
