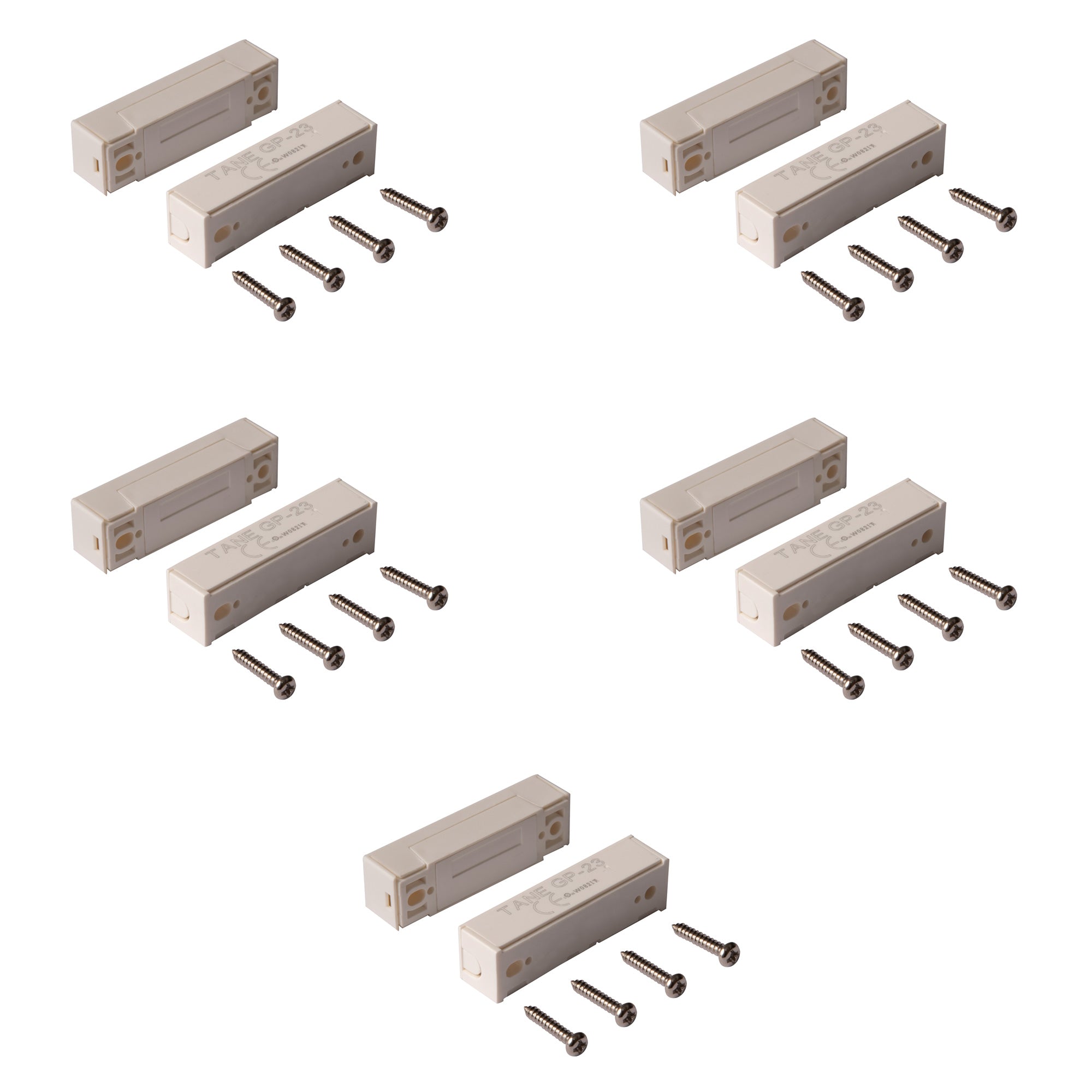

Kit Includes:

(5)
GP-23-WH: TANE Wired Surface Mount Magnetic Door Window Contact Switch with Hidden Wires + Screws WHITE Color Reed Switch Normally Open Alarm Security, UL Listed
Description

1.97″L×.55″W×.47″H Surface Mount Type with Hidden Wires and Screws WHITE Color.

Keep your home or office safe with the TANE GP-23-WH surface mount contacts.

 Designed in a crisp white finish, they fit perfectly on modern doors and window frames. Hidden wires keep your install neat, while the included screws ensure a solid, lasting setup. UL Listed for trusted security.

It does NOT INCLUDE 3M double sided tape.

  • Contact Size: 1.97″L×.55″W×.47″H (50mm×14mm×12mm)
  • Standard Magnet Size: 1.98″L×.56″W×.48″H (50.3mm×14.1mm×12.2mm)
  • Color: White
  • Standard Gap: 1.26″ (32mm)



For Brown color Magnetic Contact look at GP-23-BR



Dimensions

GP-23-WH Magnetic contact dimensions

Installation Diagram

TANE Wired Surface Mount Magnetic Door Window Contact Switch with Hidden Wires GP-23-WH

Characteristics

Model No. GP-23-WH:

  • Color: WHITE
  • Contact Size: 1.97"L×.55"W×.47"H (50mm×14mm×12mm)
  • Standard Magnet Size: 1.98"L×.56"W×.48"H (50.3mm×14.1mm×12.2mm)
  • Gap Inch (mm): 1.26" (32)
  • Loop Open/Closed: CLOSED
  • Reed Form: Normally Open
  • Max. Contact Rating (W): 10
  • Max. Initial Contact Resistance (mΩ): 100
  • Max. Switching Voltage (V): AC110/DC100
  • Max. Switching Current (A): 0.5
  • Operating Temperature:-40°C to +60°C (-40°F to 140°F)
Description

1.97″L×.55″W×.47″H Surface Mount Type with Hidden Wires and Screws WHITE Color.

Keep your home or office safe with the TANE GP-23-WH surface mount contacts.

 Designed in a crisp white finish, they fit perfectly on modern doors and window frames. Hidden wires keep your install neat, while the included screws ensure a solid, lasting setup. UL Listed for trusted security.

It does NOT INCLUDE 3M double sided tape.

  • Contact Size: 1.97″L×.55″W×.47″H (50mm×14mm×12mm)
  • Standard Magnet Size: 1.98″L×.56″W×.48″H (50.3mm×14.1mm×12.2mm)
  • Color: White
  • Standard Gap: 1.26″ (32mm)



For Brown color Magnetic Contact look at GP-23-BR



Dimensions

GP-23-WH Magnetic contact dimensions

Installation Diagram

TANE Wired Surface Mount Magnetic Door Window Contact Switch with Hidden Wires GP-23-WH

Download Datasheets and Manuals of this product

TANE GP-23

Contact Us for Support

LET US HELP YOU WITH YOUR PURCHASE

Feel free to contact our dedicated support team if you have any questions or if you're ready to place an order.

I Need Help
Tane by Tane

TANE Wired Surface Mount Magnetic Door Window Contact Switch With Hidden Wires + Screws WHITE Color Reed Switch Alarm Security Home Security Burglar Alarm Systems + UL Listed GP-23-WH-PK5 (Pack Of 5)

GP-23-WH-PK5

UPC Code: 734598804244 Weight: 1.0 lb
  • CE Certificate
  • UL Certificate
$14.99
$14.99
Shipping calculated at checkout.

Out of Stock
Phone Support Icon

Phone Life-Time Technical Support

Return Policy Icon

30-Day No Questions Return Policy

Free Shipping Icon

*Free Shipping within the USA

Contact an Expert
Return Policy
NOTE
Order Before 3:00pm EST on a week day and your order will be shipped out the same day
Free Shipping
*Free shipping within the USA
Including Puerto Rico, Hawaii and Alaska

Popup Title

Popup description
ATTENTION:
Before purchasing, it is recommended that the customer checks with their local fire authority to see if there is any additional product they may need in order to comply with the local fire codes. We are not responsible for the improper installation of our product(s) or any type of fees that can be incurred by not complying with your local fire authority.
