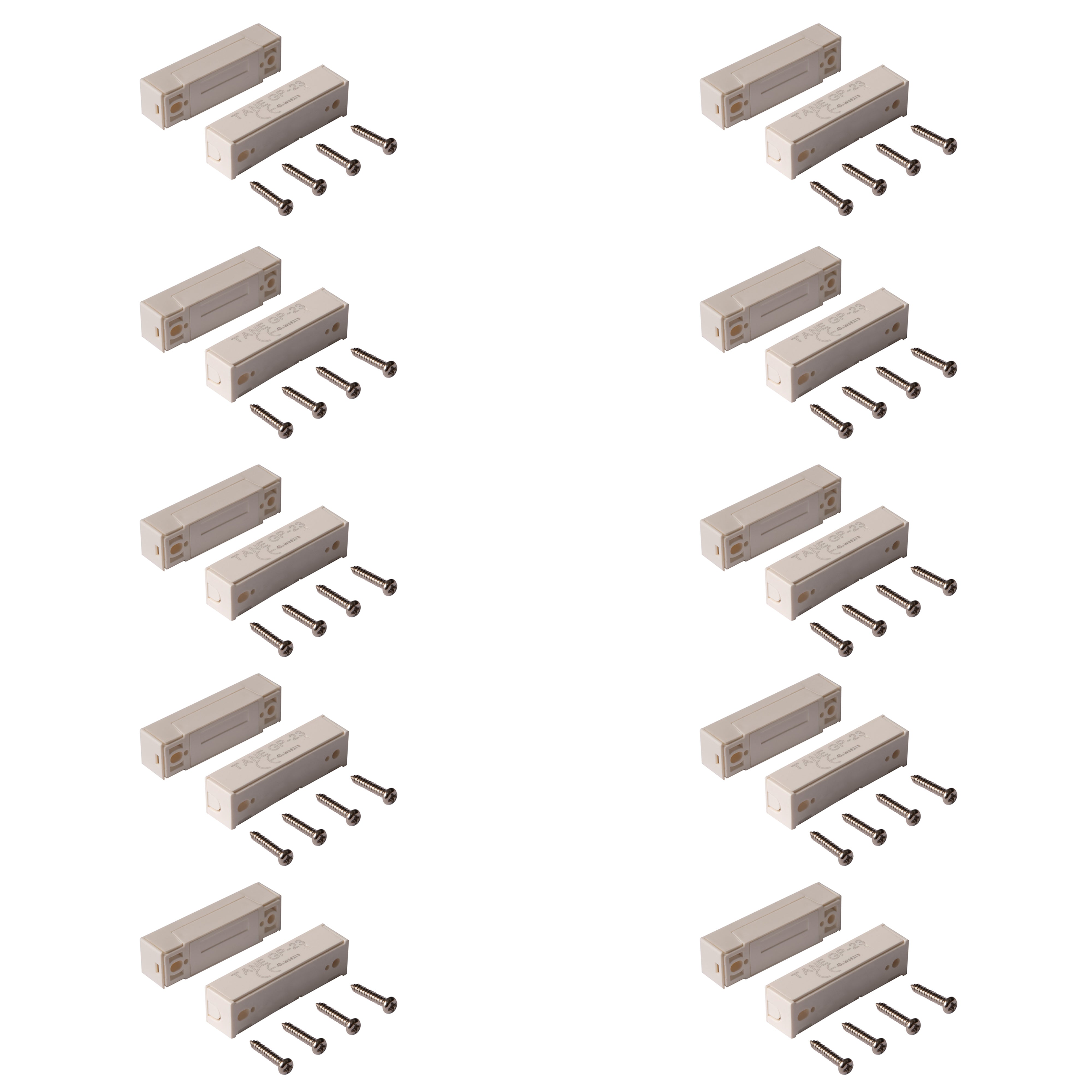

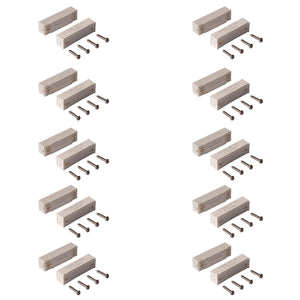

Kit Includes:

(10)
GP-23-WH: TANE Wired Surface Mount Magnetic Door Window Contact Switch with Hidden Wires + Screws WHITE Color Reed Switch Normally Open Alarm Security, UL Listed
Description

1.97″L×.55″W×.47″H Surface Mount Type with Hidden Wires and Screws WHITE Color.

The TANE GP-23-WH offers a sleek look with powerful protection. Featuring concealed wiring and a compact size, these UL Listed contacts provide a clean, professional appearance on white or light-colored surfaces.

Easy screw installation and a wide 1.26-inch detection gap make it a must for any security upgrade.

This product includes screws in the package. It does NOT INCLUDE 3M double sided tape.

  • Contact Size: 1.97″L×.55″W×.47″H (50mm×14mm×12mm)
  • Standard Magnet Size: 1.98″L×.56″W×.48″H (50.3mm×14.1mm×12.2mm)
  • Color: White
  • Standard Gap: 1.26″ (32mm)



For Brown color Magnetic Contact look at GP-23-BR



Dimensions

GP-23-WH Magnetic contact dimensions

Installation Diagram

TANE Wired Surface Mount Magnetic Door Window Contact Switch with Hidden Wires GP-23-WH

Characteristics

Model No. GP-23-WH:

  • Color: WHITE
  • Contact Size: 1.97"L×.55"W×.47"H (50mm×14mm×12mm)
  • Standard Magnet Size: 1.98"L×.56"W×.48"H (50.3mm×14.1mm×12.2mm)
  • Gap Inch (mm): 1.26" (32)
  • Loop Open/Closed: CLOSED
  • Reed Form: Normally Open
  • Max. Contact Rating (W): 10
  • Max. Initial Contact Resistance (mΩ): 100
  • Max. Switching Voltage (V): AC110/DC100
  • Max. Switching Current (A): 0.5
  • Operating Temperature:-40°C to +60°C (-40°F to 140°F)
Description

1.97″L×.55″W×.47″H Surface Mount Type with Hidden Wires and Screws WHITE Color.

The TANE GP-23-WH offers a sleek look with powerful protection. Featuring concealed wiring and a compact size, these UL Listed contacts provide a clean, professional appearance on white or light-colored surfaces.

Easy screw installation and a wide 1.26-inch detection gap make it a must for any security upgrade.

This product includes screws in the package. It does NOT INCLUDE 3M double sided tape.

  • Contact Size: 1.97″L×.55″W×.47″H (50mm×14mm×12mm)
  • Standard Magnet Size: 1.98″L×.56″W×.48″H (50.3mm×14.1mm×12.2mm)
  • Color: White
  • Standard Gap: 1.26″ (32mm)



For Brown color Magnetic Contact look at GP-23-BR



Dimensions

GP-23-WH Magnetic contact dimensions

Installation Diagram

TANE Wired Surface Mount Magnetic Door Window Contact Switch with Hidden Wires GP-23-WH

Download Datasheets and Manuals of this product

TANE GP-23
