This PRODUCT has a 3 YEAR warranty with full access to tech support in the USA!

Description

Attention:

  • These access control panels (Version 2.0) are only compatible with access control panels (Version 2.0) and with the Titan VSAxess software. They are not compatible with access control panels (Version 1.0) nor with VSAxess software.
  • Includes CD software
  • Power supply and power cord included
  • Install wires are not included
  • This software is not compatible with MAC computers, only with Microsoft.
Characteristics

Model VIS-ML600LED:

  • Voltage Input: 12 VDC / 24 VDC
  • Current Draw: 12V / 500mA ; 24V / 250mA (±5%)
  • Holding Force: Up to 600 lbs (272 kg)
  • Hall Effect Contact: SPDT rated 2A at 24 VDC
  • Magnetic Contact Rating: 28 VDC, 0.5A, 10W
  • Anti-Rust Surface Treatment: Blue Zinc Plating
  • Operating Temperature: 0~55° C (32~131° F)
  • Weight (Magnet): 1.1 kg (±1%)
  • Dimensions: Magnet - (L)250x(W)42x(T)25 mm Armature - (L)180x(W)38x(T)11 mm
  • Green/Red LED Indication for EM Lock Status
Packaging of this product

Model No. VIS-ZL600:

  • L and Z bracket for 600lbs electromagnetic lock
Packaging of this product

Model No. VIS-3005:

  • Input voltage: DC 12V
  • Idle current: ≤25mA
  • Card Reading Distance: 2 - 3 cm (0.78 - 1.18 in.)
  • Card Frequency: 125KHz for EM
  • Card Transmission Format: Wiegand26
  • Keypad Transmission Format: Keypad transmission format: 4bit, 8bit and Virtual card number
  • Operating Temperature: -45°C ~ 55° C (-49°F ~ 131°F)
  • Operating Humidity: 0%~95%
  • Product Size: 133Lx59Wx26H (mm) - 5.23Lx2.32Wx1.02H (in.)
  • Protection Level: IP68 - No ingress of dust; complete protection against contact (dust tight), and waterproof
Packaging of this product

Model No. VS-AXESS-2DLX-version2:

  • Access Mode: It supports card, card+ password, card or password, password
  • Event Type: Legal card, illegal card, anti-passback, exit button, password, threaten code
  • Alarm Event Type: Door-magnet alarm, self-defined alarm, threaten code alarm
  • Linkage Function: All event and alarm can linkage any or multiple relay output
  • Access Group: 200 group
  • Holiday Schedule: 300
  • User Capacity: 20,000
  • User Record Capacity: 70,000
  • Reader Port: 2
  • Exit Button Port: 2
  • Door-magnet Port: 2
  • Lock Output: 2
  • Door-magnet Alarm Output: 1
  • Self-defined Alarm Output: 1
  • Self-defined Alarm Input: 2
  • Communication Port: 10/100MTCP/IP, 1 extension RS485 communication port
  • Input Protection: Opto-isolator protection
  • Output Protection: Varistor Protection
  • Extension Function: It supports LED displayer, alarm host and so on
  • Video Recording and Snapshot: All Event and alarm can linkage any video to record or snapshot by software
  • First Card: Any cards can be first card
  • Multiple Cards: To open a door by multiple cards, manager can set 4 cards to open a door at most
  • Remote Control: Any doors can be opened by center authentication
  • Forced Control: User can open/close door forcibly
  • Threaten Code: 6 digits password, it is used in some special situation
  • Open by Password: Each of user have a group password
  • Timed Normal Open: User can setup three time-segment to let door open timed
  • Door Bolt Mode: It can open door by card during some special time
  • Timed Invalidation for Exit Button: Exit button invalidation can be set for three time-segments
  • Anti-passback: Two readers or all readers can be set in a group
  • Temporary Card Quantity: All users can be set as temporary cards
  • Self-defined Input/Output: User can self-define input/output function to relative relay
  • Activate/dismiss security:
    By manually: Any user card can be appointed to activate/dismiss security function
    By software: Activate/dismiss security function can be realized by software
  • Communication Security: Password encryption during data transmission
  • Transmission Mode: It supports TCP, UDP, RTP and multicast mode
  • Data Storage Mode: Cycled storage

Model No. VIS-7005:

  • Contact Rating: 3A/12-24V
  • Output Contact: NO/NC/COM
  • Power: 12VDC - 24VDC
  • LED Color: Blue (Stand by Mode), Green (Active/Open Mode)
  • Panel: 4mm (0.15in.) Thick Aluminium alloy (CNC)
  • Suitable for Door: Hollow Door
  • Mechanical Life: 100.000 tests
  • Operating Temperature: -20°C~+55°C (14°F-131°F)
  • Operating Humidity: 0-95% (relative humidity)
  • Weight: 0.065kg
  • Dimension Of Plate: 86L × 50W × 25H mm - 3.38L x 1.96W x 0.98H in.
Packaging of this product

Model No. IrexPlus:

  • Voltage: 12-30 Volts DC or AC
  • Current Consumption: 8 mA standby, 25 mA (Relay+LED), 44 mA maximum (Buzzer+Relay+LED) at 12/24 VDC
  • Relay Output: 1A @ 30 VDC or VAC, two form “C” contacts
  • Tamper Output: 50 mA @ 30 volts DC or AC
  • Detection System
  • Mounting Height: 2.3m - 4.6m (7.5' - 15')
  • Detection Range: Up to 2.4m (8')
  • Dimensions (LxHxD): 177mm x 50mm x 45mm (7'' x 2'' x 1.8'')
  • Weight: 0.15Kg (0.3lb)
  • Colour: White or Black
  • Environmental
  • RFI Immunity: 30 V/m from 10MHz to 2GHz
  • Operating & Storage Temperature: -20°C to 60°C (-4°F to 140°F)
Description

Attention:

  • These access control panels (Version 2.0) are only compatible with access control panels (Version 2.0) and with the Titan VSAxess software. They are not compatible with access control panels (Version 1.0) nor with VSAxess software.
  • Includes CD software
  • Power supply and power cord included
  • Install wires are not included
  • This software is not compatible with MAC computers, only with Microsoft.

Compatible Software

TITAN VSAXESS is a powerful and complete Access control management software for Visionis products for a our second generation of Access Control Panels.

DOWNLOAD SOFTWARE

Screenshots Examples of the Software

Click the image to open a bigger version

Download Datasheets and Manuals of this product

Contact Us for Support

LET US HELP YOU WITH YOUR PURCHASE

Feel free to contact our dedicated support team if you have any questions or if you're ready to place an order.

I Need Help
Visionis by Visionis

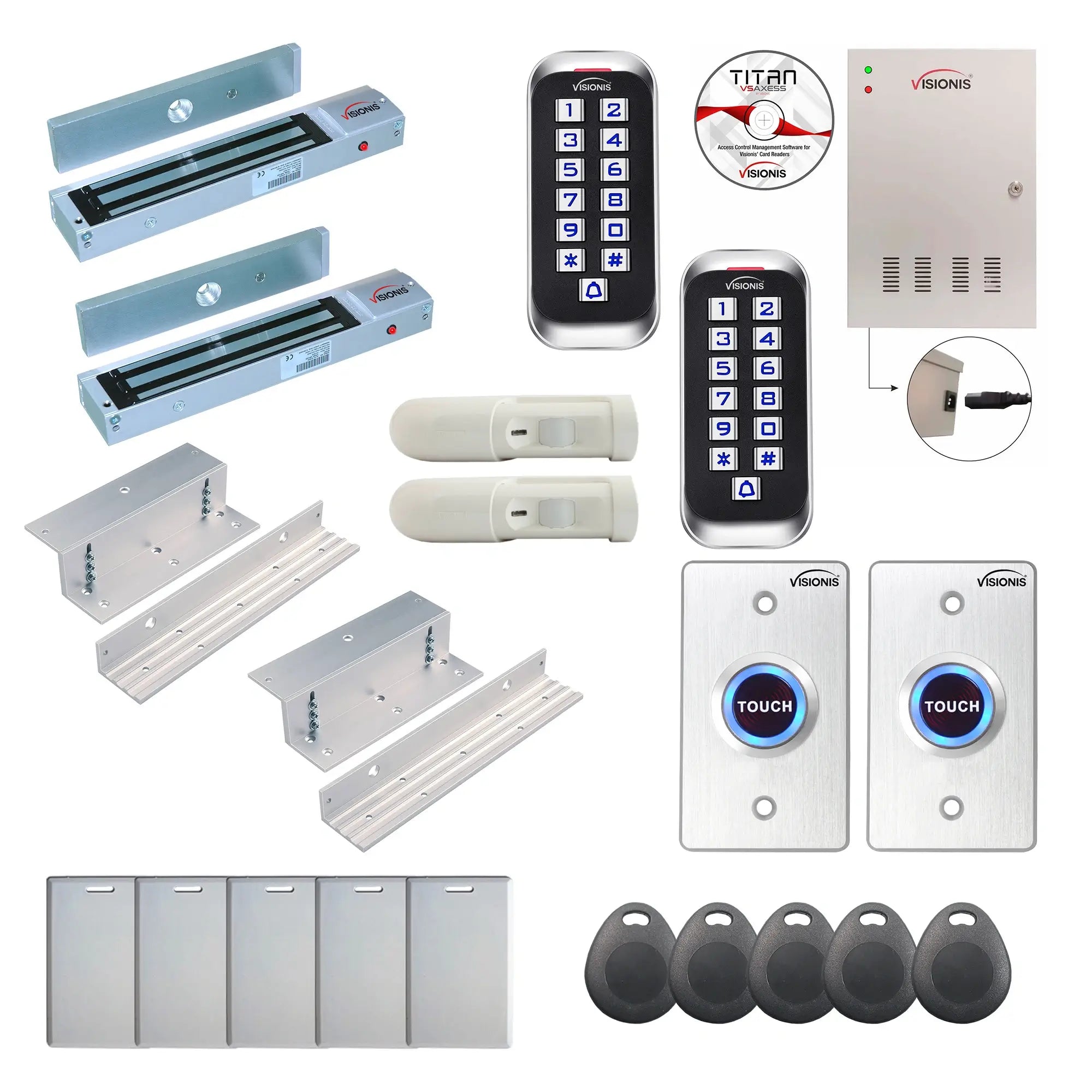

FPC-8383 2 Door Professional Access Control For Inswing Door Electric Lock 600lbs Time Attendance TCP/IP Wiegand Controller, Outdoor Keypad/Reader, Software Included, 20,000 Users, 70,000 Records

Translation missing: en.products.product.sku:FPC-8383

UPC Code: 655100122659
Product Weight: 24.0 lb
