Model VIS-ML600LED:

• Voltage Input: 12 VDC / 24 VDC
• Current Draw: 12V / 500mA ; 24V / 250mA (±5%)
• Holding Force: Up to 600 lbs (272 kg)
• Hall Effect Contact: SPDT rated 2A at 24 VDC
• Magnetic Contact Rating: 28 VDC, 0.5A, 10W
• Anti-Rust Surface Treatment: Blue Zinc Plating
• Operating Temperature: 0~55° C (32~131° F)
• Weight (Magnet): 1.1 kg (±1%)
• Dimensions: Magnet - (L)250x(W)42x(T)25 mm Armature - (L)180x(W)38x(T)11 mm
• Green/Red LED Indication for EM Lock Status

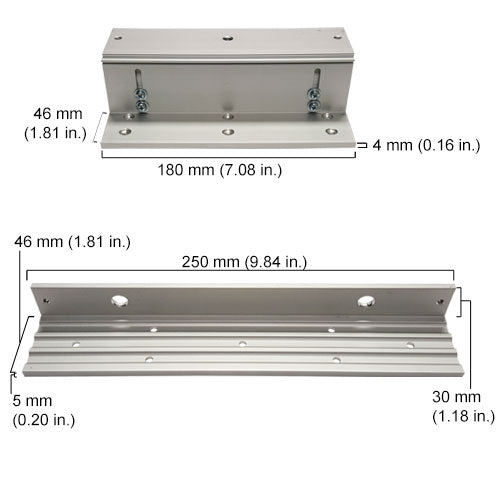

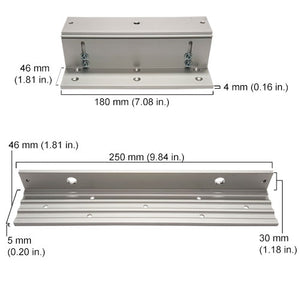

Model No. VIS-ZL600:

• L and Z bracket for 600lbs electromagnetic lock

Model No. VIS-3000:

• Input Voltage: DC 12V
• Idle Current: ≤25mA
• Card Reading Distance: 2 - 3 cm (0.78 - 1.18 in.)
• Card Frequency: 125KHz for EM // 13.56MHz for MFR
• Card Transmission Format: Wiegand 26
• Keypad Transmission Format: 4bit, 8bit and Virtual card number
• Operating Temperature: -45°C ～55° C (-49°F ～131°F)
• Operating Humidity: 0%～95%
• Product Size: 118Lx81Wx21H (mm) - 4.64Lx3.18Wx0.82H (in.)
• Protection Level: IP68 - No ingress of dust; complete protection against contact (dust tight), and waterproof

Model No. VS-AXESS-2DLX-version2:

• Access Mode: It supports card, card+ password, card or password, password
• Event Type: Legal card, illegal card, anti-passback, exit button, password, threaten code
• Alarm Event Type: Door-magnet alarm, self-defined alarm, threaten code alarm
• Linkage Function: All event and alarm can linkage any or multiple relay output
• Access Group: 200 group
• Holiday Schedule: 300
• User Capacity: 20,000
• User Record Capacity: 70,000
• Reader Port: 2
• Exit Button Port: 2
• Door-magnet Port: 2
• Lock Output: 2
• Door-magnet Alarm Output: 1
• Self-defined Alarm Output: 1
• Self-defined Alarm Input: 2
• Communication Port: 10/100MTCP/IP, 1 extension RS485 communication port
• Input Protection: Opto-isolator protection
• Output Protection: Varistor Protection
• Extension Function: It supports LED displayer, alarm host and so on
• Video Recording and Snapshot: All Event and alarm can linkage any video to record or snapshot by software
• First Card: Any cards can be first card
• Multiple Cards: To open a door by multiple cards, manager can set 4 cards to open a door at most
• Remote Control: Any doors can be opened by center authentication
• Forced Control: User can open/close door forcibly
• Threaten Code: 6 digits password, it is used in some special situation
• Open by Password: Each of user have a group password
• Timed Normal Open: User can setup three time-segment to let door open timed
• Door Bolt Mode: It can open door by card during some special time
• Timed Invalidation for Exit Button: Exit button invalidation can be set for three time-segments
• Anti-passback: Two readers or all readers can be set in a group
• Temporary Card Quantity: All users can be set as temporary cards
• Self-defined Input/Output: User can self-define input/output function to relative relay
• Activate/dismiss security:
  By manually: Any user card can be appointed to activate/dismiss security function
  By software: Activate/dismiss security function can be realized by software
• Communication Security: Password encryption during data transmission
• Transmission Mode: It supports TCP, UDP, RTP and multicast mode
• Data Storage Mode: Cycled storage

Model No. VIS-7005:

• Contact Rating: 3A/12-24V
• Output Contact: NO/NC/COM
• Power: 12VDC - 24VDC
• LED Color: Blue (Stand by Mode), Green (Active/Open Mode)
• Panel: 4mm (0.15in.) Thick Aluminium alloy (CNC)
• Suitable for Door: Hollow Door
• Mechanical Life: 100.000 tests
• Operating Temperature: -20°C~+55°C (14°F-131°F)
• Operating Humidity: 0-95% (relative humidity)
• Weight: 0.065kg
• Dimension Of Plate: 86L × 50W × 25H mm - 3.38L x 1.96W x 0.98H in.

Model No. IrexPlus:

• Voltage: 12-30 Volts DC or AC
• Current Consumption: 8 mA standby, 25 mA (Relay+LED), 44 mA maximum (Buzzer+Relay+LED) at 12/24 VDC
• Relay Output: 1A @ 30 VDC or VAC, two form “C” contacts
• Tamper Output: 50 mA @ 30 volts DC or AC
• Detection System
• Mounting Height: 2.3m - 4.6m (7.5' - 15')
• Detection Range: Up to 2.4m (8')
• Dimensions (LxHxD): 177mm x 50mm x 45mm (7'' x 2'' x 1.8'')
• Weight: 0.15Kg (0.3lb)
• Colour: White or Black
• Environmental
• RFI Immunity: 30 V/m from 10MHz to 2GHz
• Operating & Storage Temperature: -20°C to 60°C (-4°F to 140°F)
