This PRODUCT has a 3 YEAR warranty with full access to tech support in the USA!

Description

Attention:

  • These access control panels (Version 2.0) are only compatible with access control panels (Version 2.0) and with the Titan VSAxess software. They are not compatible with access control panels (Version 1.0) nor with VSAxess software.
  • Includes CD software
  • Power supply and power cord included
  • Install wires are not included
  • This software is not compatible with MAC computers, only with Microsoft.
Characteristics

Model VIS-ML300LED:

  • Voltage Input: 12 VDC / 24 VDC
  • Current Draw: 12V / 300mA ; 24V / 150mA (±5%)
  • Holding Force: Up to 300 lbs (136 kg)
  • Anti-Rust Surface Treatment: Blue Zinc Plating
  • Operating Temperature: 0~55° C ( 32~131° F)
  • Operating Humidity: 0~95% ( non condensing)
  • Weight ( Magnet): 0.6 kg (±1%)
  • Dimensions: Magnet - (L)210x(W)35x(T)21 mm Armature - (L)130x(W)33x(T)11 mm
  • Green/Red LED Indication for EM Lock Status
Packaging of this product

Model No. VIS-3000:

  • Input Voltage: DC 12V
  • Idle Current: ≤25mA
  • Card Reading Distance: 2 - 3 cm (0.78 - 1.18 in.)
  • Card Frequency: 125KHz for EM // 13.56MHz for MFR
  • Card Transmission Format: Wiegand 26
  • Keypad Transmission Format: 4bit, 8bit and Virtual card number
  • Operating Temperature: -45°C ~55° C (-49°F ~131°F)
  • Operating Humidity: 0%~95%
  • Product Size: 118Lx81Wx21H (mm) - 4.64Lx3.18Wx0.82H (in.)
  • Protection Level: IP68 - No ingress of dust; complete protection against contact (dust tight), and waterproof
Packaging of this product

Model No. VS-AXESS-4D-ETL-version2:

  • Arm 7 processor, RTOS system, new PCB circuit design
  • Advanced access control function, including multi-card, first card, interlock and anti-passback etc.
  • Multiple authentication mode, it supports card, password, card + code and fingerprint.
  • TCP/IP communication mode, there is 5 SOCKET port.
  • Optical coupling isolation protection, more stable
  • Record capacity can be extended, it can be 130,000pcs
  • Alarm linkage and relay self-defined.
  • Access Mode: It supports card, card+ password, card or password, password
  • Event Type: Legal card, illegal card, anti-passback, exit button, password, threaten code
  • Alarm Event Type: Door-magnet alarm, self-defined alarm, threaten code alarm
  • Linkage Function: All event and alarm can linkage any or multiple relay output
  • Access Group: 200 group
  • Holiday Schedule: 300
  • User Capacity: 20000
  • Record Capacity: 70000
  • Reader Port: 4
  • Exit Button Port: 4
  • Door-magnet Port: 4
  • Lock Output: 4
  • Door-magnet Alarm Output: 1
  • Self-defined Alarm Output: 1
  • Self-defined Alarm Input: 4
  • Communication Port: 10/100MTCP/IP, 1 extension RS485 communication port
  • Input Protection: Opto-isolator protection
  • Output Protection: Varistor Protection
  • Extension Function: It supports LED displayer, alarm host and so on

Model No. VIS-7005:

  • Contact Rating: 3A/12-24V
  • Output Contact: NO/NC/COM
  • Power: 12VDC - 24VDC
  • LED Color: Blue (Stand by Mode), Green (Active/Open Mode)
  • Panel: 4mm (0.15in.) Thick Aluminium alloy (CNC)
  • Suitable for Door: Hollow Door
  • Mechanical Life: 100.000 tests
  • Operating Temperature: -20°C~+55°C (14°F-131°F)
  • Operating Humidity: 0-95% (relative humidity)
  • Weight: 0.065kg
  • Dimension Of Plate: 86L × 50W × 25H mm - 3.38L x 1.96W x 0.98H in.
Packaging of this product
Description

Attention:

  • These access control panels (Version 2.0) are only compatible with access control panels (Version 2.0) and with the Titan VSAxess software. They are not compatible with access control panels (Version 1.0) nor with VSAxess software.
  • Includes CD software
  • Power supply and power cord included
  • Install wires are not included
  • This software is not compatible with MAC computers, only with Microsoft.

Compatible Software

TITAN VSAXESS is a powerful and complete Access control management software for Visionis products for a our second generation of Access Control Panels.

DOWNLOAD SOFTWARE

Screenshots Examples of the Software

Click the image to open a bigger version

Download Datasheets and Manuals of this product

Contact Us for Support

LET US HELP YOU WITH YOUR PURCHASE

Feel free to contact our dedicated support team if you have any questions or if you're ready to place an order.

I Need Help
Visionis by Visionis

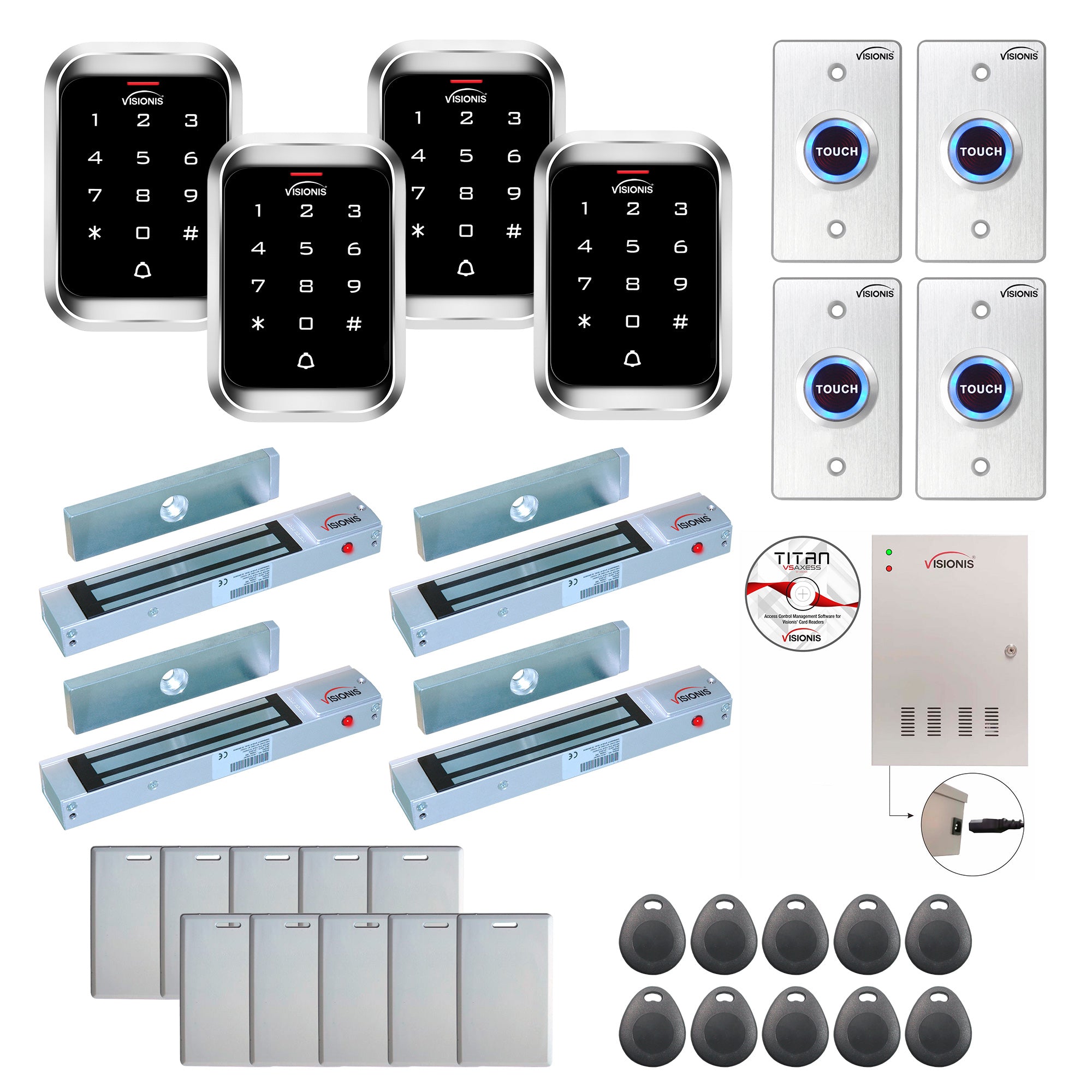

FPC-7941 4 Doors Access Control Outswinging Door 300lbs Mag Lock Time Attendance TCP/IP Wiegand Controller Box, Outdoor Weatherproof Keypad/Reader, EM Compatible, Software Included, 20000 Users Kit
