Entry and Deluxe Access Control Panels Main Features - VISIONIS

Two Doors + Network Access Control Panel + Controller Board With Cabinet VIS-AXESS-2D-ETL

Dimensions Outdoor access control keypad, Visionis VIS-3000, IP68 anti-vandal metal, standalone use

Waterproof keypad and card reader VIS-3000 Visionis

Outdoor standalone keypad and card reader VIS-3000 Visionis

This PRODUCT has a 3 YEAR warranty with full access to tech support in the USA!

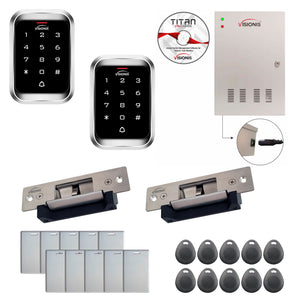

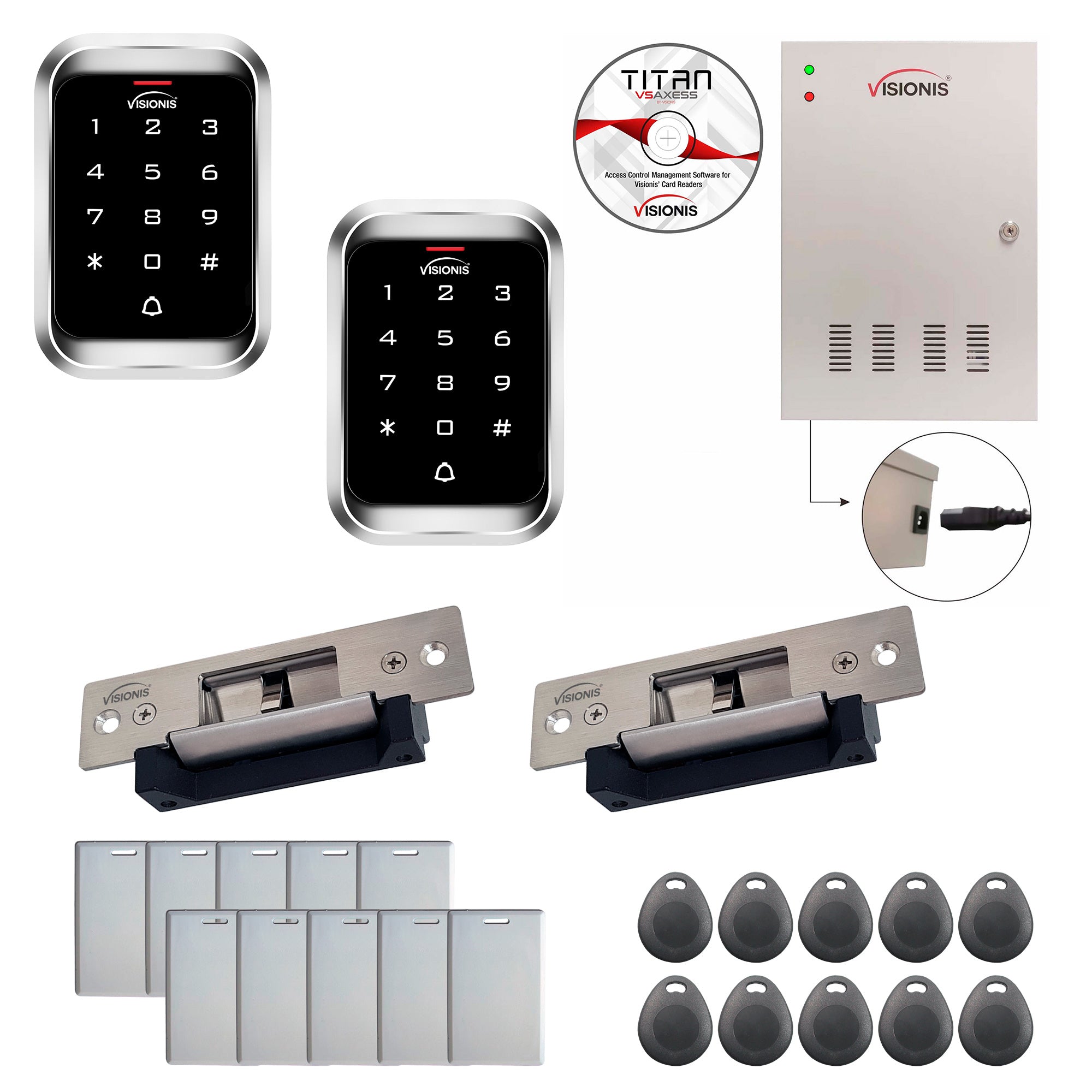

Kit Includes:

(2)

(1)

(10)

VIS-EL104-FSESA: 770lbs Electric Door Strike for Wood and Metal Doors 12V Fail Safe Normally Closed and Fail Secure Normally Open Adjustable

VIS-3000+: Access Control Indoor + Outdoor Rated IP68 Metal Digital Touch Keypad + Reader Standalone with Mini Controller + Wiegand 26, Wide Design, No Software, EM Cards

VIS-AXESS-2D-ETL: Two Doors + Network Access Control Panel + Controller Board With Cabinet + TCP IP + Wiegand With Desktop Software + 20,000 Users, 70,000 Records

VIS-PROXCARD: Access Control Proximity Contactless Smart Entry Card 1.8mm Thick 26 Bit 125khz

VIS-AKEYTAG: Access Control Proximity Contactless Smart Entry Keyfob 26 Bit 125khz

Description

Attention:

These access control panels (Version 2.0) are only compatible with access control panels (Version 2.0) and with the Titan VSAxess software. They are not compatible with access control panels (Version 1.0) nor with VSAxess software.
Includes CD software
Power supply and power cord included
Install wires are not included
This software is not compatible with MAC computers, only with Microsoft.

Characteristics

Model No. VIS-EL104-FSESA:

Lock Size: 124.6Lx32.3H (mm) - 4.90Lx1.27H (in.)
Holding Strength: 350kg (770 pounds)
Voltage: 12VDC
Current: 12VDC - 280mA // 24VDC - 140mA
Feature: Fail Safe and Fail Secure Adjustable
Suitable For: Wooden Door, Metal Door, PVC Door
Cycles Tested: 300.000
Operating Temperature: -15°C / +40°C (5°F / 104°F)
Product + Packaging Weight: 0.50kg (1.10 pounds)

Model No. VIS-3000:

Input Voltage: DC 12V
Idle Current: ≤25mA
Card Reading Distance: 2 - 3 cm (0.78 - 1.18 in.)
Card Frequency: 125KHz for EM // 13.56MHz for MFR
Card Transmission Format: Wiegand 26
Keypad Transmission Format: 4bit, 8bit and Virtual card number
Operating Temperature: -45°C ～55° C (-49°F ～131°F)
Operating Humidity: 0%～95%
Product Size: 118Lx81Wx21H (mm) - 4.64Lx3.18Wx0.82H (in.)
Protection Level: IP68 - No ingress of dust; complete protection against contact (dust tight), and waterproof

Model No. VIS-AXESS-2D-ETL-version2:

Arm 7 processor, RTOS system, new PCB circuit design
Advanced access control function, including multi-card, first card, interlock and anti-passback etc.
Multiple authentication mode, it supports card, password, card + code and fingerprint.
TCP/IP communication mode, there is 5 SOCKET port.
Optical coupling isolation protection, more stable
Record capacity can be extended, it can be 130,000pcs
Alarm linkage and relay self-defined.
Access Mode: It supports card, card+ password, card or password, password
Event Type: Legal card, illegal card, anti-passback, exit button, password, threaten code
Alarm Event Type: Door-magnet alarm, self-defined alarm, threaten code alarm
Linkage Function: All event and alarm can linkage any or multiple relay output
Access Group: 200 group
Holiday Schedule: 300
User Capacity: 20000
Record Capacity: 70000
Reader Port: 2
Exit Button Port: 2
Door-magnet Port: 2
Lock Output: 2
Door-magnet Alarm Output: 1
Self-defined Alarm Output: 1
Self-defined Alarm Input: 2
Communication Port: 10/100MTCP/IP, 1 extension RS485 communication port
Input Protection: Opto-isolator protection
Output Protection: Varistor Protection
Extension Function: It supports LED displayer, alarm host and so on

Description

Attention:

These access control panels (Version 2.0) are only compatible with access control panels (Version 2.0) and with the Titan VSAxess software. They are not compatible with access control panels (Version 1.0) nor with VSAxess software.
Includes CD software
Power supply and power cord included
Install wires are not included
This software is not compatible with MAC computers, only with Microsoft.

Compatible Software

TITAN VSAXESS is a powerful and complete Access control management software for Visionis products for a our second generation of Access Control Panels.

DOWNLOAD SOFTWARE

Screenshots Examples of the Software

Click the image to open a bigger version

Download Datasheets and Manuals of this product

Visionis by Visionis

FPC-7936 Two Doors Access Control Electric Strike Fail Safe Fail Secure Time Attendance TCP/IP Wiegand Controller Box, Power Supply, Weatherproof Keypad/Reader, EM Compatible, Software Included Kit

Name: FPC-7936 Two Doors Access Control Electric Strike Fail Safe Fail Secure Time Attendance TCP/IP Wiegand Controller Box, Power Supply, Weatherproof Keypad/Reader, EM Compatible, Software Included Kit
Brand: Visionis
SKU: FPC-7936
Price: 492.5 USD
Availability: OutOfStock

Translation missing: en.products.product.sku:FPC-7936

UPC Code: 613464751403

Product Weight: 13.0 lb

Regular price: $492.50
Sale price: $492.50
Regular price

Shipping calculated at checkout.

Out of Stock

Quantity:

Phone Life-Time Technical Support

30-Day No Questions Return Policy

*Free Shipping within the USA

Contact an Expert

NOTE

Order Before 3:00pm EST on a week day and your order will be shipped out the same day

*Free shipping within the USA

Including Puerto Rico, Hawaii and Alaska

ATTENTION:

Before purchasing, it is recommended that the customer checks with their local fire authority to see if there is any additional product they may need in order to comply with the local fire codes. We are not responsible for the improper installation of our product(s) or any type of fees that can be incurred by not complying with your local fire authority.
