Model VIS-ML300LED:

• Voltage Input: 12 VDC / 24 VDC
• Current Draw: 12V / 300mA ; 24V / 150mA (±5%)
• Holding Force: Up to 300 lbs (136 kg)
• Anti-Rust Surface Treatment: Blue Zinc Plating
• Operating Temperature: 0~55° C ( 32~131° F)
• Operating Humidity: 0~95% ( non condensing)
• Weight ( Magnet): 0.6 kg (±1%)
• Dimensions: Magnet - (L)210x(W)35x(T)21 mm Armature - (L)130x(W)33x(T)11 mm
• Green/Red LED Indication for EM Lock Status

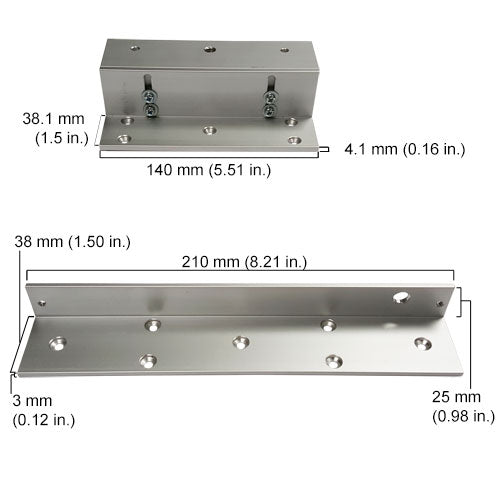

Model No. VIS-ZL300:

• L and Z bracket for 300lbs electromagnetic lock

Model No. VIS-3000:

• Input Voltage: DC 12V
• Idle Current: ≤25mA
• Card Reading Distance: 2 - 3 cm (0.78 - 1.18 in.)
• Card Frequency: 125KHz for EM // 13.56MHz for MFR
• Card Transmission Format: Wiegand 26
• Keypad Transmission Format: 4bit, 8bit and Virtual card number
• Operating Temperature: -45°C ～55° C (-49°F ～131°F)
• Operating Humidity: 0%～95%
• Product Size: 118Lx81Wx21H (mm) - 4.64Lx3.18Wx0.82H (in.)
• Protection Level: IP68 - No ingress of dust; complete protection against contact (dust tight), and waterproof

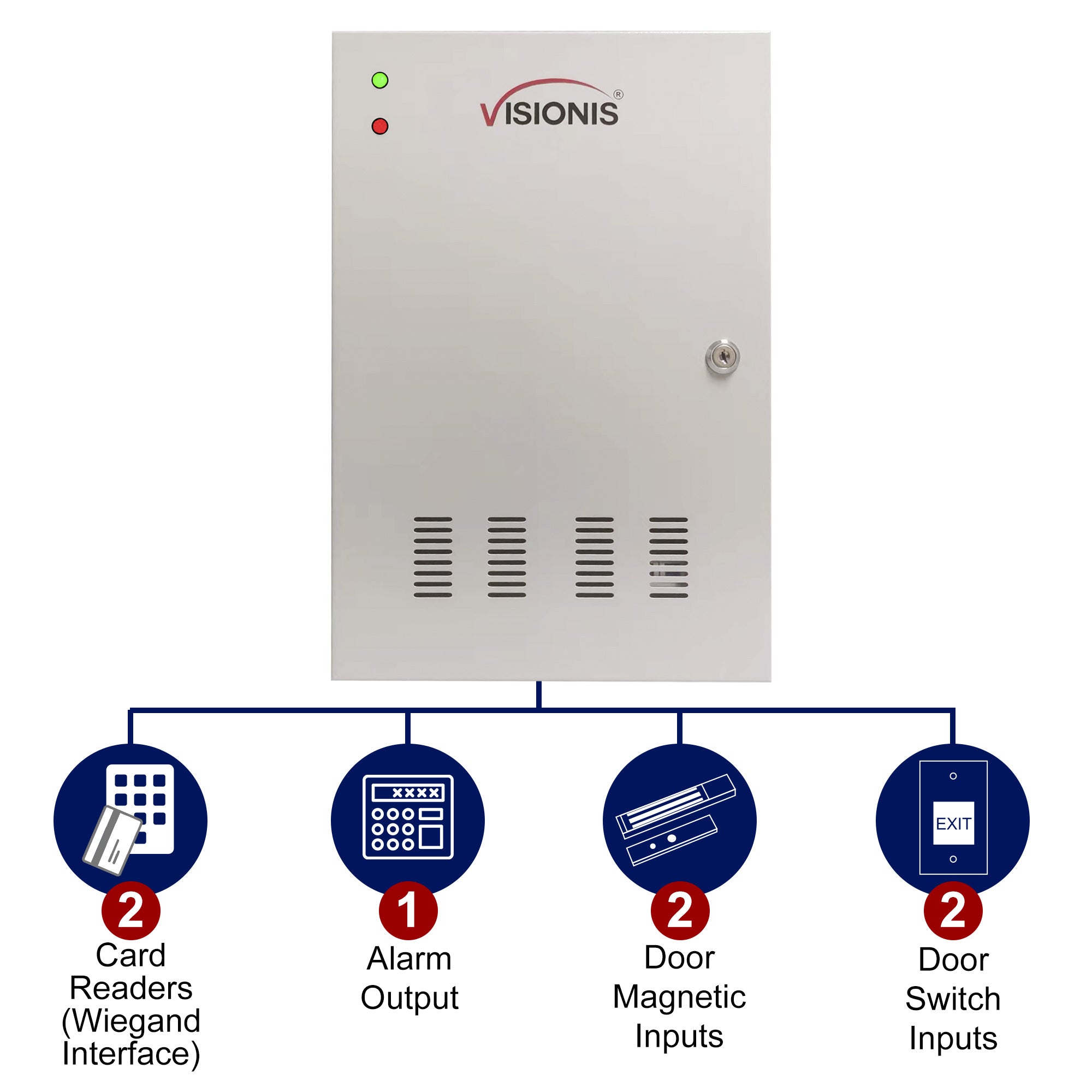

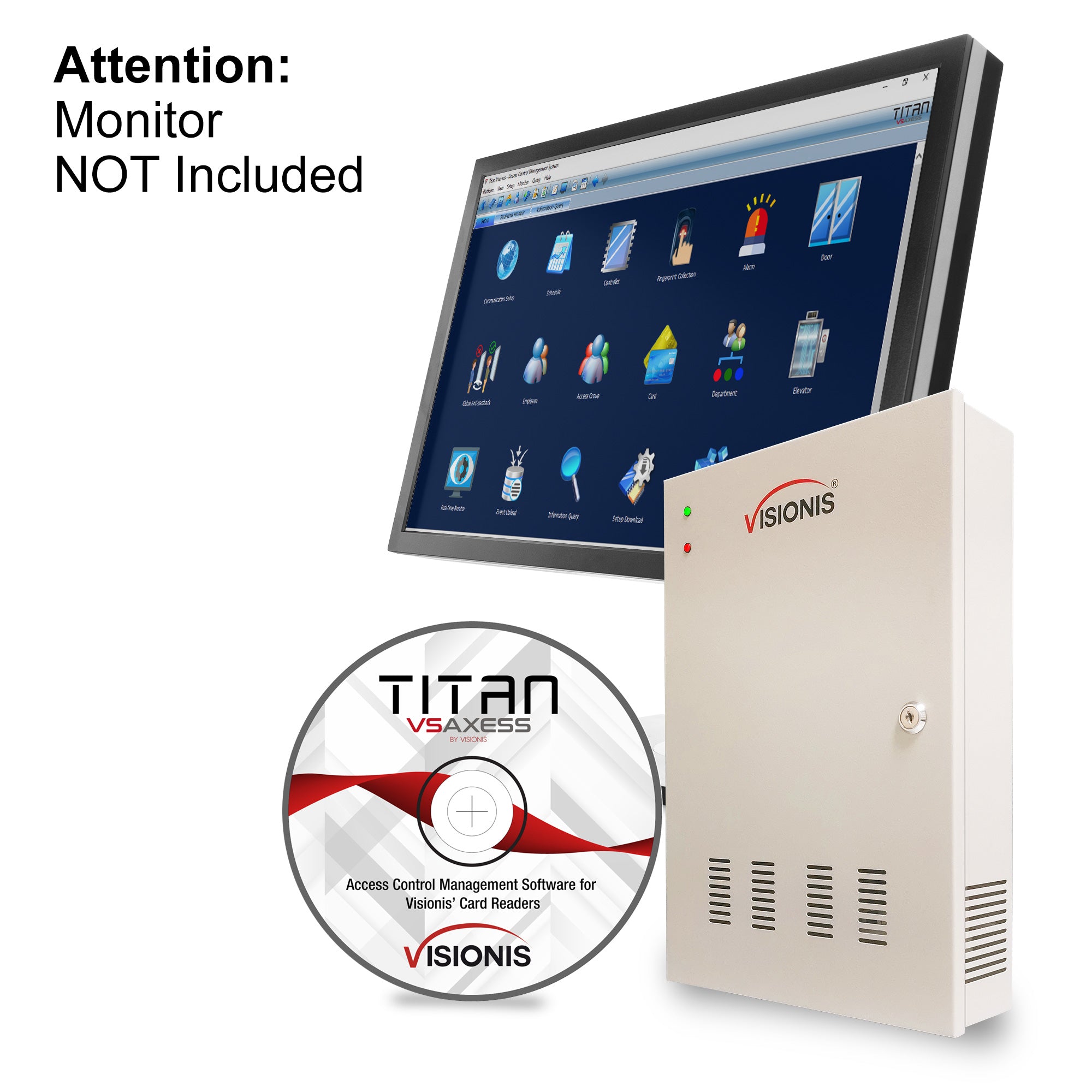

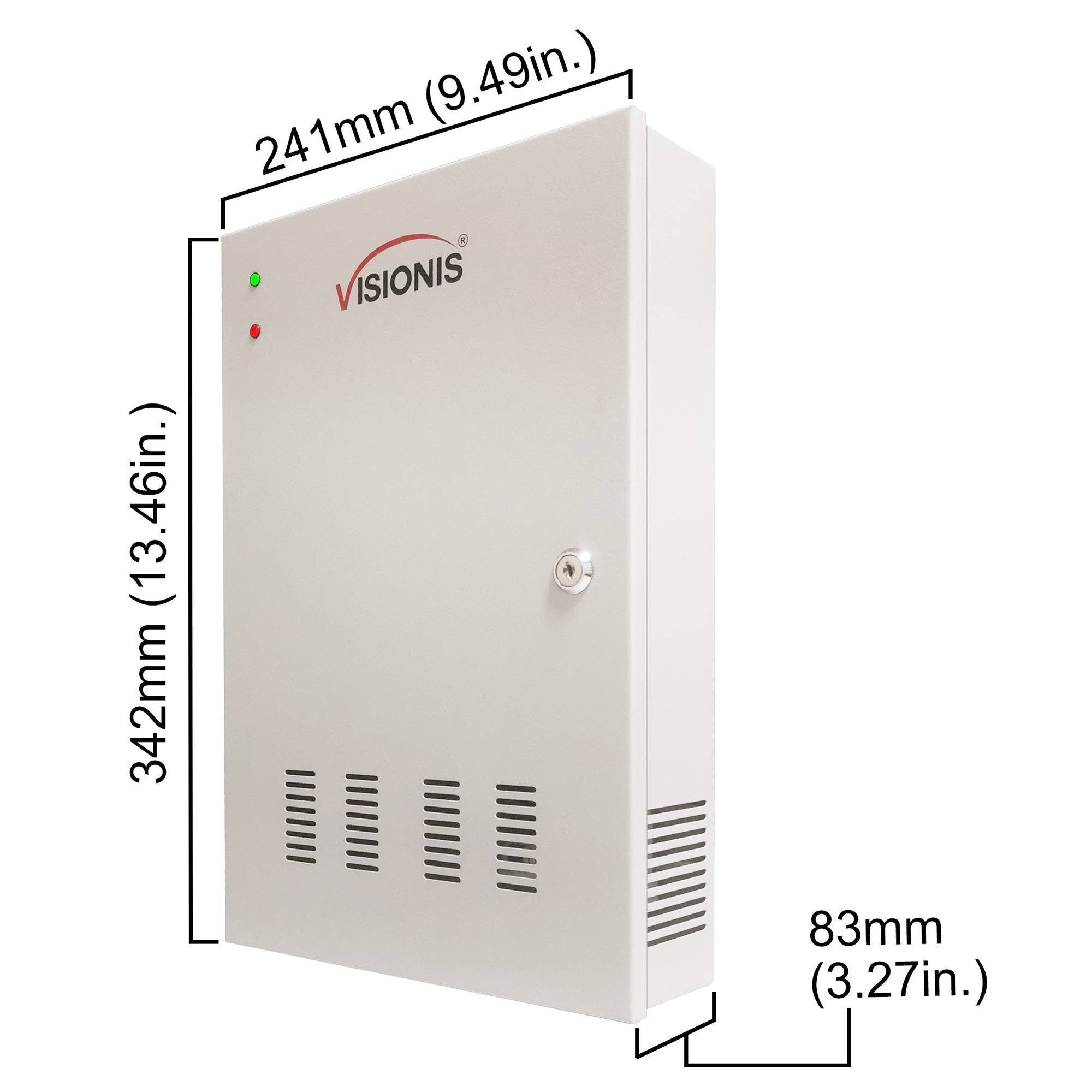

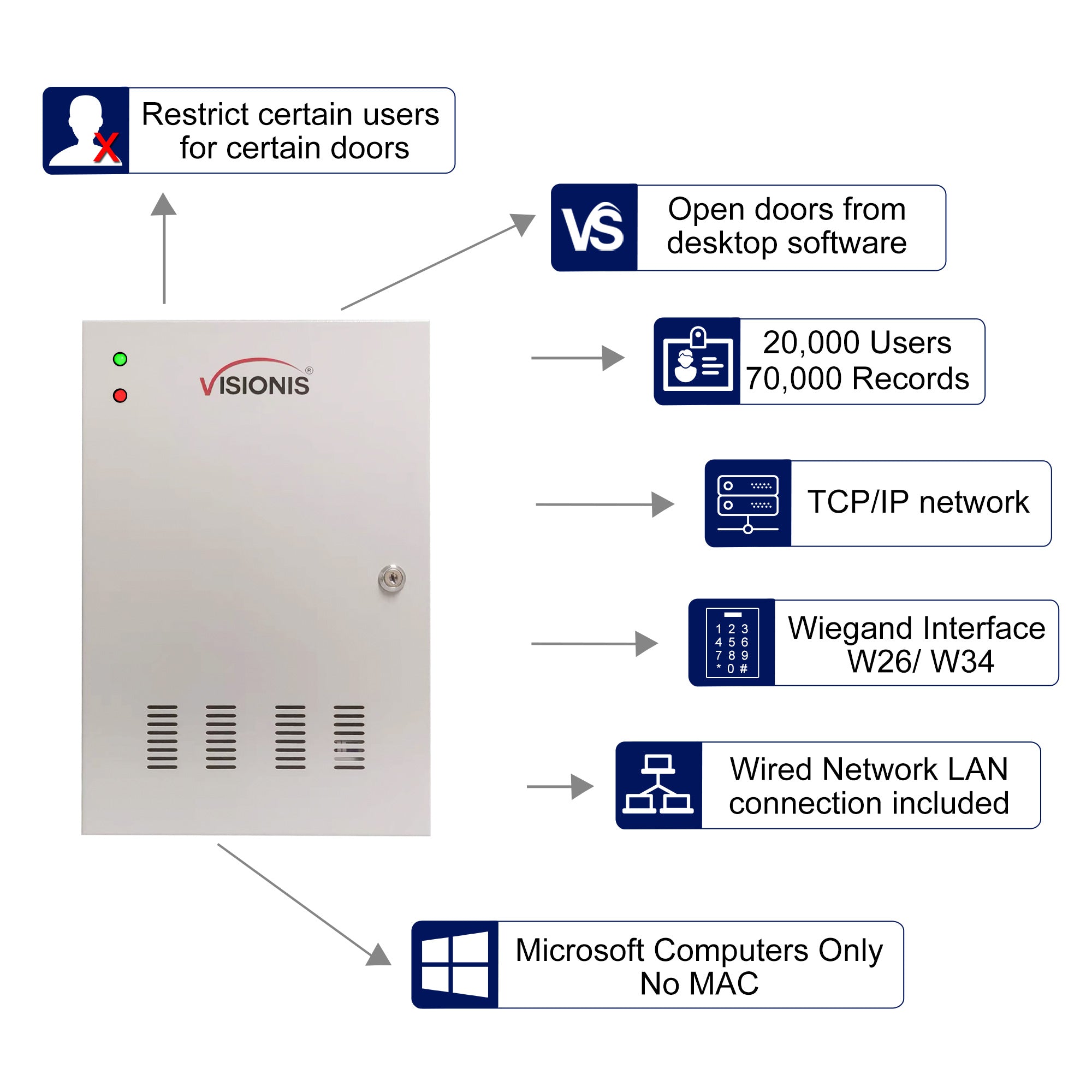

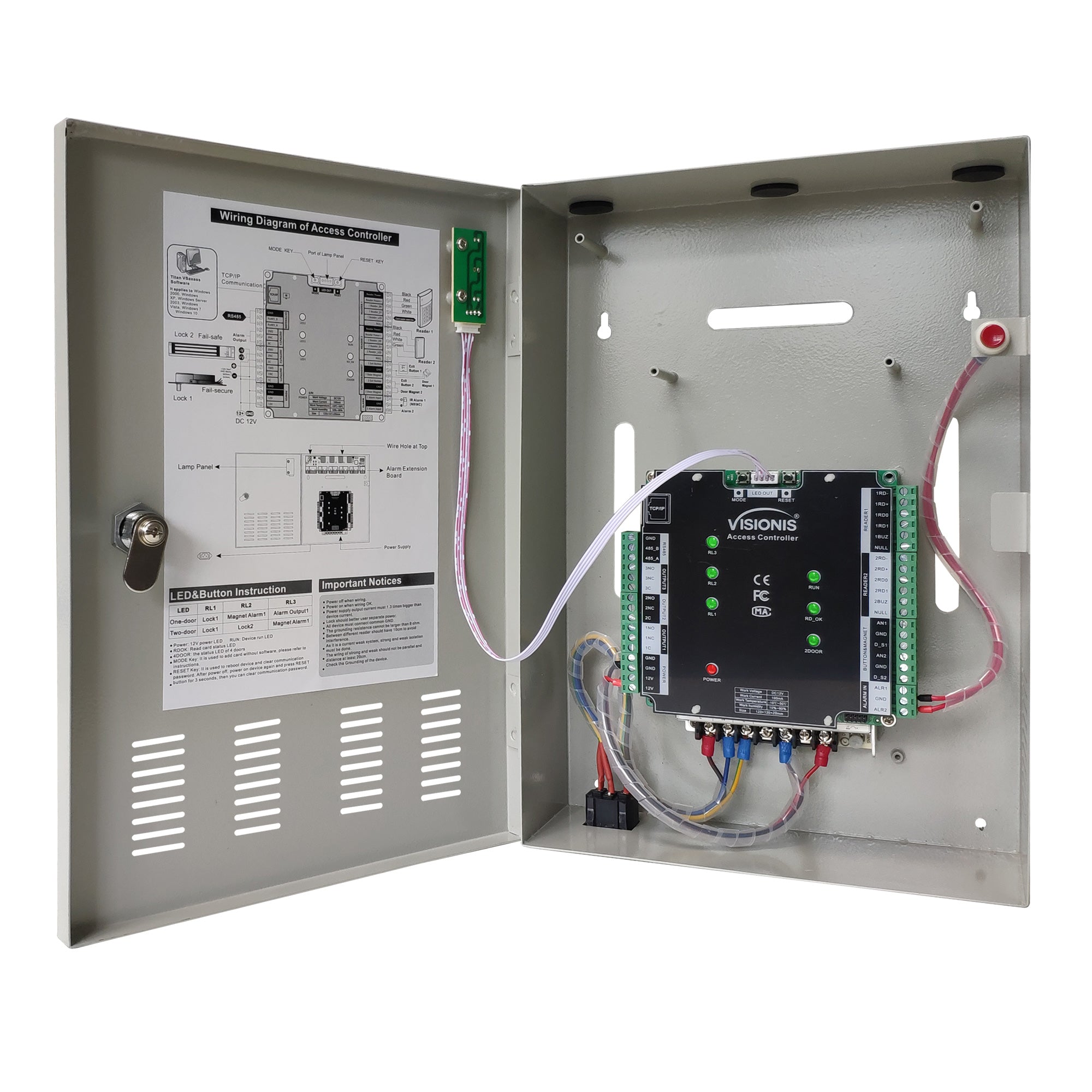

Model No. VIS-AXESS-2D-ETL-version2:

• Arm 7 processor, RTOS system, new PCB circuit design
• Advanced access control function, including multi-card, first card, interlock and anti-passback etc.
• Multiple authentication mode, it supports card, password, card + code and fingerprint.
• TCP/IP communication mode, there is 5 SOCKET port.
• Optical coupling isolation protection, more stable
• Record capacity can be extended, it can be 130,000pcs
• Alarm linkage and relay self-defined.
• Access Mode: It supports card, card+ password, card or password, password
• Event Type: Legal card, illegal card, anti-passback, exit button, password, threaten code
• Alarm Event Type: Door-magnet alarm, self-defined alarm, threaten code alarm
• Linkage Function: All event and alarm can linkage any or multiple relay output
• Access Group: 200 group
• Holiday Schedule: 300
• User Capacity: 20000
• Record Capacity: 70000
• Reader Port: 2
• Exit Button Port: 2
• Door-magnet Port: 2
• Lock Output: 2
• Door-magnet Alarm Output: 1
• Self-defined Alarm Output: 1
• Self-defined Alarm Input: 2
• Communication Port: 10/100MTCP/IP, 1 extension RS485 communication port
• Input Protection: Opto-isolator protection
• Output Protection: Varistor Protection
• Extension Function: It supports LED displayer, alarm host and so on

Model No. VIS-7005:

• Contact Rating: 3A/12-24V
• Output Contact: NO/NC/COM
• Power: 12VDC - 24VDC
• LED Color: Blue (Stand by Mode), Green (Active/Open Mode)
• Panel: 4mm (0.15in.) Thick Aluminium alloy (CNC)
• Suitable for Door: Hollow Door
• Mechanical Life: 100.000 tests
• Operating Temperature: -20°C~+55°C (14°F-131°F)
• Operating Humidity: 0-95% (relative humidity)
• Weight: 0.065kg
• Dimension Of Plate: 86L × 50W × 25H mm - 3.38L x 1.96W x 0.98H in.

Model No. IrexPlus:

• Voltage: 12-30 Volts DC or AC
• Current Consumption: 8 mA standby, 25 mA (Relay+LED), 44 mA maximum (Buzzer+Relay+LED) at 12/24 VDC
• Relay Output: 1A @ 30 VDC or VAC, two form “C” contacts
• Tamper Output: 50 mA @ 30 volts DC or AC
• Detection System
• Mounting Height: 2.3m - 4.6m (7.5' - 15')
• Detection Range: Up to 2.4m (8')
• Dimensions (LxHxD): 177mm x 50mm x 45mm (7'' x 2'' x 1.8'')
• Weight: 0.15Kg (0.3lb)
• Colour: White or Black
• Environmental
• RFI Immunity: 30 V/m from 10MHz to 2GHz
• Operating & Storage Temperature: -20°C to 60°C (-4°F to 140°F)
