Is the magnetic door lock weather resistant?

No, it is not. Check these waterproof maglocks.

Does this electromagnetic lock have an auto-lock feature?

Yes, it locks automatically once power is restored.

Can this be used for commercial purposes?

Absolutely. This kit can be installed in commercial buildings or businesses.

What type of doors is the door magnetic lock compatible with?

This maglock can be used with wood, metal, or glass doors (with the proper brackets).

300 lbs Magnetic door lock with button release Kit - FPC-7315

300lbs Indoor Electromagnetic Door Lock with Push to Exit Button Kit for Access Control

Indoor Maglock Installation (VIS-ML300LED, VIS-ML600LED, VIS-ML1200LED) - FPC Security

300lb magnetic door lock with LED Sensor VIS-ML300LED

indoor magnetic lock with LED status indicators, for access control systems VIS-ML300LED

Z and L bracket for 300 lbs magnetic door locks dimensions - VIS-ZL300

touchless exit button with LED indicators for access control systems. VIS-7013 VISIONIS

Time delay touchless exit button with LED indicators for access control systems. VIS-7013 VISIONIS

Looking for something slightly different? Check out these variations:

This PRODUCT has a 3 YEAR warranty with full access to tech support in the USA!

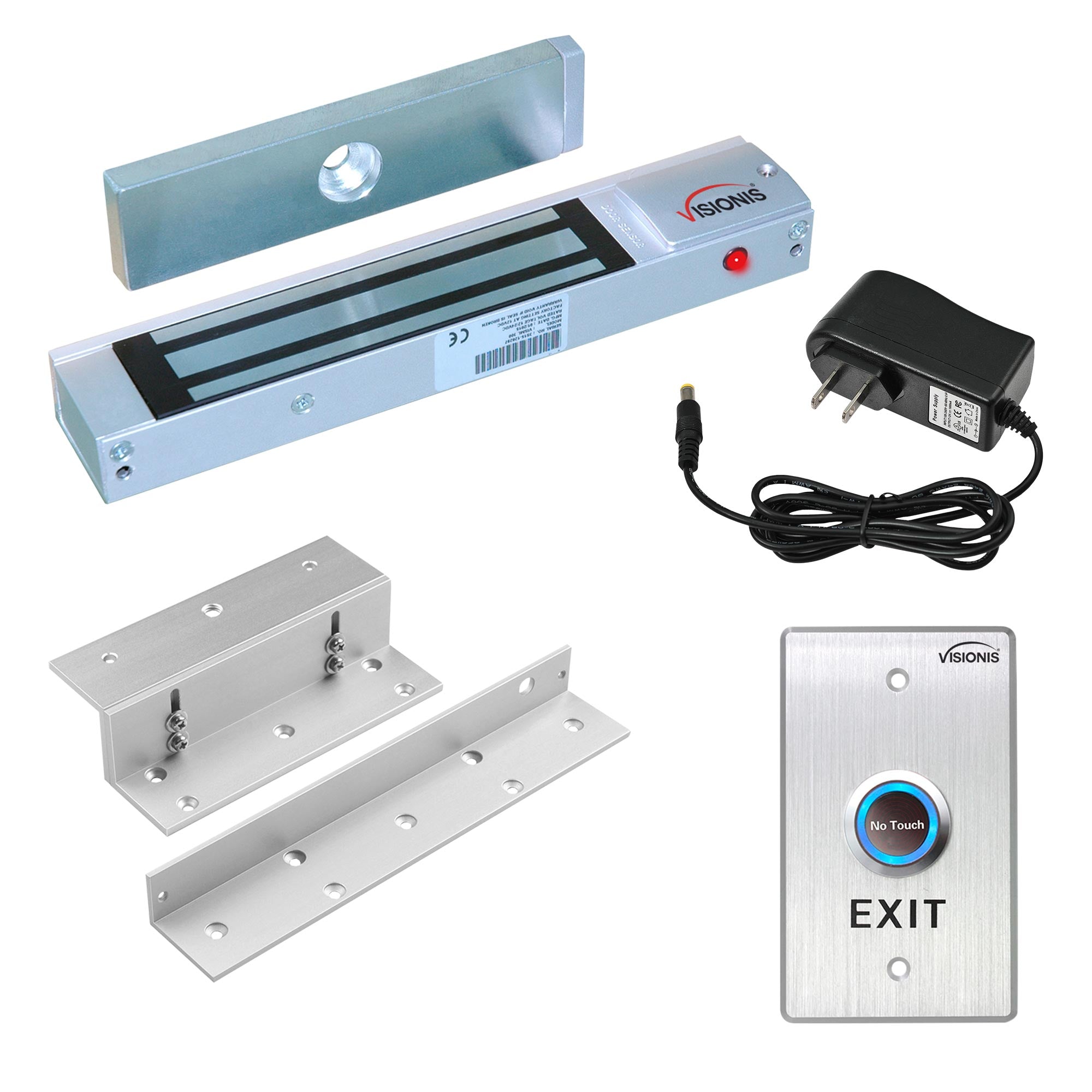

Kit Includes:

(1)

VIS-ML300LED: 300lbs Indoor Electromagnetic Lock

VIS-ZL300: L and Z Bracket for 300lbs Electromagnetic Lock

VIS-7013: Indoor Stainless Steel No Touch Request to Exit Button with Time Delay Standard Size with LED Light NC COM and NO Outputs

VIS-CP200: 12 Volt 2Amp Power Supply Transformer, UL Listed

Description

What is the holding force of this maglock?

This maglock provides 300 lbs of holding force.

Attention Notes:

This Bundle might not be all you need for your install please check all your specs accordingly before you purchase. Please ask any questions that you might have before ordering.

Characteristics

Model VIS-ML300LED:

Voltage Input: 12 VDC / 24 VDC
Current Draw: 12V / 300mA ; 24V / 150mA (±5%)
Holding Force: Up to 300 lbs (136 kg)
Anti-Rust Surface Treatment: Blue Zinc Plating
Operating Temperature: 0~55° C ( 32~131° F)
Operating Humidity: 0~95% ( non condensing)
Weight ( Magnet): 0.6 kg (±1%)
Dimensions: Magnet - (L)210x(W)35x(T)21 mm Armature - (L)130x(W)33x(T)11 mm
Green/Red LED Indication for EM Lock Status

Model No. VIS-ZL300:

L and Z bracket for 300 lbs electromagnetic lock

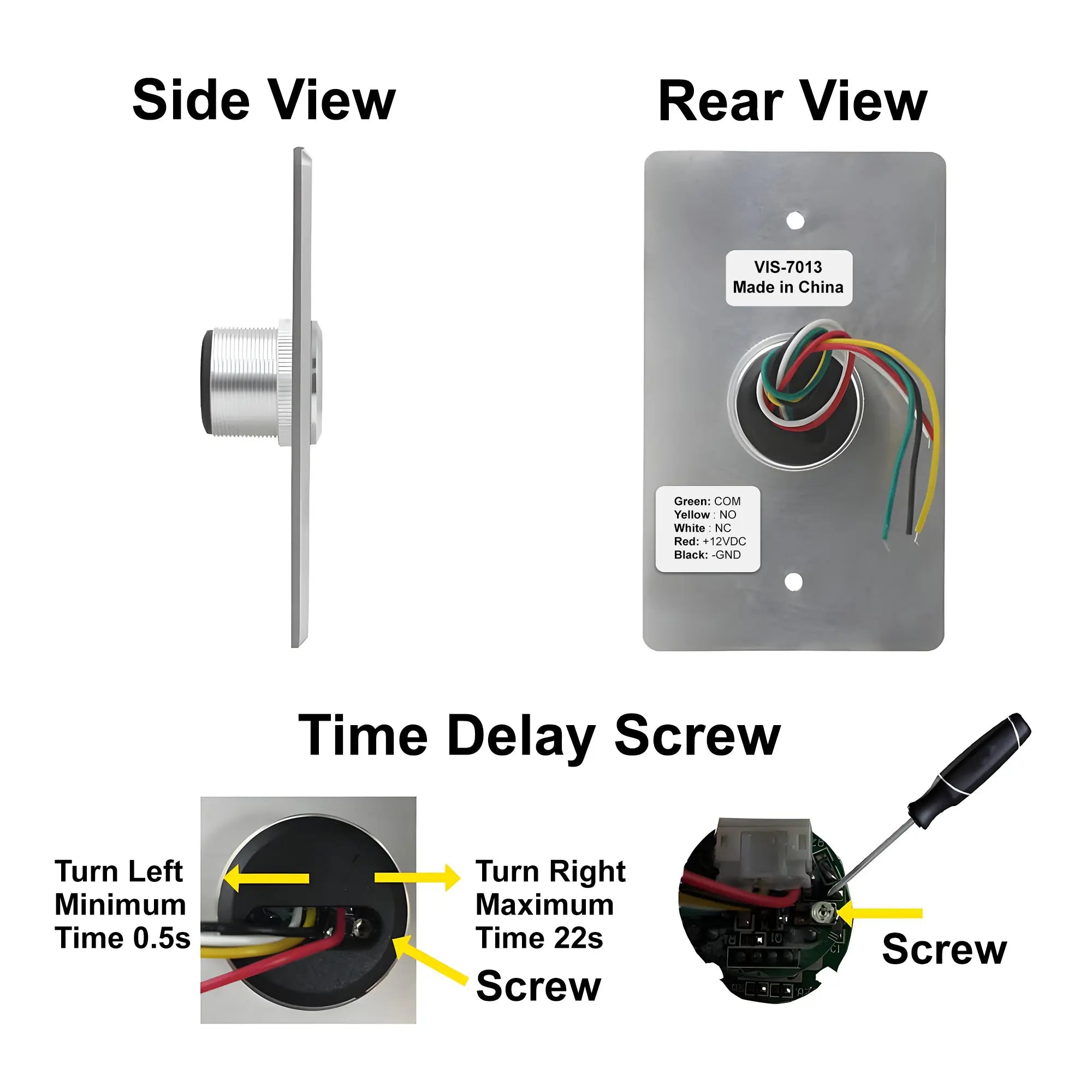

Model No. VIS-7013:

Contact Rating: 12-24V, 3A
Output Contact: NO/NC/COM
Detection Range: 5-15cm (1.96 - 5.90in.), Adjustable
Power: 12VDC or 24VDC

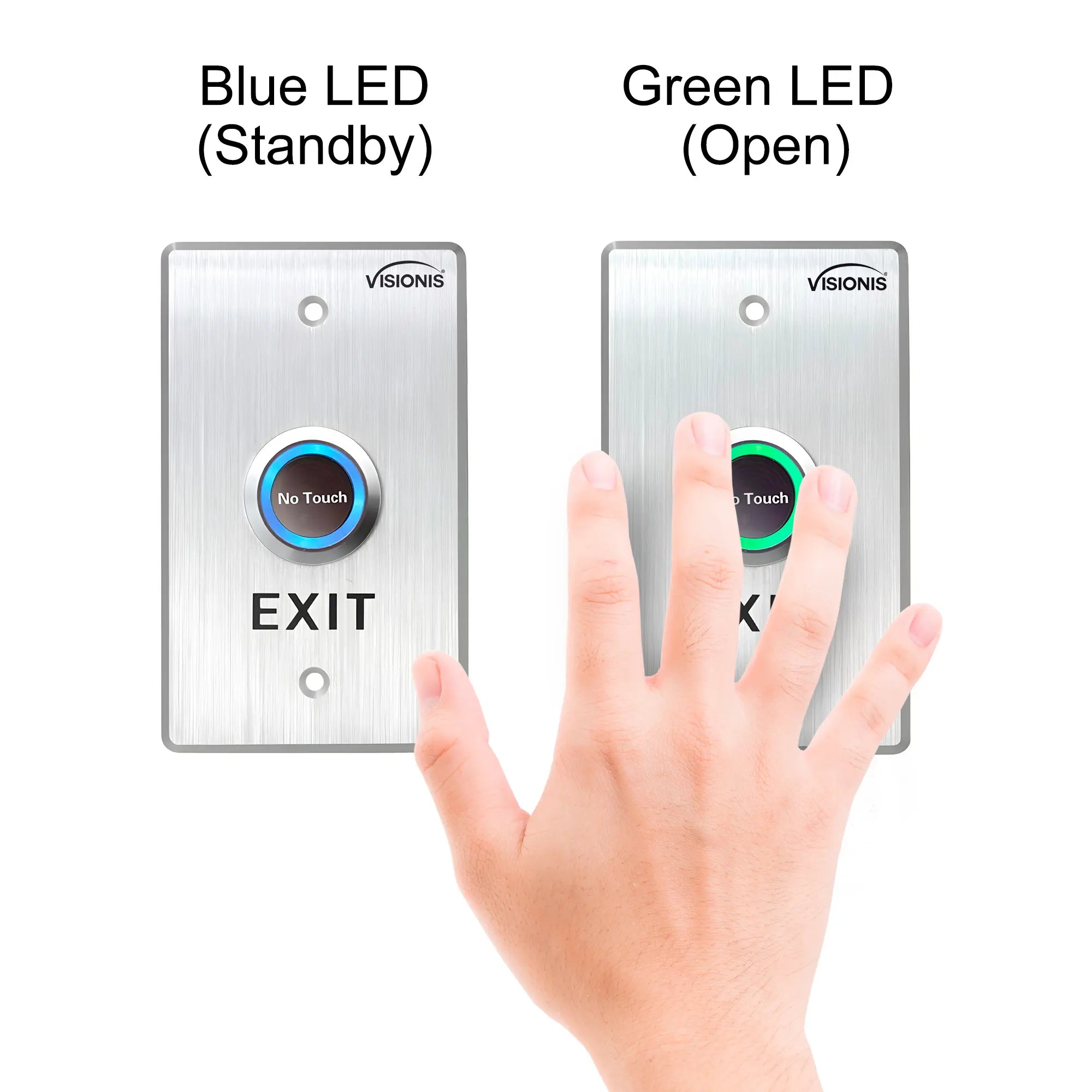

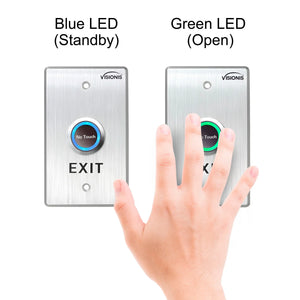

LED Color: Blue (Stand by Mode), Green (Active/Open Mode)
Time Delay: 0.5~22s
Panel: 4mm (0.15) Thick Aluminium Alloy (CNC)
Suitable for: Hollow Door
Mechanical Life: 100.000 tests
Operating Temperature: -20°C~+55°C (14°F-131°F)
Operating Humidity: 0-95% (relative humidity)
Weight: 0.105kg

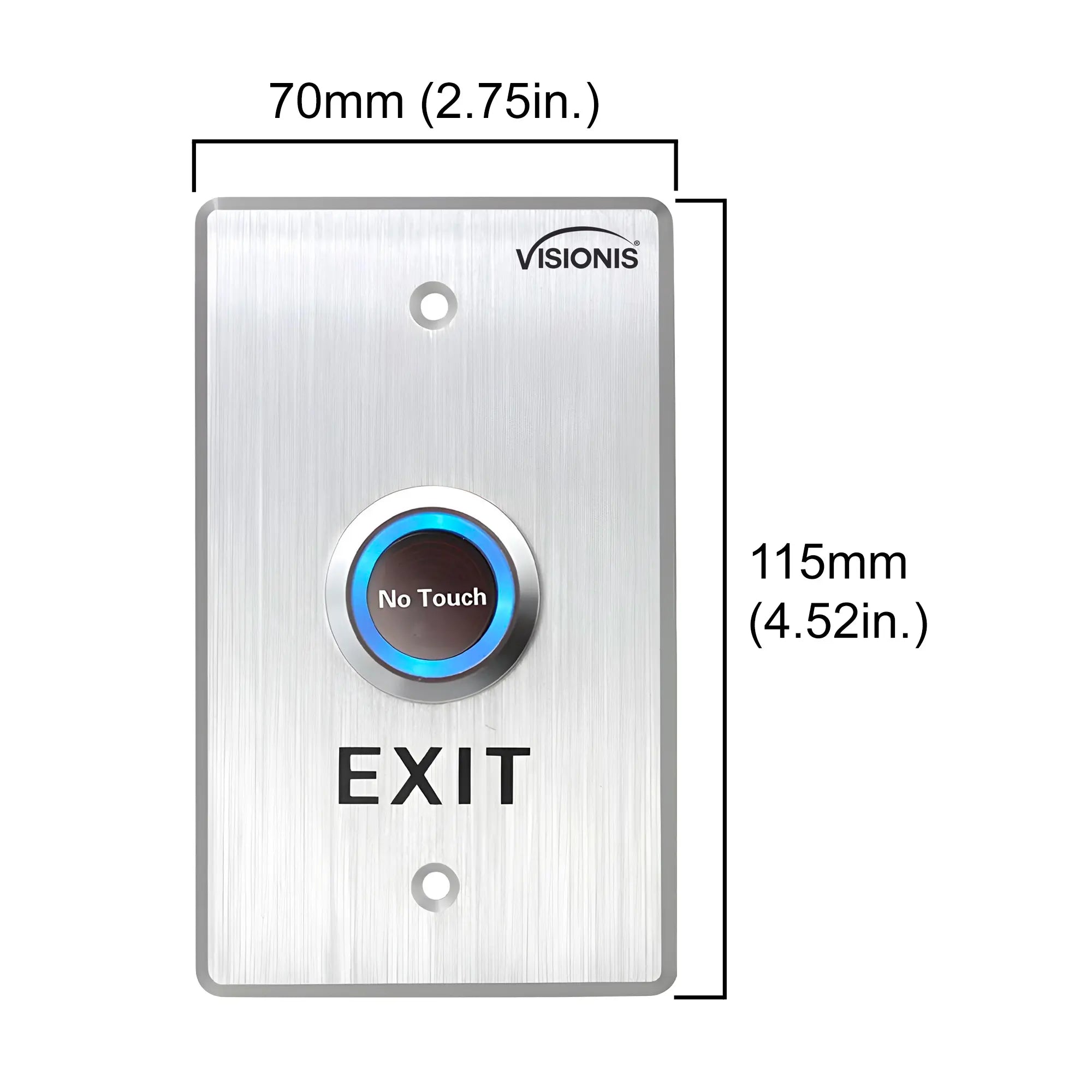

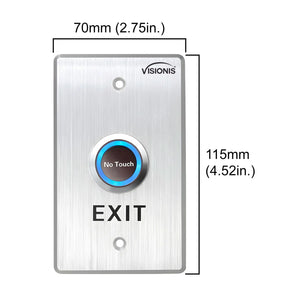

Dimensions: 115L × 70W × 25H mm - 4.52L x 2.75W x 0.98H in.

Model No. VIS-CP200:

Cable Length: 1.2 meters (4 feet)
Input Voltage Range: AC90V-264V
Input Frequency Range: 50Hz-60Hz
Output Voltage Range: DC12V+/-5%
Output Current: 2A
Output Power: 24 Watts
Output Ripple&Noise: ≤46MV
Output Efficiency: ≥79%
Environment Operating: -30°C~45°C 20%~90%RH
Environment Storage Temp.: -40°C~85°C 10%~95%RH
Product Dimension: 87*36.5*70mm (3.42x1.43x2.75in.)
Product Weight: 116g
Certificate: UL, CE, RoHS, FCC

Description

What is the holding force of this maglock?

This maglock provides 300 lbs of holding force.

Attention Notes:

This Bundle might not be all you need for your install please check all your specs accordingly before you purchase. Please ask any questions that you might have before ordering.

Product FAQs

Is the magnetic door lock weather resistant?

No, it is not. Check these waterproof maglocks.
Does this electromagnetic lock have an auto-lock feature?

Yes, it locks automatically once power is restored.
Can this be used for commercial purposes?

Absolutely. This kit can be installed in commercial buildings or businesses.
What type of doors is the door magnetic lock compatible with?

This maglock can be used with wood, metal, or glass doors (with the proper brackets).
Does this kit come with a remote?

No, it doesn't. Check out our Wireless Remote “Buzz In” Kits.
What is the power source for the magnetic door lock?

We recommend using a 12/24V, 0.5A power supply.
Does it have an adjustable time delay?

No, it doesn’t. However, you can add an exit button with a time delay, such as the VIS-7100 or the VIS-7013.

Download Datasheets and Manuals of this product

FPC-7312, FPC-7315, FPC-7318, FPC-7321, FPC-7324, FPC-7327

Installation Diagram

VIS-ML300LED

VIS-ZL300

Datasheet

VIS-7013

LET US HELP YOU WITH YOUR PURCHASE

Feel free to contact our dedicated support team if you have any questions or if you're ready to place an order.

I Need Help

Visionis by Visionis

Indoor Magnetic Lock VIS-ML300LED 300lbs For In Swinging Door With VIS-7013 No Touch Push To Exit Button With Timer NC, COM And NO Outputs For Access Control, 2 Amp Power Supply - FPC-7315 Visionis

Translation missing: en.products.product.sku:FPC-7315

UPC Code: 750958783400 Weight: 6.0 lb

Regular price: $87.66
Sale price: $87.66
Regular price

Shipping calculated at checkout.

Out of Stock

Quantity:

Phone Life-Time Technical Support

30-Day No Questions Return Policy

*Free Shipping within the USA

Contact an Expert

NOTE

Order Before 3:00pm EST on a week day and your order will be shipped out the same day

*Free shipping within the USA

Including Puerto Rico, Hawaii and Alaska

ATTENTION:

Before purchasing, it is recommended that the customer checks with their local fire authority to see if there is any additional product they may need in order to comply with the local fire codes. We are not responsible for the improper installation of our product(s) or any type of fees that can be incurred by not complying with your local fire authority.
