Are these magnetic locks suitable for outdoor gate installations?

Yes, both the VIS-SS800-G and VIS-SS1500-G are designed for outdoor use and feature waterproof construction, making them ideal for swing or slide gate applications in residential, commercial, or industrial settings.

Can these maglocks be powered by both 12VDC and 24VDC?

Yes. These models support dual voltage (12VDC or 24VDC) for flexible integration with most access control systems or power supplies.

What happens if there is a power outage?

These maglocks are fail-safe, meaning the lock will release automatically when power is lost. This is a safety feature, especially for emergency exits.

Can I use these locks with access control systems like keypads or card readers?

Absolutely. These magnetic locks are fully compatible with most access control devices, including keypads, RFID card readers, and remote control systems. They integrate seamlessly into new or existing setups for enhanced security.

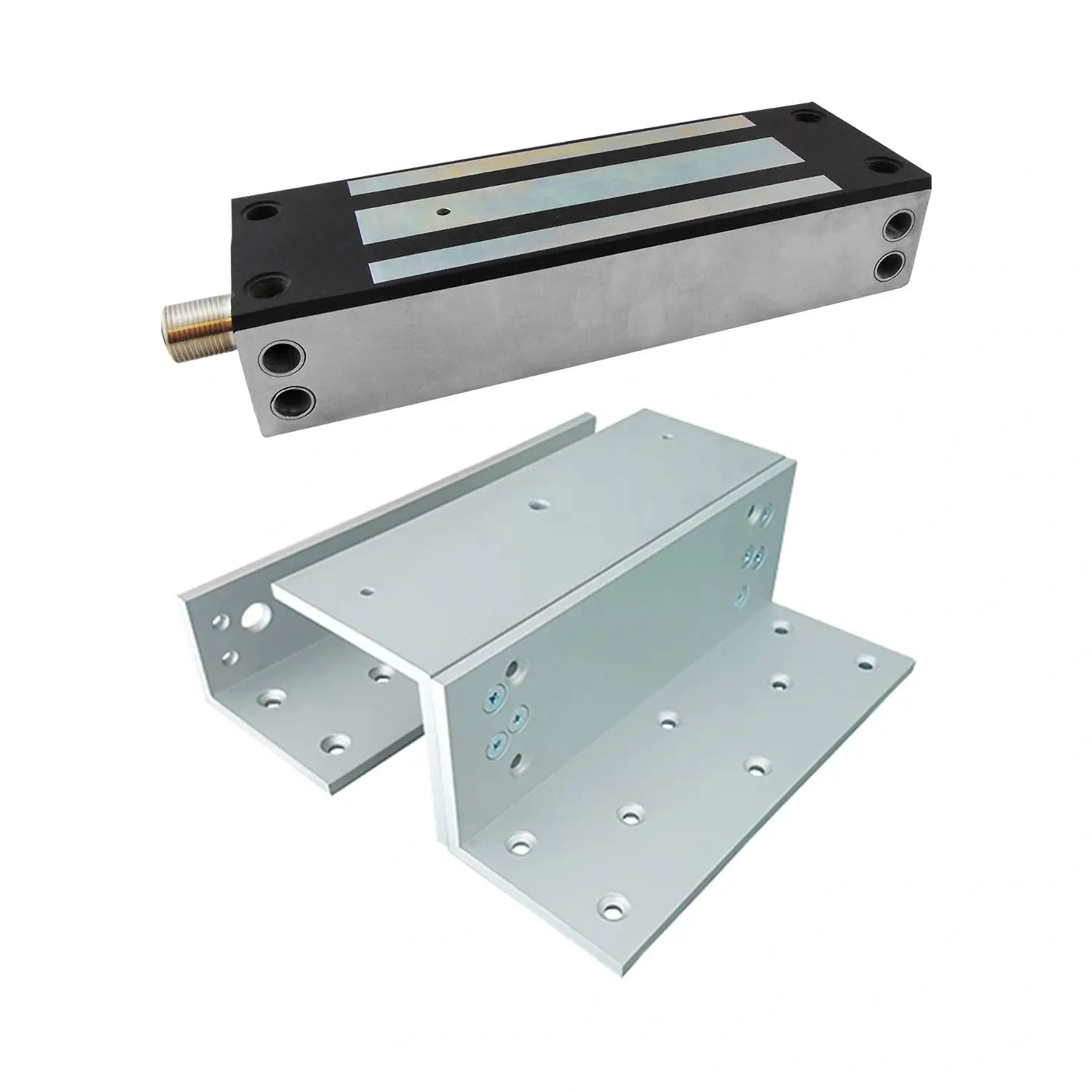

Gate Magnetic Door Lock with 1500 lbs + L and Z Bracket - FPC-5701-B Visionis

waterproof lock for outdoor gate VIS-SS800-G, VIS-SS1500-G unboxing

1500lbs Outdoor waterproof lock for outdoor gate - VIS-SS1500-G Visionis

weatherproof lock for outdoor gate 1500 lbs dimensions - VIS-SS1500-G

weatherproof lock for outdoor gate 1500 lbs - VIS-SS1500-G

L and Z Bracket for VIS-SS1500-G Outdoor 1500lbs Maglock for Inswining Application VIS-ZL-SS1500

Looking for something slightly different? Check out these variations:

This PRODUCT has a 3 YEAR warranty with full access to tech support in the USA!

Kit Includes:

(1)

VIS-SS1500-G: 1500 lbs Out Door and Gate Electromagnetic lock

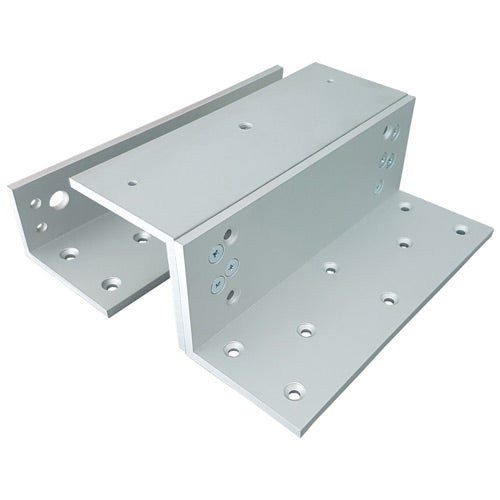

VIS-ZL-SS1500-G: L and Z Bracket for VS-SS1500-G Outdoor 1500lbs Maglock for Inswining Application

Description

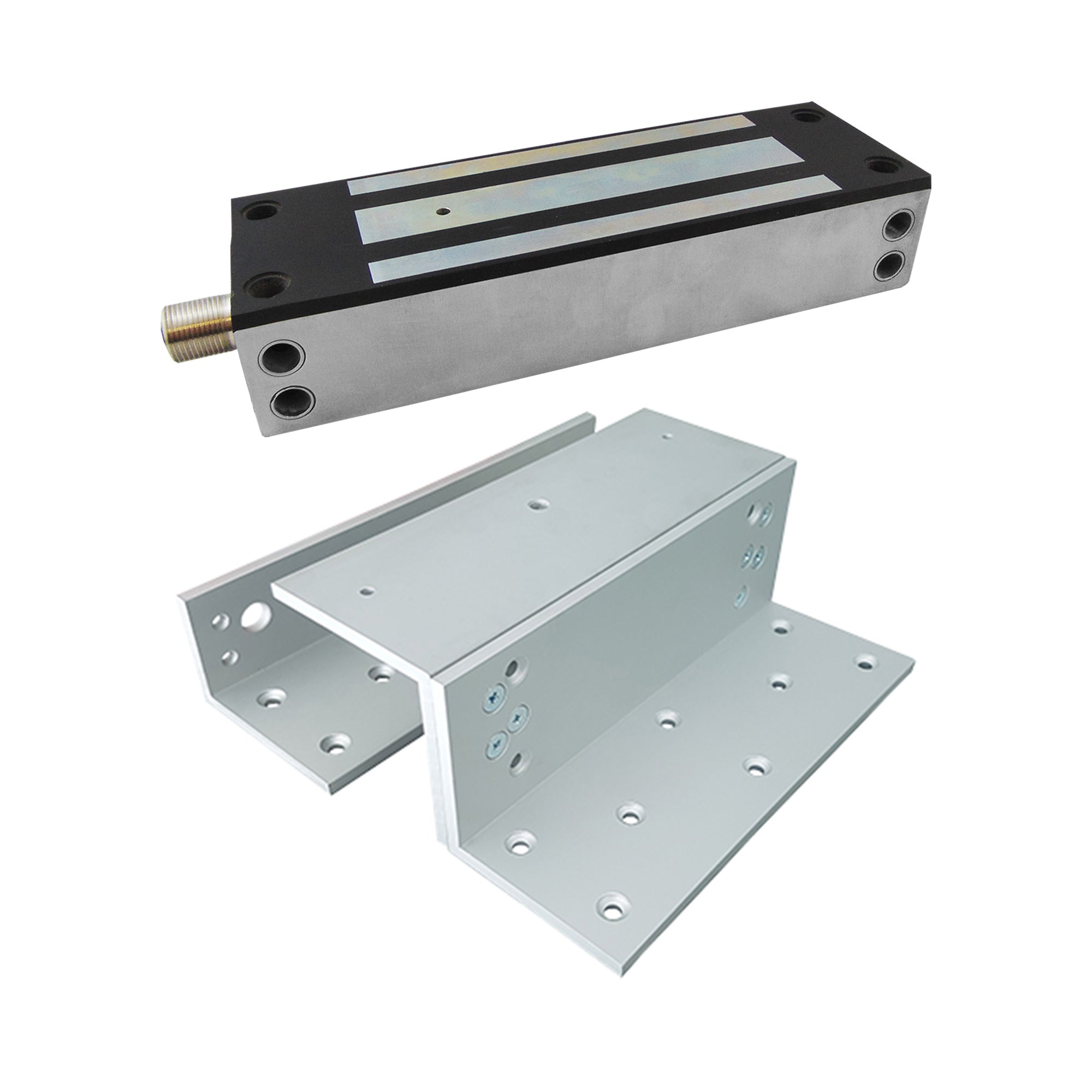

The FPC-5701-B gate maglock kit includes the VIS-SS1500-G outdoor magnetic door lock and an LZ bracket designed for inswinging doors or gates. Built for all weather conditions, this maglock is engineered specifically for outdoor use.

Ideal for gates and other exterior applications, this lock provides 1,500 lbs of holding force to keep your door securely closed at all times. It’s made to withstand harsh environmental elements while maintaining reliable performance.

These types of magnetic locks are commonly used in outdoor and industrial settings where durability and constant security are essential.

Characteristics

Model No. VIS-SS1500-G:

Voltage Input: 12 VDC / 24 VDC
Current Draw: 12V / 450mA ; 24V / 220mA (±5%)
Holding Force: Up to 1500 lbs (680 kg)
Hall Effect Contact : 28 VDC, 0.2A, 5W
Anti-Rust Surface Treatment: Blue Zinc Plating
Operating Temperature: 0~55° C (32~131° F)
Operating Humidity: 0~95% (non condensing)
Weight (Magnet): 4.5 kg (±1%)
Dimensions:
Magnet - (L) 230x(W)72x(T)48 mm
Armature - (L) 200x(W)70x(T)16.5 mm

Description

The FPC-5701-B gate maglock kit includes the VIS-SS1500-G outdoor magnetic door lock and an LZ bracket designed for inswinging doors or gates. Built for all weather conditions, this maglock is engineered specifically for outdoor use.

Ideal for gates and other exterior applications, this lock provides 1,500 lbs of holding force to keep your door securely closed at all times. It’s made to withstand harsh environmental elements while maintaining reliable performance.

These types of magnetic locks are commonly used in outdoor and industrial settings where durability and constant security are essential.

Product FAQs

Are these magnetic locks suitable for outdoor gate installations?

Yes, both the VIS-SS800-G and VIS-SS1500-G are designed for outdoor use and feature waterproof construction, making them ideal for swing or slide gate applications in residential, commercial, or industrial settings.
Can these maglocks be powered by both 12VDC and 24VDC?

Yes. These models support dual voltage (12VDC or 24VDC) for flexible integration with most access control systems or power supplies.
What happens if there is a power outage?

These maglocks are fail-safe, meaning the lock will release automatically when power is lost. This is a safety feature, especially for emergency exits.
Can I use these locks with access control systems like keypads or card readers?

Absolutely. These magnetic locks are fully compatible with most access control devices, including keypads, RFID card readers, and remote control systems. They integrate seamlessly into new or existing setups for enhanced security.
Does this lock work in cold or hot climates?

Absolutely. The operating temperature range is from 0°C to 55°C (32°F to 131°F), making it ideal for diverse outdoor environments.

Download Datasheets and Manuals of this product

VIS-SS1500-G

VIS-ZL-SS1500-G

LET US HELP YOU WITH YOUR PURCHASE

Feel free to contact our dedicated support team if you have any questions or if you're ready to place an order.

I Need Help

Visionis by Visionis

Outdoor and Gate Magnetic Door Lock with 1500 lbs (682 kg) Holding Force VIS-SS1500-G. Waterproof. 12 VDC / 24 VDC + L and Z Bracket - FPC-5701-B Visionis

Translation missing: en.products.product.sku:FPC-5701-B

UPC Code: 614961171893 Weight: 15.0 lb

Regular price: $190.43
Sale price: $190.43
Regular price

Shipping calculated at checkout.

In Stock

Quantity:

Phone Life-Time Technical Support

30-Day No Questions Return Policy

*Free Shipping within the USA

Contact an Expert

NOTE

Order Before 3:00pm EST on a week day and your order will be shipped out the same day

*Free shipping within the USA

Including Puerto Rico, Hawaii and Alaska

ATTENTION:

Before purchasing, it is recommended that the customer checks with their local fire authority to see if there is any additional product they may need in order to comply with the local fire codes. We are not responsible for the improper installation of our product(s) or any type of fees that can be incurred by not complying with your local fire authority.
